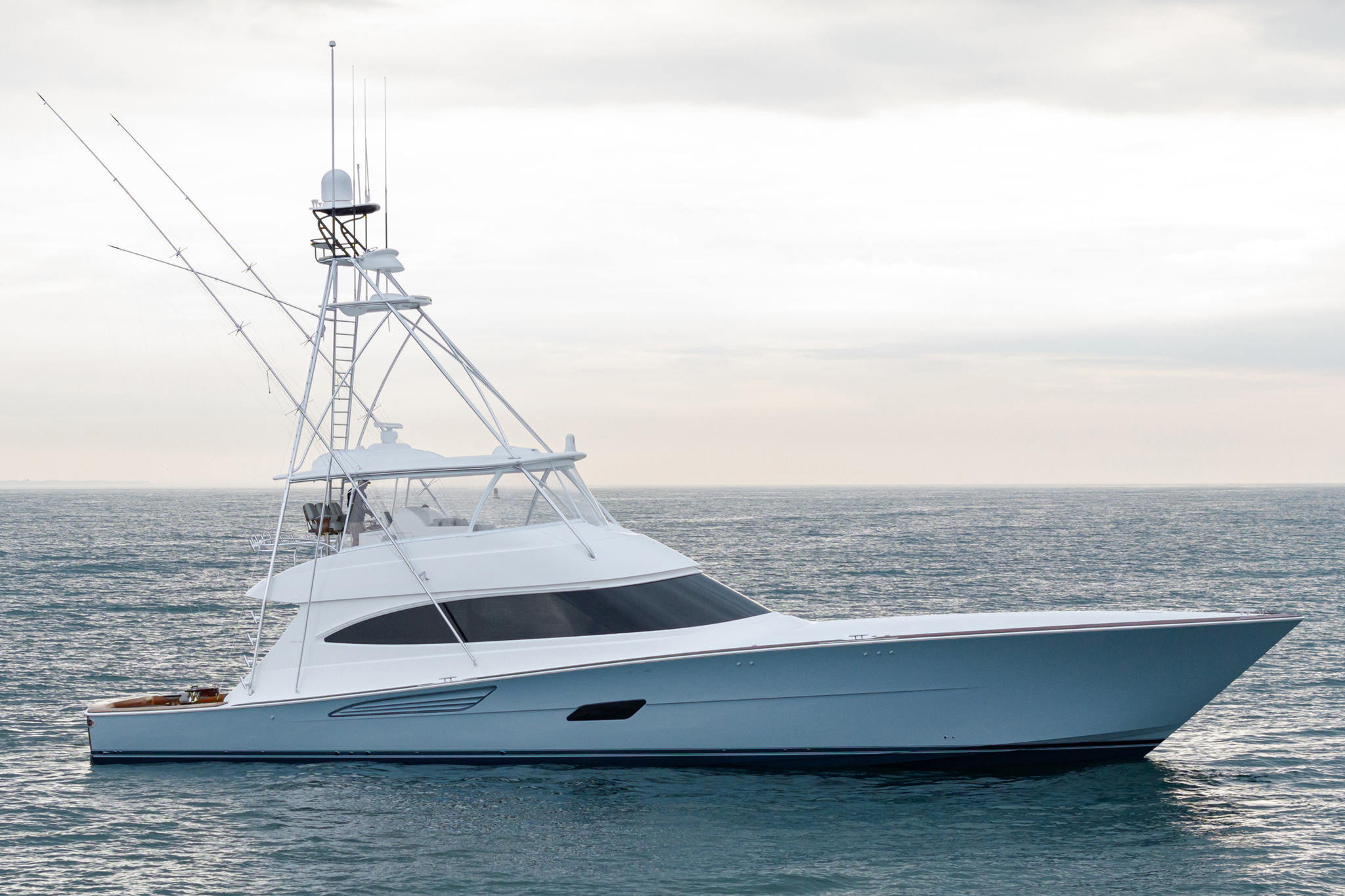

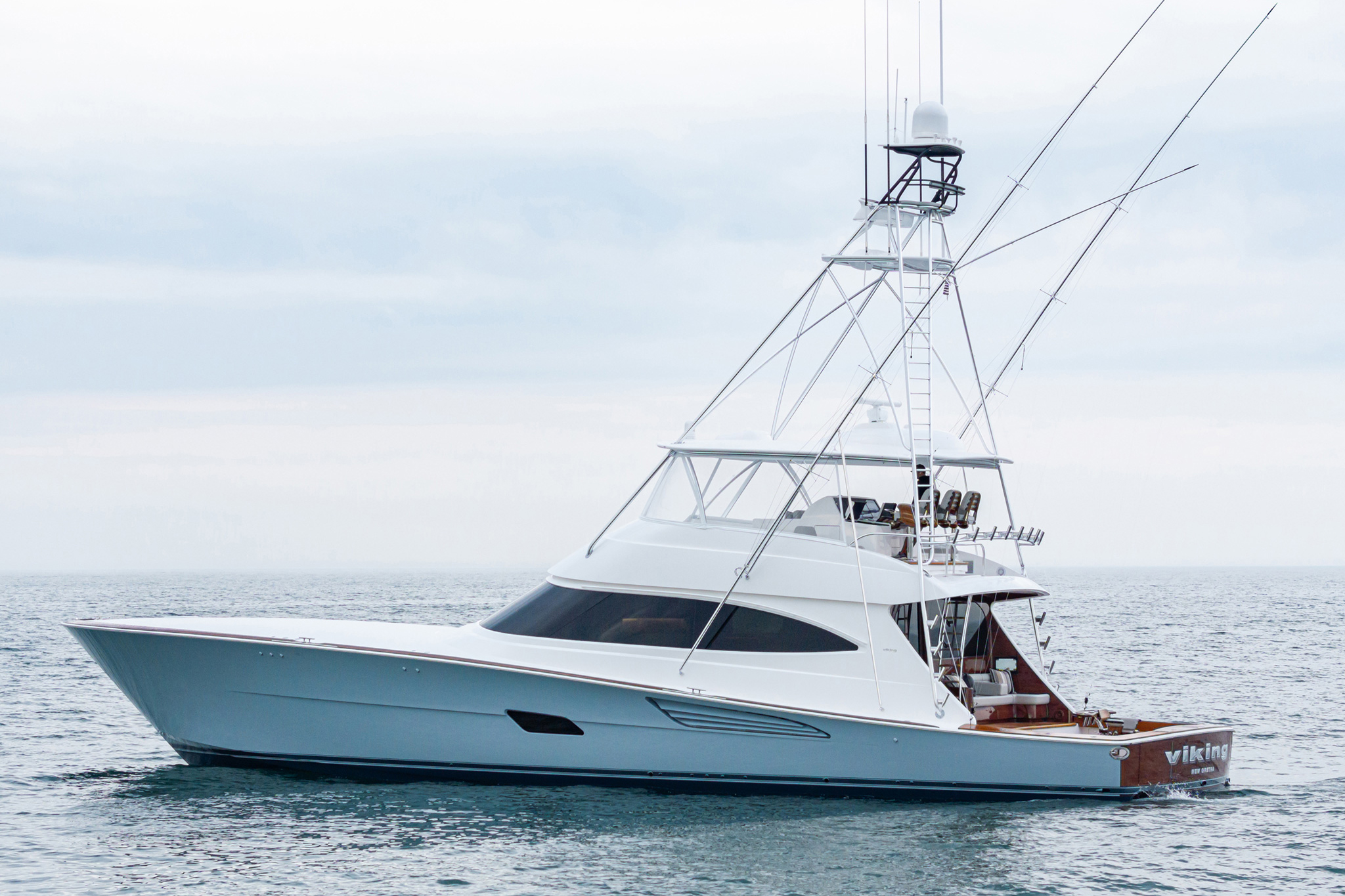

VIKING 82 CONVERTIBLE

CONSTRUCTION

• Ablative/Copolymer antifouling bottom paint (2 coats), using “Interlux Interprotect epoxy primer system”
• Awlgrip engine room, lazarette, forward bilge and anchor locker for enhanced visibility and easier maintenance
• Blister resistant modified vinyl ester resin in entire hull skin
• Custom blended polyester resin used in structural laminates, topsides, bridges, and hardtops
• DuPont high gloss polyurethane boot stripe
• Fiberglass holding tank with dockside and overboard pump out
• Fiberglass side thru-hulls
• High performance isophthalic gelcoat npg superior gloss, flexibility and outstanding weathering characteristics
• Hull interior — isophthalic gelcoat top-coated with a durable high gloss polyurethane coating
• Hull — infused using Baltek end-grain balsa, Airex foam core with e-glass Carbon fibre hybrid laminates and custom modified epoxy resin
• Infused composite bulkheads – main engine room bulkhead, intermediate engine room bulkheads, and forward bulkhead
• Infused fiberglass fuel and holding tanks, with fibreglass baffles inside and balsa coring on sides for stiffness, sealed to hull with resin foam
• Laminated end-grain balsa core in hull sides and topsides
• Moulded fiberglass salon floor/engine room ceiling with foam core for acoustical and thermal insulation
• Stringers, fiberglass encapsulated foam
• Transducer location moulded into hull bottom

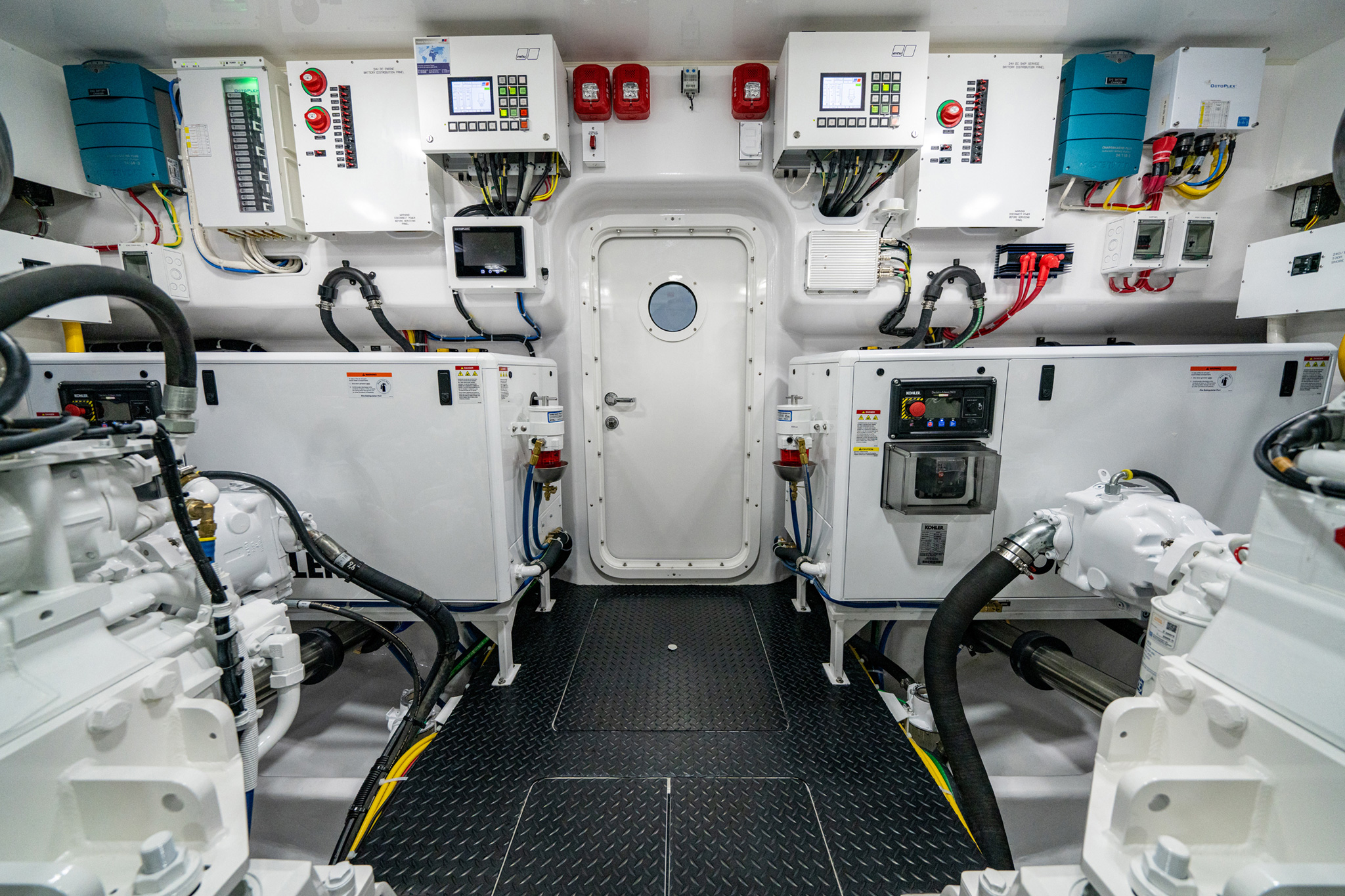

MECHANICAL

• Air conditioning — chilled water, 12 tons (two 6 ton units), zoned with reverse cycle heat for complete climate control throughout the interior and with individual temperature controls for staterooms and salon
• Bilge pumps with clean out pumps linked into monitoring system and connected to float = switches for automatic and manual operation
• Bow thruster hydraulic
• Electrosea Seastrong pumps for centralised seawater system
• Dual stage variable speed 110V AC freshwater system with on deck freshwater fill and cockpit dockside supply inlet with pressure reducing valve
• Fire suppression system, automatically and manually operated and tied into main engine and generator ignition systems with override
• Freshwater filter — paper
• Freshwater supply in engine room for general maintenance and cleaning
• Fuel and oil lines, flexible, steel reinforced USCG approved, aircraft type
• Fuel filters, Parker FBO series for main engine selections
• Fuel priming pumps for main engines, electric
• Fuel transfer and management system, 220V AC pump w/24V DC backup pump controlled through touch screen control panels
• Head discharge holding tank or direct overboard
• Hour metres on main engines and generator
• Hydraulic emergency bilge with manifold to forward, engineroom, and cockpit bilges
• Internal sea strainers for generator, and all other seawater pickups
• Mufflers – engine in-line type with surge tubes in engine room
• Mufflers — generators, gas/water separators
• Murray Ventilation Products, engine room ventilation system with thermostatically controlled supply and discharge fans for proper fresh air circulation and water intrusion suppression
• Murray Ventilation Products pneumatically controlled suppression system
• Oil changing system, gear type pump for main engines, transmissions, and generator with pump out line run to cockpit locked
• PEX plumbing, freshwater system with manifold system to isolate individual areas
• Propellers, Veem Interceptor class “S” pitch tolerance (ISO 484/2 and dynamic balancing), advance design cambered blade sections for optimum performance. Nibral alloy for maximum durability
• Racor fuel/water separator filters for generators. Clear bowl type, top loading for convenient replacing
• Rudders, stainless steel, composite rudder bearing with dripless seal laminated into hull
• Seacocks, composite, ball-type sea valves for all thru-hulls below the water line
• Seacocks, bronze, engine pick-ups and generator gas/ water separator
• Shafts — 2 Aquamet high-strength stainless steel, double-taper with machined keyway and custom thrust plate at main engine couplings
• Steering system, Optimus electric power steering
• Struts — thru-water, Nibral with composite bearings
• Tides Marine water lubricated dripless shaft seals with crossover water supply from both engines
• Trim tabs, with centre, port and starboard tabs recessed in transom, individual controls with fiberglass covers
• Water heater — single element, electric

ELECTRICAL

• 24V DC ship’s service throughout
• 240/110V AC power supply
• 110V outlet in engine room on aft bulkhead
• Anchor light/navigation lights
• Batteries, (3) independent 24V banks mounted in fiberglass storage boxes, maintenance free
• Battery chargers, (3) with thermal cutoff and switching system for complete integration
• Battery distribution panel with battery cutoff and charging system breakers
• Battery parallel system for main engines and generator start
• Bonded electrical system with ground plate
• Colour-coded, labelled and numbered wiring system with corresponding drawings
• Engine Room lights, DC LED w/AC backup and switch at engine room entrance
• Generators, Diesel — (2) 32 kW Kohler, user-friendly with electronic governing allowing voltage and electronic frequency control (R)
• Glendinning cablemaster (2) with 3 wire grounded cord
• Individual switching for shore (1), shore (2) or generator supply located at main salon panel
• Instrument panel lights for flybridge and main electric panel
• Lighting, overhead LED lights recessed in ceiling and rope style décor lights concealed by finished wood valances, 24V DC
• Magnetic switches for bilge lights
• Master electrical control provided via power distribution systems utilising a redundant Can Bus control for AC/ DC remote breaker electrical systems. Complete system control and monitoring provided by 2 integrated touch screen controls-(1) located at salon main entrance and (1) at the flybridge helm
• Receptacles, 110V duplex with GFCI throughout
• Voltage stabiliser isolation transformer combiner for more consistent, cleaner voltage

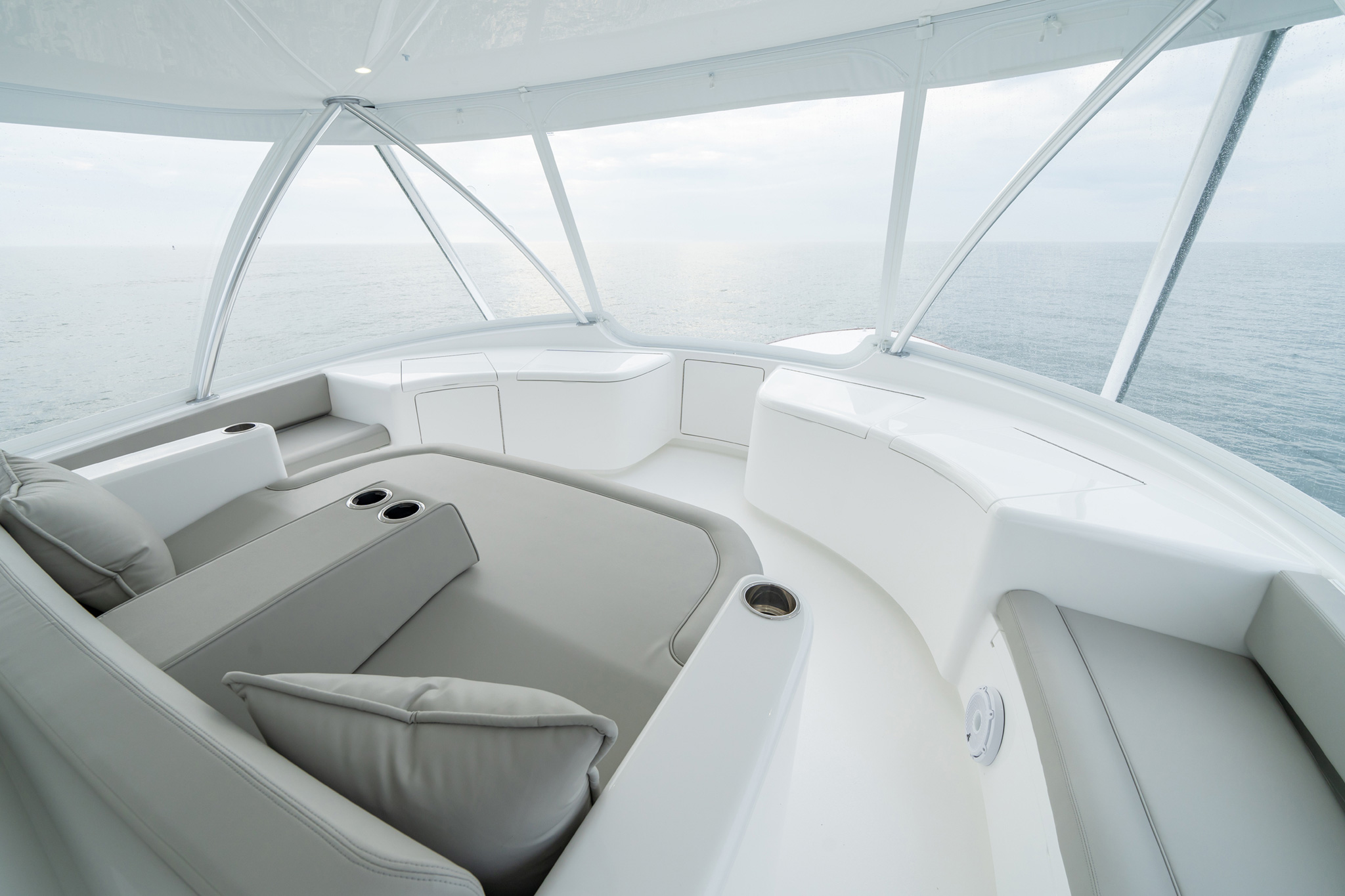

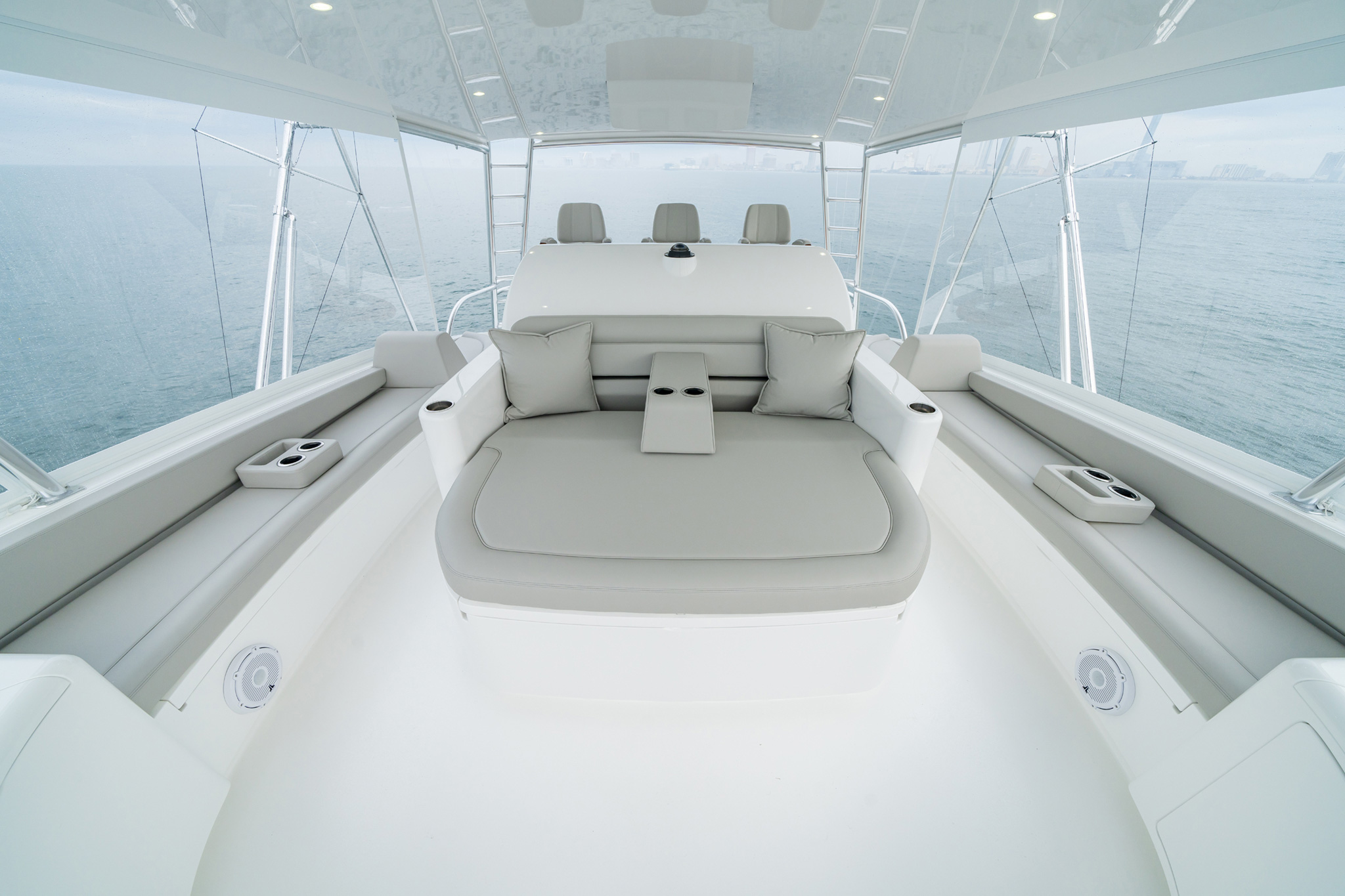

FLYING BRIDGE OPEN (STANDARD)

• Battery system dedicated to flybridge electronics with battery charger, located under bridge console
• Bridge installed without exposed fasteners

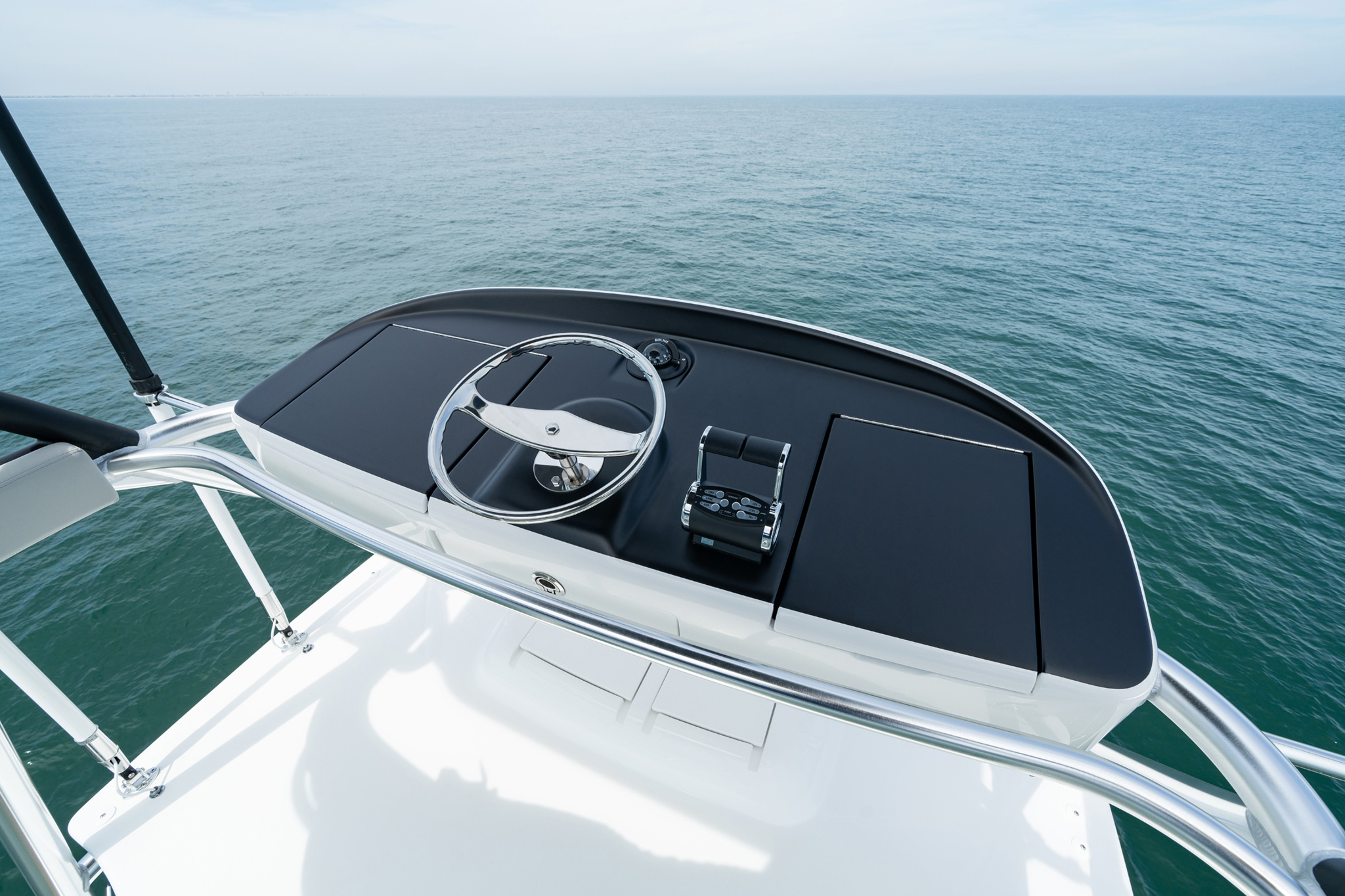

• Centre console walk-around helm with electronic storage in raised pod with additional storage below
• Centerline venturi cutout to maximise visibility
• Custom helm pod with single lever electronic controls with bow thruster control buttons and stainless steel steering wheel
• Depthfinder/sea temperature gauge — Furuno
• Electronic trolling valve controls with auto troll
• Extended overhang for extra room to move behind helm and companion seats with anodized aluminium aft railing
• Fire system control with automatic and manual discharge and override system located at console
• Freshwater outlet forward locker
• Freezer, dual top loading, forward for bait and food storage
• Handrail, powder-coated aluminium effectively positioned at helm console
• Helm and companion seats, 3 seats, wood, ladder back with 4” stainless pedestals and removable cushions and covers

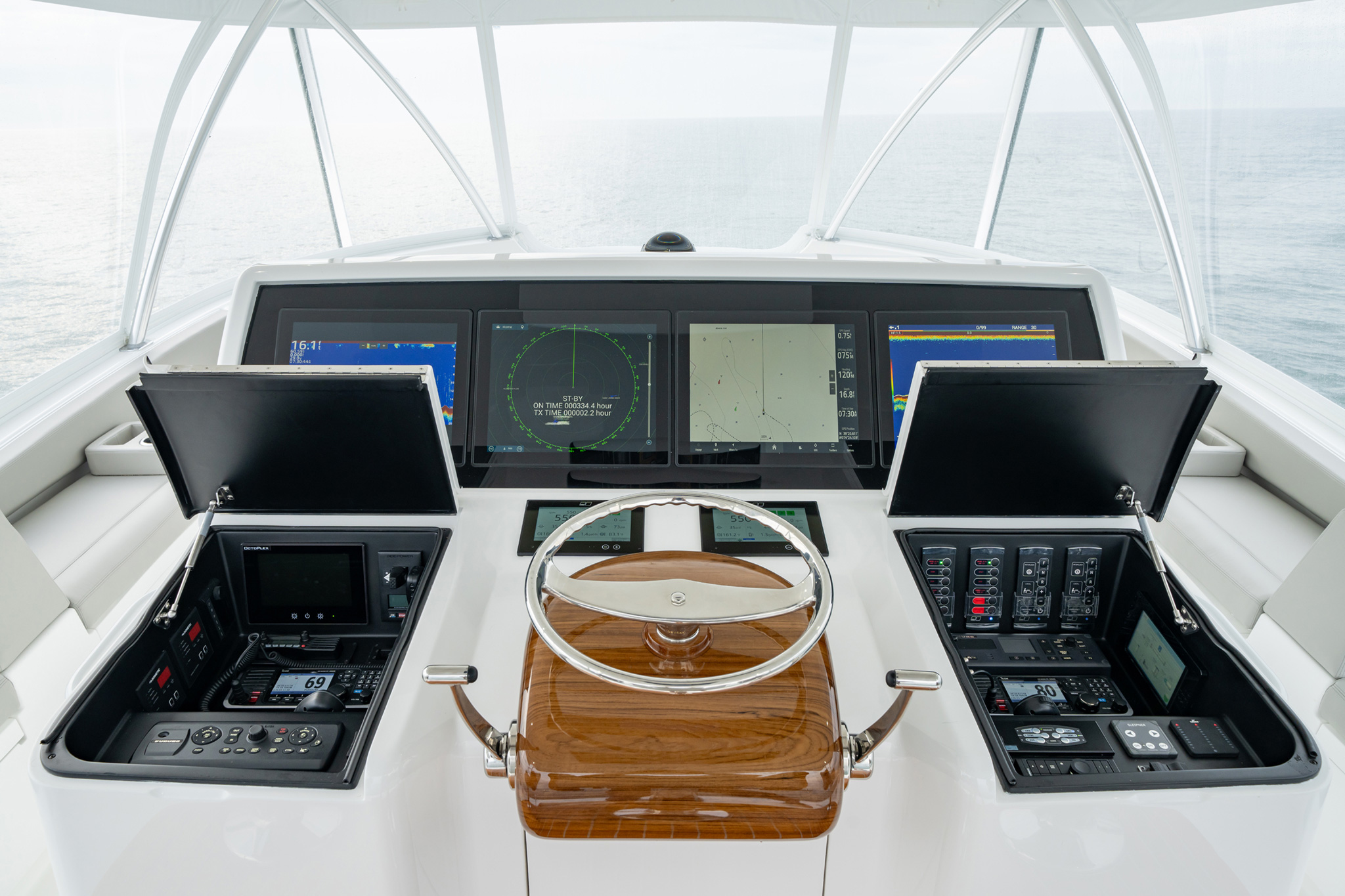

• Helm panel, black acrylic for flush-mounted electronics installation
• Instrumentation based on standard engine package, lighted with switches in radio box
• Lighted Ritchie compass, large and flush mounted on centerline and top of helm
• Lounge seating forward of helm with backrest air conditioning, freezer and storage below
• Lounge seating forward of helm with storage below
• Manual engine shutdown switches in radio box
• Nonskid deck for traction and durability
• Port and starboard cabinet at aft end of lounge seating with jump seat backrests
• Recessed radio port boxes with split lids, port and starboard side of console-painted satin black
• Refrigerated top loading drink box at starboard forward end of bridge
• Sink with spray head at port forward end of flybridge
• Speakers, flush mounted to aft ends of bridge
• Touch screen control monitor with audible and visible alarms: fire, engine room temperature, high bilge water, high exhaust temperature, generator and tank monitors as well as confirming correct system operation
• Trim tab control switch mounted at console
• Trumpet style air horns (2), mounted on forward flat section of radar pod
• Under helm access with lights and storage room area
• VHF radio with antenna and mounts — ICOM

FLYING BRIDGE ENCLOSED (OPTIONAL)

• 12V stereo
• Aft railing and flybridge ladder, aluminium
• Air conditioning with reverse cycle heat, temperature control and dehumidification mode
• Bow thruster control joystick
• Cabinetry and furniture manufactured of hardwood and veneers with furniture finish
• Carpeting
• Central vacuum unit with hose fittings
• Cocktail table — walnut, fixed pedestal mounted
• Companion seats, port and starboard jump seats and drawers underneath seats
• Custom polished stainless steel staircase from salon to enclosed flybridge
• Defoggers
• Fixed side and aft windows
• Forward control station with all necessary control switches, lighted instruments, engine controls and power assist steering and stainless steel steering wheel
• Hatch above helm chair
• Hatch in overhang with powder-coated ladder and access to hardtop
• Large under helm area for easy access and added storage
• LED flood lights, moulded into aft overhang, recessed
• Lighting, overhang tri colour (red, white and blue)
• L-shaped lounge on raised floor for better visibility and with storage underneath
• Moulded fiberglass seat on aft deck with removable cushions and storage underneath
• Overhead recessed LED lighting with dimmer switches
• Pod-style aft docking station with Palm Beach style single lever controls with bow thruster buttons and engine start/stop switches, located at port side of flybridge overhang
• Raised, wrap-around helm console with black ultra-leather surfaces and visor to reduce glare and access to all electronics components
• Refrigerator in place of refrigerated chill box
• Sliding door to aft deck, lockable
• Stidd helm chair, black, ultra-leather, adjustable with footrest
• Touch screen control monitor with audible and visible alarms: fire, engine room temperature, high bilge water, high exhaust temperature, generator and tank monitors as well as confirming correct system operation
• TV, HD flat screen on lift mechanism
• Upholstered overhead wiper box with switches mounted centerline
• Valances, upholstered
• Windshield and side windows curved safety glass, laminated
• Windshield wipers, electric with intermittent controls, washers

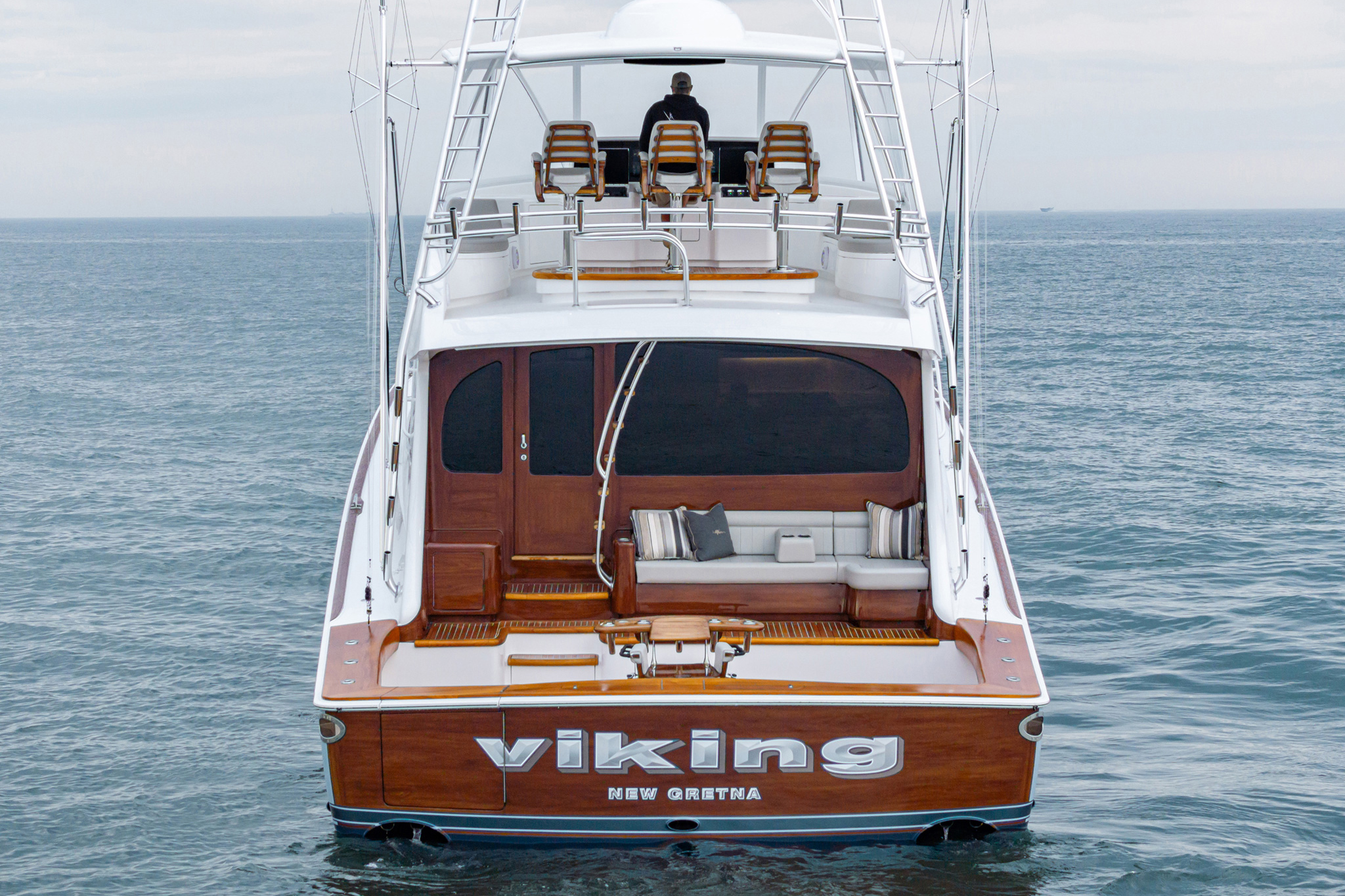

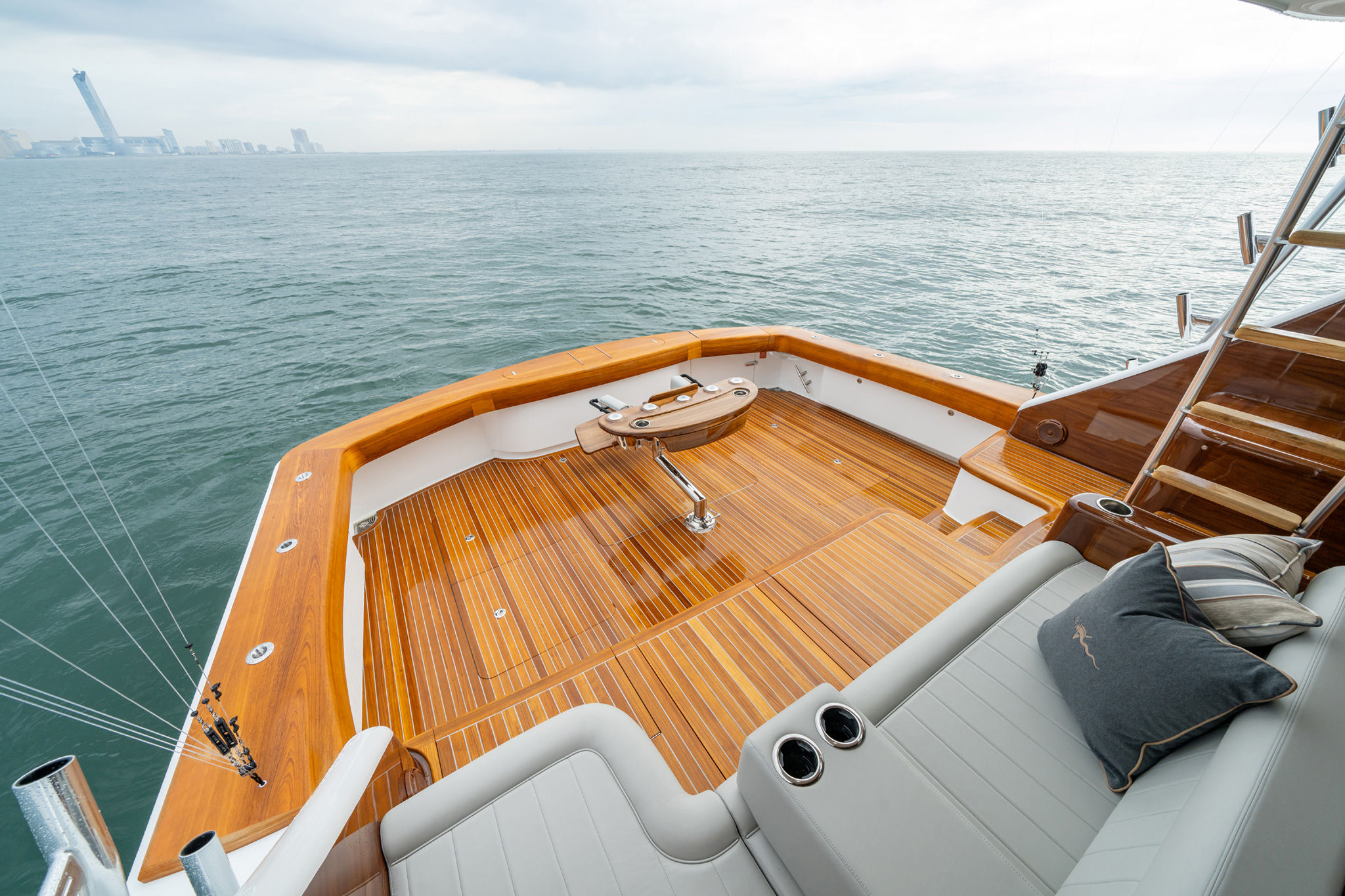

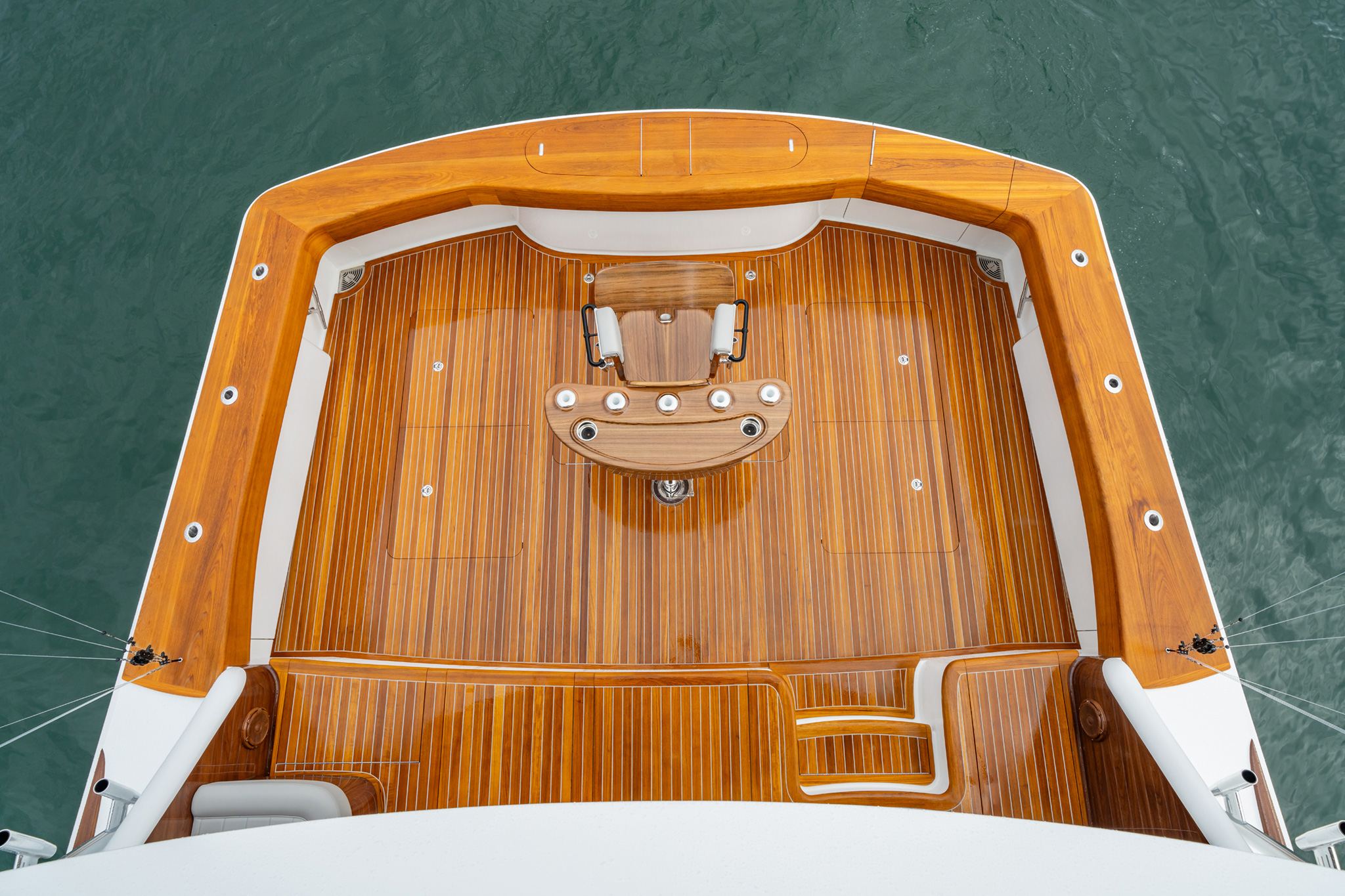

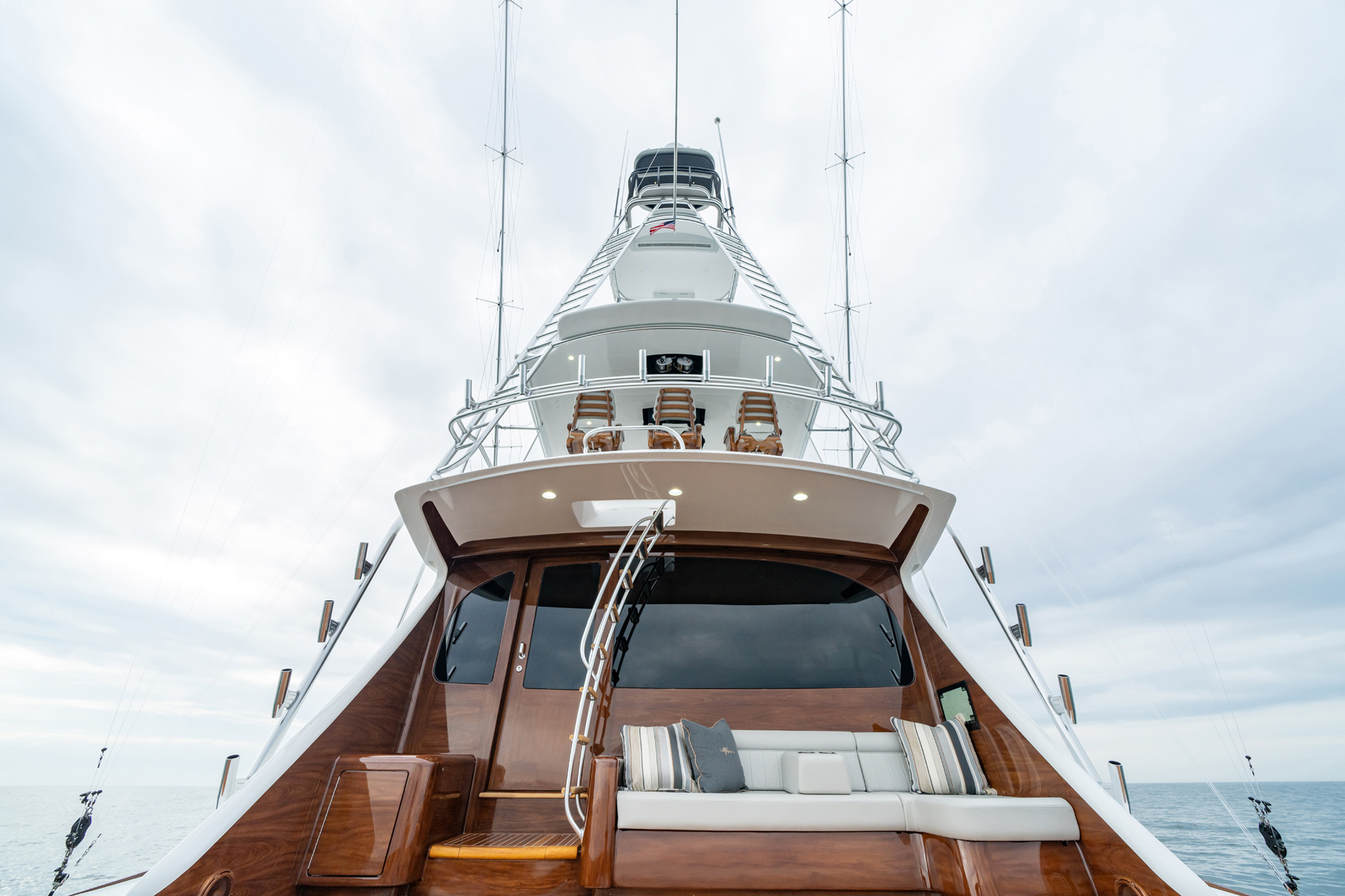

COCKPIT

• Boarding box, fiberglass with nonskid, lift up top and storage
• Dockside electric connection — (2) 100 amp/220V electric retractable
• Dockside water connection with pressure reducing valve in side locker
• Drop-in in deck storage boxes; (2) insulated fish boxes with pump out and drain plate with  large holes for easy pump-out cleaning for optional live well and (1) fishbox starboard with pump out and drain plate with large holes for easy pump-out and cleaning
• Engine Room access with door and ladder to engine room
• Extended flybridge overhang for shade
• Freshwater wash down with hose bib located in cabinet under gunwale port and starboard
• Gaskets for all lids and access doors
• Glendinning Cablemasters in forward port and starboard cabinets under port and starboard gunwales
• Grab Rails at cockpit haunch
• Indirect rope tri colour (red, white, blue) lighting under coaming
• Ladder to flybridge, one-piece, anodized aluminium with nonskid treads
• Laminated aluminium mounting plate in deck for fighting chair or table
• Lazarette hatch with access to steering, trim tabs, drain pumps for optional Seakeeper
• Lighting, recessed tri colour (red, white, blue) lights in flybridge overhang
• Live well in transom box without window and light
• Moulded non skid deck

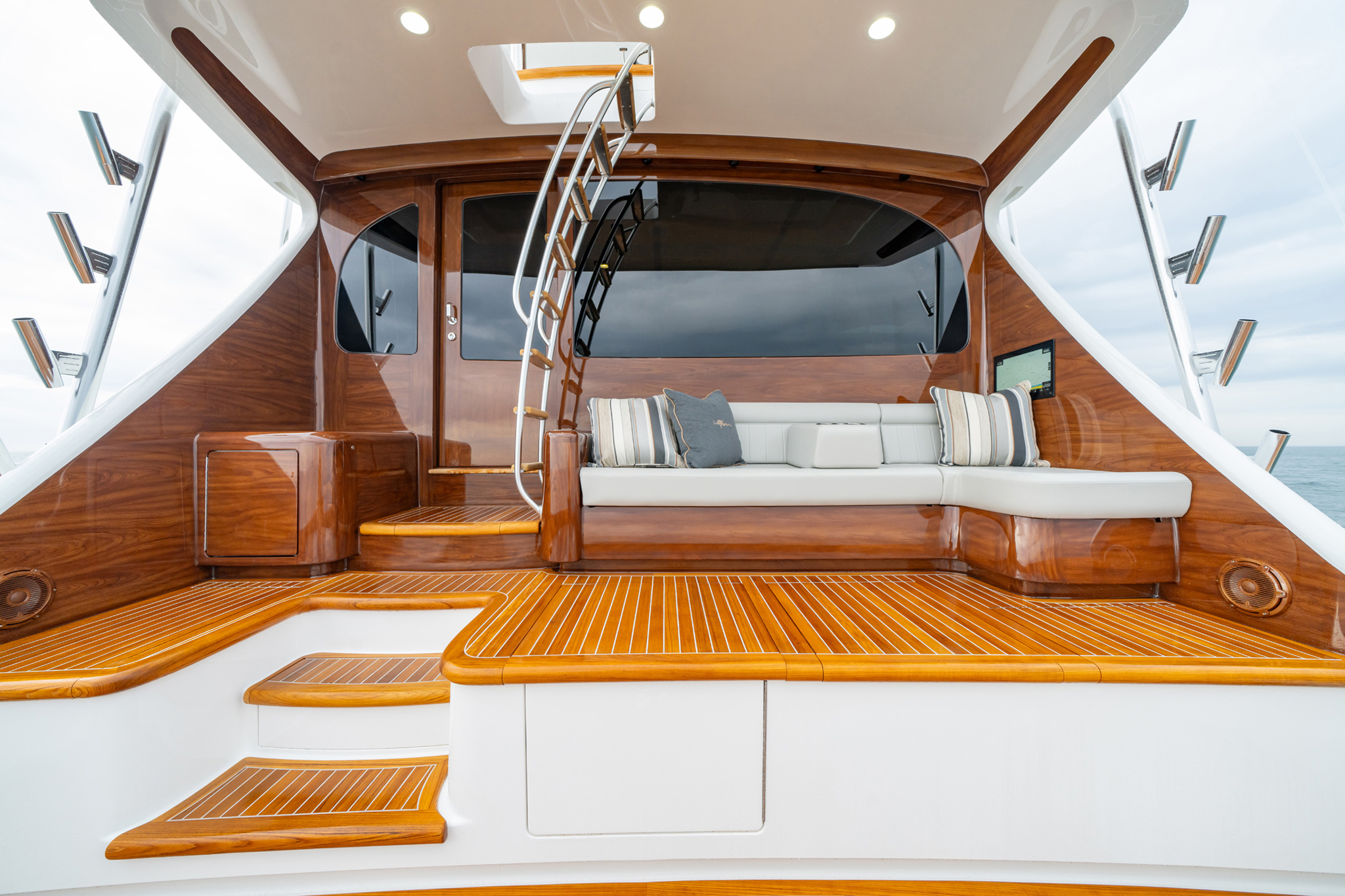

• Observation mezzanine with aft facing lounge seating with vinyl covered cushions, hinged seat with storage
• Recessed refrigerated chill box under mounted in mezzanine step for direct access from cockpit
• Refrigerated drink box under mounted in salon step for direct access from cockpit
• Reinforced recessed, stainless steel cleats and cornerhouse pipes
• Rod holders, (4) flush mounted
• Rounded cockpit coaming for comfort
• Seawater wash down, run off centralised seawater system
• Self bailing cockpit with large scuppers
• Side lockers under coaming with gaff storage
• Speakers tied into flybridge
• Split lids for fish boxes
• Stainless steel gas springs on all hatches and lids
• Straps with padding to secure engine room door and transom door and gate when open
• Transom swim steps at transom door
• Valve to fill freshwater tank from dockside inlet
• Walk-through transom door with lift gate
• Y-valve fresh and salt water wash down on port

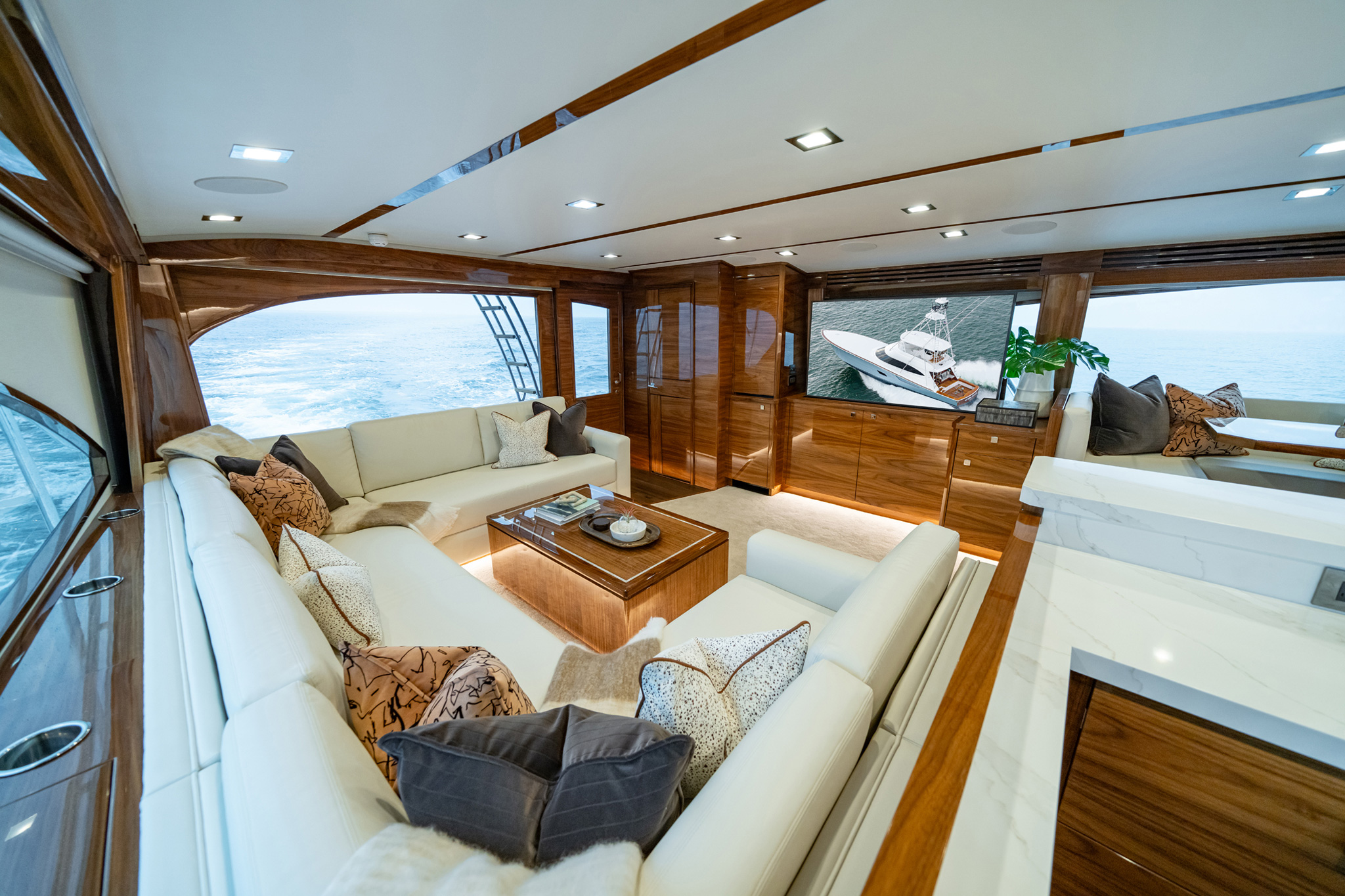

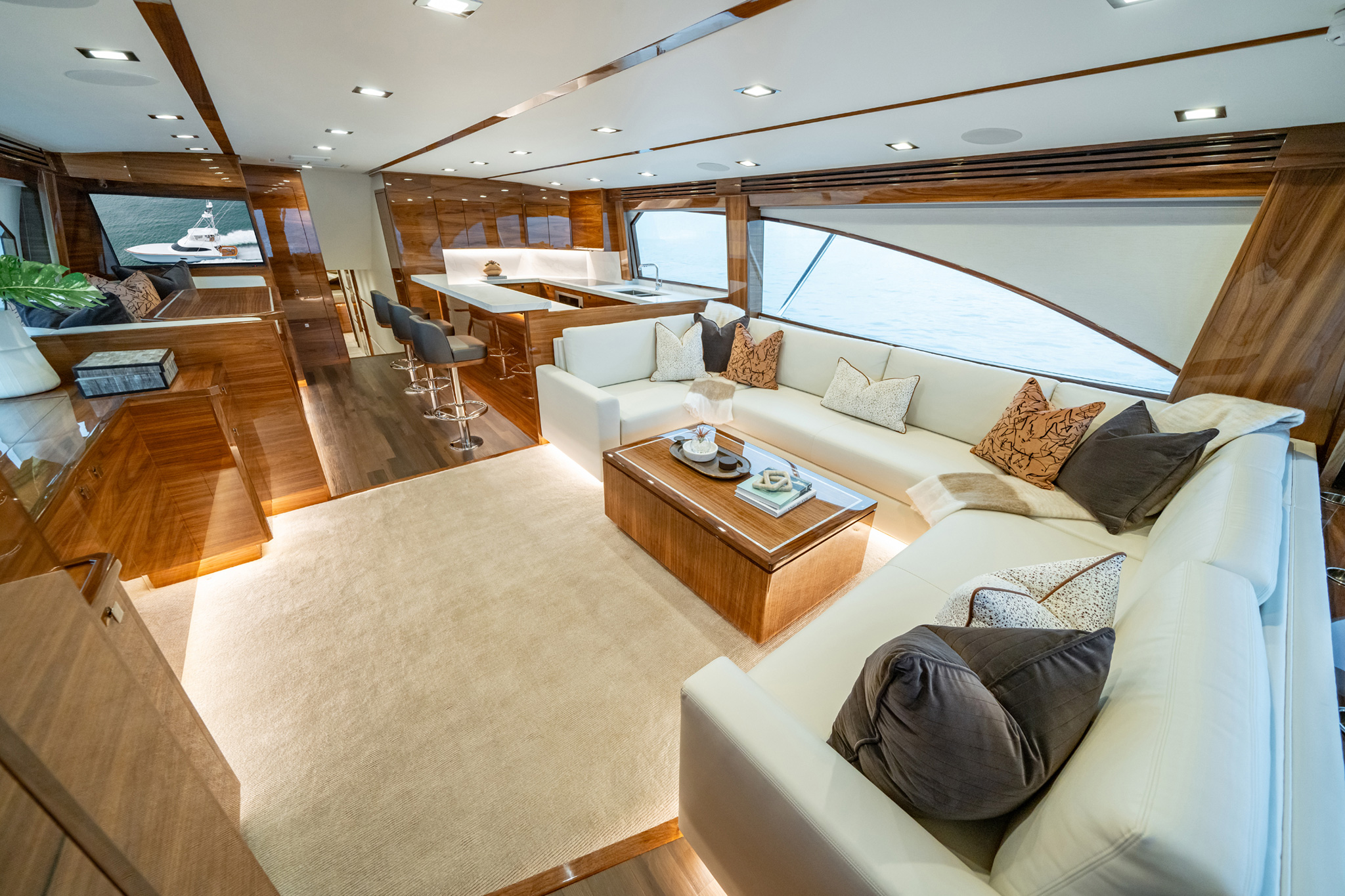

SALON

• Air conditioning with reverse cycle heat that circulates from concealed registers behind the valances to maximise comfort while minimising noise and drafts — individual temperature control
• Blinds for desired natural lighting and additional privacy
• Cabinetry with drawers and bottle storage
• Cocktail table, walnut, high gloss finish, hi-lo
• Flooring, custom at salon entrance and wall-to-wall carpet with lined padding for sound absorption
• Home theatre centre with HD TV on a raise and lower mechanism
• Ice maker, clear ice type concealed in cabinetry behind door
• Indirect decorative rope lighting behind valances, 24V DC
• Lambrequins, wood-inlaid in finished wood frames
• Lighting, overhead LED lights recessed in headliner with dimmer switches
• Main electrical panel with AC selector breakers and touch screen monitor
• Pillows, decorative throws for sofa
• Sliding electric salon door, moulded fiberglass door with window and interior finish, with key lock
• U-shaped lounge with storage underneath
• Upholstery and window treatments
• Valances custom finished wood
• Walnut strips in headliner
• Windows, fixed, sides laminated safety glass, aft bulkhead tempered

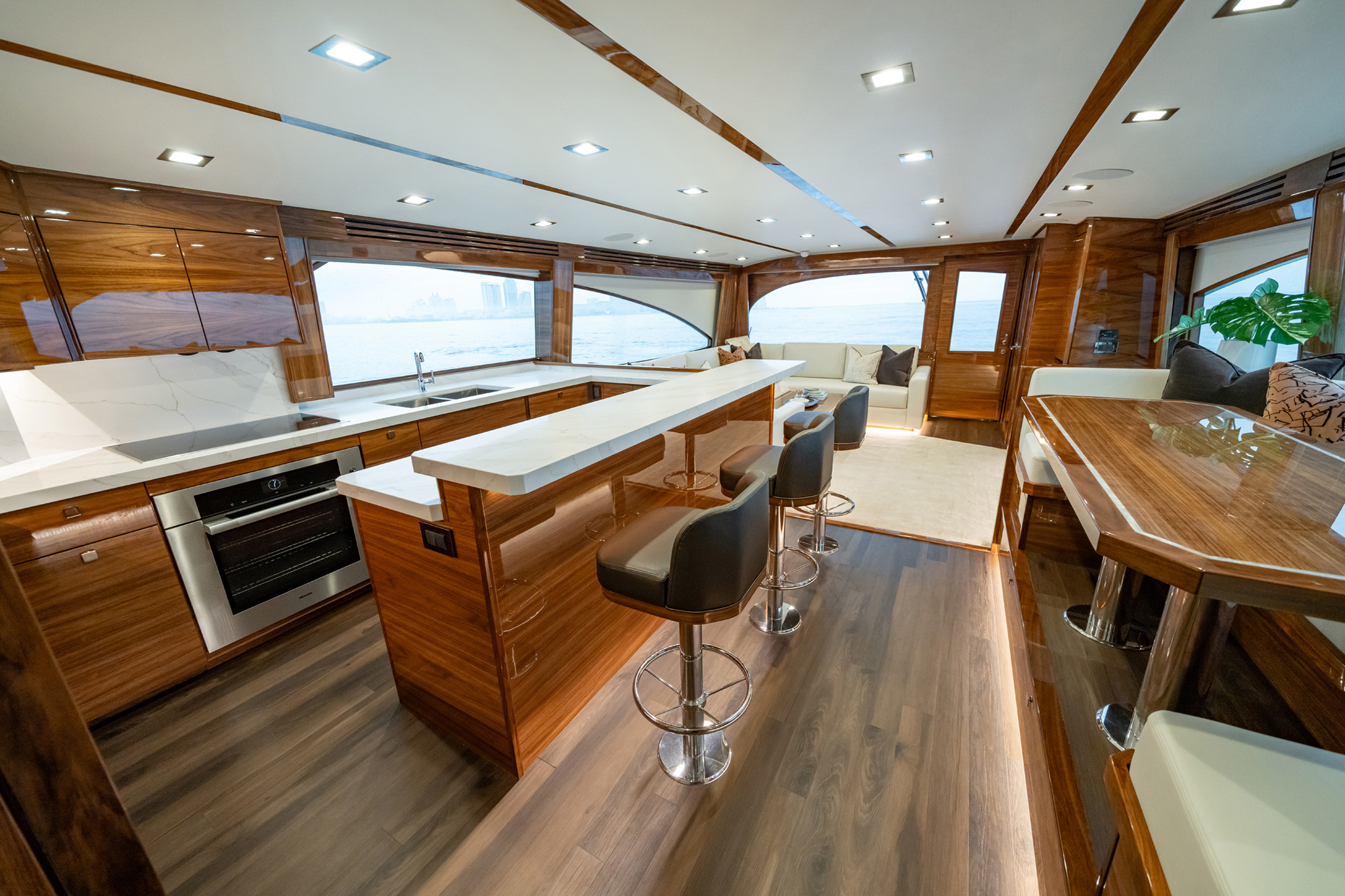

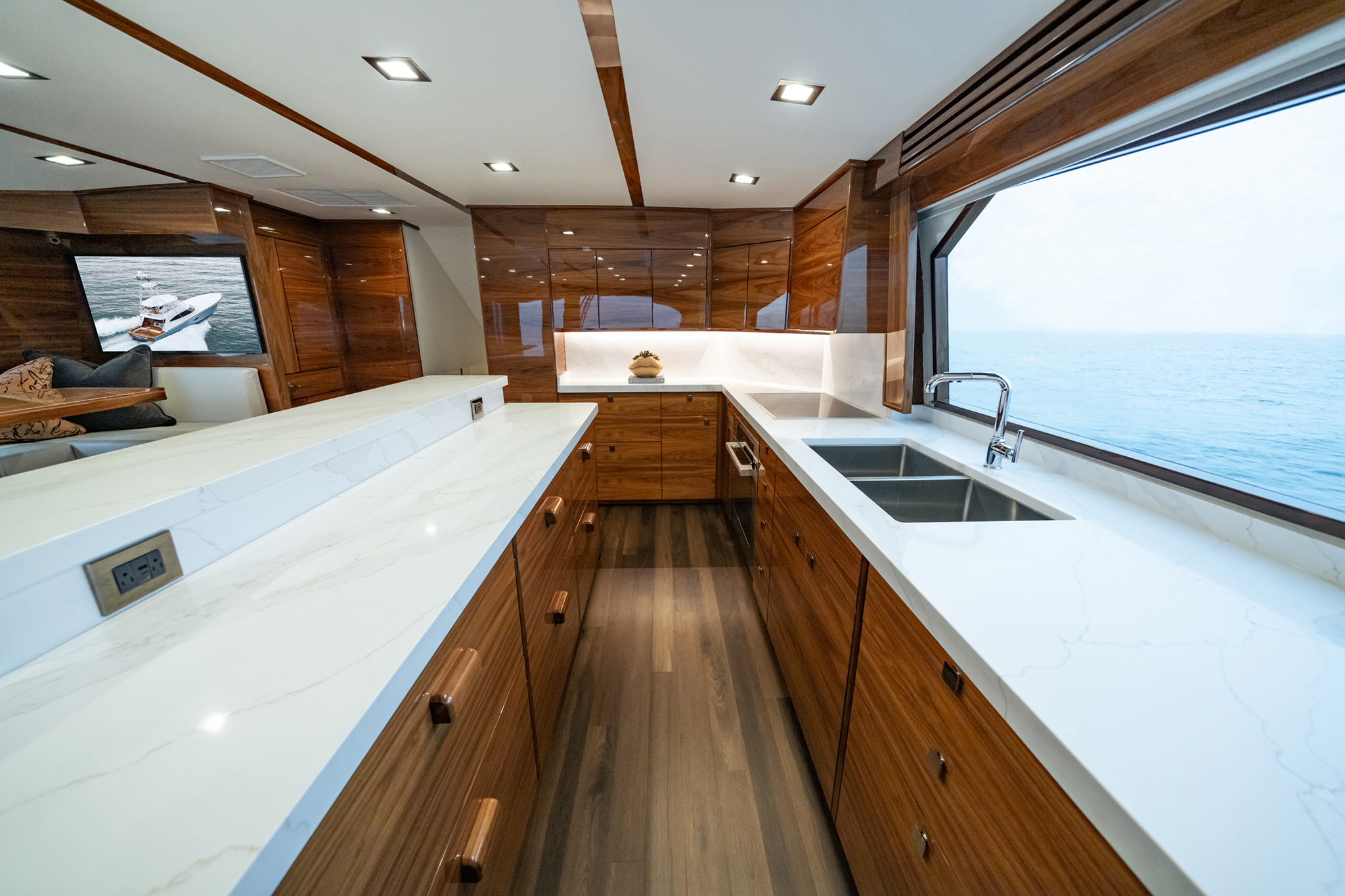

GALLEY/DINETTE

• Blinds
• Countertop, galley, engineered stone

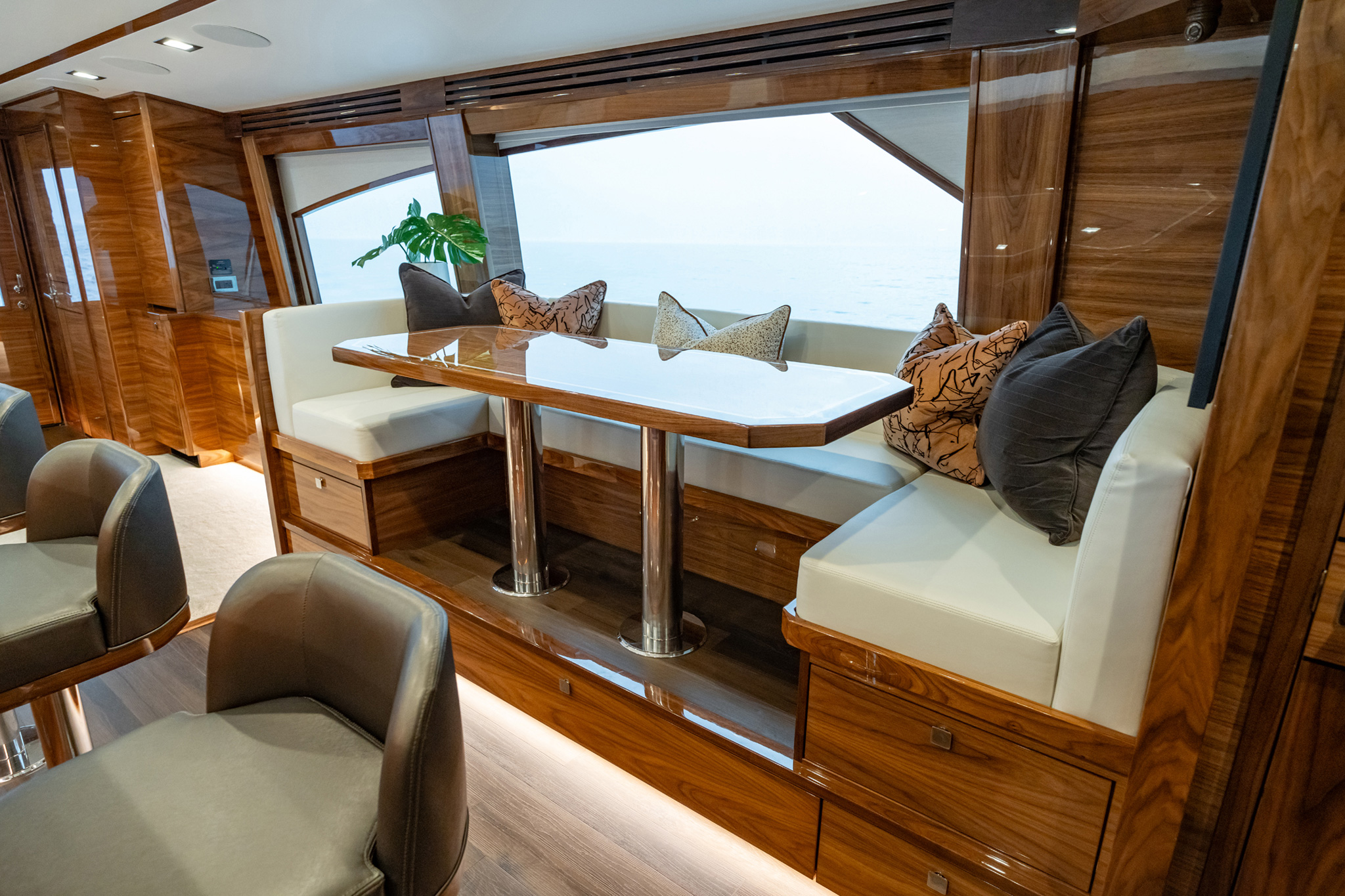

• Raised dinette with U-shaped couch with removable cushions and pull-out storage underneath for rods
• Dinette table, walnut, high gloss finish with oversized 110V outlet at pedestal, thru-bolted
• Dishwasher
• Electric range, 4-burner cook top, surface mounted
• Exhaust fan, high velocity
• Flooring, custom
• Garbage disposal in sink
• Headliner, 1/8” foam and tricot backing
• Large wrap around galley with refrigeration, freezer, stove top, sink and storage, three bar stools with overhang
• Lambrequins, wood-inlaid in finished wood frames
• LED lighting-backsplash
• Lighting, overhead LED lights recessed in headliner with dimmer switches
• Microwave/convection oven located in upper galley cabinet
• Pantries forward of galley/dinette walk-in, wood-lined
• Refrigerator and freezer, Sub-Zero, large capacity, deep-drawer under-counter style with finished wood faces, (2) refrigerator units and (1) freezer unit
• Sink, stainless steel, under mounted in countertop with chrome galley faucet, two (2) bowl
• Storage cabinets in upper galley, varnished doors
• Storage cabinets and drawers in lower galley, varnished doors and faces with stowage for utensils, and other items
• Trash compactor in lower galley with finished wood face

COMPANIONWAY

• Access to pantry forward of galley and dinette
• Awlgrip bilge areas with access hatches, Snow White and lighted for easier maintenance and cleaning
• Central vacuum unit connection with accessories
• Flooring, carpeted steps from galley through compan- ionway
• Horizontal wood strips in companionway

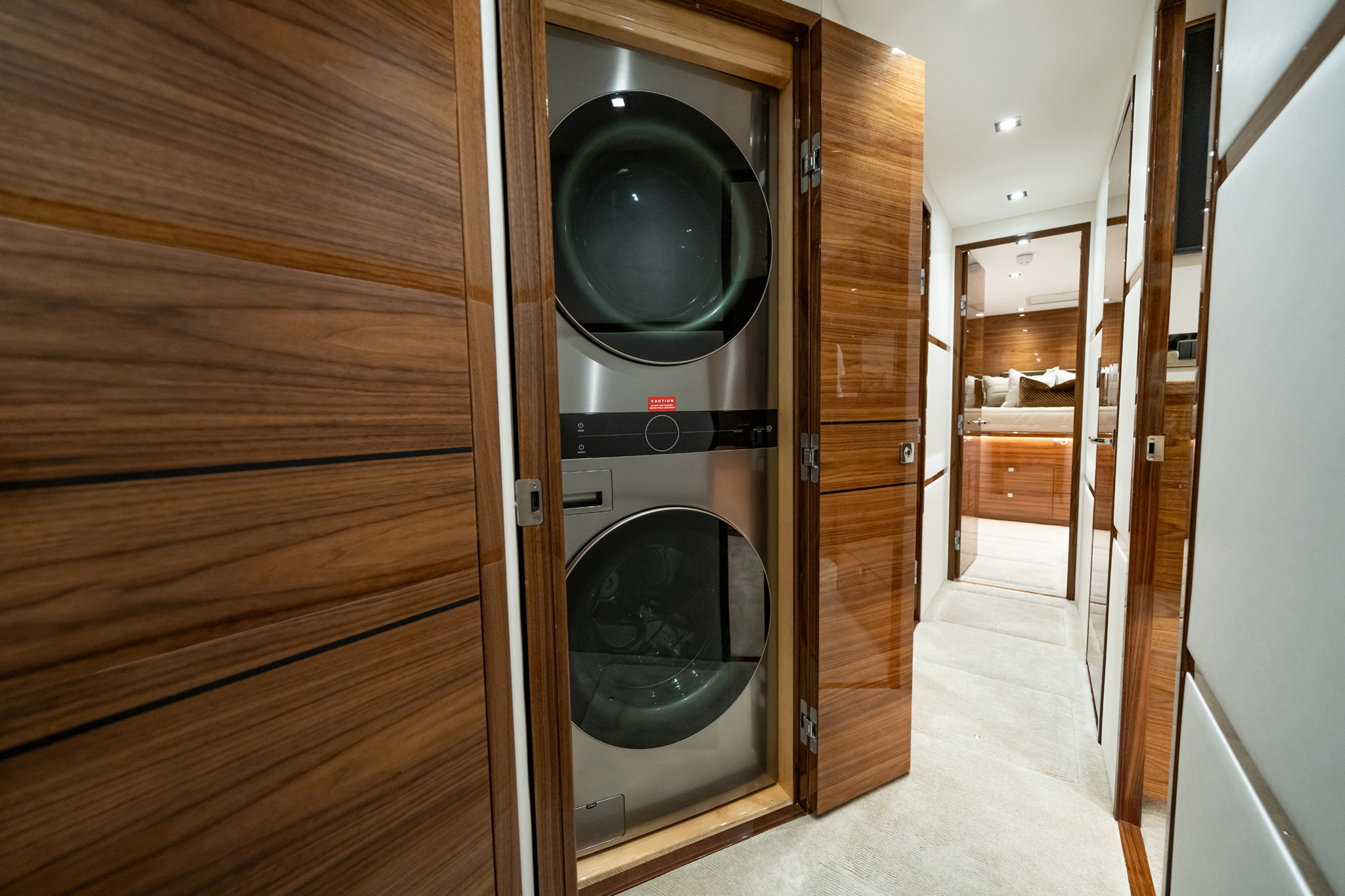

• Laundry centre with stackable washer and dryer behind finished wood door
• Lighting, overhead LED lights recessed in headliner
• Linen closet
• Rod and tackle locker
• Staircase with bannister along starboard companionway side
• Wall panels, headliner individually installed with Velcro backing for easy maintenance

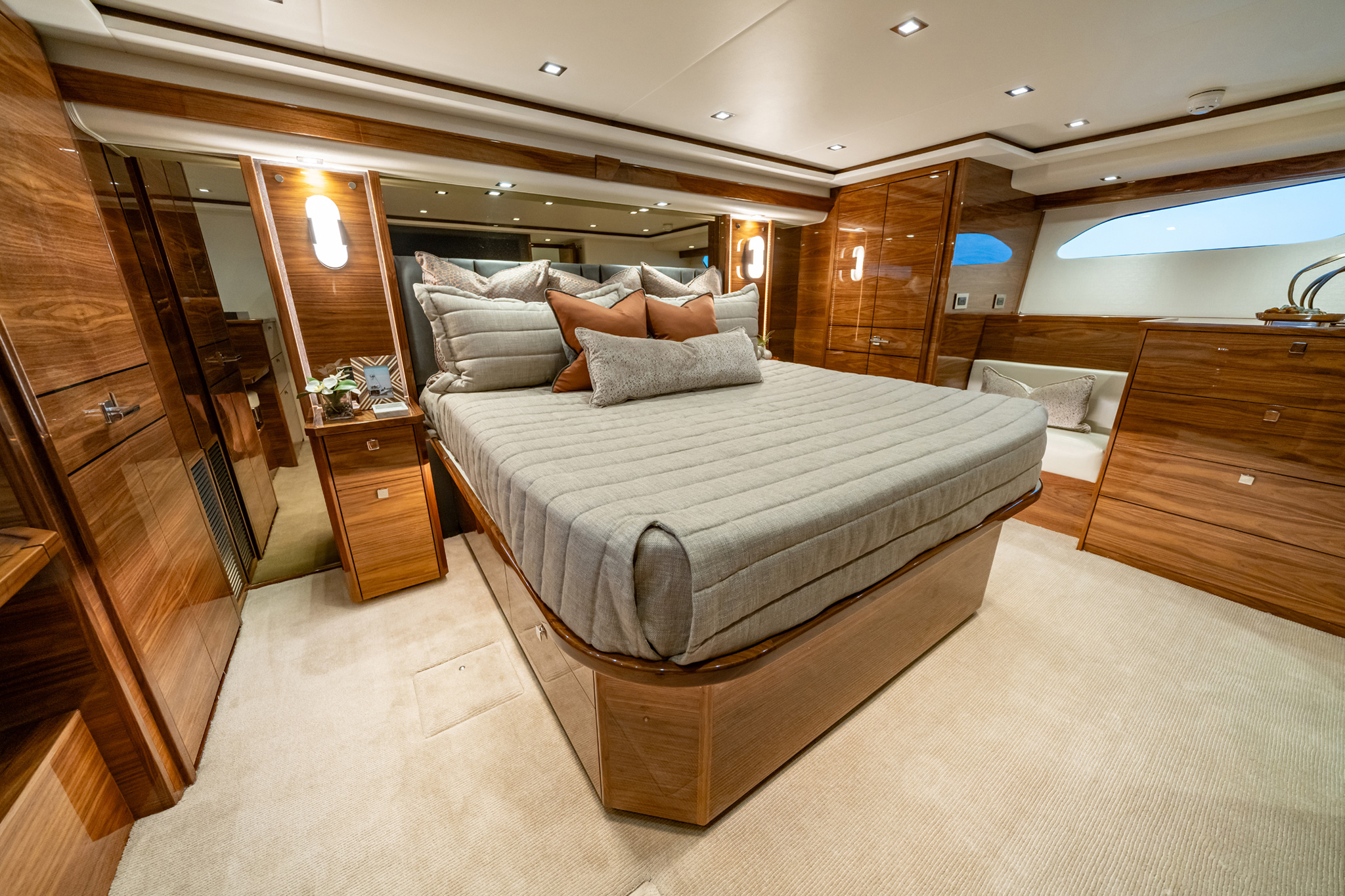

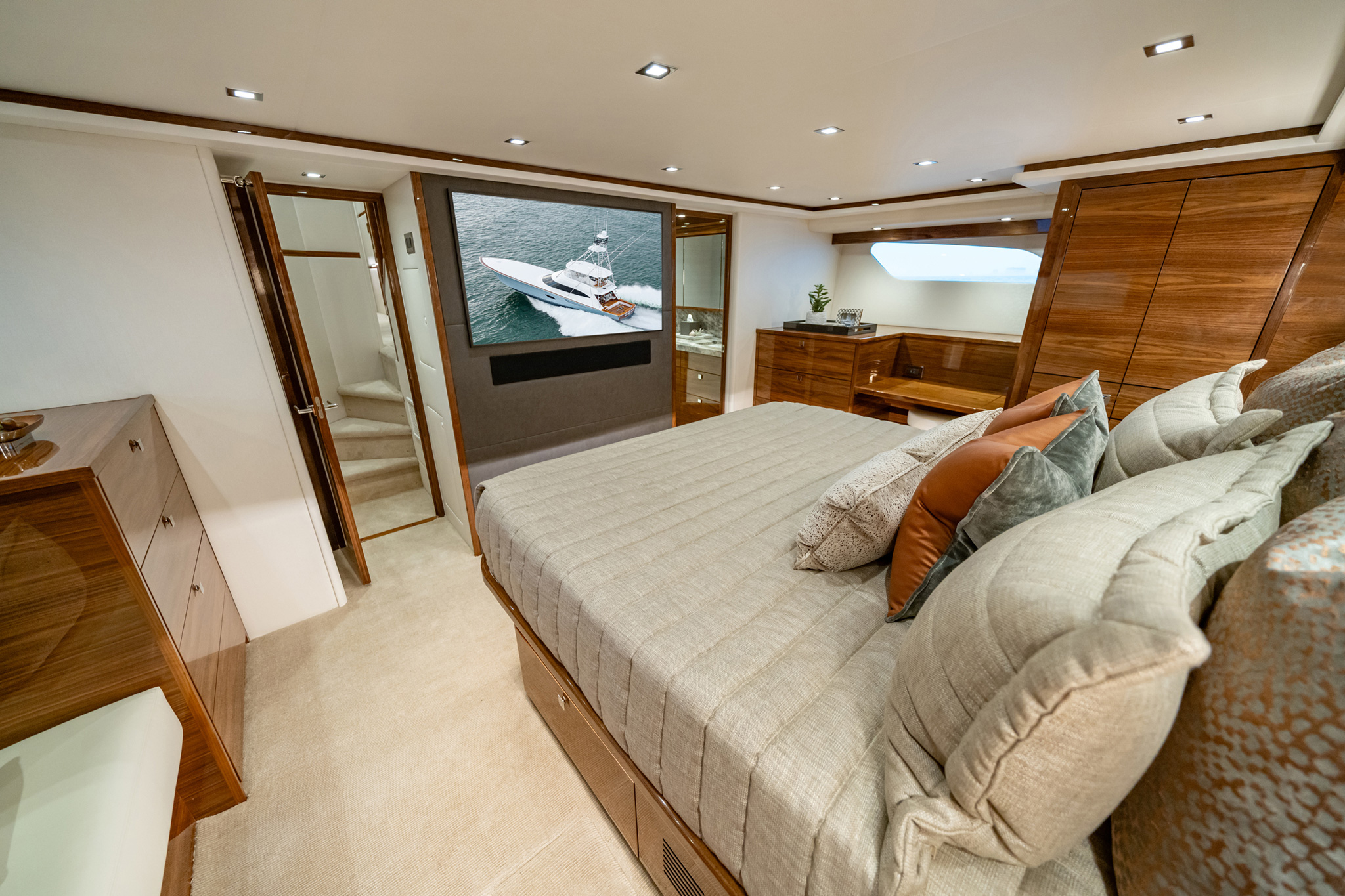

MASTER STATEROOM (FULL BEAM)

• Air conditioning/heat with temperature control
• Bed, king-size, walk-around fore and aft with upgraded pillow top, Handcraft Viking Slumber #8 innerspring mattress and lift up top with gas pistons and storage underneath
• Bedspread — quilted, designer style with pillow shams (2)
• Closets, port and starboard, twin wood-lined hanging closets with finished wood doors
• Decorative indirect rope lighting from underneath bed platform and behind valances
• Drawer storage under bed, (2) large drawers
• End tables at port and starboard ends of bed with drawer and door storage
• Fixed port and starboard port lights, laminated safety glass
• Flooring, carpet
• Headboard, upholstered
• Lighting, overhead LED lights recessed in headliner with dimmer switches
• Port and starboard side credenza with drawer storage
• Reading lights, overhead with separate switches
• Seating port side, built-in
• Sheets (1 set)
• TV, HD flat screen with Soundbar
• Vanity/desk area with stool starboard side

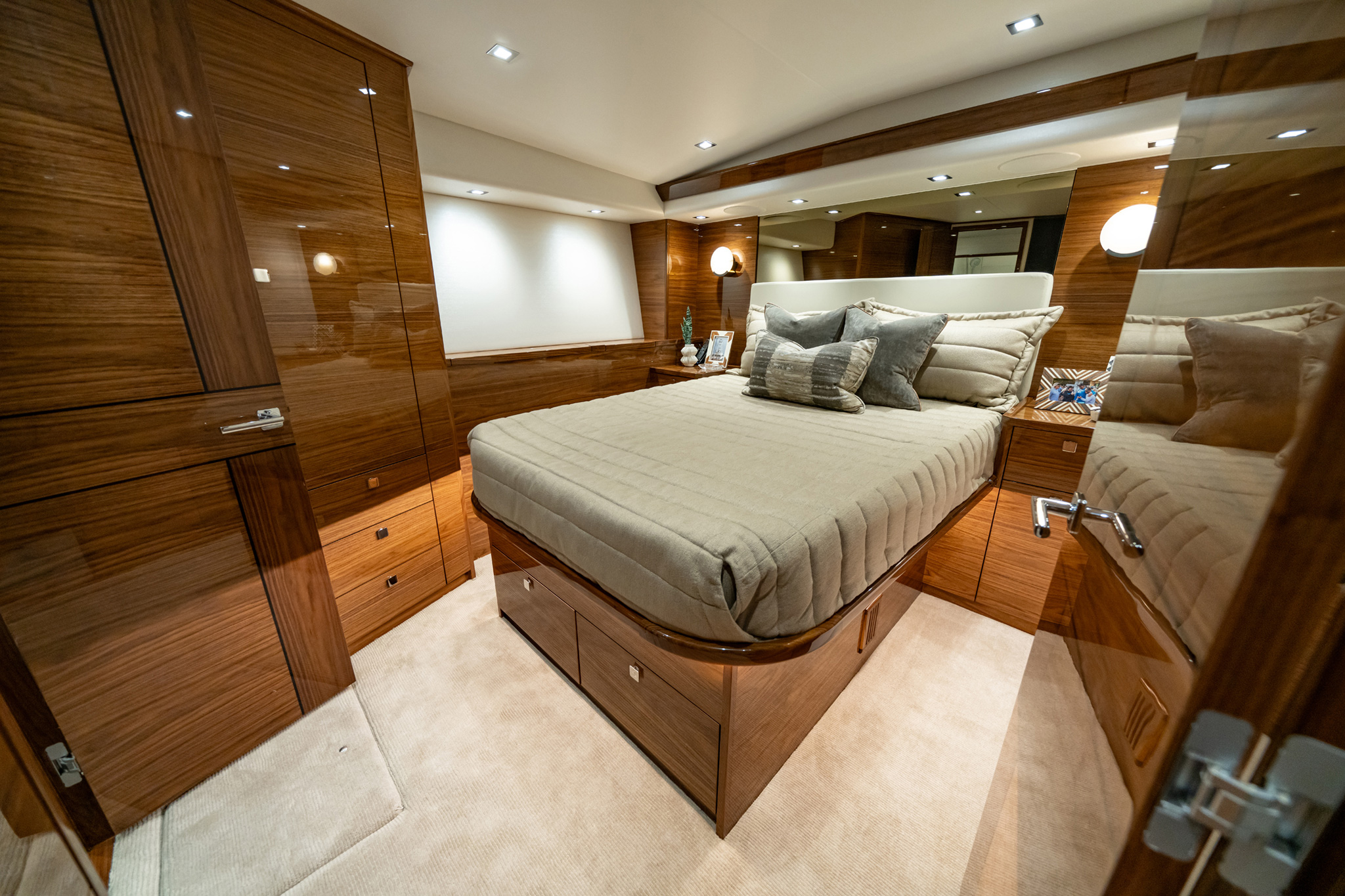

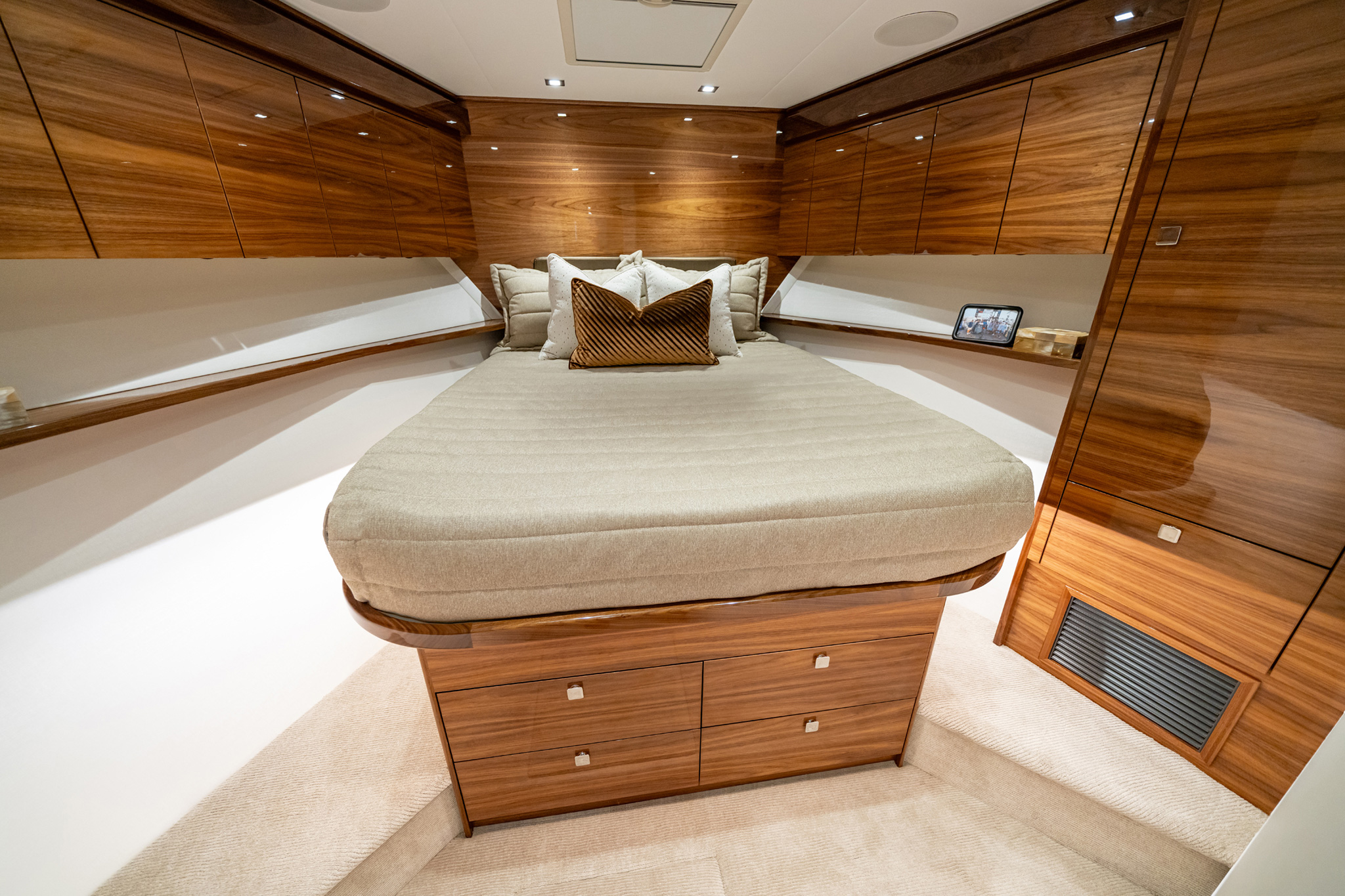

VIP STATEROOM (FORWARD)/ STARBOARD AFT GUEST STATEROOM

• Air conditioning/heat with temperature control
• Bed, island queen with Handcraft Viking Slumber #6 innerspring mattress and lift up top with gas pistons and storage underneath
• Bedspread — quilted, designer style with pillow shams(2)
• Decorative indirect rope lighting from underneath bed platform and behind valances
• Flooring, carpet
• Hanging locker, finished wood, wood-lined and spacious with bar for hanging clothes
• Hatch, screen shade system, found in VIP forward
• Head access to private heads in both staterooms
• Lighting, overhead LED lights recessed in headliner with dimmer switches
• Reading lights with separate switches
• Sheets, (1 set)
• Speakers recessed in headliner
• Storage cabinets, port and starboard sides of bed, finished wood
• Storage drawers under bed
• TV, flat screen

GUEST STATEROOM (PORT FORWARD)/CREW STATEROOM (PORT AFT)

• Air conditioning/heat with temperature control
• Beds (2), upper and lower bunks with Handcraft Viking Slumber #6 innerspring mattress and lift up bottom for storage in both staterooms
• Bedspread — quilted, designer style with pillow shams (2)
• Decorative indirect rope lighting from underneath bed platform and behind valences
• Flooring, carpet
• Hanging locker, wood-lined with bar for hanging clothes
• Head access to private heads in both staterooms
• Lighting, overhead LED lights
• Sheets, (1 set)
• Speakers recessed in headliner
• Storage drawers located under hanging locker

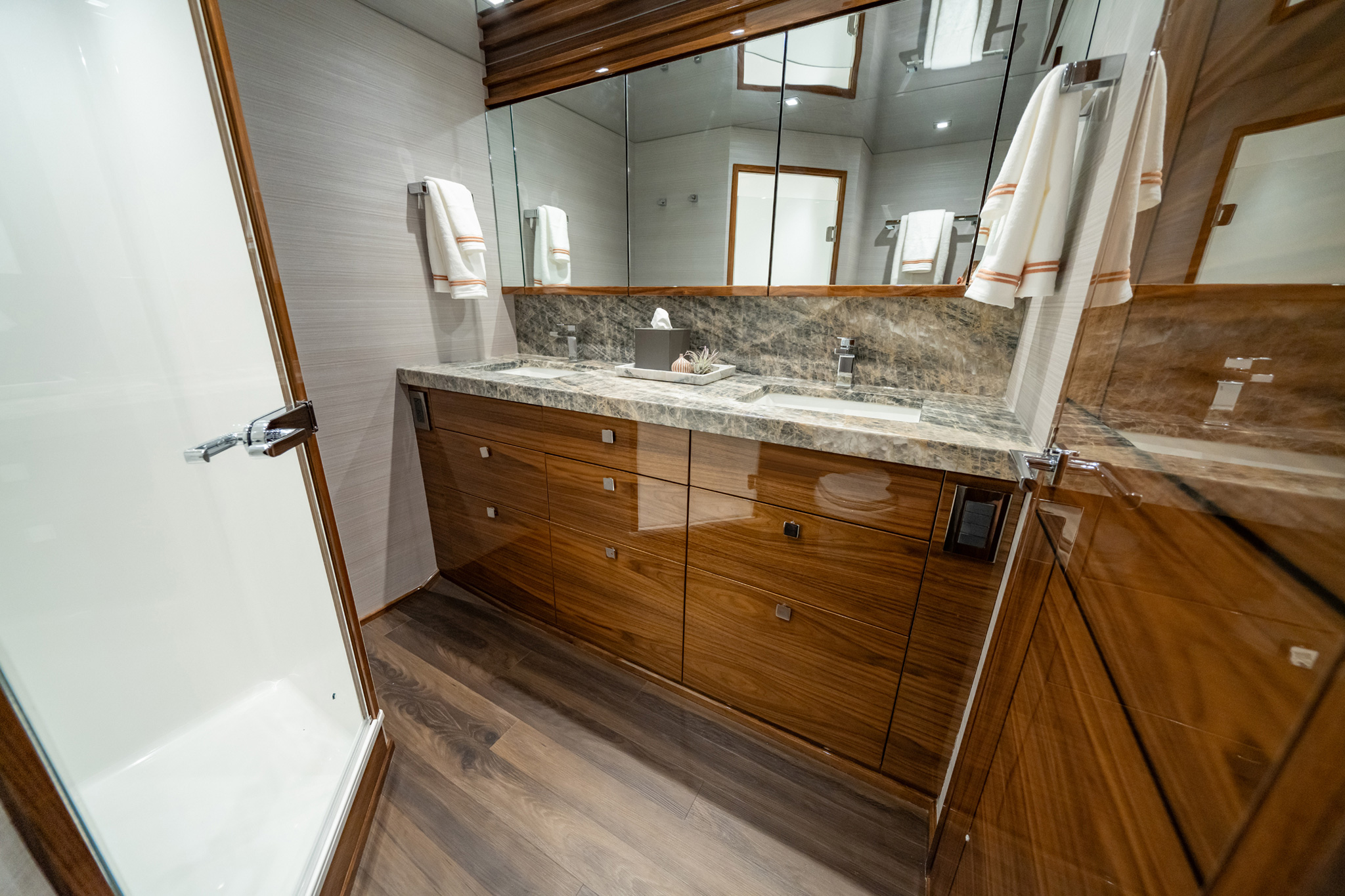

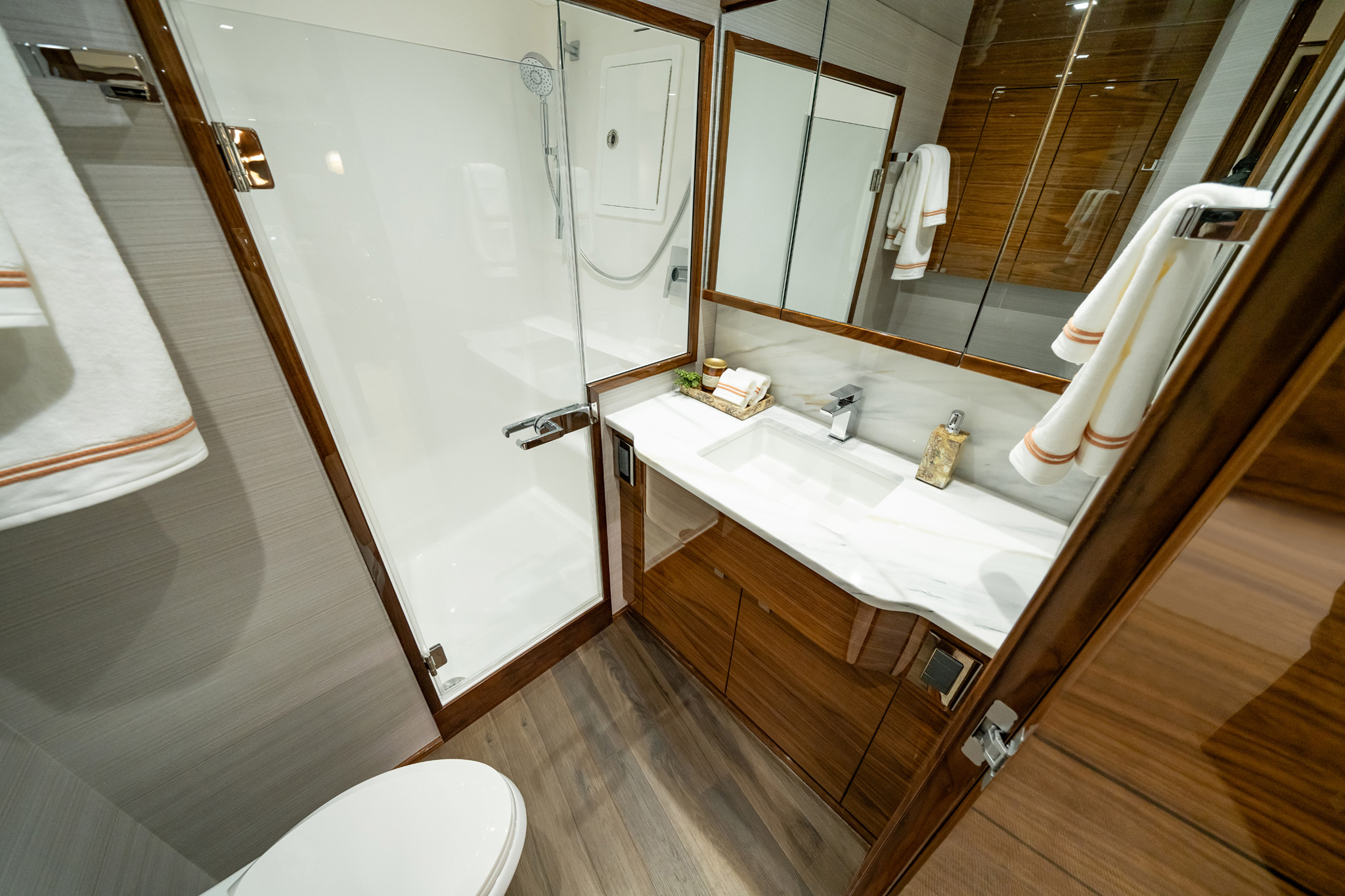

MASTER, GUEST AND CREW HEADS

• Air conditioning/heat with register in soffit
• Countertop, engineered stone
• Exhaust fan with vent
• Flooring, custom
• Head system, Headhunter
• Lighting, overhead LED lights recessed in soffit and in ceiling
• Linen storage
• Lower vanity with face
• Medicine cabinet with mirrored doors
• Mirror around upper vanity insert
• One-piece custom frameless shower door in master head
• Receptacle, 110V – GFCI
• Shower light
• Sink — with chrome fixtures
• Stall shower, fiberglass with chrome shower fixtures
• Storage cabinet with shelves and mirrored door in master head
• Towel bar and ring — chrome

DECOR

• Blinds, manual
• Designer bedspreads for all beds
• Designer fabrics
• Designer shams (2) per stateroom (3 for VIP forward layout)
• Fabrica carpet, nylon fibres
• Headliner, upgraded throughout boat
• Interior finish high gloss walnut
• Passage doors, hardware-bright chrome
• Prestige level design schemes
• Throw pillows throughout including designer cords and fringes
• Ultraleather seating in salon and master stateroom and dinette
• Upgraded window panel fabric and trim

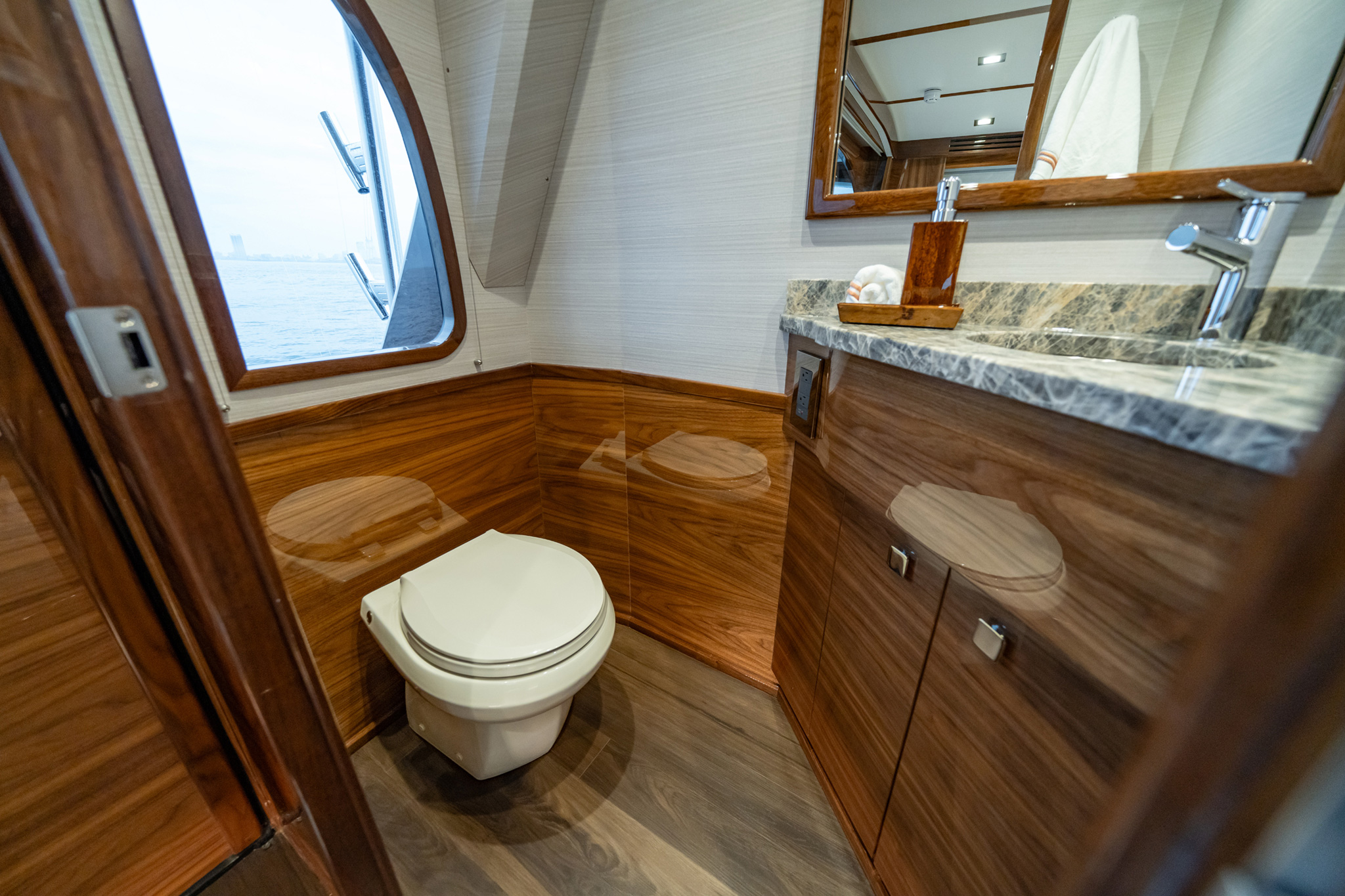

DAY HEAD

• Aft salon port side just inside salon cockpit entrance
• Air conditioning/ heat with register in soffit
• Countertop, engineered stone
• Exhaust fan with vent in soffit
• Flooring, custom
• Head system, Headhunter
• Lighting, overhead LED lights recessed in soffit and ceiling
• Lower vanity with face
• Window with blind

MISCELLANEOUS

• Anchor — constructed with a high-tensile, corrosion resistant aluminium magnesium alloy
• Anchor locker with access from foredeck
• Anchor rode, 300’ with 12’ of chain
• Bonding system anode on transom
• Bow pulpit, moulded fiberglass with nonskid and stainless steel anchor chute
• Bow rail, anodized aluminium, brushed finish
• CO detectors throughout
• Fire extinguishers (8)
• Freshwater wash down at bow in anchor locker
• Fuel
• Holding tank monitor
• Magnetic switches for lights in all forward bilge compartments
• Mooring lines, 3 strand nylon (6)
• Recessed covers on transom to protect trim tab pistons
• Ships bell
• Shore cord with smart “Y” adapter
• Side mounted, wrap around grab rails, powder coated aluminium that follow the window line
• Stainless steel bow, spring and stern cleats thru-bolted to backing plates
• Smoke and carbon monoxide detectors
• USB receptacle (Apple compatible) in staterooms and salon
• Viking one year limited warranty (available upon request)
• Viking Prestige Decor package
• Water delivery kit with tool set

STANDARD POWER

• CAT C32A 1925: 1925MHP

INTERIOR

• Satin interior finish throughout (J)

  *Standard will be high gloss horizontal grain walnut.

COCKPIT

• Air conditioning
• Swim platform & ladder
• Transom lettering
• Window and light in transom box live well

DECK/EXTERIOR

• Additional foredeck hatches w/ sunshade
• Bow pulpit removal
• Custom hull colour, gelcoat (J)
  • Davit, (1700lb), with hydraulic lift
  • Davit, (1700lb), with hydraulic lift and rotation
• Fender racks 10″
• Salon forward window mask
• Windlass, Lewmar V4 SS w/ 50’ chain, 250’ rope

DECOR (S)

• Custom décor
• Classic décor, accessory kit
• Elite galley, accessory kit
• Essential galley, accessory kit
• Wallcovering, custom

OPEN FLYING BRIDGE

• Helm air conditioning with reverse cycle heat (K)
• Release wood helm pod

ENCLOSED FLYING BRIDGE

• (6) Rod rocket launcher
• Lights, remote spotlight
• Radar mast – single (K)
• Radar mast – dual (K)

SALON

• Carpet runner full
• Carpet runner partial
• Carpet runner – companionway, steps and MSR steps and landing

MASTER STATEROOM

• Electronic safe under bed

GUEST STATEROOM – FWD

• Crossover stateroom arrangement

GUEST STATEROOM – CREW/PORT

• TV, flat screen

DELIVERY

• Propellers, 5 blade (spare with storage boxes and Prop Smith removal/installation tool)

ENGINEROOM

• ElectroSea for air conditioning/refrigeration
• Optional fuel tank
• Eskimo ice machine
• Seakeeper 40
• Spot Zero with double pass unit
• Spot Zero/watermaker combo unit
• Upgrade genertors to P-Gen System
• Water maker, 1,400 GPD w/auto backflush

OPTIONAL POWER:

• CAT C32B 2025: 2025MHP
• CAT C32B 2400: 2433MHP
• MTU 12V2000 M96X: 2002MHP
• MTU 16V2000 M96L: 2635MHP
