VIKING 44 CONVERTIBLE

CONSTRUCTION

• Ablative/Copolymer antifouling bottom paint, 2 coats, primed
• Awlgrip engine room, lazarette, forward bilge and anchor locker for enhanced visibility and easier maintenance
• Blister resistant modified epoxy resin in entire hull skin
• Custom blended polyester resin used in structural laminates, topsides, bridges, and
• hardtops
• Dupont high gloss polyurethane boot stripe
• Fibreglass side thru-hulls
• High gloss, wood interior finish throughout
• High performance isophthalic gelcoat npg superior gloss, flexibility and outstanding
• weathering characteristics
• Hull interior, isophthalic gelcoat top-coated with a durable high gloss polyurethane coating
• Hull resin infused cored composite construction, using end grain balsa and closed cell foam cores in selected areas with E-glass laminates for optimised strength and stiffness while minimising weight
• Infused fibreglass fuel, freshwater and holding tanks with fibreglass baffles inside and balsa coring on sides for stiffness, sealed to hull with resin foam
• Moulded fibreglass salon floor/engine room ceiling with Airex core for acoustical and
• thermal insulation
• Non Skid moulded in for traction and durability
• Prop pockets to reduce draft
• Stringers, fibreglass encapsulated foam
• Transducer location moulded into hull
•  Vacuum bagged composite bulkheads — Main engine room bulkhead, intermediate engine room bulkheads, and forward bulkhead

MECHANICAL

• Air conditioning – direct expansion zoned with reverse cycle heat for complete climate
• control throughout the interior
• Bilge pumps with additional clean out pumps on centerline linked into monitoring system and connected to float switches for automatic and manual operation
• Delta-T engine room ventilation system with supply and discharge fans for proper fresh
• air supply and water intrusion suppression
• Dockside and overboard pump outs for holding tank Engine Room entrance package consisting of gauges for digital tachometer, engine water
• temperature, engine oil pressure, and engine room mounted engine start and stop switches for easier viewing and accessibility
• External sea strainers for main engine pickups
• Fire suppression system, automatically or manually operated and tied into main engine
• and generator ignition systems with override
• Freshwater supply in engine room for general maintenance and cleaning
• Fuel and oil lines, flexible, steel reinforced USCG approved, aircraft type
• Fuel priming pumps electric 24V DC, for main engines
• Fuel transfer system, 24V DC pump
• Hour metres on main engines and generator
• Internal sea strainers for generator, all water pick ups
• Mufflers – engines, in-line type with surge tubes in engine room
• Mufflers – generators/lift muffler with gas water separator for cleaner, quieter operations
• Oil changing system, gear type pump for main engines, transmissions, and generator
• with pump out line run to cockpit entrance
• PEX plumbing, freshwater system plumbing with manifold system shut off in engine room and forward bilges
• Pressurised freshwater system, 24V DC with on deck freshwater fill and cockpit
• dockside supply inlet with pressure reducing valve
• Propellers – Class “S” pitch tolerance (ISO 484/2) and dynamic balancing. Advanced
• design cambered blade sections for optimum performance. Nibral alloy for maximum durability
• Racor fuel/water separator for main engines and generator glass
• Rudders, stainless steel, with composite rudder bearing and dripless seal laminated
• into hull
• Seacocks, bronze, ball-type sea valves for all thru-hulls below the water line – Awlgrip
• white
• Shafts — 2 Aquamet high-strength stainless steel, double-taper with machined keyway
• and thrust plate at main engine couplings
• Steering system, Seastar Optimus electronic power steering
• Struts — thru-water, Nibral
• Trim tabs, with individual controls w/ trim tab covers on transom
• Twin diesel engines with marine grade reduction gears. *See manufacturer’s information for specifications
• Water heater quick recovery, electric
• Valve off engine intakes for use as emergency bilge pump (2)

ELECTRICAL

• 24V DC ship’s service throughout
• 24V/12V power supply with breakers on flybridge for future electronics
• 110V outlet in engine room on aft bulkhead
• Anchor light/navigation lights
• Batteries, (2) independent 24V banks mounted in fibreglass storage box
• Battery chargers, (2) with thermal cutoff and switching system for complete integration
• Battery distribution panel with battery cutoff and charging system breakers
• Battery parallel system for main engines and generator start
• Bonded electrical system with ground plate
• Colour-coded, labelled and numbered wiring system with corresponding drawings
• Dimmers, for LED interior lighting throughout excluding the companionway
• Emergency DC crossover
• Engine Room lights, AC and DC with switch at engine room entrance
• Generator, Diesel – Onan 13.5 kW E-QD (electronic quiet diesel) Series, user-friendly
• with electronic governing allowing voltage and electronic frequency control (R)
• Glendinning, cable reel, (1) with 3 wire grounded cord, (1) additional 50 amp 220V inlet with 50’ cord
• Instrument panel lights for flybridge and main electric panel
• Lighting, overhead LED lights recessed in ceiling and rope type decor lights concealed
• by wood valances, 24V throughout
• Master electrical control panel located in salon with 24V/110V circuit breakers,
• individual switching for shore 1, shore 2, or generator supply and gauges for electrical
• supply, voltmeter, ampmeter, and frequency
• Receptacles, 110V duplex with GFCI throughout
• RG6 TV cable to accommodate satellite system
• Voltage stabiliser isolation transformer for more consistent, cleaner voltage
• Water gauge in main panel

FLYING BRIDGE

• Bridge installed without exposed fasteners
• Controls: top mounted single lever electronic controls with station select and keypad

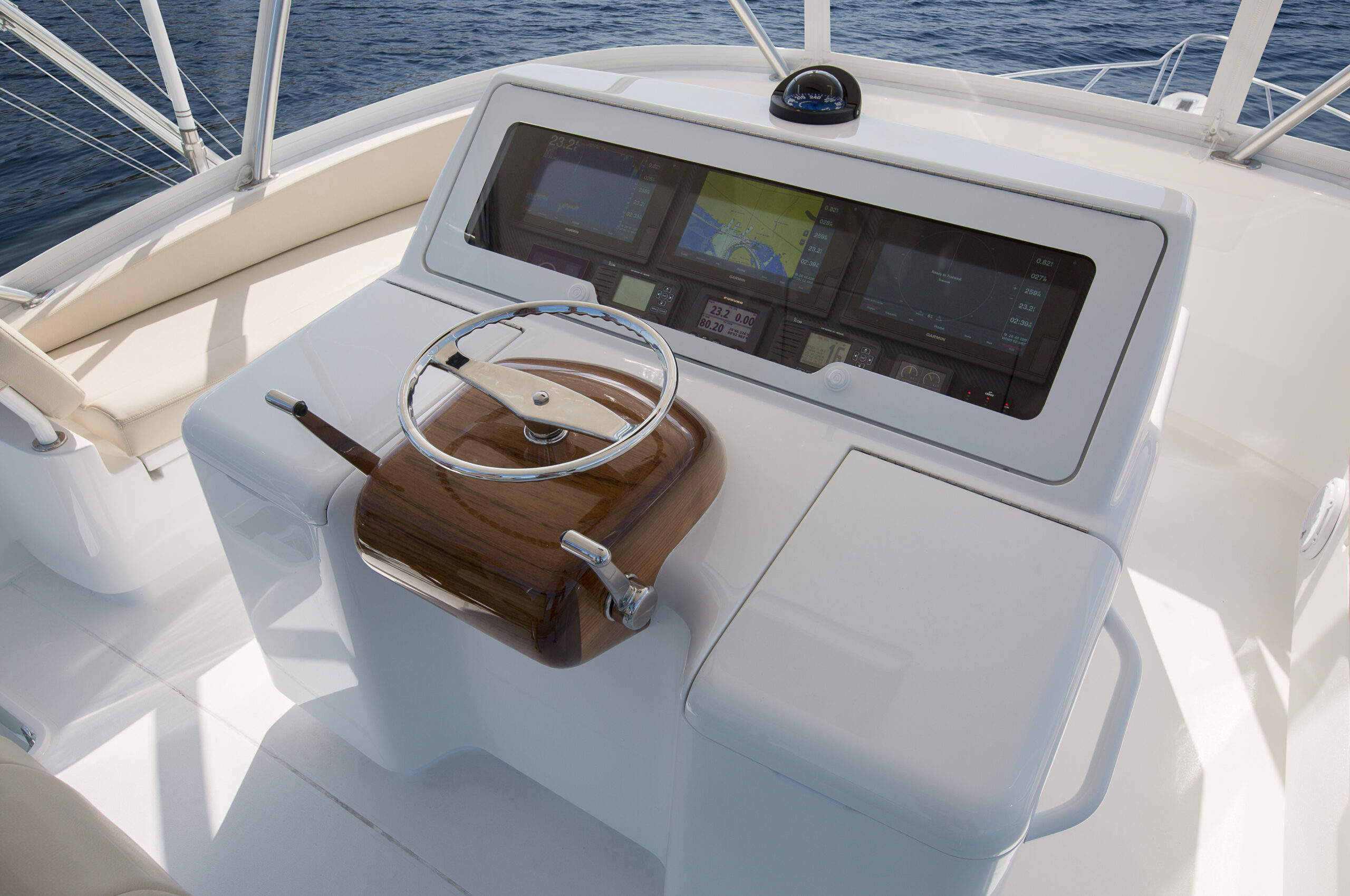

• Centre console walk-around helm with electronic storage raised pod with additional storage below
• Electronic radio lids underside painted satin black
• Electronic trolling valves
• Extended overhang for extra room to move around behind helm and companion seats
• with anodized aluminium aft railing
• Fire system control with automatic and manual discharge and override system located at console
• Forward bench seating integrated into console
• Freshwater outlet
• Fuel gauge Offshore systems display located at helm
• Furuno RD-33 depth finder/sea temperature gauge
• Handrail, powder-coated aluminium effectively positioned above ladder to bridge and at helm
• Helm seat, companion seat, wood, ladder back with pedestals and removable cushions and covers
• Instrumentation based on standard engine package, lighted with switches in radio box Lighted compass, flush mounted on centerline
• Manual engine shutdown switches in radiobox
• Non Skid deck moulded for traction and durability
• Offshore systems safety monitoring system with audible and visible alarms: fire, engine room temperature, high bilge water, high exhaust temperature, high coolant temperature, low oil pressure, and generator as well as confirming correct system operation
• Port and stbd side bench seating with vinyl cushions and storage underneath
• Power-assist steering
• Recessed electronics boxes in console for custom electronics package that is easily
• viewable and protected from the elements by acrylic fitted lids with gaskets and stainless steel gas pistons tapped into lids and push knob catches – painted satin black
• Recessed radio boxes with split lids, port and starboard, with switch panel inside
• and console – painted satin black
• Stereo speakers, tied into system in flybridge, flush mounted to aft ends of bridge with volume control in radio box
• Trim tab control switch mounted at console
• Trumpet style air horns (2), mounted on forward flat section of radar pod Under helm access with lights and storage room
• VHF radio ICOM 604 with antenna and mounts

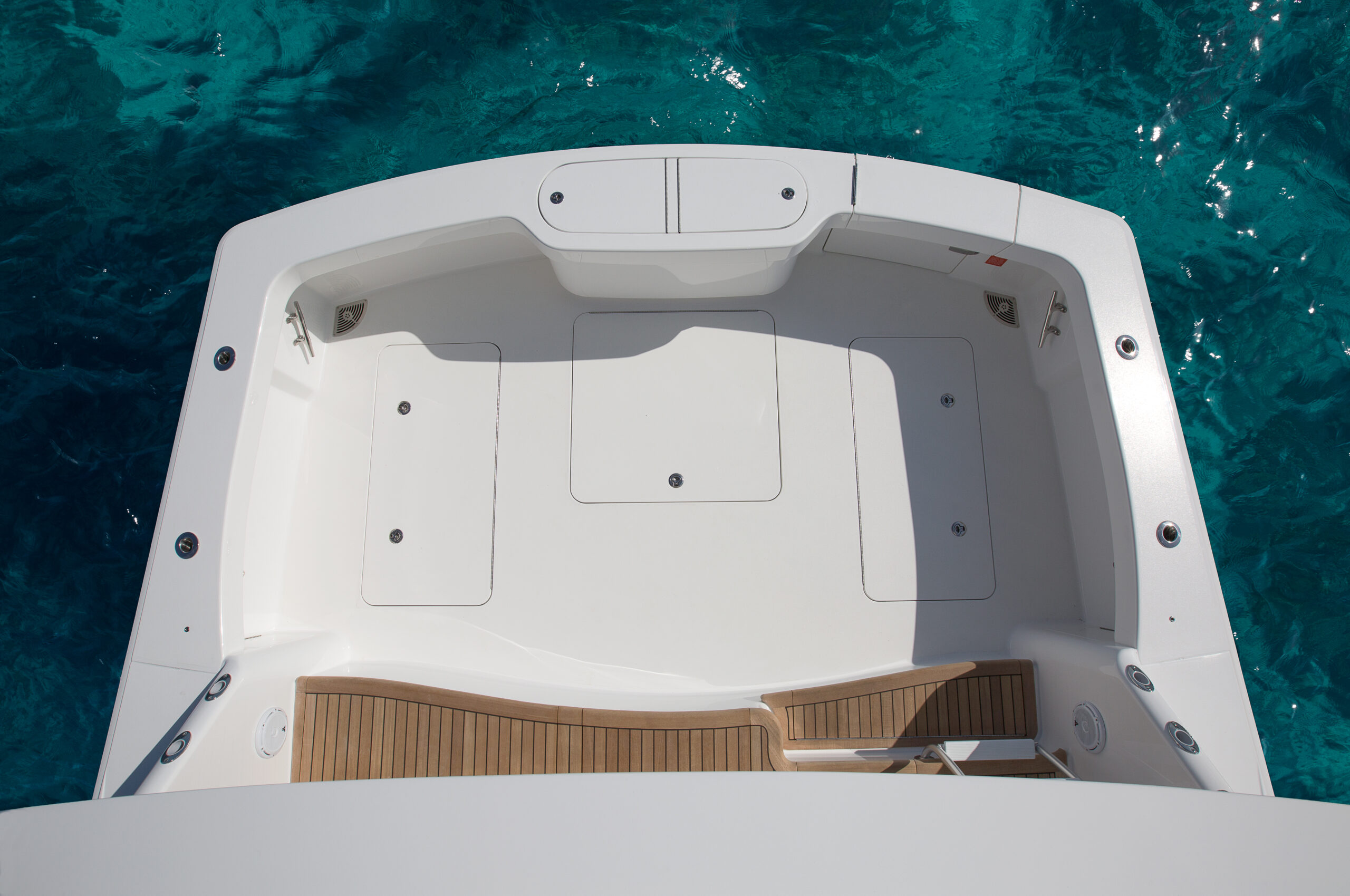

COCKPIT

• Boarding box, fibreglass with nonskid, lift up top and storage
• Cabinet with storage for gaffs and or other accessories located starboard forward gunwale with push release door
• Dockside electric connection — 50 amp/220V electric retractable Glendinning cable reel (1), located in starboard cabinet under forward gunwale and (1) 50 amp 220V inlet with push release door
• Dockside water connection with pressure reducing valve in cabinet under forward
• gunwale – valve to fill freshwater tank from dockside connection
• Engine Room access thru mezzanine seat opening with stainless steel pistons
• Extended flybridge overhang for shade
• Freshwater wash down with hose bib located in cabinet under forward gunwale
• Gaskets for all lids and access doors
• Grab Rails at cockpit haunch
• Indirect rope lighting under coaming
• Ladder to flybridge, one-piece, anodized aluminium with non skid treads
• Laminated backing plate in deck for future fighting chair or table
• Lazarette hatch with access to steering, trim tabs, and drain pumps
• Lighting, recessed lights in flybridge overhang
• Moulded non skid deck

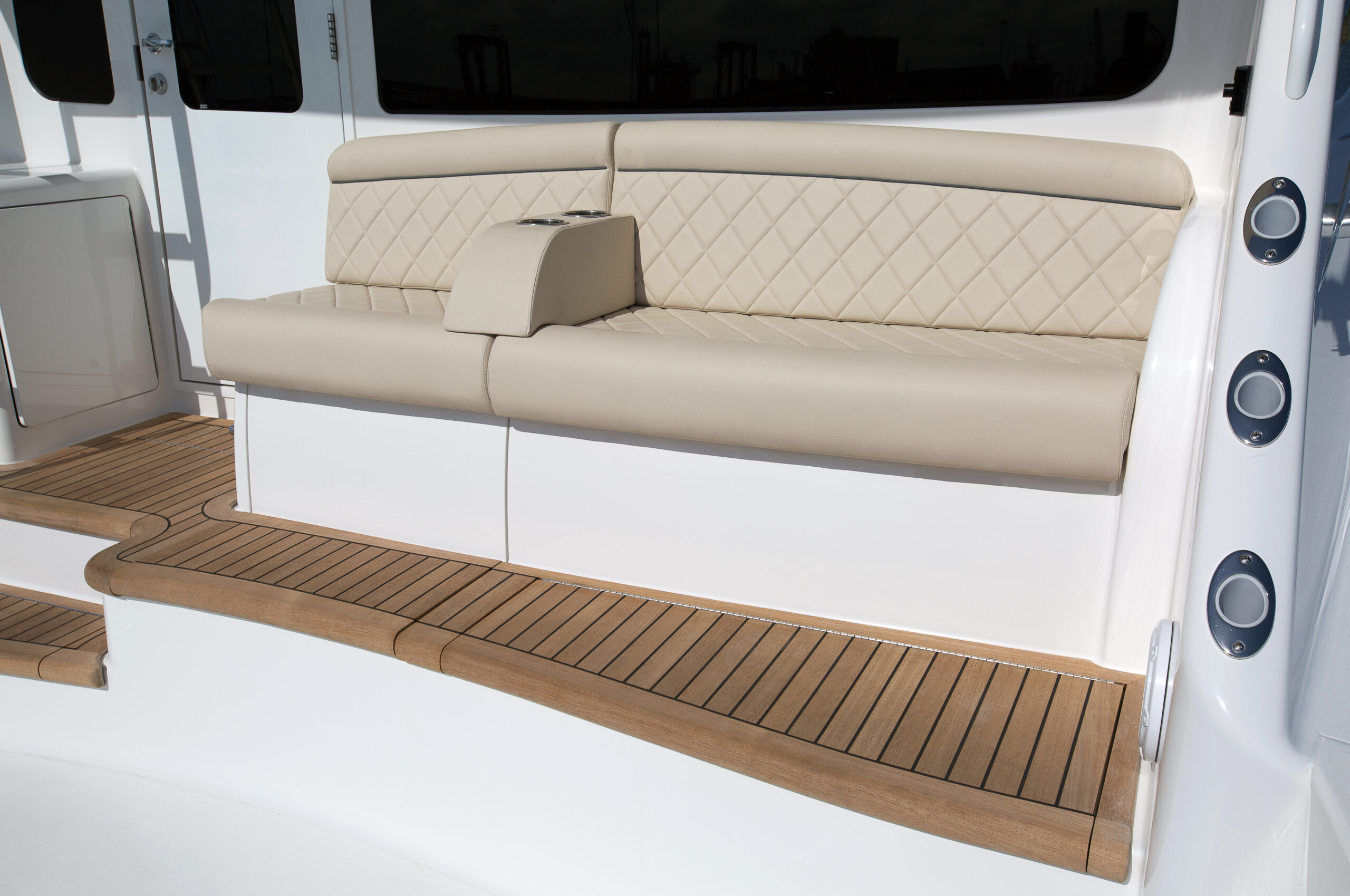

• Observation mezzanine, starboard aft facing lounge with vinyl covered cushions, hinged seat with freezer storage under lounge area, lower starboard storage area insulated hinged for access, tackle cabinet to port with drawers and push release door, and insulated storage box to port
• Recessed in deck fish boxes (2), insulated and removable with pump out and drain plate with large holes for easy pump out and cleaning
• Recessed in deck storage boxes to starboard forward box insulated for optional ice chipper
• Recessed, stainless steel cleats and hawse pipes
• Refrigerated, insulated drink box under mounted in salon step for direct access from cockpit
• Rod holders, (4) flush mounted
• Rounded cockpit coaming for comfort
• Seawater wash down with pump in engine room and supply at cabinet under forward gunwale
• Self bailing cockpit with large cockpit scuppers
• Stainless steel gas pistons on all hatches and lids
• Stereo speakers powered from flybridge stereo with volume control
• Straps with padding to keep transom door and gate open
• Transom fish box, moulded in
• Transom swim steps at transom door
• Walk-through transom door with lift gate
• Y-valve for fresh and salt water wash downs

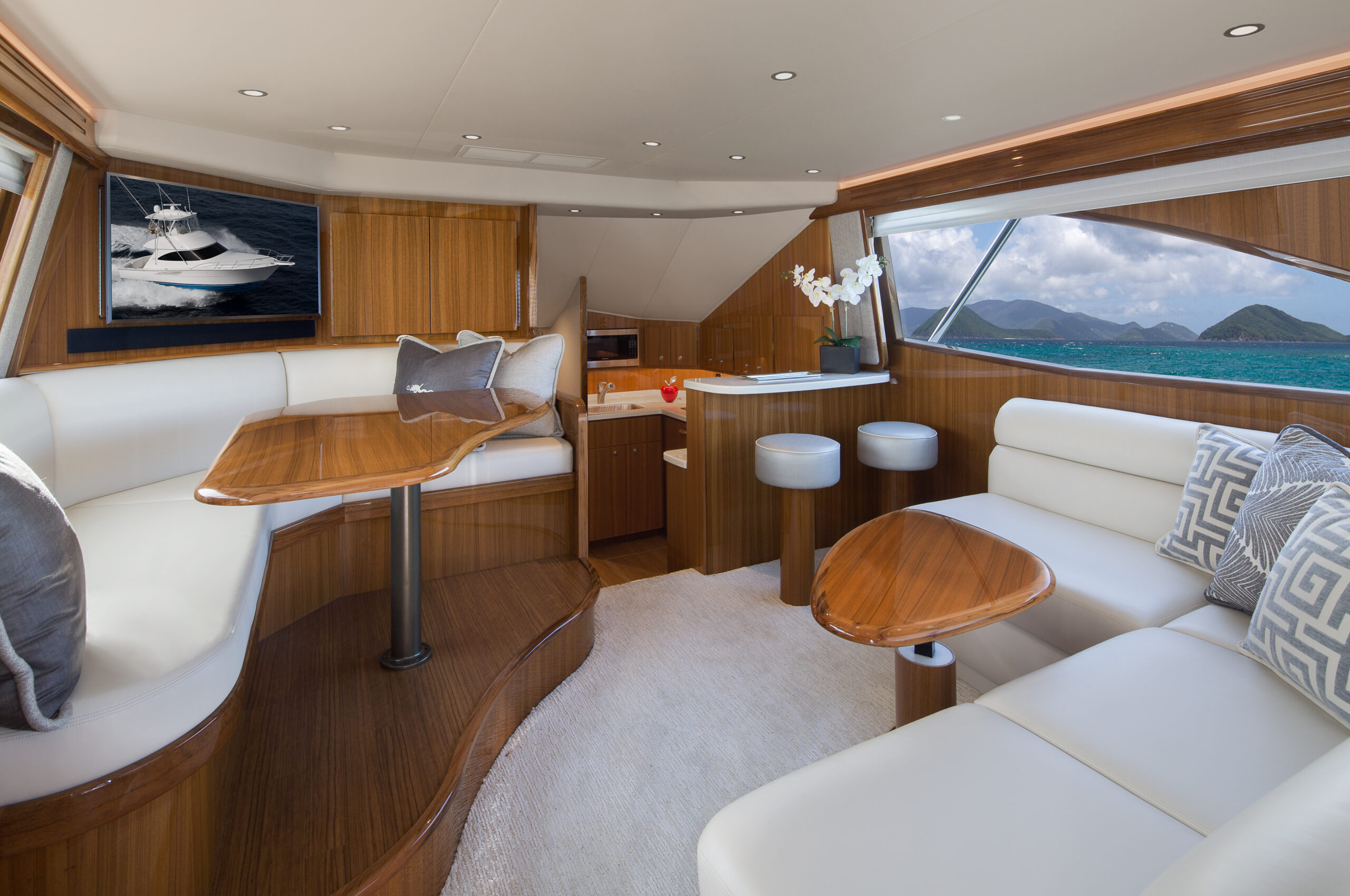

SALON

• Air conditioning with reverse cycle heat with temperature control that circulates from hidden registers behind the valences to maximise comfort while minimising noise and drafts
• Blinds, for desired natural lighting and additional privacy
• Cocktail table, wood, high gloss finish, hi/low
• Finished wood on galley island and dinette
• Fixed, frameless side windows with tinted, tempered glass for style, natural lighting, and privacy
• Flooring, carpeting, wall-to-wall lined padding for sound absorption, wood trim where Amtico floor at salon entrance and carpet meet
• Headliner, Majilite, 1/8″ foam & tricot backing
• Home theatre system with 40″ flat screen TV, stereo with surround sound with powered subwoofer and Blu-ray player
• Lambrequins – wood frame with fabric upholstery inserts
• L-shaped lounge with storage underneath on stbd side of salon
• Lighting, overhead LED lights recessed in headliner and indirect decorative rope lighting behind valences, 24V DC
• Main electrical service panel, AC/DC, backlit for easier viewing
• Salon door, aluminium weather tight swing door with tinted glass and stainless steel hardware
• Stereo speakers
• Wood cabinetry with drawers
• Wood valances on port, starboard and aft sides of ceiling

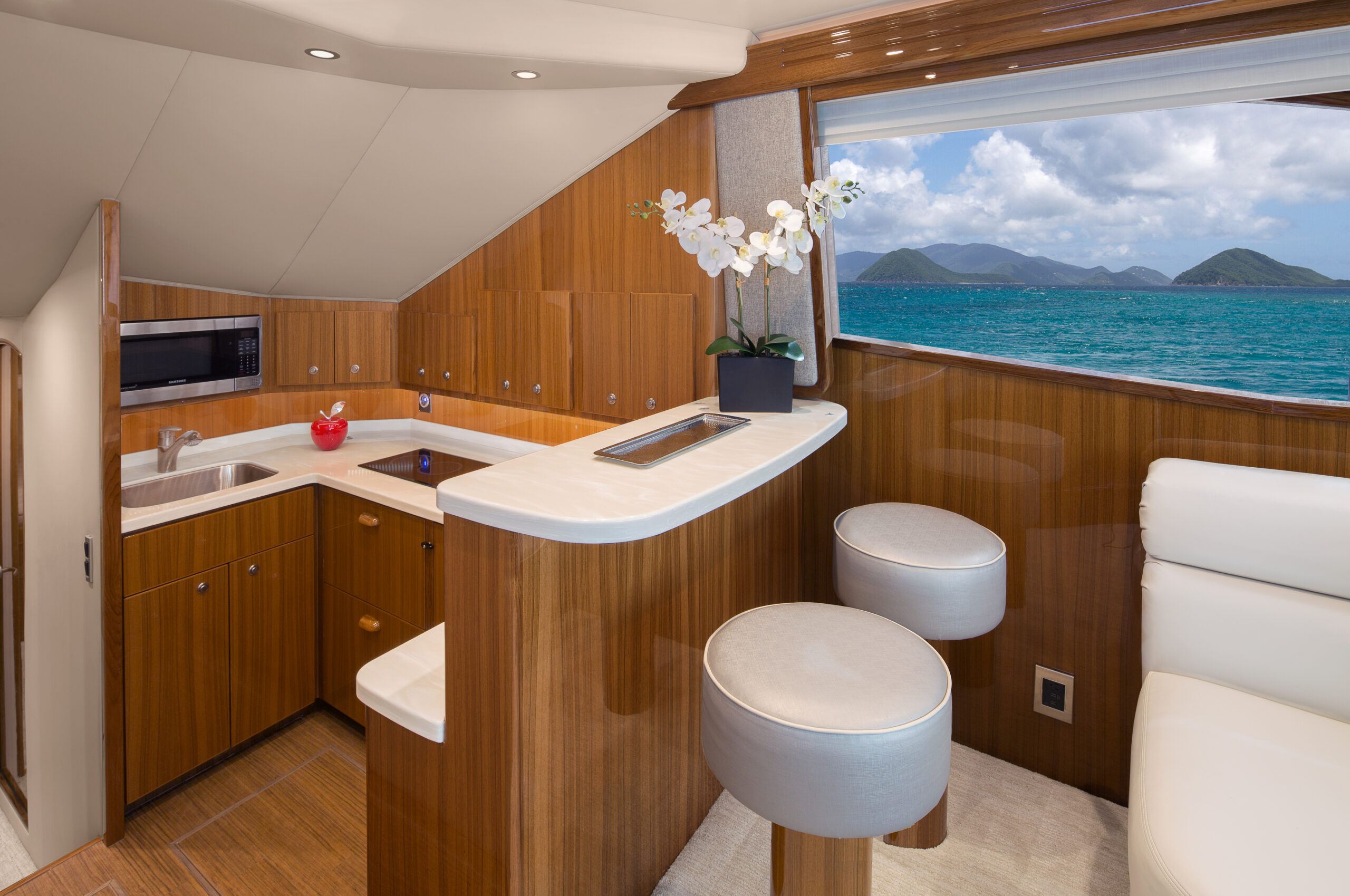

GALLEY/DINETTE

• Blinds, for desired natural lighting and additional privacy
• Countertop, polished sandalwood colour Corian, stainless sink with brushed nickel faucet
• Dinette table, wood, high gloss finish with single pedestal, thru-bolted with 110V outlet
• Electric range, 2-burner, surface mount stove with touch pad controls
• Exhaust fan, high velocity
• Galley, peninsula style with storage. Corian countertop with overhang
• Garbage disposal in sink
• Lights, overhead LED lights
• Majilite headliner, 1/8″ foam & tricot backing
• Microwave/convection oven located in upper galley cabinet above sink
• Refrigerator and freezer, large capacity, deep-drawer under-counter style with varnished wood faces
• Storage cabinets in upper galley, varnished wood doors with deep, pull-out drawers
• with aircraft style slides for smooth movement and latches to keep drawers in place while underway
• Storage cabinets and drawers in lower galley, varnished wood doors and faces with
• stowage for stove lids, utensils, and other items
• Vinyl Amtico flooring

COMPANIONWAY

• Awlgrip bilge areas with access hatches, Snow White and lighted for easier maintenance and cleaning
• Central vacuum unit connection with accessories
• Flooring, carpeted steps from galley to companionway
• Headliner, Majilite, 1/8″ foam & tricot backing
• Lighting, overhead LED lights recessed in headliner
• Wall panels, natural colour Majilite headliner individually installed with Velcro backing
• for easy maintenance

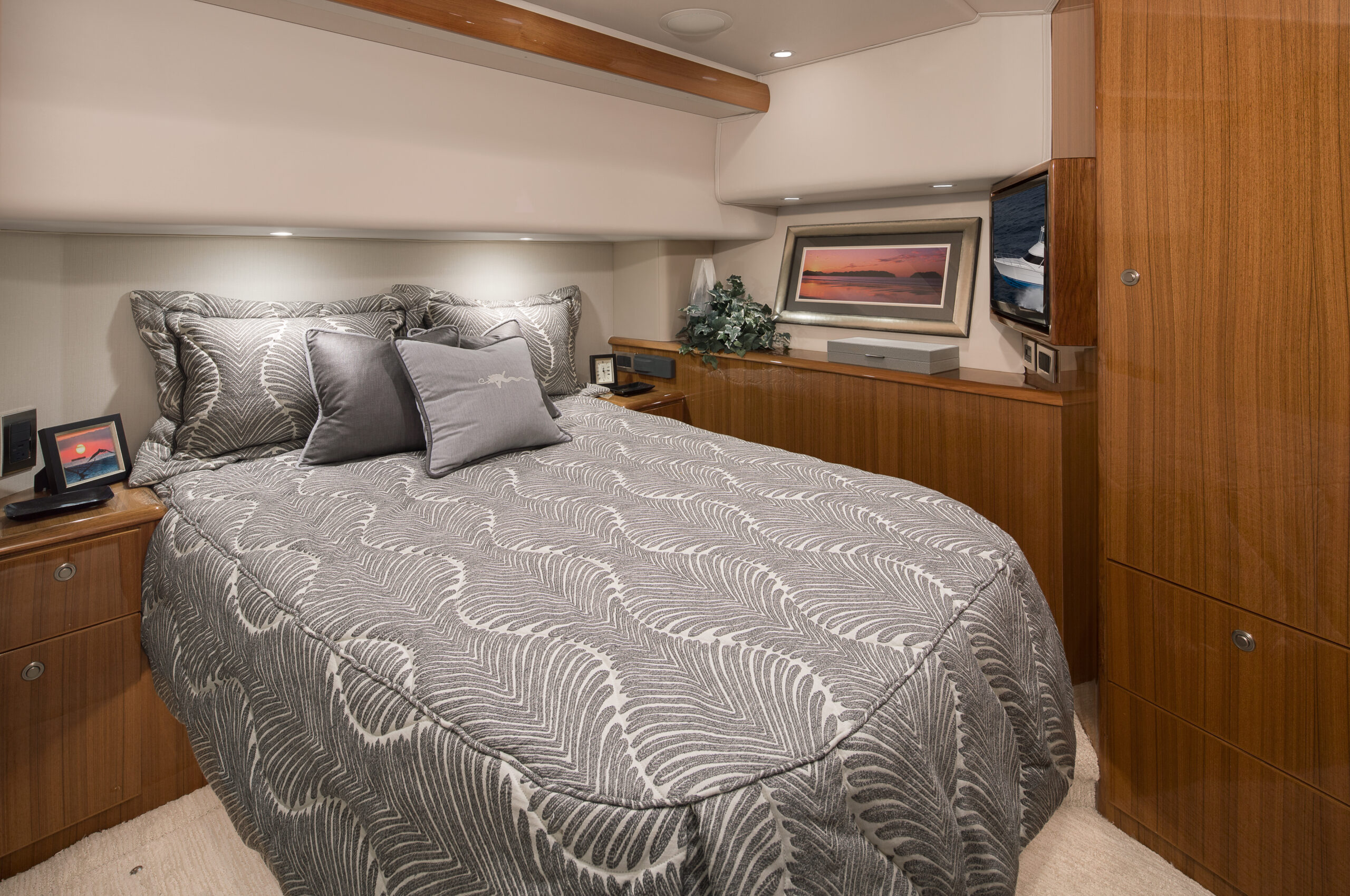

MASTER STATEROOM (MIDSHIP)

• Air conditioning with reverse cycle heat with temperature control
• Bed, queen-size, walk-around fore and aft bed with lift up top with gas pistons and
• maple-lined storage underneath – mattress “Handcraft”, Viking Slumber #8, bedspread,
• quilted, designer style with (2) pillow shams
• Drawer storage under bed, (2) large drawers
• End tables on either side of bed with drawer and door storage
• Flooring, carpet
• Hanging locker, maple-lined
• Headboard, upholstered
• Headliner, Majilite, 1/8″ foam & tricot backing
• Lighting, overhead LED lights and decorative indirect rope lighting from underneath bed platform
• Reading lights, overhead with separate switches
• Sheets, (1 set)
• Stereo speakers recessed in headliner
• TV, 24″ flat screen

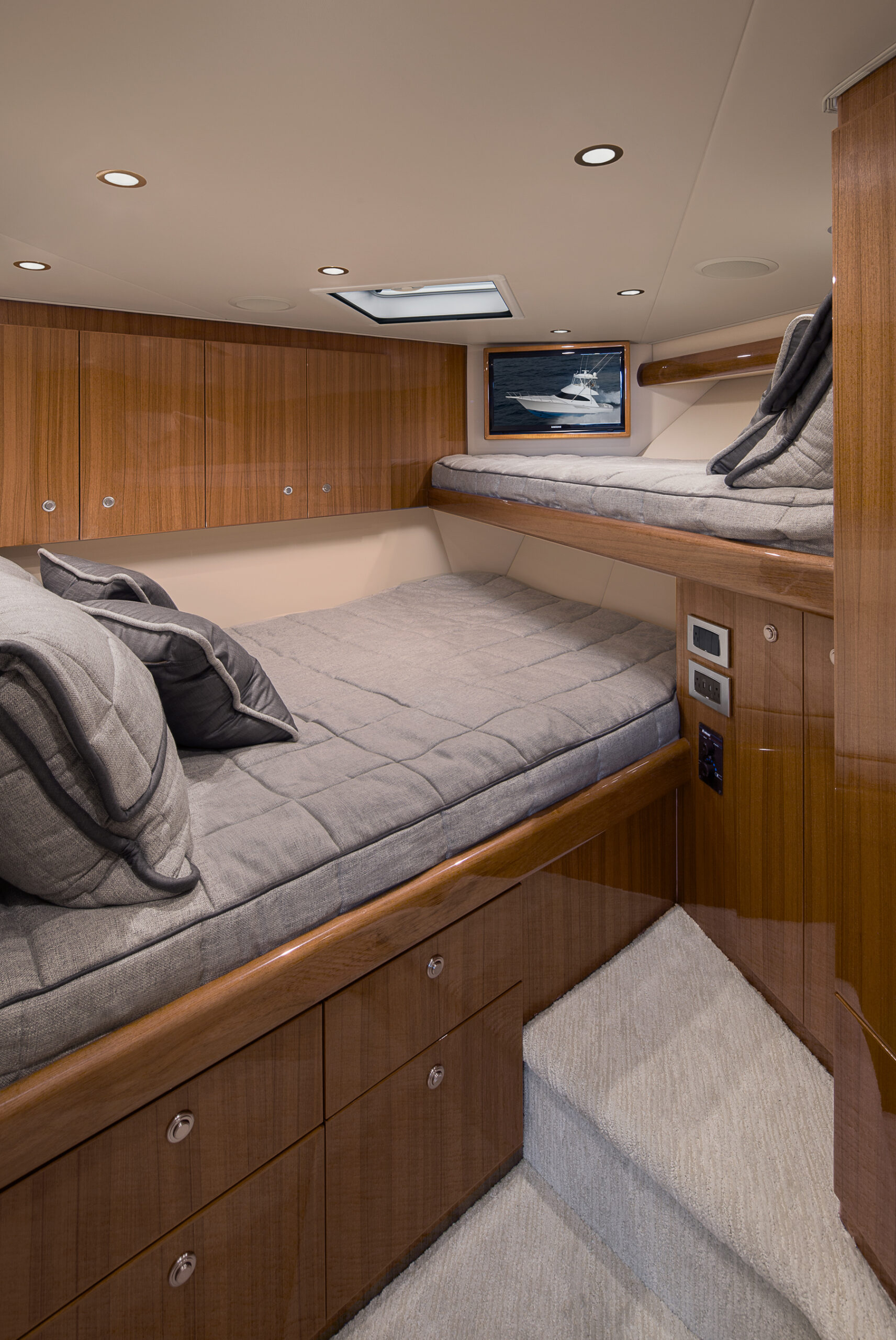

GUEST STATEROOM (FORWARD)

• Air conditioning with reverse cycle heat with fan control
• Bed, upper/lower crossover bunks with bedspread, quilted, designer style with (2)
• pillow shams
• Flooring, carpet
• Hanging locker, maple-lined (with optional guest head only)
• Headliner, Majilite, 1/8″ foam & tricot backing
• Lighting, overhead LED lights
• Sheets, (1 set)
• Stereo speakers recessed in overhead tied into 12V AM/FM/DVD player

MASTER HEAD

• Air conditioning/heat with vent in soffit
• Countertop and sink, Corian, polished sandalwood colour with brushed nickel faucet
• Electric heads, plumbed with y-valve for overboard discharge or direct to holding tank
• Exhaust fan with vent
• Flooring, Amtico
• Linen storage
• Lower vanity with wood door
• Lights, overhead LED lights recessed in soffit and in ceiling
• Mirrored wall behind upper vanity, medicine cabinet with mirrored doors
• Receptacle, 110V – GFCI
• Shower light
• Stall shower, fibreglass with satin nickel shower fixtures and with drain to automatic
• sump pump in bilge
• Towel bars and rings – satin nickel

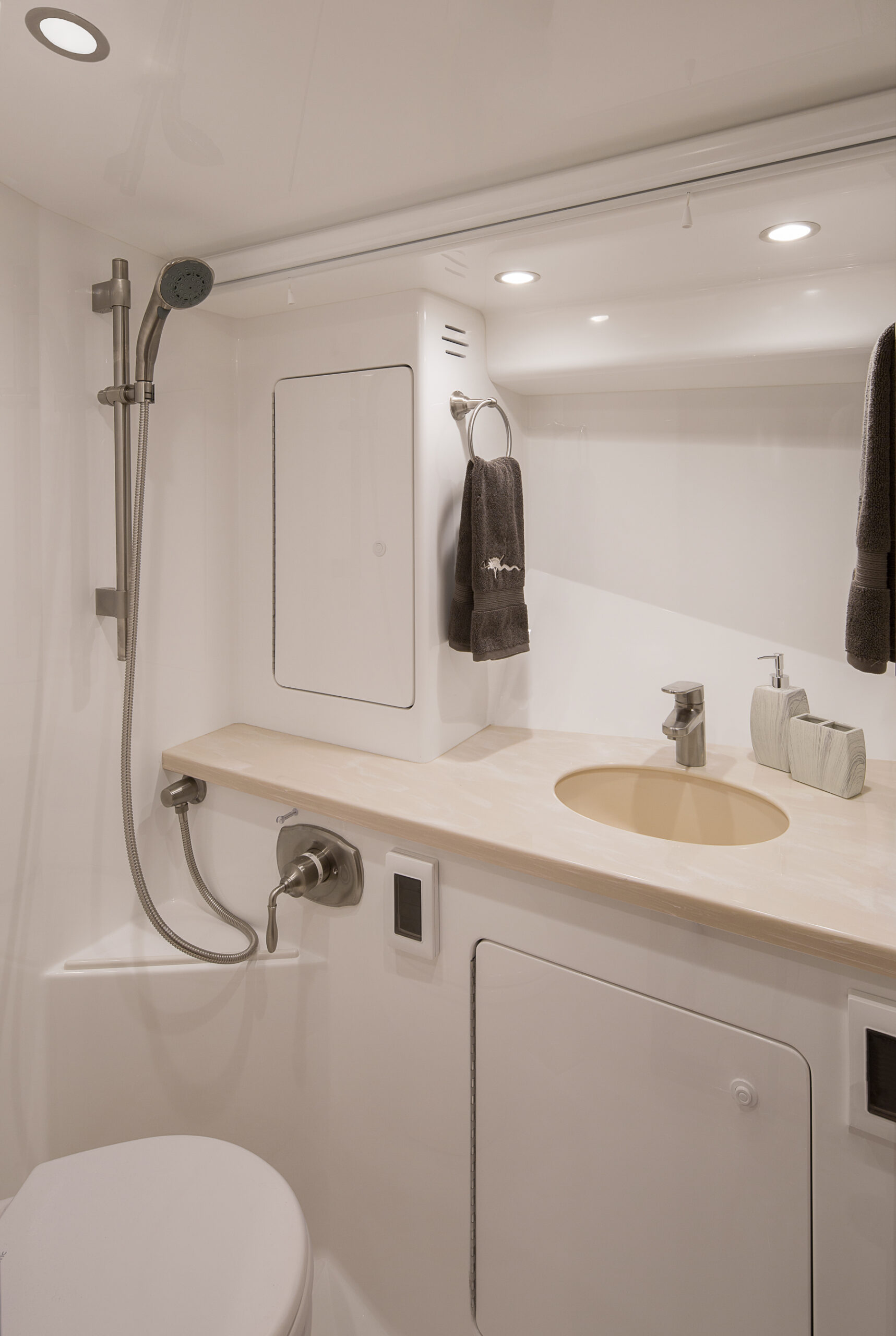

GUEST HEAD (STANDARD)

• Air conditioning/heat with vent in soffit
• Countertop and sink, Corian, polished sandalwood colour with brushed nickel faucet
• Electric head, plumbed with y-valve for overboard discharge or direct to holding tank
• Exhaust fan with vent
• Flooring, Amtico
• Linen storage
• Lower vanity with wood door
• Lights, overhead LED lights recessed in soffit and in ceiling
• Medicine cabinet with mirrored doors
• Receptacle, 110V – GFCI
• Shower light
• Stall shower, fibreglass with satin nickel shower fixtures and with drain to automatic
• sump pump in bilge
• Towel bars and rings – satin nickel

GUEST HEAD (OPTIONAL)

• Air conditioning/heat with vent in soffit
• Blind to keep water off vanity and countertop
• Countertop and sink, Corian, polished sandalwood colour with brushed nickel faucet
• Electric heads, plumbed with y-valve for overboard discharge or direct to holding tank
• Exhaust fan with vent • Integrated shower with drain, fibreglass with satin nickel shower fixtures and with drain to automatic sump pump in bilge
• Linen storage
• Lower vanity with wood door
• Lights, overhead LED lights recessed in soffit and in ceiling
• Mirrored wall behind upper vanity, medicine cabinet with mirrored doors
• Receptacle, 120V – GFCI
• Shower light
• Towel bars and rings – satin nickel

MISCELLANEOUS

• Anchor — constructed with a high-tensile, corrosion resistant aluminium magnesium alloy
• Anchor locker with access from foredeck
• Anchor rode 300’ rope, 12’ chain
• Awlgrip bilge areas with access hatches, Snow White and lighted using magnetic switches for easier maintenance and cleaning
• Awlgrip lazarette, engineroom, anchor locker and forward bilges
• Bonding system anode on transom
• Bow pulpit, moulded fibreglass with non skid and stainless steel anchor shoot
• Bow rail, anodized aluminium, brushed finish
• CO2 detectors throughout
• Fire extinguishers, (5)
• Fuel
• Hatch, Bomar, foredeck hatch with Ocean Air screen shade system
• Magnetic switches for lights in all forward bilge compartments
• Mooring lines, braided nylon (6)
• Positive catches on all stateroom doors to secure open
• Recessed covers on transom to protect trim tab pistons
• Ships bell
• Side mounted, wrap around grab rails, powder-coated aluminium that follow the window line
• Smoke detector
• Stainless steel bow, spring and stern cleats thru-bolted to aluminium backing plates
• USB receptacle (Apple compatible) in staterooms and salon
• Viking Prestige Decor package
• Water delivery kit with tool set (N)

STANDARD POWER: MAN I6 800CRM:800MHP

INTERIOR

• Satin interior finish throughout (J)
• *Standard will be high gloss, juno wood

COCKPIT

• Outriggers, Rupp w/spreaders, grommets and halyards (K)
• Swim platform & ladder
• Transom lettering
• Window and light in transom box live well

DECK/EXTERIOR

• Additional (2) foredeck hatches w/ sunshade
• Bow pulpit removal
• Bow thruster DC
• Custom hull colour, gelcoat (J)
• Custom hull colour, paint Fender racks
• Salon forward window mask0
• Windlass, Lewmar V2 SS w/50′ chain, 250′ rope

DECOR(S)

• Classic decor, accessory kit
• Essential galley, accessory kit

OPEN FLYING BRIDGE

• Three sided enclosure to back of helm w/ centre panel “U” zip (K)
• Three sided Costa Clear enclosure to back of helm  (6) Rod rocket launcher (K)
• Helm air conditioning with reverse cycle heat (K)
• Centre rigger (K)
• Electronic single lever controls for pod
• Fibreglass helm pod w/stainless steel wheel
• Hardtop w/ moulded in LED lights (V)
• Lights, remote spotlight (K)
• Release wood helm pod

SALON

• Carpet runner – full salon
• Carpet runner – companionway, steps and landing

MASTER STATEROOM

• Electronic safe under bed

DELIVERY

• Propellers, spare and removal/installation tool

ENGINEROOM

• Eskimo Ice Machine
• Seakeeper 6
• Watermaker, 600 GPD w/ auto back flush

OPTIONAL POWER

• MAN I6 850 MHP: 850 MHP
• Volvo D13 1000: 1000MHP
