VIKING 48 CONVERTIBLE

CONSTRUCTION

• Ablative/Copolymer antifouling bottom paint, 2 coats, primed
• Awlgrip engine room, lazarette, forward bilge and anchor locker for enhanced visibility and easier maintenance
• Blister resistant modified vinyl ester resin in entire hull skin
• Custom blended polyester resin used in structural laminates, topsides, bridges, and hardtops
• Dupont high gloss polyurethane boot stripe
• Fibreglass side thru-hulls
• High gloss, wood interior finish throughout
• High performance isophthalic gelcoat npg superior gloss, flexibility and outstanding weathering characteristics
• Hull interior, isophthalic gelcoat top-coated with a durable high gloss polyurethane coating
• Hull resin infused cored composite construction, using end grain balsa and closed cell foam cores in selected areas with E-glass laminates for optimised strength and stiffness while minimising weight Infused fibreglass fuel, freshwater and holding tanks with fibreglass baffles inside and balsa coring on sides for stiffness, sealed to hull with resin foam
• Moulded fibreglass salon floor/engine room ceiling with Airex core for acoustical and thermal insulation
• Non Skid moulded in for traction and durability
• Prop pockets to reduce draft
• Stringers, fibreglass encapsulated foam
• Transducer location moulded into hull
• Vacuum bagged composite bulkheads — Main engine room bulkhead, intermediate engine room bulkheads, and forward bulkhead

MECHANICAL

• Air conditioning – direct expansion zoned with reverse cycle heat for complete climate control throughout the interior
• Bilge pumps with additional clean out pumps on centerline linked into monitoring system and connected to float switches for automatic and manual operation
• Deck pump out fitting and direct overboard pump out for holding tank
• Delta-T engine room ventilation system with supply and discharge fans for proper fresh air supply and water intrusion suppression
• Engine Room entrance package consisting of gauges for digital tachometer, engine water temperature, engine oil pressure, and engine room mounted engine start and stop switches for easier viewing and accessibility
• External sea strainers for main engine pickups
• Fire suppression system, automatically or manually operated and tied into main engine and generator ignition systems with override
• Freshwater supply in engine room for general maintenance and cleaning
• Fuel and oil lines, flexible, steel reinforced USCG approved, aircraft type
• Fuel priming pumps electric 24V DC, for main engines
• Fuel transfer system, 24V DC pump
• Hour metres on main engines and generator
• Internal sea strainers for generator, all water pick ups
• Mufflers – engines, in-line type with surge tubes in engine room
• Mufflers – generators/lift muffler with gas water separator for cleaner, quieter operations
• Oil changing system, gear type pump for main engines, transmissions, and generator with pump out line run to cockpit entrance
• PEX plumbing, freshwater system plumbing with manifold system shut off in engine room and forward bilges
• Pressurised freshwater system, 110 A/C with on deck freshwater fill and cockpit dockside supply inlet with pressure reducing valve
• Propellers – Class “S” pitch tolerance (ISO 484/2) and dynamic balancing. Advanced design cambered blade sections for optimum performance. Nibral alloy for maximum durability
• Racor fuel/water separators for main engines and generator glass – includes vacuum gauge for fuel filter restriction – Awlgrip white
• Rudders, stainless steel, with composite rudder bearing and dripless seal laminated into hull
• Seacocks, bronze, ball-type sea valves for all thru-hulls below the water line – Awlgrip white
• Shafts — 2 Aquamet high-strength stainless steel, double-taper with machined keyway and thrust plate at main engine couplings
• Steering system, Seastar Optimus electronic power steering
• Struts — thru-water, Nibral
• Trim tabs, with individual controls w/ the trim tab covers on transom

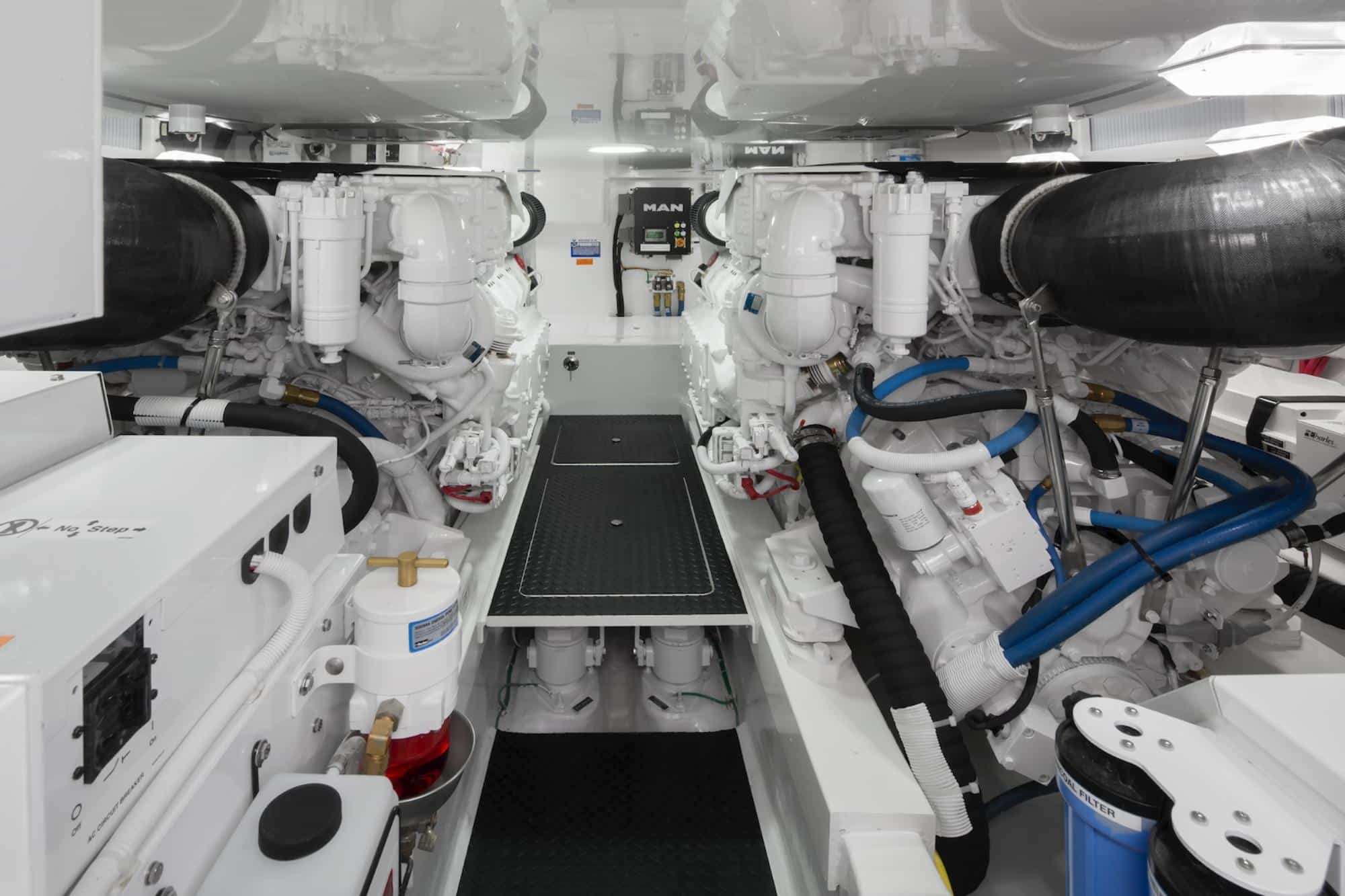

• Twin diesel engines with marine grade reduction gears. *See manufacturer’s information for specifications
• Valve off engine intakes for use as emergency bilge pumps (2)
• Water heater quick recovery, electric

ELECTRICAL

• 24V DC ship’s service throughout
• 24V/12V power supply with breakers on flybridge for future electronics
• 110V outlet in engine room on aft bulkhead
• Anchor light/navigation lights
• Batteries, (2) independent 24V banks mounted in fibreglass storage box
• Battery chargers, (2) with thermal cutoff and switching system for complete integration
• Battery distribution panel with battery cutoff and charging system breakers
• Battery parallel system for main engines and generator start
• Bonded electrical system with ground plate
• Colour-coded, labelled and numbered wiring system with corresponding drawings
• Dimmers, for LED interior lighting throughout excluding the companionway
• Emergency DC crossover
• Engine Room lights, DC with LED/AC backup with switch at engine room entrance
• Generator, Diesel – Onan 21.5 kW E-QD (electronic quiet diesel) Series, user-friendly with electronic governing allowing voltage and electronic frequency control (R)
• Glendinning cablemaster, (1) with 3 wire grounded cord, (1) additional 50 amp 220V inlet with 50’ cord
• Instrument panel lights for flybridge and main electric panel
• Lighting, overhead LED lights recessed in ceiling and rope type decor lights concealed by wood valances, 24V throughout
• Master electrical control panel located in salon with 24V/110V circuit breakers, individual switching for shore 1, shore 2, or generator supply and gauges for electrical supply, voltmeter, ammeter, and frequency
• Receptacles, 110V duplex with GFCI throughout
• RG6 TV cable to accommodate satellite system
• Sub-panel located in galley with breakers for galley appliances, and galley lights and with gauge for water tank and alarm panel for safety monitoring system
• Voltage stabiliser isolation transformer on cable masters for more consistent, cleaner Voltage

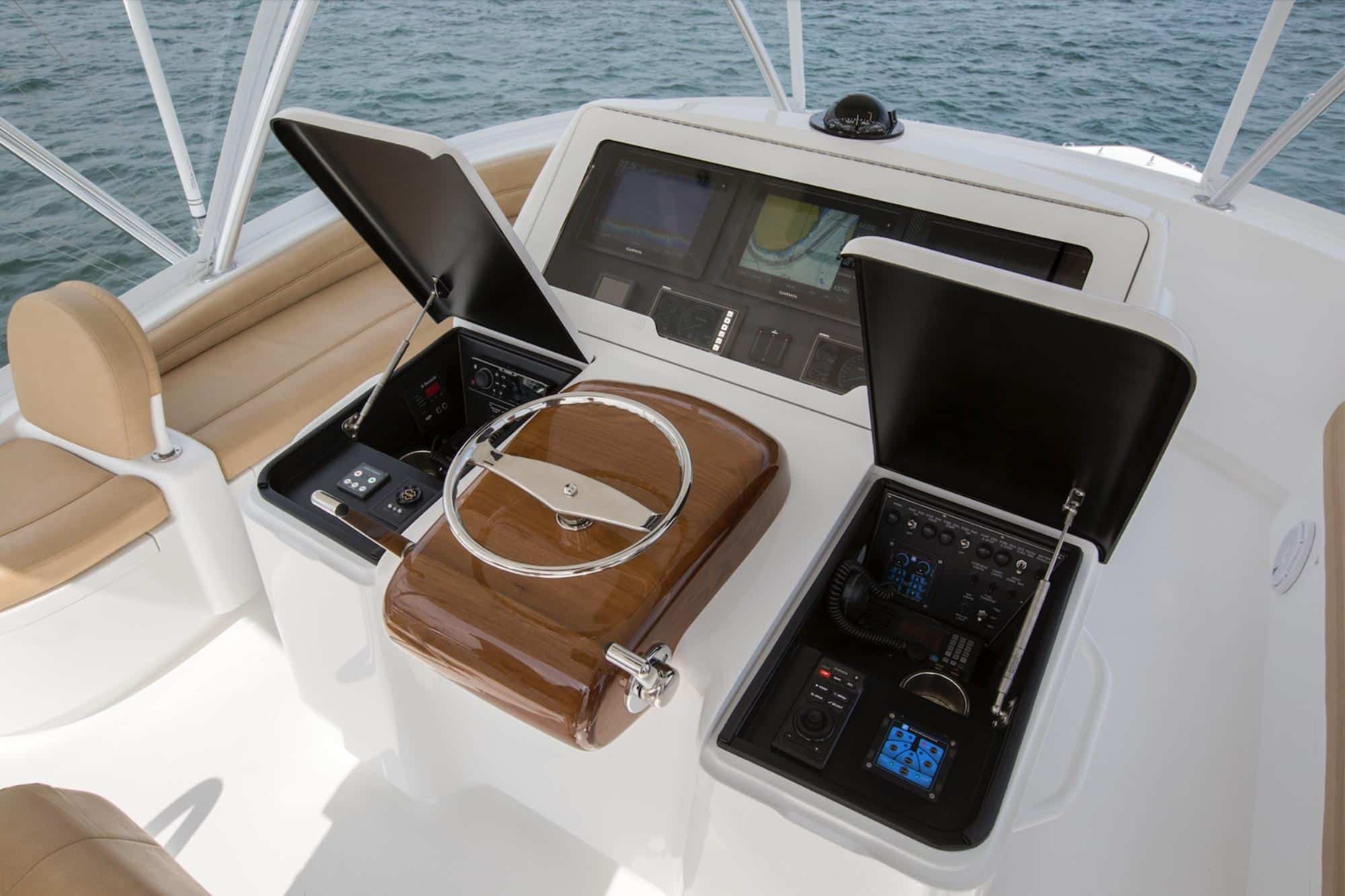

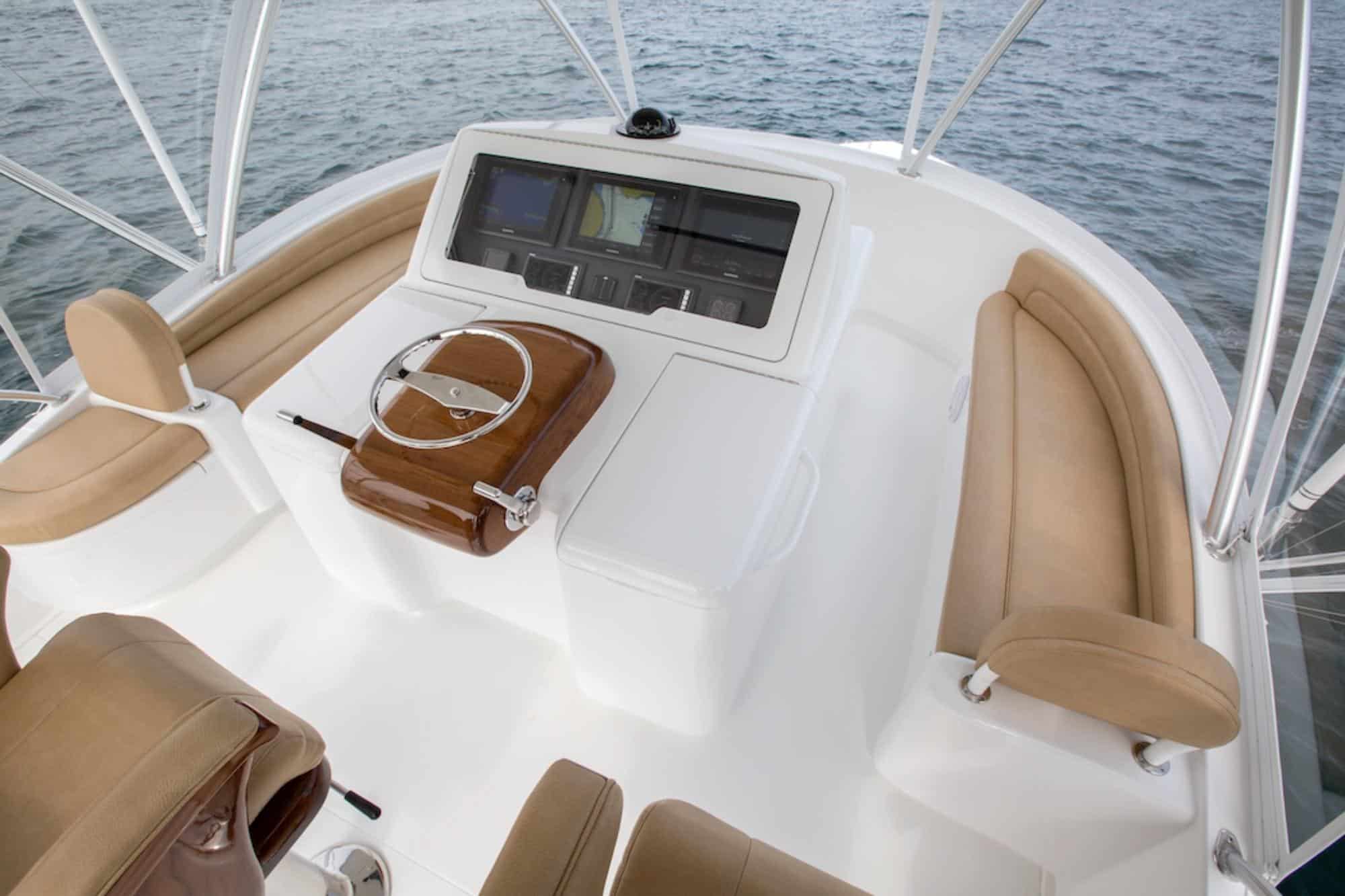

FLYING BRIDGE

• Bridge installed without exposed fasteners
• Controls: top mounted single lever electronic controls with station select and keypad
• Centre console walk-around helm with electronic storage raised pod with additional storage raised pod with additional storage below
• Electronic radio lids underside painted satin black
• Electronic trolling valves
• Extended overhang for extra room to move around behind helm and companion seats with anodized aluminium aft railing
• Fire system control with automatic and manual discharge and override system located at console
• Forward bench seating integrated into console
• Freshwater outlet
• Fuel gauge Offshore systems display located at helm
• Furuno RD-33 depth finder/sea temperature gauge
• Handrail, powder-coated aluminium effectively positioned above ladder to bridge and at helm
• Helm seat, companion seat, wood, ladder back with pedestals and removable cushions and covers
• Instrumentation based on standard engine package, lighted with switches in radio box
• Lighted compass, flush mounted on centerline
• Manual engine shutdown switches in radio box
• Non Skid deck moulded for traction and durability
• Offshore systems safety monitoring system with audible and visible alarms: fire, engine room temperature, high bilge water, high exhaust temperature, high coolant temperature, low oil pressure, and generator as well as confirming correct system operation

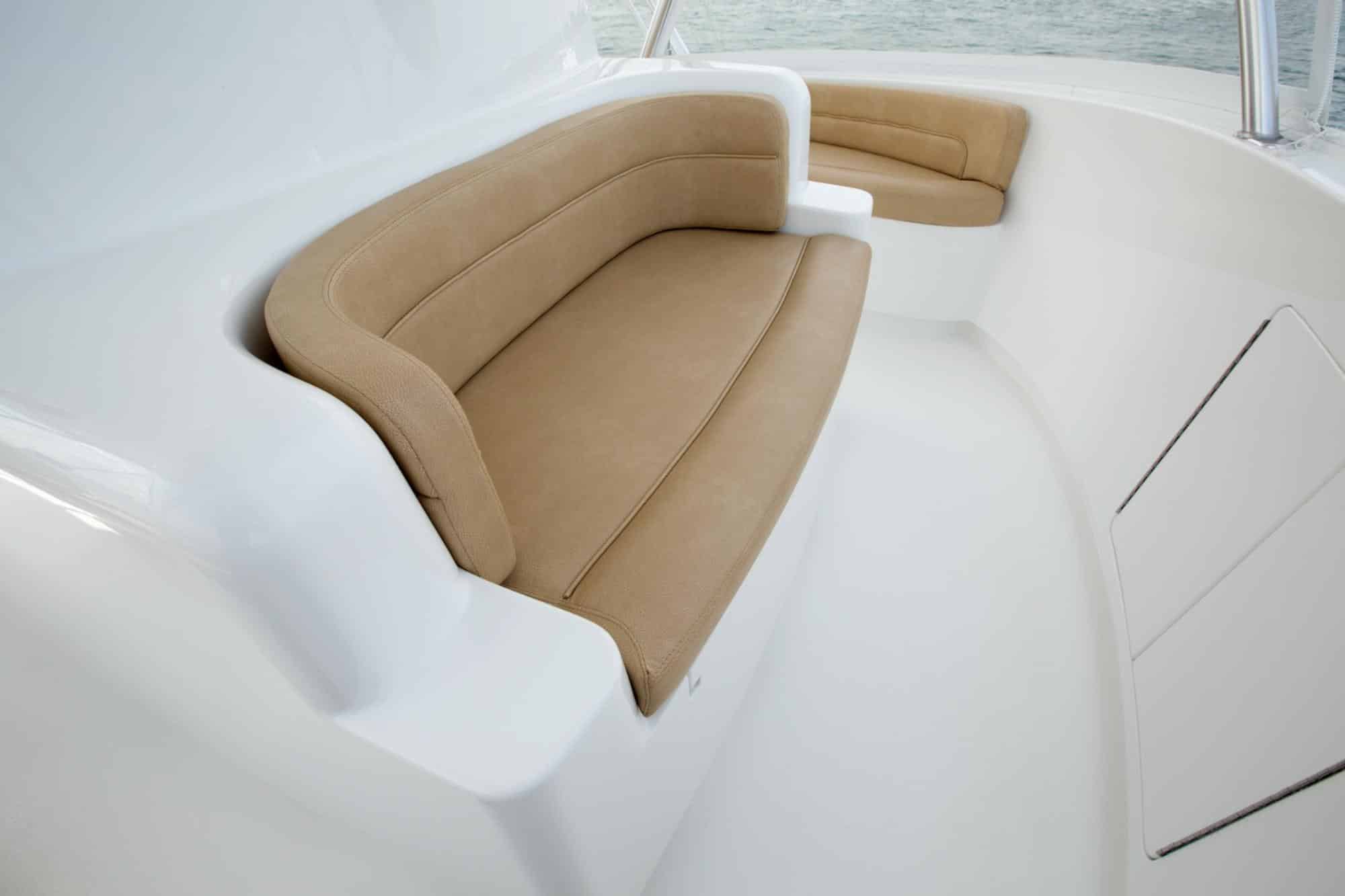

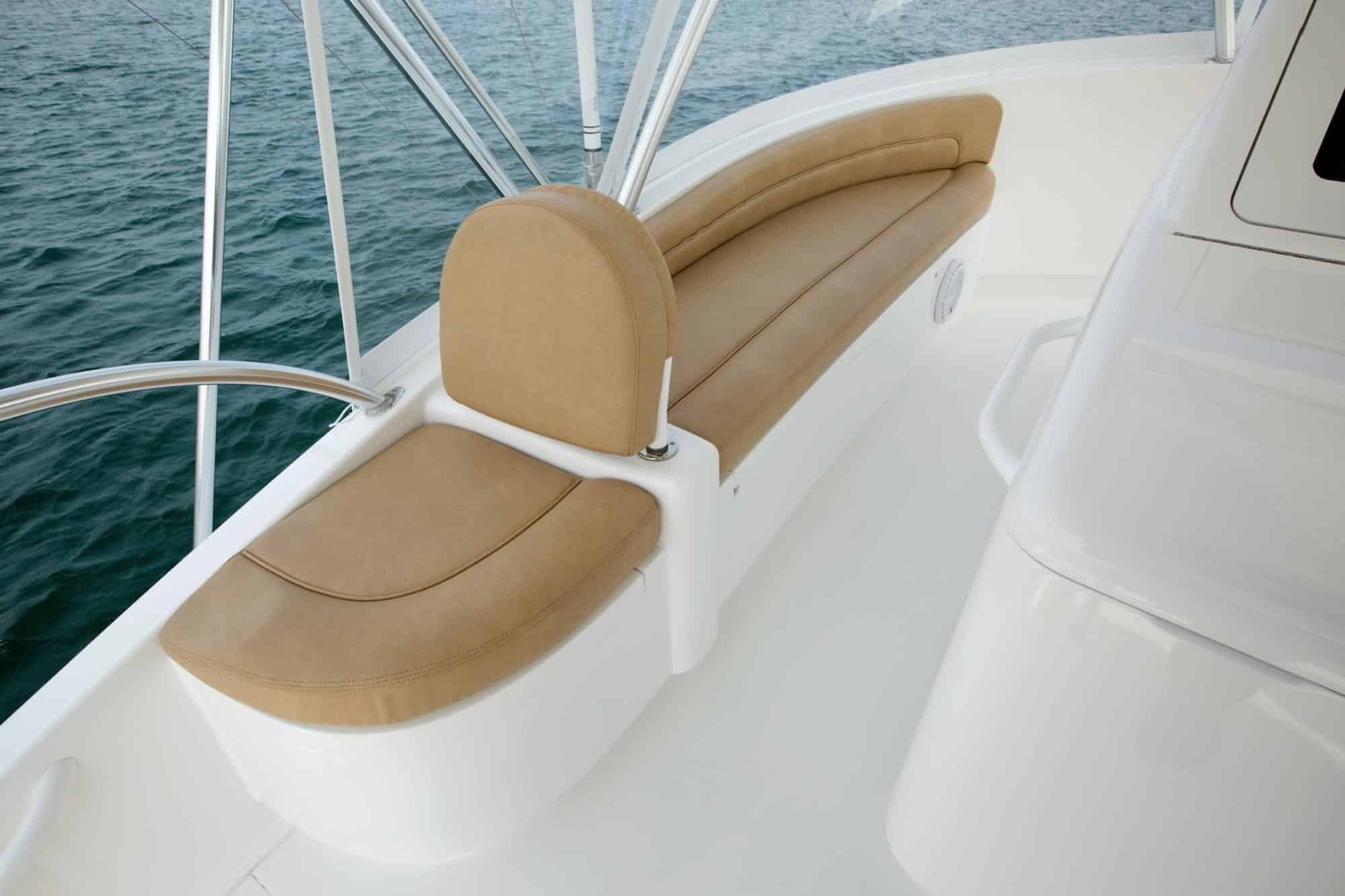

• Port and stbd side bench seating with vinyl cushions and storage underneath
• Port jump seat facing aft, hinged for access to bucket storage beneath at aft end of port lounge
• Power-assist steering

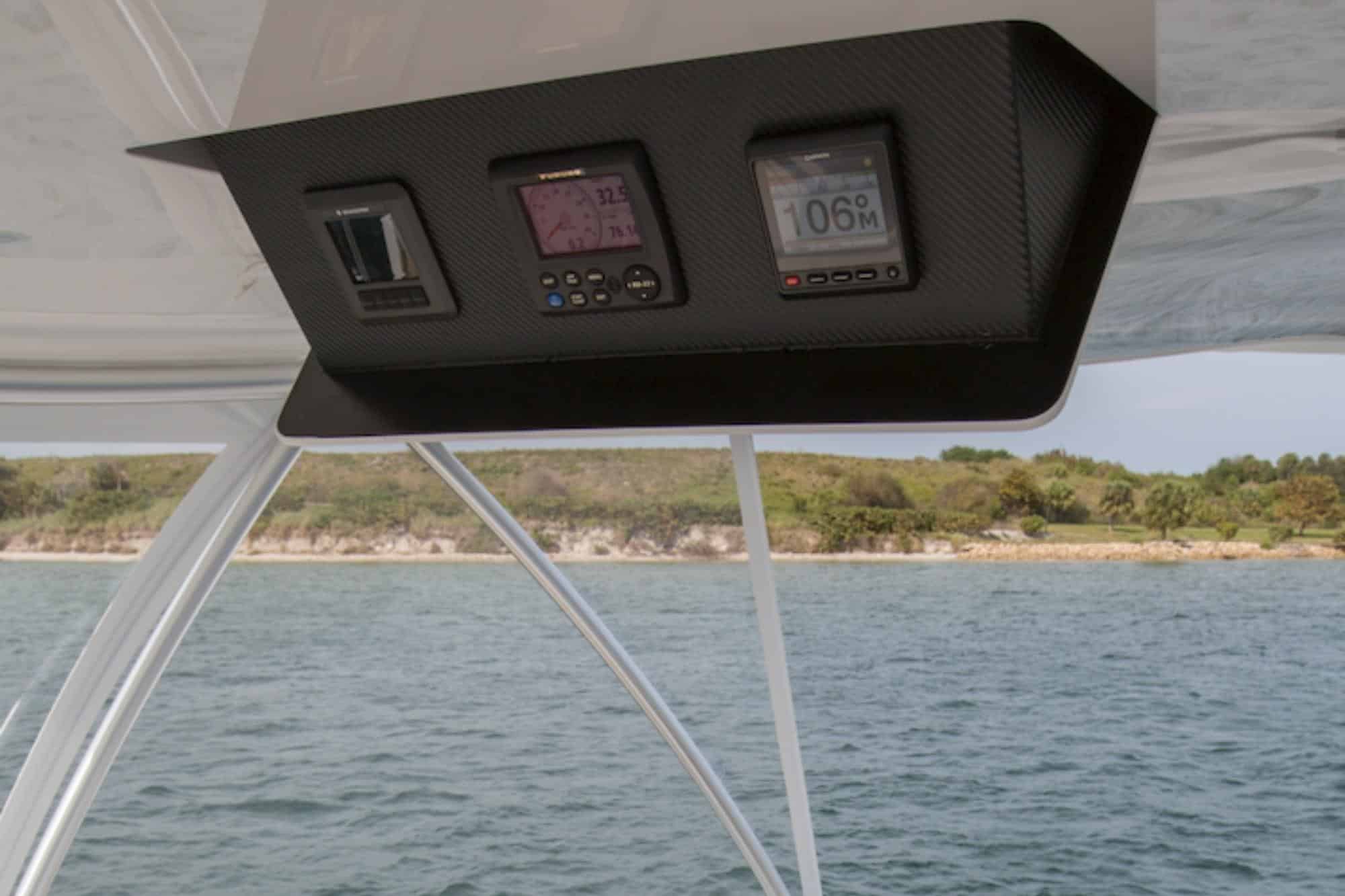

• Recessed electronics boxes in console for custom electronics package that is easily viewable and protected from the elements by acrylic fitted lids with gaskets and stainless steel gas pistons tapped into lids and push knob catches – painted satin black
• Recessed radio boxes with split lids, port and starboard switch panel inside and large recessed radio box on starboard side of console – painted satin black
• Removable backrest for jump seat, port side
• Stereo 12V w/ speakers, flush mounted to aft ends of bridge
• Trim tab control switch mounted at console
• Trumpet style air horns (2), mounted on forward flat section of radar pod
• Under helm access with lights and storage room
• VHF radio ICOM 604 with antenna and mounts

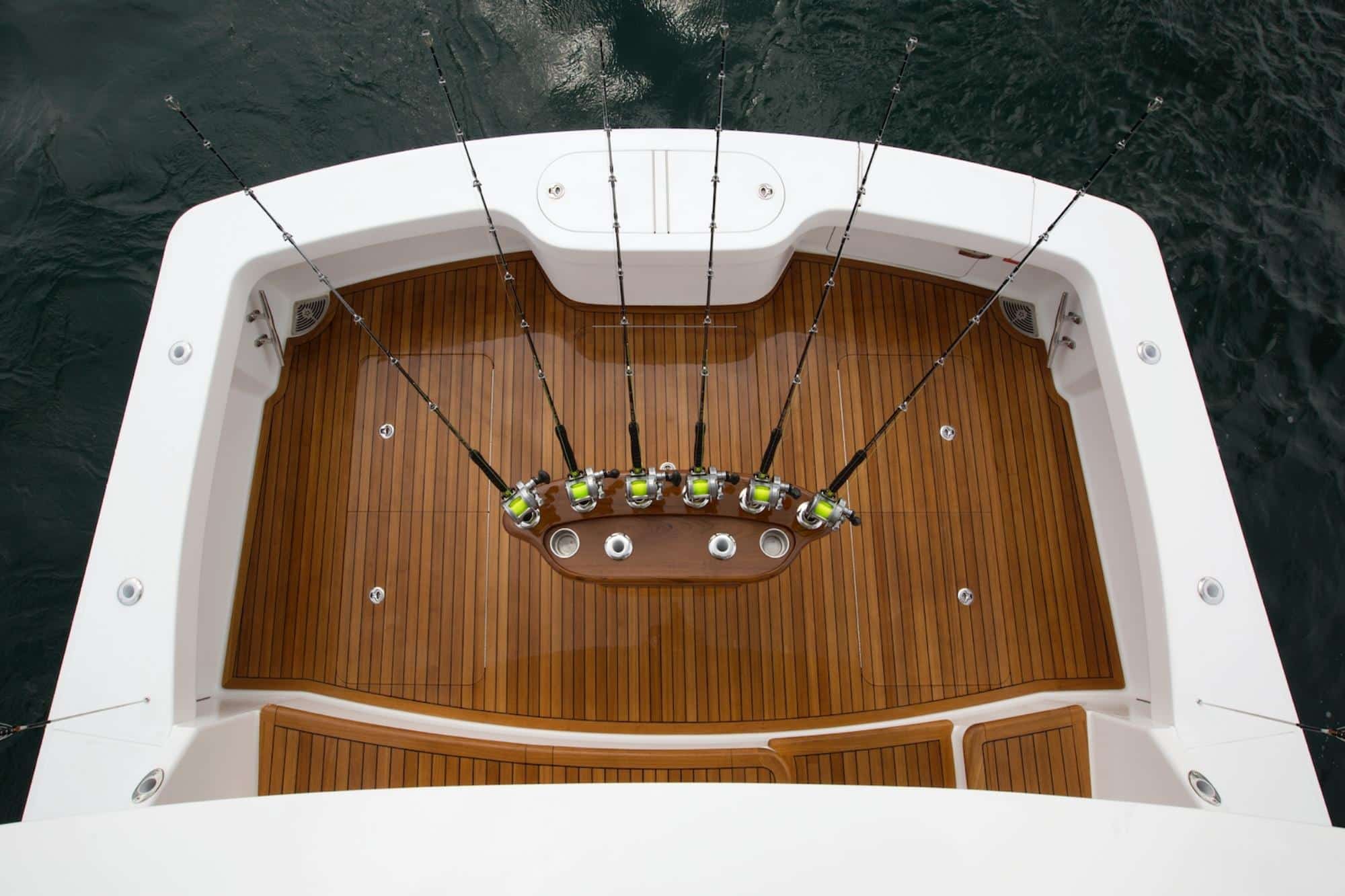

COCKPIT

• Boarding box, fibreglass with nonskid, lift up top and storage
• Cable TV and telephone connections located in starboard dock cabinet and wired to a home run

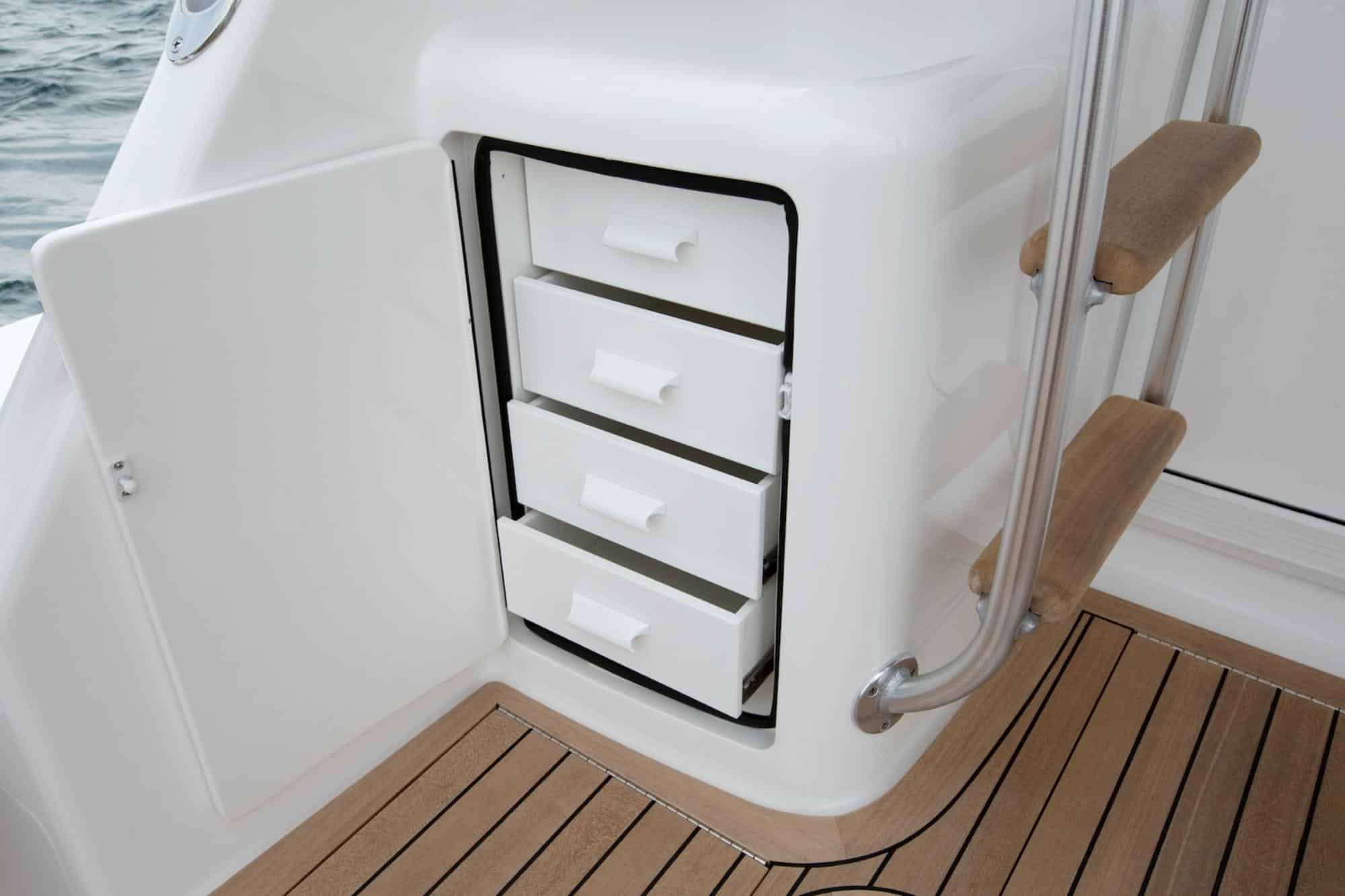

• Cabinet with storage for gaffs and or other accessories located starboard forward gunwale with push release door
• Dockside electric connection — 50 amp/220V electric retractable Glendinning Cablemaster (1), located in starboard cabinet under forward gunwale and (1) 50 amp 220V inlet with push release door
• Dockside water connection with pressure reducing valve in cabinet under forward gunwale – valve to fill freshwater tank from dockside connection
• Engine Room access thru mezzanine seat opening with stainless steel piston
• Extended flybridge overhang for shade
• Freshwater wash down with hose bib located in cabinet under forward gunwale
• Gaskets for all lids and access doors
• Grab Rails at cockpit haunch
• Indirect rope tri colour (red, white, blue) lighting under coaming
• Insulated soda box under mounted in salon step for direct access from cockpit
• Ladder to flybridge, one-piece, anodized aluminium with non skid treads

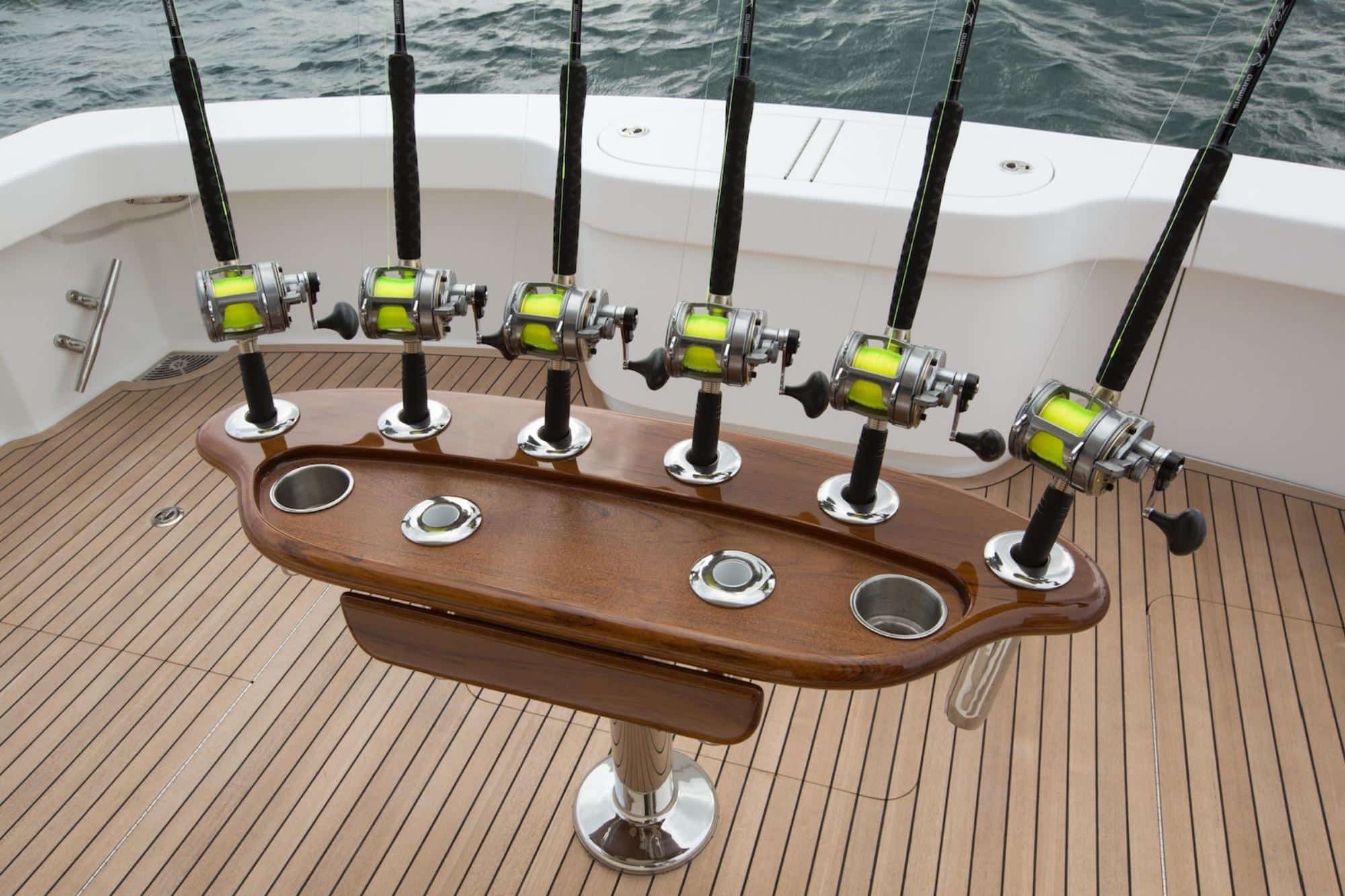

• Laminated backing plate in deck for future fighting chair or table

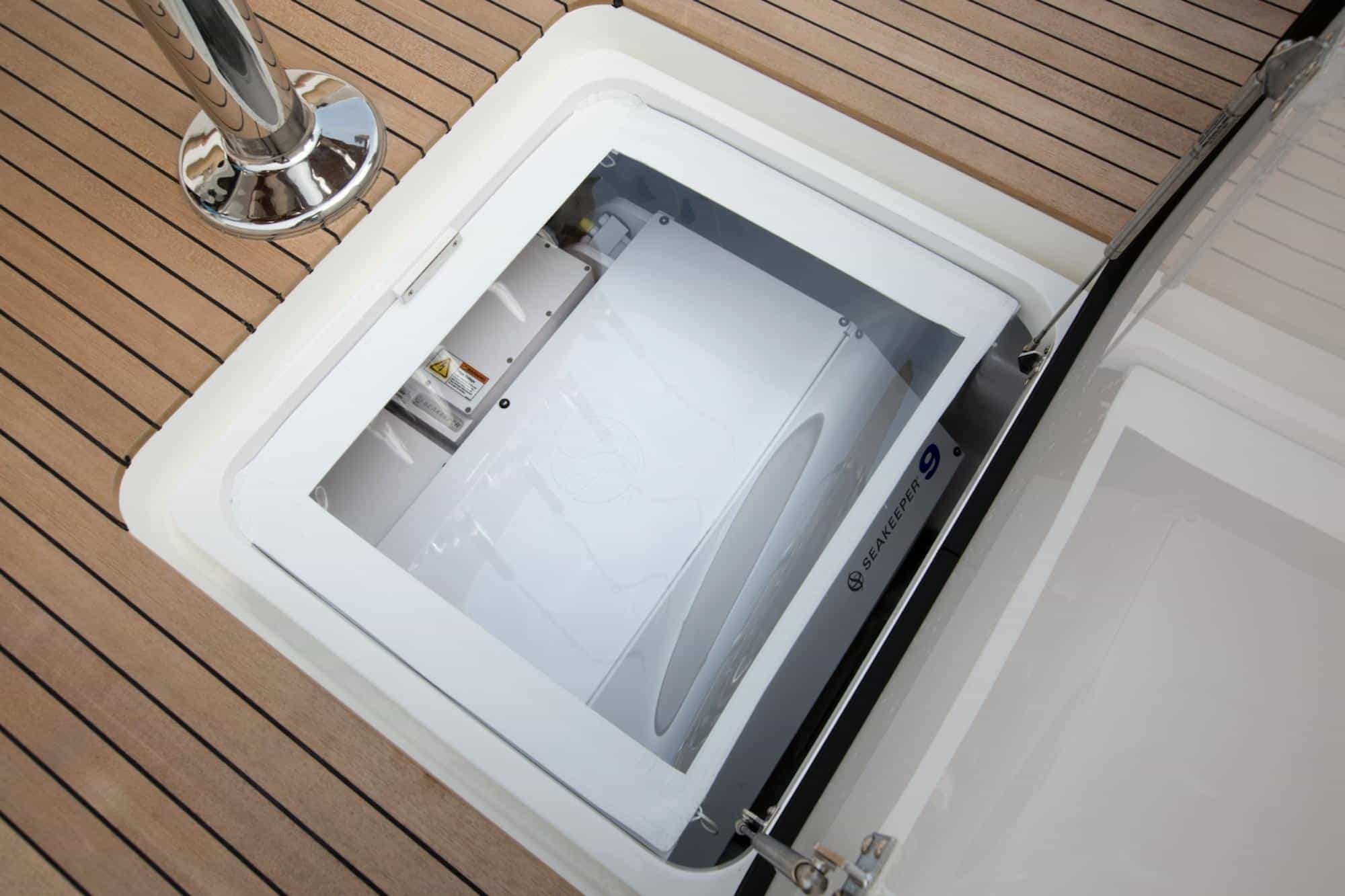

• Lazarette hatch with access to steering, trim tabs, and drain pumps
• Lighting, recessed tri colour (red, white, blue) lights in flybridge overhang
• Live well in transom box without window and light
• Moulded non skid deck

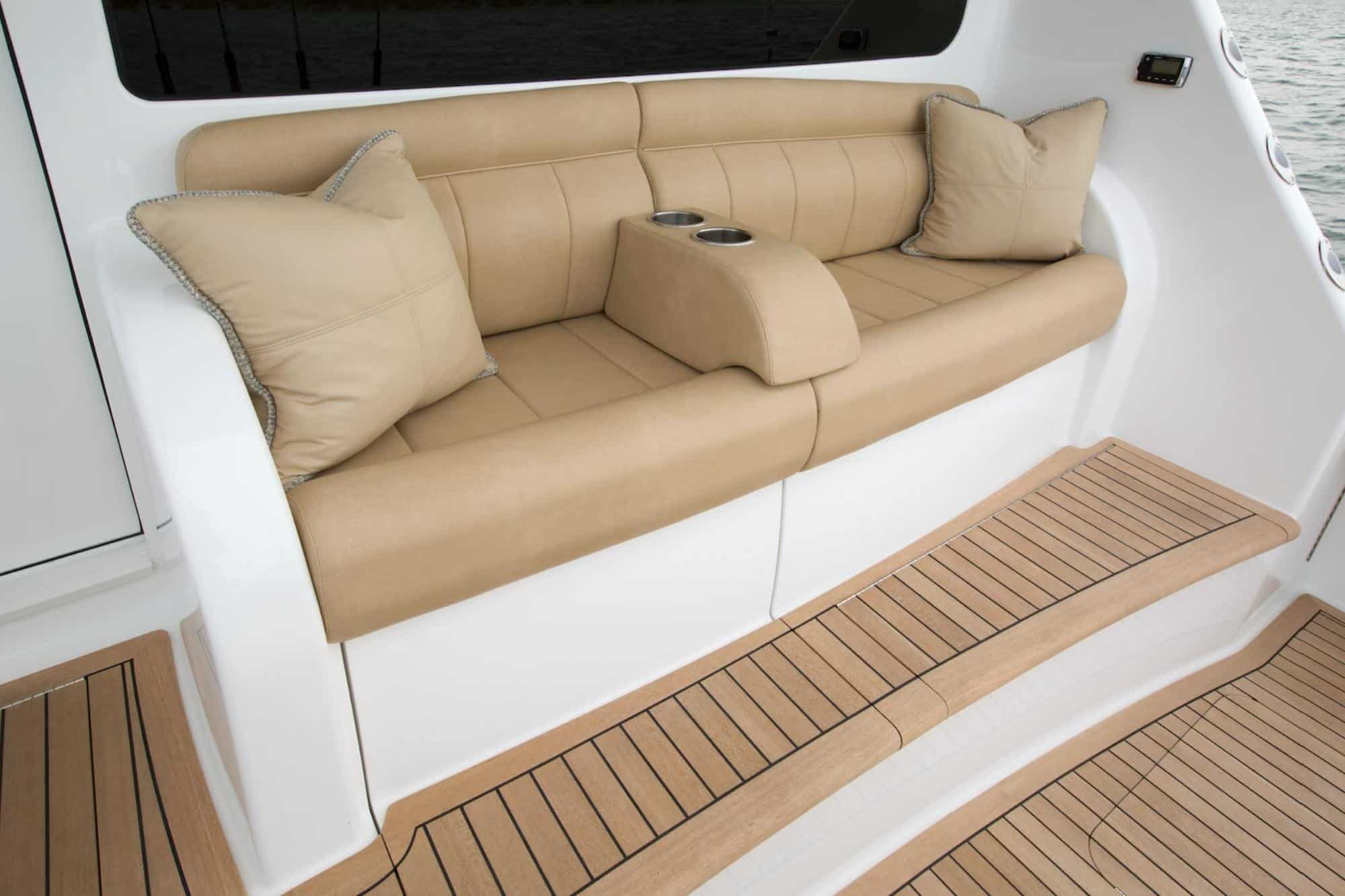

• Observation mezzanine, starboard aft facing lounge with vinyl covered cushions, hinged seat with freezer storage under lounge area, lower starboard storage area insulated hinged for access, tackle cabinet to port with drawers and push release door, and insulated storage box to port

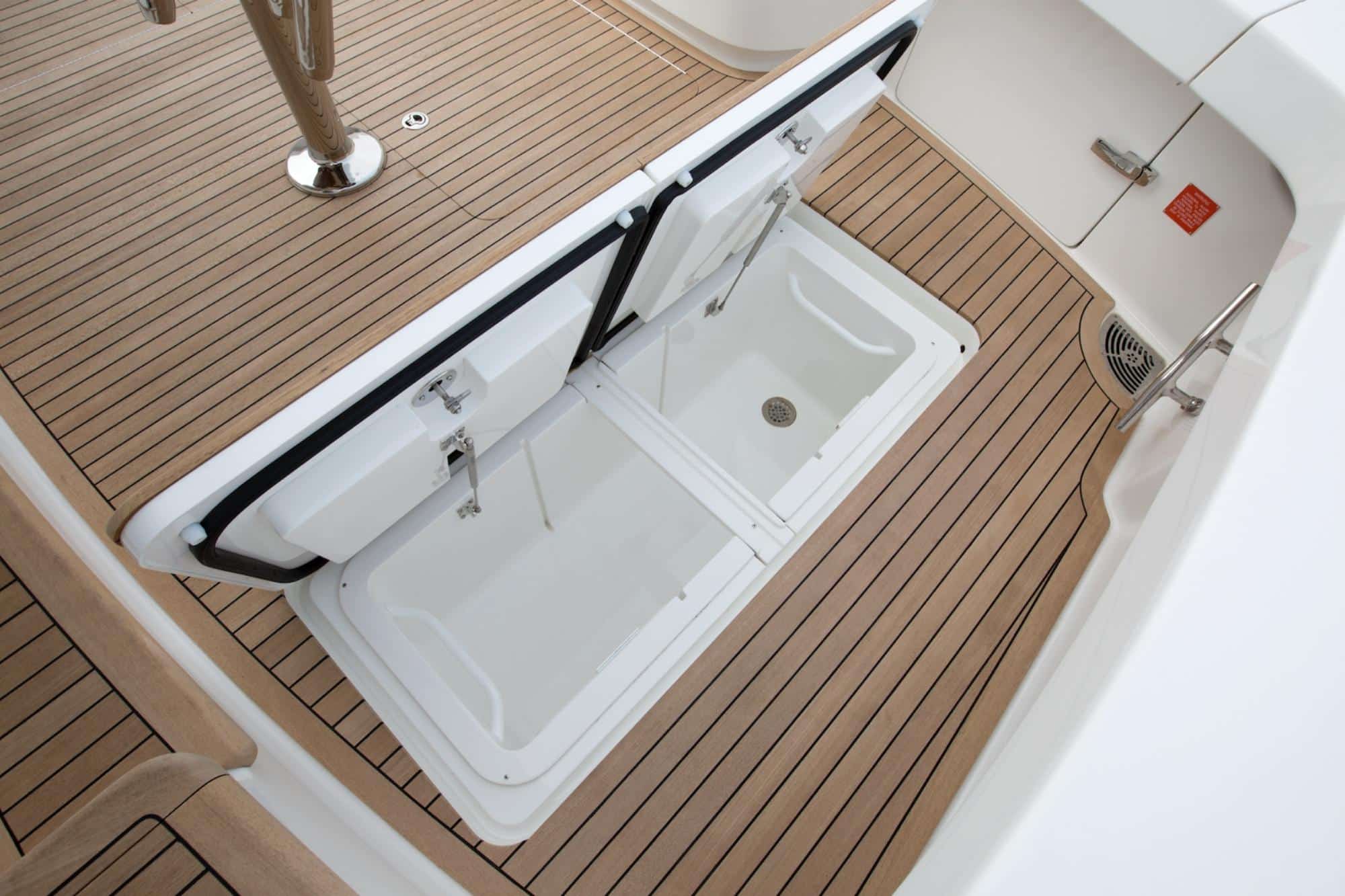

• Recessed in deck fish box to port, insulated and removable with pump out and drain plate with large holes for easy pump out and cleaning
• Recessed in deck storage boxes to starboard forward box insulated for optional ice chipper
• Recessed, stainless steel cleats and hawse pipes

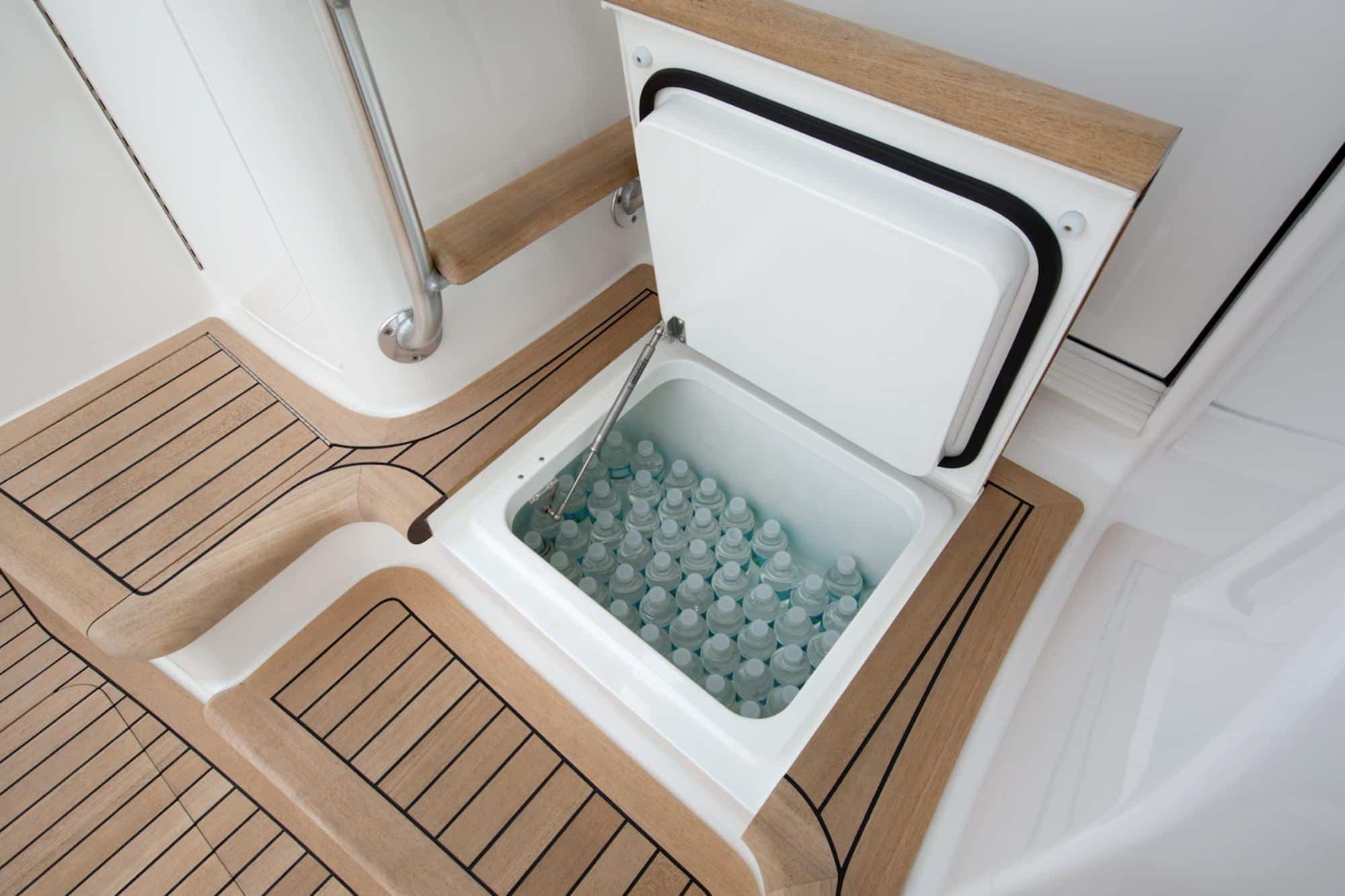

• Refrigerated drink box undermounted in salon step for direct access from cockpit

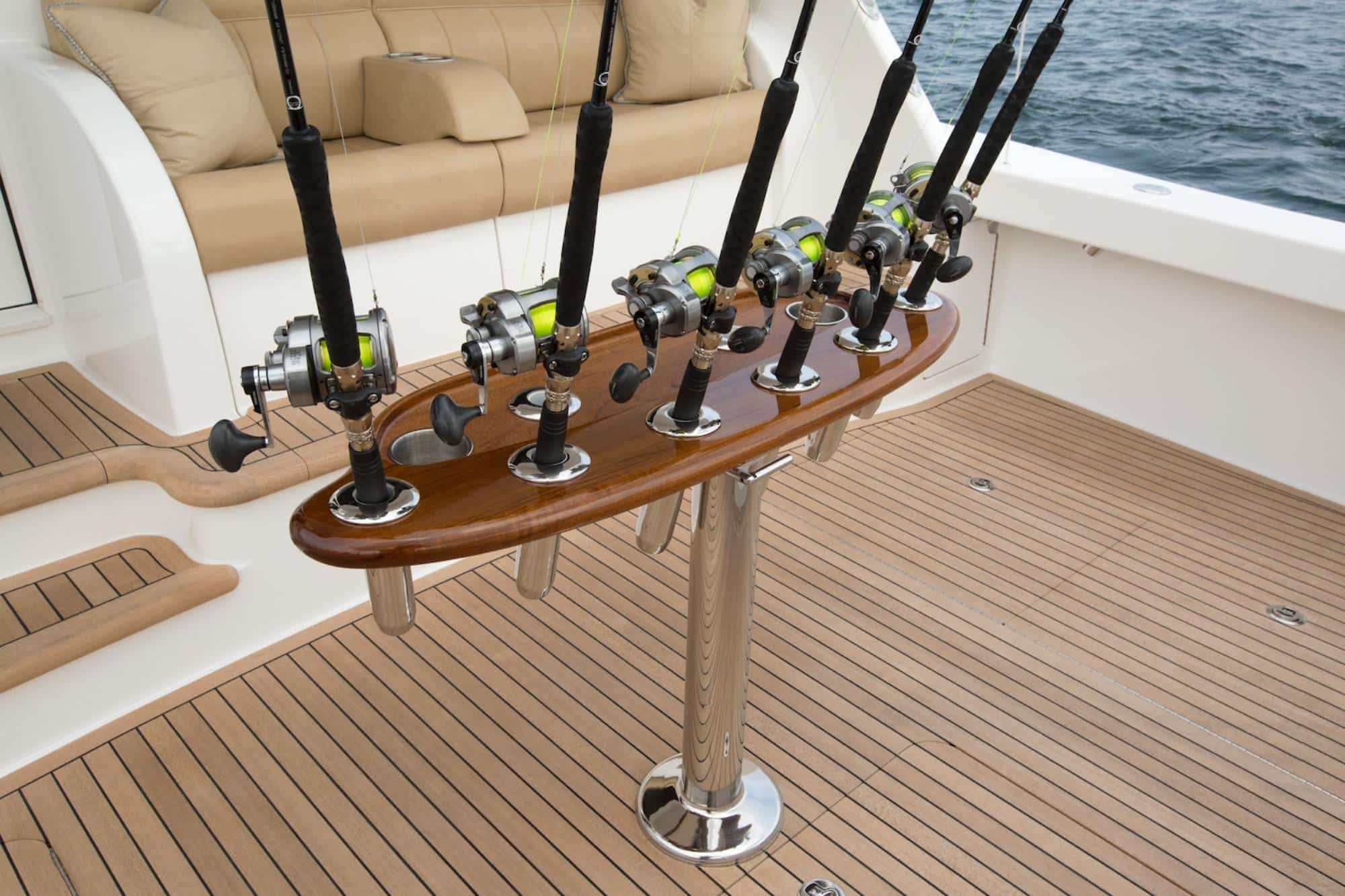

• Rod holders, (4) flush mounted
• Rounded cockpit coaming for comfort
• Seawater wash down with pump in engine room and supply at cabinet under forward gunwale
• Self bailing cockpit with large cockpit scuppers
• Stainless steel gas pistons on all hatches and lids
• Stereo speakers tied into flybridge stereo
• Straps with padding to keep transom door and gate open
• Transom fish box, moulded in
• Transom swim steps at transom door
• Walk-through transom door with lift gate

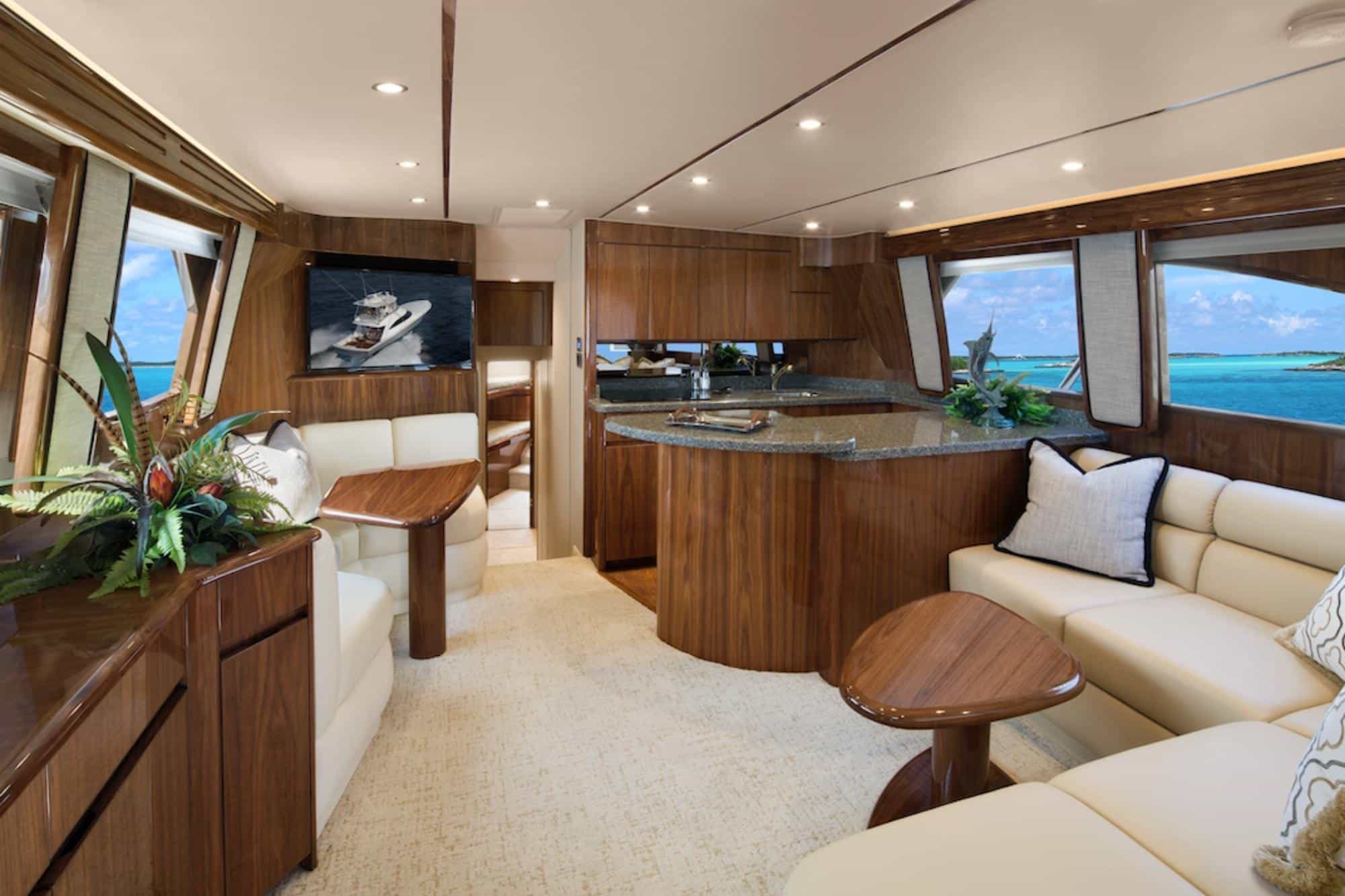

SALON

• Air conditioning with reverse cycle heat with temperature control that circulates from hidden registers behind the valences to maximise comfort while minimising noise and drafts
• Blinds, for desired natural lighting and additional privacy
• Cocktail table, wood, high gloss finish, hi/low
• Finished wood on galley island and dinette
• Fixed, frameless side windows with tinted, tempered glass for style, natural lighting, and privacy
• Flooring, vinyl Amtico at salon entrance and wall-to-wall carpet with lined padding for sound absorption
• Headliner, Majilite, natural colour, 1/8″ foam & tricot backing
• Home theatre system with 40″ flat screen TV, stereo with surround sound with powered subwoofer and Blu-ray player
• Lounge, L-shaped with storage on stbd side of salon
• Main electrical service panel, AC/DC, backlit for easier viewing
• Salon door, sliding, moulded fibreglass door with window and wood interior finish, with gas pistons, gas piston for controlled movement and key lock
• Y-valve for fresh and salt water wash downs
• Wood cabinetry with drawers
• Wood strips in headliner
• Wood trim where Amtico floor and carpet meet
• Wood valances on port, starboard and aft sides of ceiling

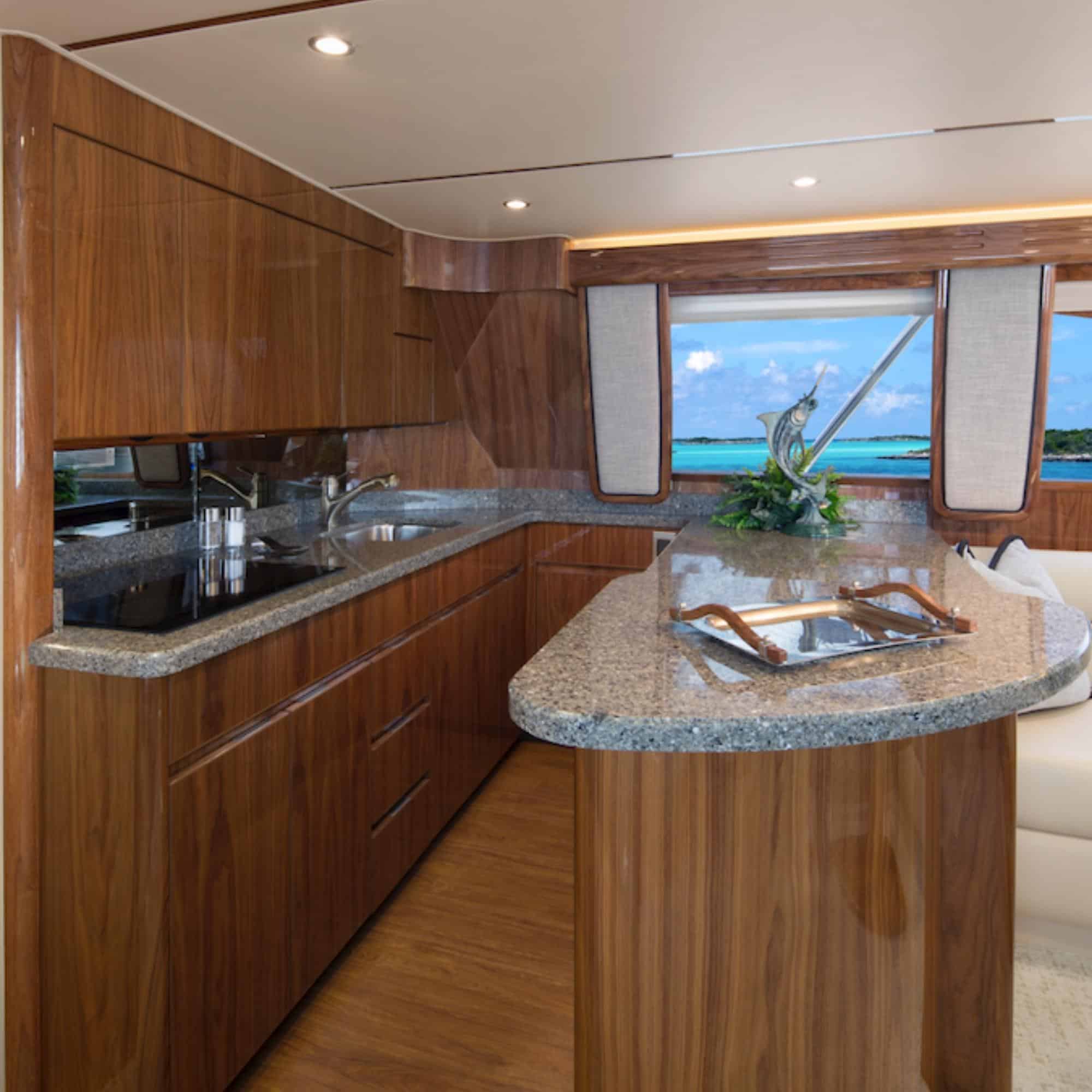

GALLEY/DINETTE

• Blinds, for desired natural lighting and additional privacy
• Dinette table, wood, high gloss finish with single pedestal, thru-bolted with 110V outlet
• Electrical sub-panel for galley appliances
• Exhaust fan, high velocity
• Flooring, Amtico vinyl
• Galley, peninsula style with storage. Engineered stone countertop with overhang and electric cooktop
• Garbage disposal in sink
• Headliner, Majilite, natural colour, 1/8″ foam & tricot backing
• Lights, overhead LED lights
• Microwave/convection oven located in upper galley cabinet above sink
• Refrigerator and freezer, large capacity, deep-drawer under-counter style with varnished wood faces
• Sink, stainless steel with satin nickel faucet
• Storage cabinets in upper galley, varnished wood doors with deep, pull-out drawers with aircraft style slides for smooth movement and latches to keep drawers in place while underway
• Storage cabinets and drawers in lower galley, varnished wood doors and faces with stowage for stove lids, utensils, and other items
• Water tank level gauge and pump indicator located in galley sub-panel

COMPANIONWAY

• Awlgrip bilge areas with access hatches, Snow White and lighted for easier maintenance and cleaning
• Central vacuum unit connection with accessories
• Flooring, carpeted steps from galley to companionway
• Headliner, Majilite, natural colour, 1/8″ foam & tricot backing with vertical wood strips
• Lighting, overhead LED lights recessed in headliner

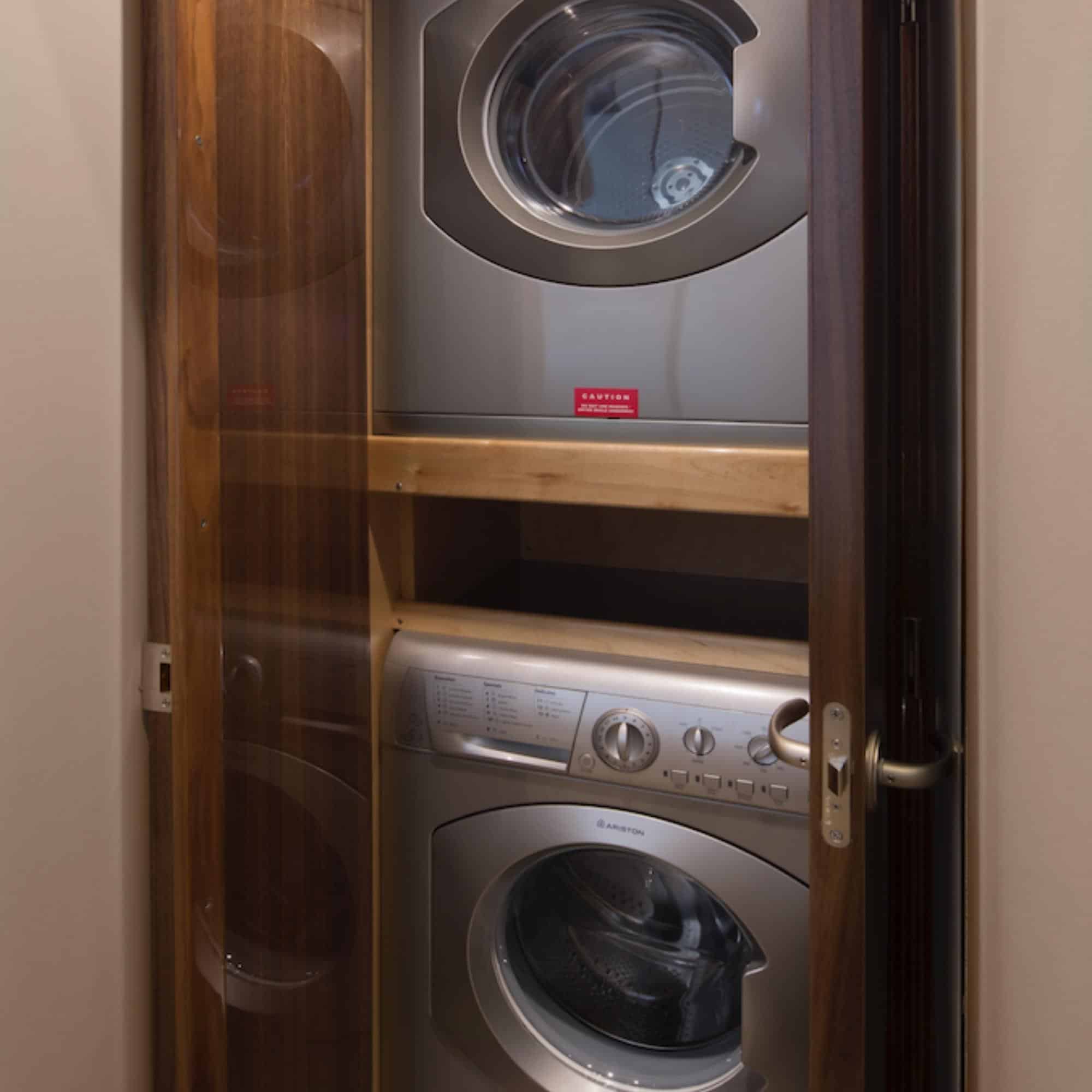

• Oversized storage locker to accommodate washer/dryer
• Wall panels, natural colour Majilite headliner individually installed with Velcro backing for easy maintenance

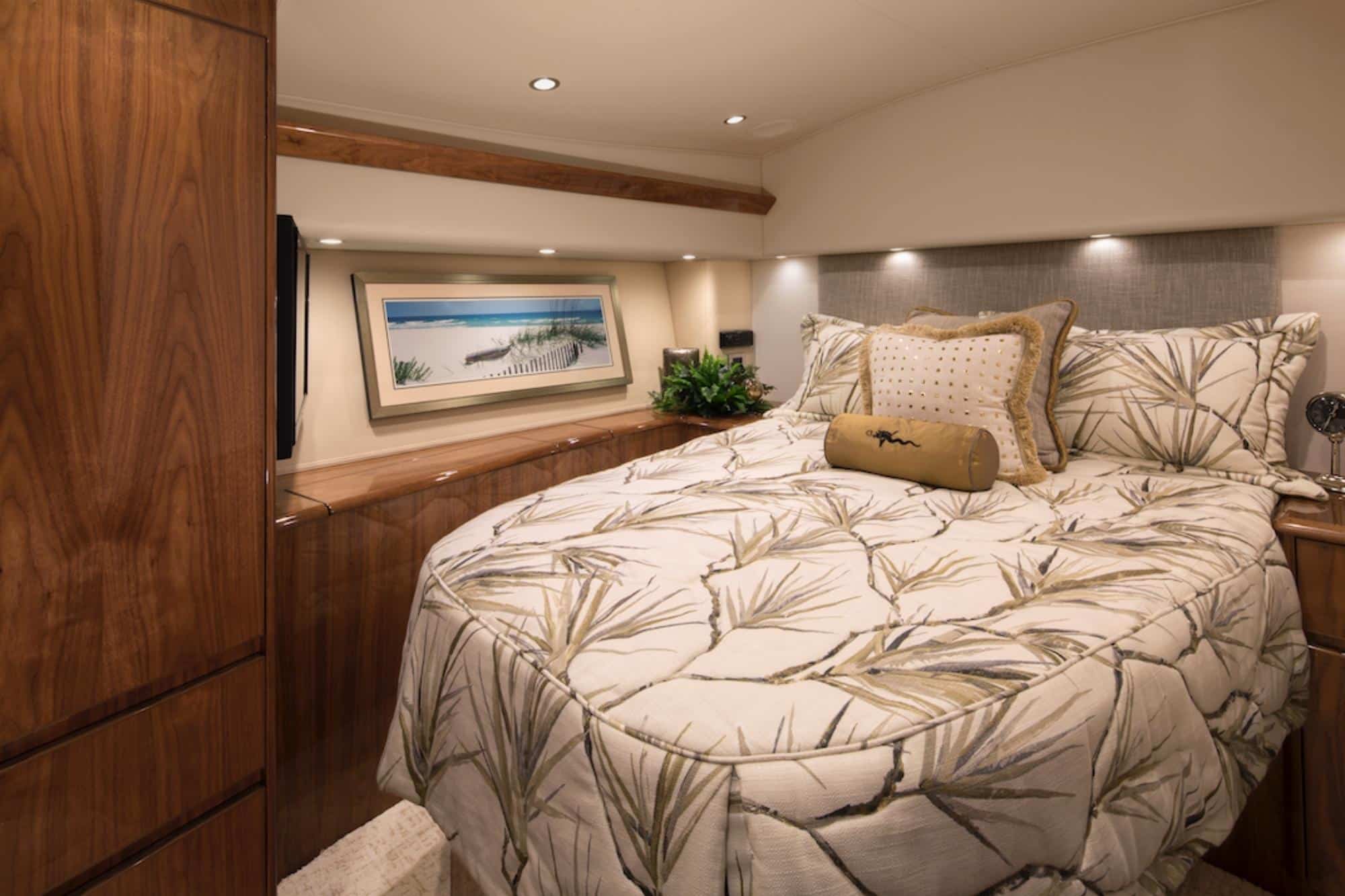

MASTER STATEROOM (MIDSHIP)

• Air conditioning with reverse cycle heat with temperature control
• Bed, queen-size, walk-around fore and aft bed with lift up top with gas pistons and maple-lined storage underneath – mattress “Handcraft”, Viking Slumber #8
• Bedspread — quilted, designer style
• Drawer storage under bed, (2) large drawers
• End tables on either side of bed with drawer and door storage
• Flooring, carpet
• Hanging locker, wood
• Headboard, upholstered
• Headliner, Majilite, natural colour, 1/8″ foam & tricot backing
• Lighting, overhead LED lights and decorative indirect rope lighting from underneath bed platform
• Pillow shams (2)
• Reading lights, overhead with separate switches
• Sheets, (1 set), fitted cotton fabric
• Stereo 12V w/ speaker recessed in headliner
• TV, 32″ flat screen

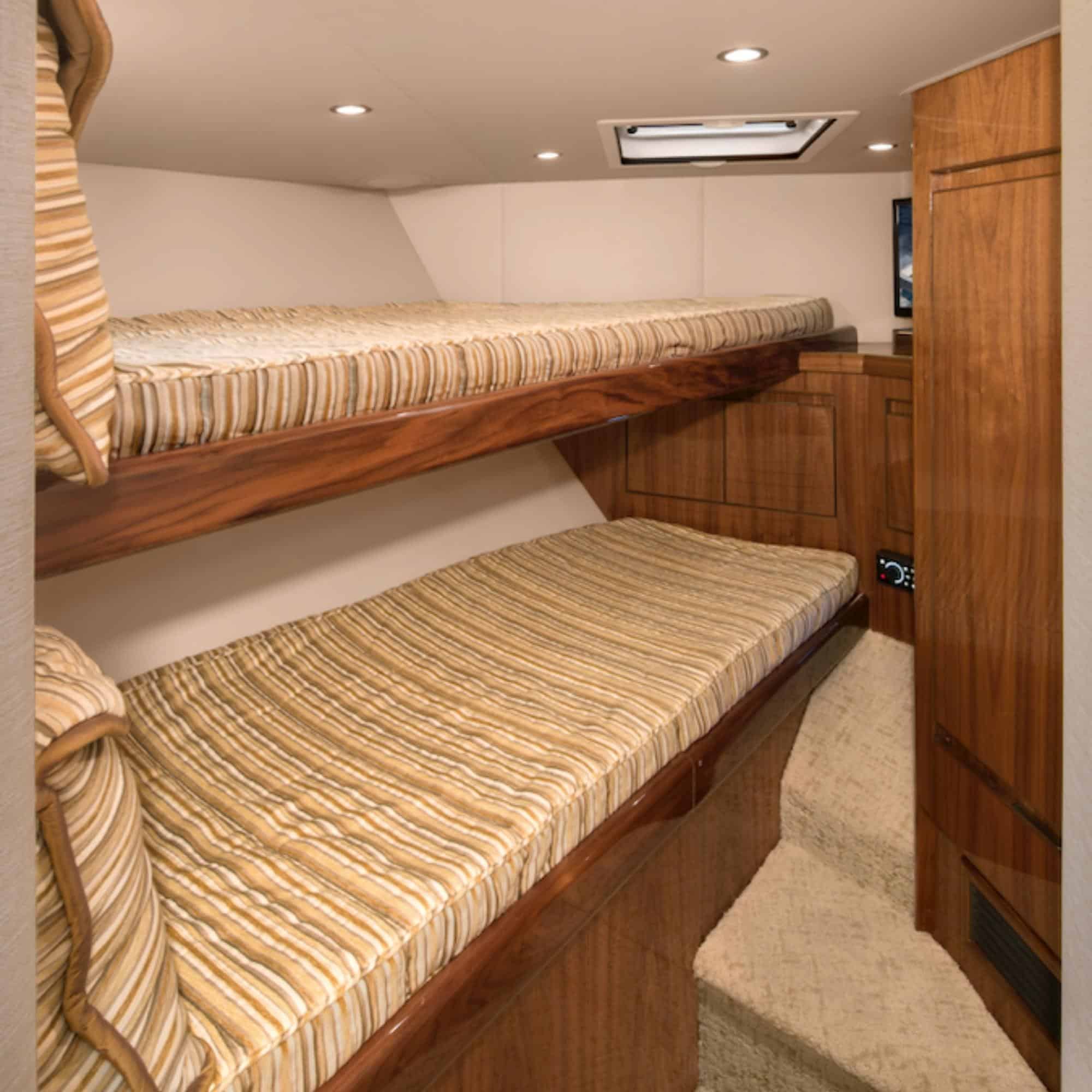

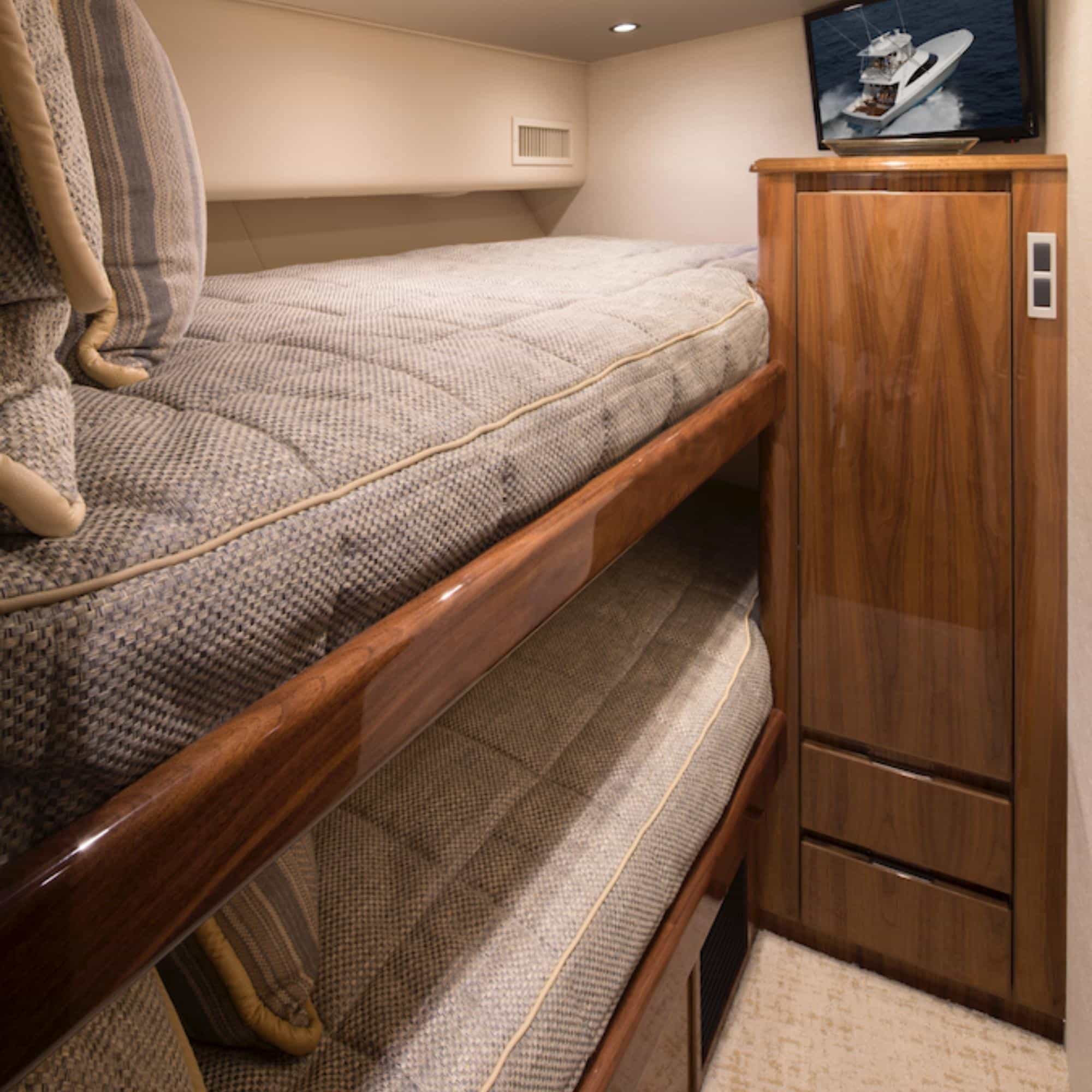

GUEST STATEROOM (FORWARD)

• Air conditioning with reverse cycle heat with temperature control
• Bed, upper – lower bunks and lift up top with gas pistons and maple-lined storage underneath
• Bedspread – quilted, designer style
• Flooring, carpet
• Hanging locker, wood, maple-lined and spacious
• Hatch, Bomar, foredeck hatch with Ocean Air screen shade system
• Headliner, Majilite, natural colour, 1/8″ foam & tricot backing
• Lighting, overhead LED lights with dimmer
• Pillow shams (2)
• Reading lights with separate switches
• Sheets, (1 set), fitted cotton fabric
• Stereo 12V w/ speaker recessed in headliner
• Storage cabinets, port and starboard sides of bed, wood
• Storage drawers under under bed, (2) large drawers
• Wood shelf

GUEST STATEROOM (PORT)

• Air conditioning with reverse cycle heat with fan control
• Bed, upper – lower crossover bunks with System #1 upgraded mattresses, “Handcraft” innerspring
• Bedspread – quilted, designer style
• Flooring, carpet
• Hanging locker, maple-lined
• Stereo 12V w/ speaker recessed in headliner

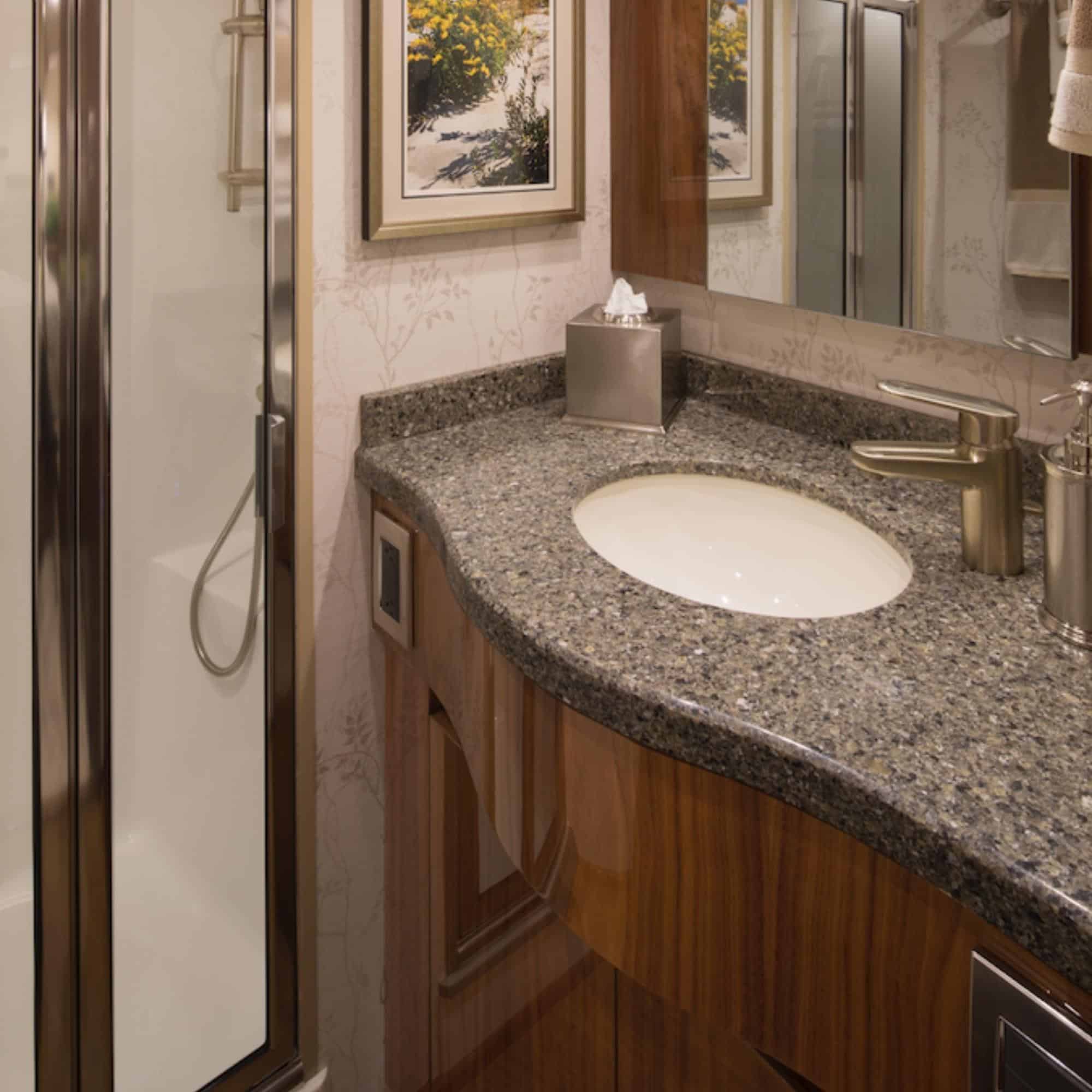

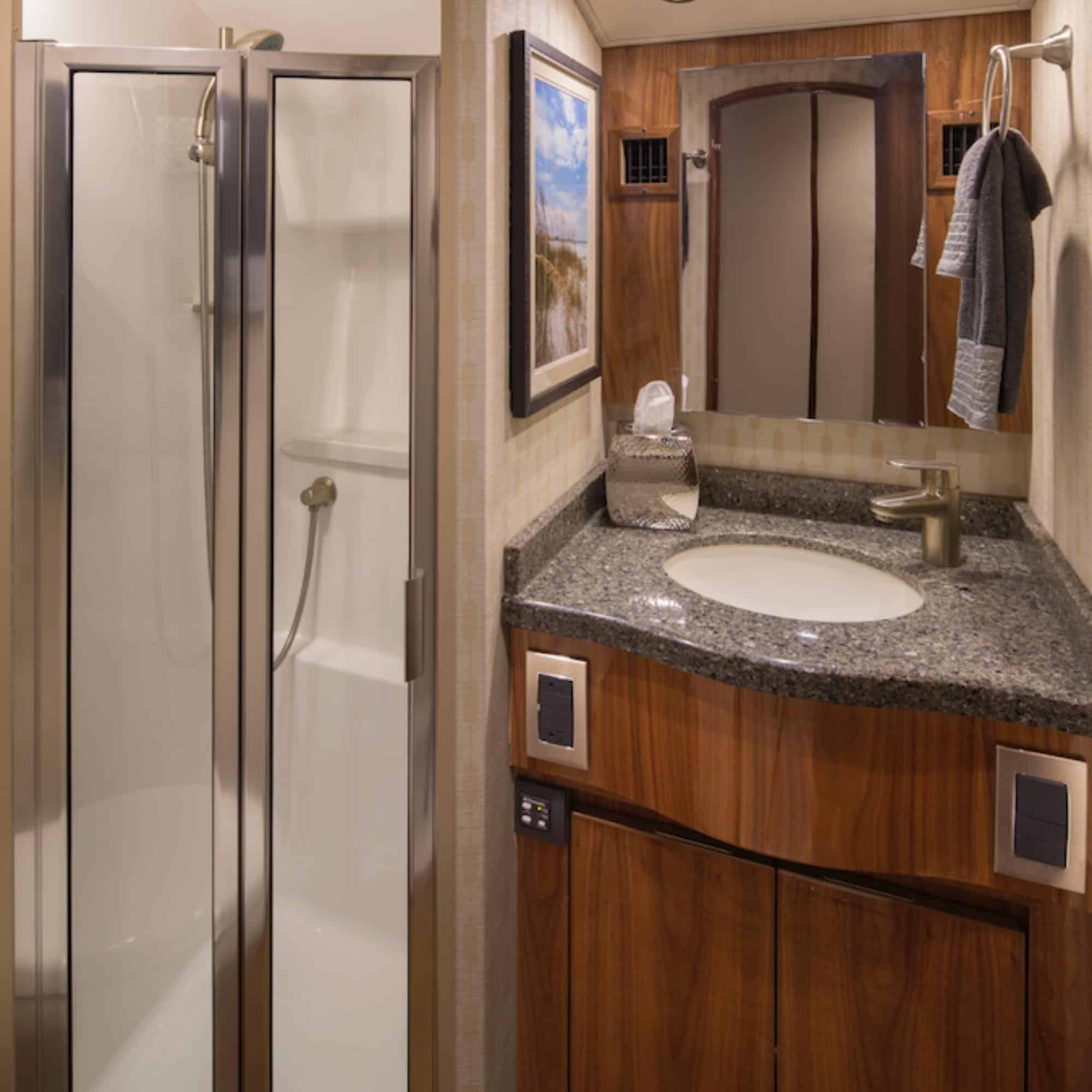

MASTER AND GUEST HEAD

• Air conditioning/heat with vent in soffit
• Countertops, engineered stone
• Electric heads, plumbed with y-valve for overboard discharge or direct to holding tank
• Exhaust fan with vent
• Flooring, Amtico vinyl
• Linen storage
• Lower vanity with wood door
• Lights, overhead LED lights recessed in soffit and in ceiling
• Mirrored wall behind upper vanity, medicine cabinet with mirrored doors
• Receptacle, 110V – GFCI
• Shower light
• Stall shower, fibreglass with satin nickel shower fixtures and with drain to automatic sump pump in bilge
• Towel bars and rings – satin nickel

MISCELLANEOUS

• Anchor — constructed with a high-tensile, corrosion resistant aluminium magnesium alloy
• Anchor locker with access from foredeck
• Anchor rode 300’ with 12’chain
• Awlgrip bilge areas with access hatches, Snow White and lighted using magnetic switches for easier maintenance and cleaning
• Awlgrip lazarette, engineroom, anchor locker and forward bilges
• Bonding system anode on transom
• Bow pulpit, moulded fibreglass with non skid and stainless steel anchor shoot
• Bow rail, anodized aluminium, brushed finish
• CO2 detectors throughout
• Fire extinguishers, (5)
• Fuel
• Magnetic switches for lights in all forward bilge compartments
• Mooring lines, braided nylon (6)
• Positive catches on all stateroom doors to secure open
• Recessed covers on transom to protect trim tab pistons
• Ships bell
• Smoke detector
• Side mounted, wrap around grab rails, powder-coated aluminium that follow the window line
• Stainless steel bow, spring and stern cleats thru-bolted to aluminium backing plates
• USB receptacle (Apple compatible) in staterooms and salon
• Viking Prestige Decor package
• Water delivery kit with tool set (N)

STANDARD POWER: MAN V8 1000 CRM:1000 MHP
INTERIOR

• • Satin interior finish throughout (J)

*Standard will be high gloss horizontal grain walnut. See Viking sales professional for details

COCKPIT

• Outriggers, Rupp w/spreaders, grommets and halyards (K)
• Swim platform & ladder
• Transom lettering
• Window and light in transom box live well

DECK/EXTERIOR

• Additional (2) foredeck hatches w/ sunshade
• Bow pulpit removal
• Bow thruster DC
• Custom hull colour, gelcoat (J)
• Davit (1,100 lbs.) w/hydraulic lift & rotation
• Fender racks
• Salon forward window mask
• Windlass, Lewmar V2 SS w/50′ chain, 250′ rope

DECOR(S)

• Custom decor (H)
• Classic decor, accessory kit
• Essential galley, accessory kit
• Wall covering, custom (J)

OPEN FLYING BRIDGE

• (6) Rod rocket launcher (K)
• Air conditioning with reverse cycle heat (K)
• Centre rigger (K)
• Electronic single lever controls for pod
• Fibreglass helm pod w/stainless steel wheel
• Hardtop w/ moulded in LED floodlights (V)
• Lights, remote spotlight (K)
• Release wood helm pod
• Three sided enclosure to back of helm w/ centre panel “U” zip (K)
• Three sided Costa Clear enclosure to back of helm (K)

SALON

• Carpet runner full
• Carpet runner – companionway and steps

MASTER STATEROOM

• Electronic safe under bed

GUEST STATEROOM – FWD

• Television flat screen

GUEST STATEROOM – PORT

• TV, flat screen

DELIVERY

• Propellers, spare and removal/installation tool

ENGINEROOM

• Eskimo Ice Machine
• Seakeeper 9
• Watermaker, 700 GPD w/ auto back flush

OPTIONAL POWER

• MAN V8 1200 CRM:1200 MHP
