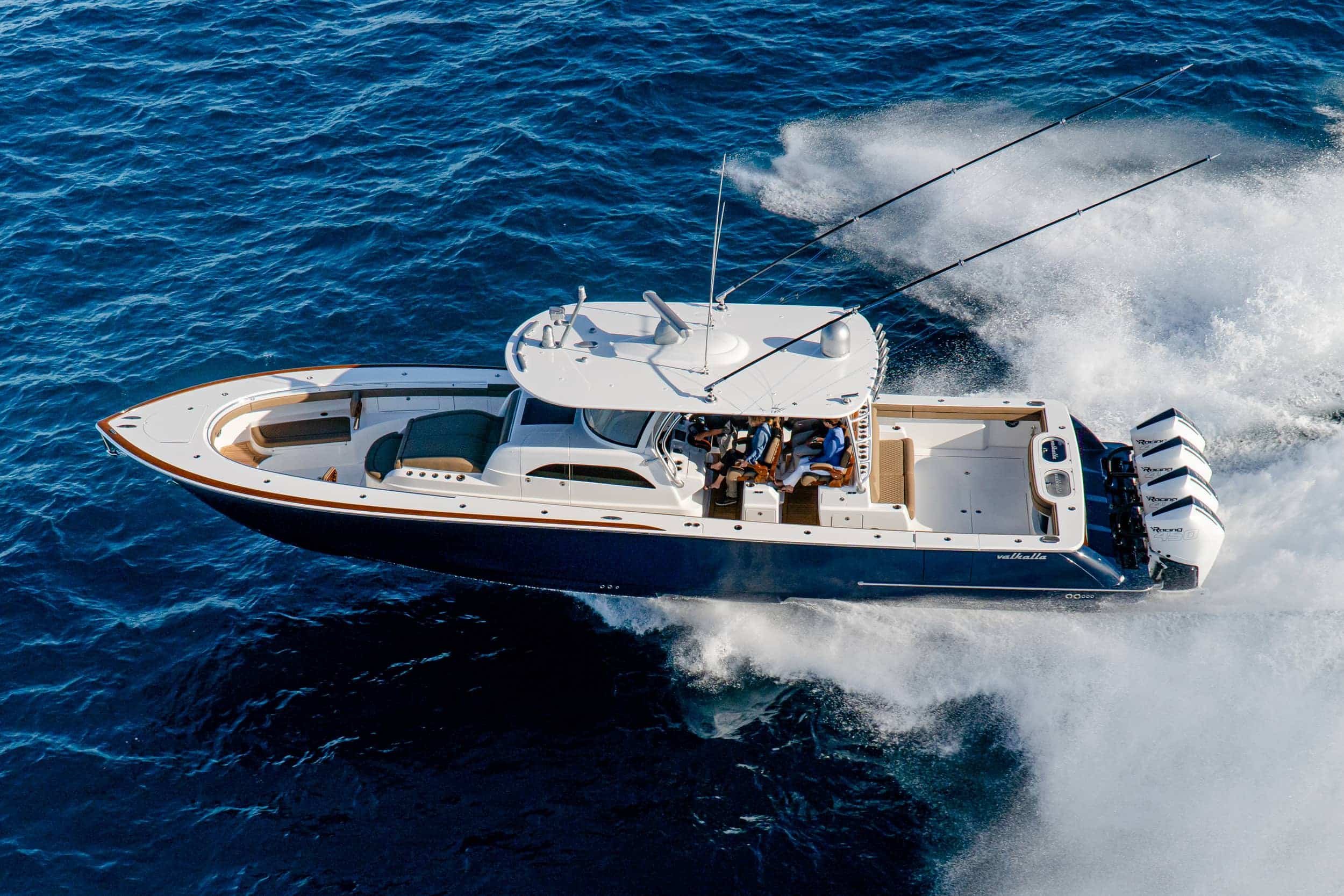

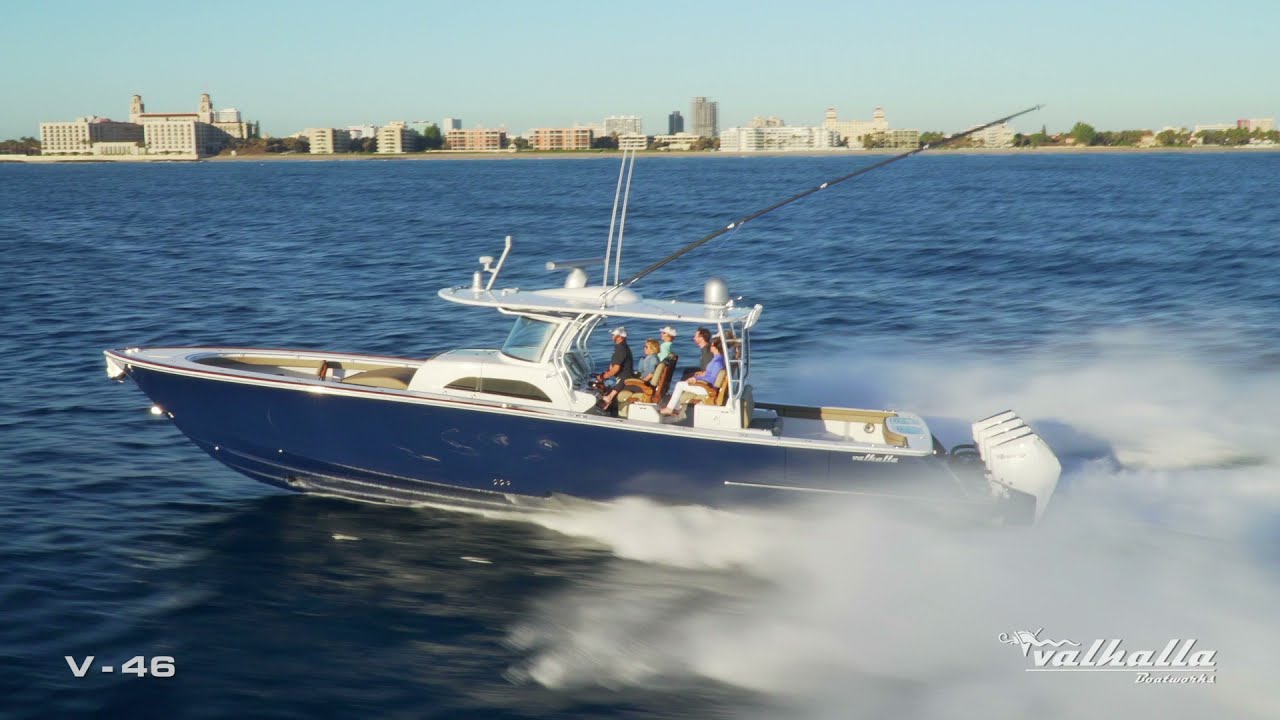

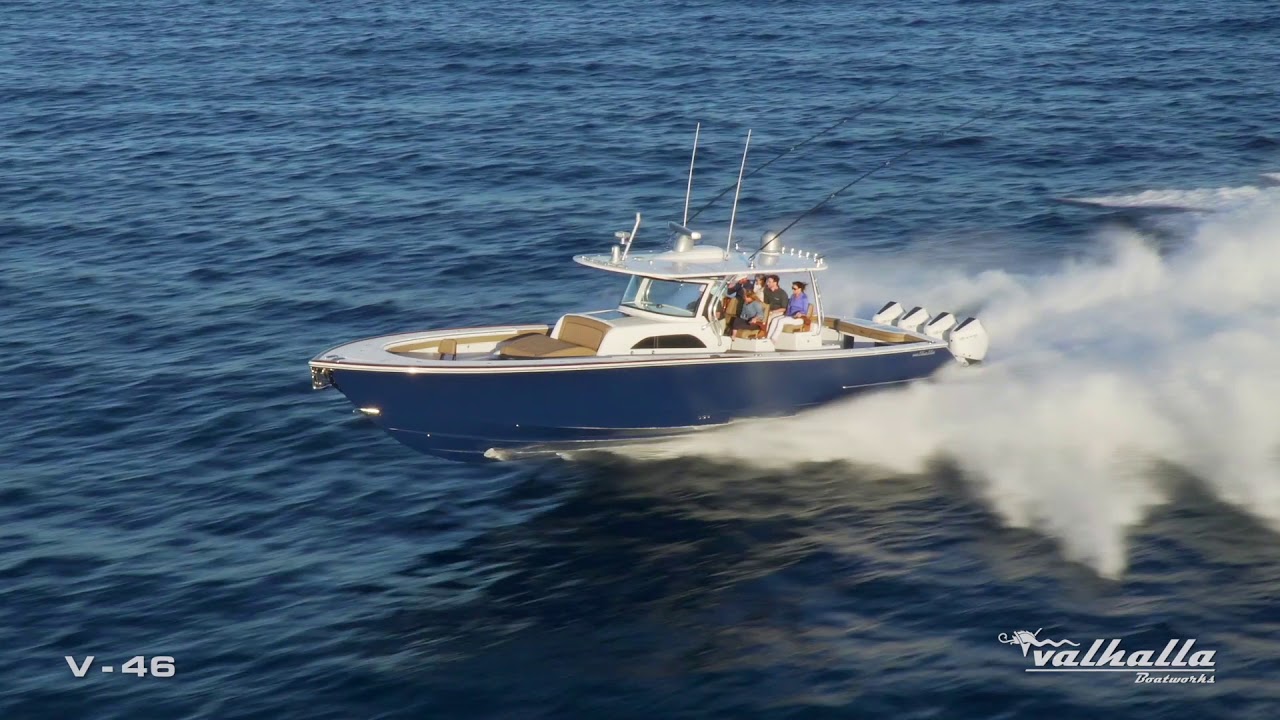

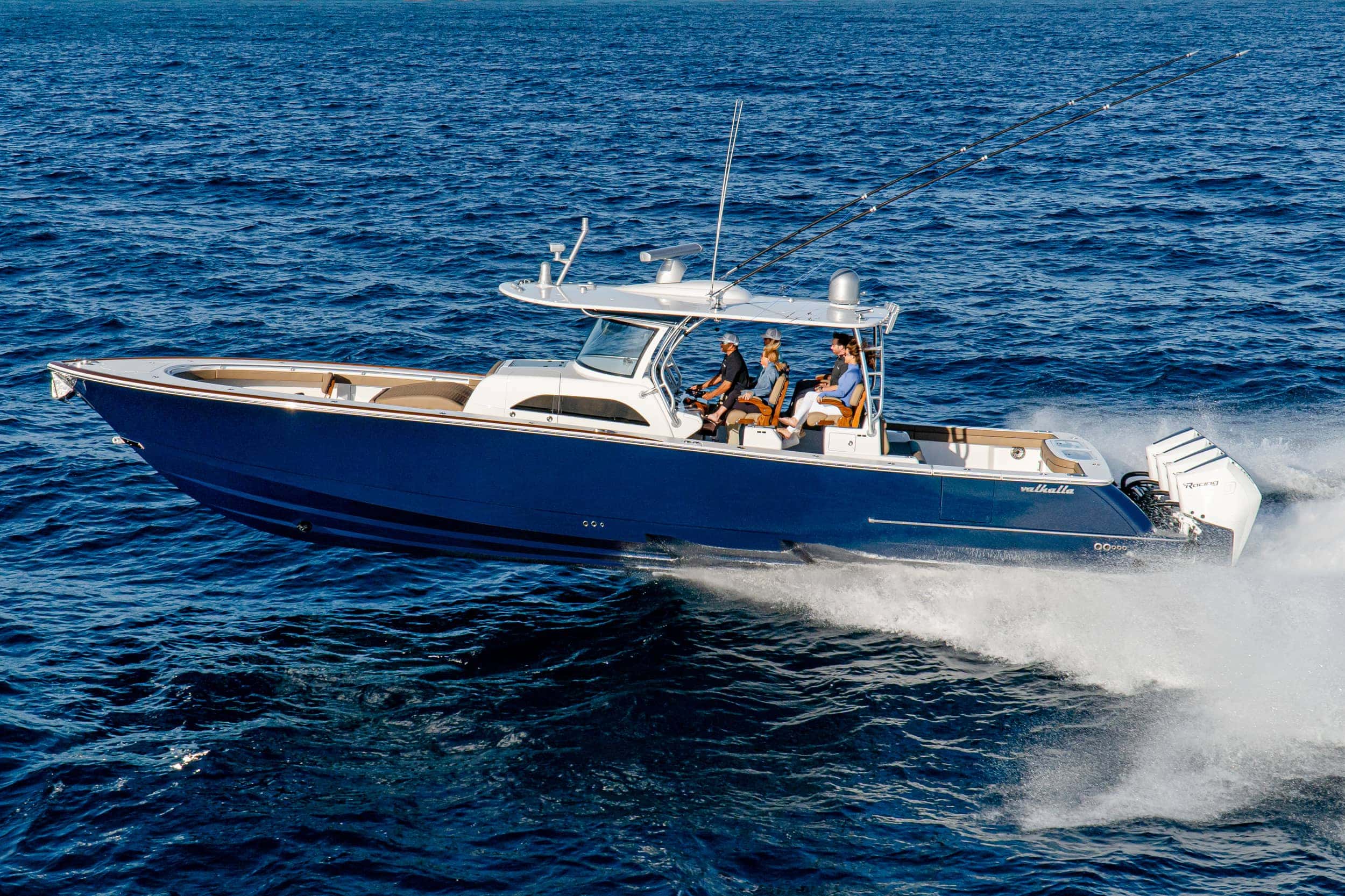

VALHALLA V-46

CONSTRUCTION

• Awlgrip underside of deck coaming for improved finish
• Blister resistant modified vinylester resin in entire boat
• Forward anchor locker with built in anchor tube and shelf, painted Awlgrip finisH
• Fresh water tank, polyethylene
• Fuel tanks (5), for main engines, 3/16” 5052 H32 aluminium coal tar epoxy finisH
• Fuel tank (1), for diesel generator, 3/16” 5052 H32 aluminium snow white finish
• Molded fiberglass aft lazarette liner
• High performance isophthalic gelcoat NPG superior gloss flexibility and outstanding weathering characteristics
• Holding tank, polyethylene
• Hull moulded fibreglass construction, using closed cell foam core in selected areas for optimised strength and stiffness while minimising weight
• Hull gelcoat Snow White
• Lower guard rail to match hull colour, painted with stainless steel insert
• Moulded fibreglass cockpit liner with integrated gutter system
• Nonskid for traction and durability
• Patented Michael Peters Stepped V Ventilated Tunnel running surface designed to reduce drag while increasing speed, stability and efficiency
• Rub rail, painted white with stainless steel insert
• Stainless steel through hulls
• Stringers, infused fibreglass with integrated wire chases
• 316 stainless steel hardware throughout

MECHANICAL

• Aft bilge pumps (2), connected to float switches for automatic operation and manual operation through on-dash Bocatech switches
• Auto sump box located in console mechanical space
• D/C pressurised freshwater system with freshwater fill on console
• Deck pump-out fitting for holding tank
• Diesel Generator Fisher Panda 9DP
• Electrically operated fuel management system
• Electric power assist steering
• Electric toilet with overboard and holding tank discharge
• High water alarm
• Hooker sea chest live well system with high speed pickup and single 4500 variable speed pump with control knob at helm
• Horns, bulkhead style, mounted forward
• Mid-bilge pump with float switches for automatic operation and manual operation through on-dash Bocatech switches
• PEX, freshwater system plumbing
• Water heater quick recovery, electric (6 gal)
• Zip-Wake trim control system

ELECTRICAL

• Anchor light/navigation lights
• Battery chargers, (2) 60 amp
• Batteries, Odyssey Group 31. One (1) per engine and (2) additional house batteries
• Battery distribution panel with activated battery switches and voltage sensitive parallels
• Battery voltage monitor
• Bocatech 12V switching with backlit switch labelling
• Colour-coded, labeled and numbered wiring system
• LED interior console lighting and spectrum under gunwale and overhead lights with POCO lighting control
• Shore cord, 50 amp, 50’
• 2kW transducer pocket

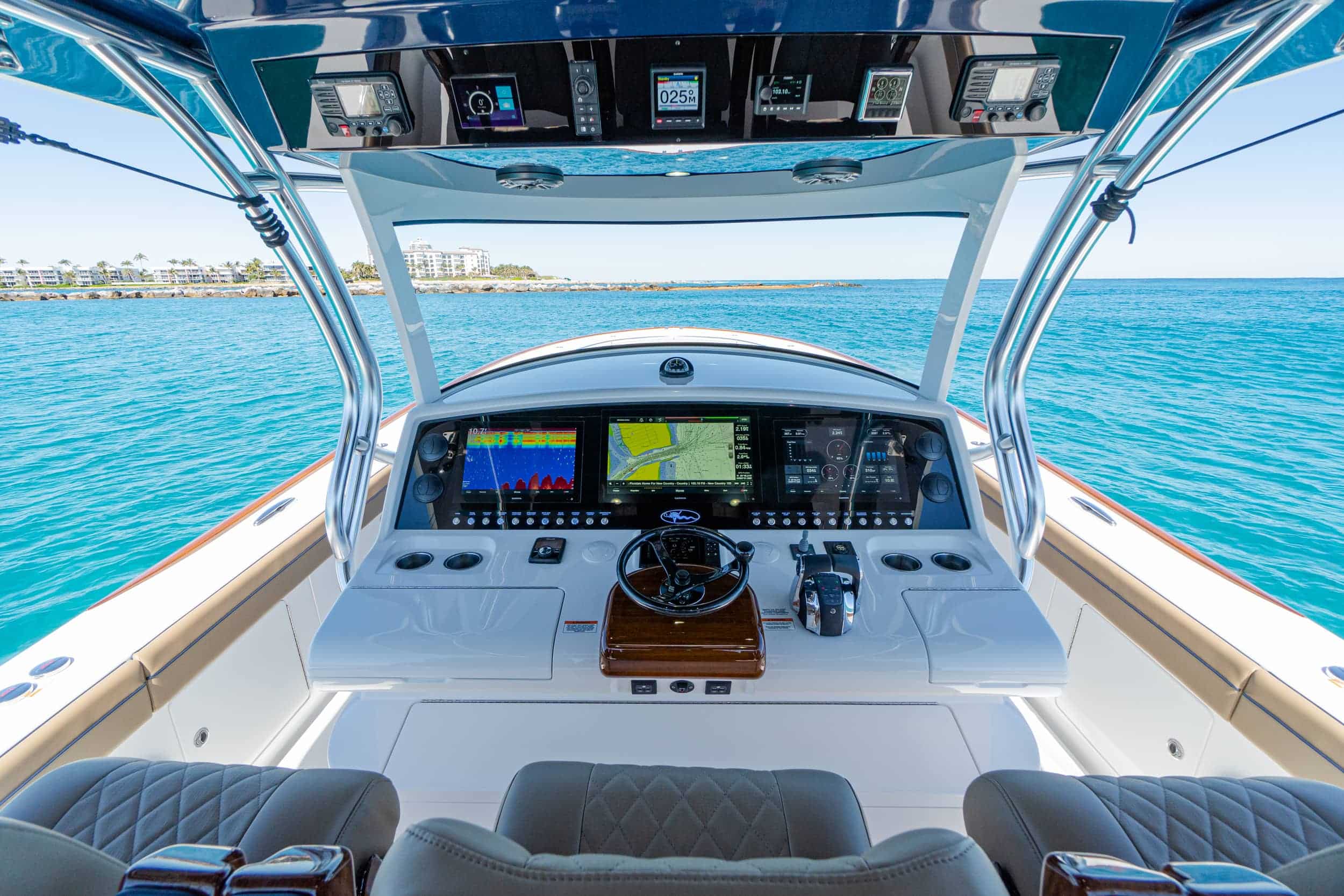

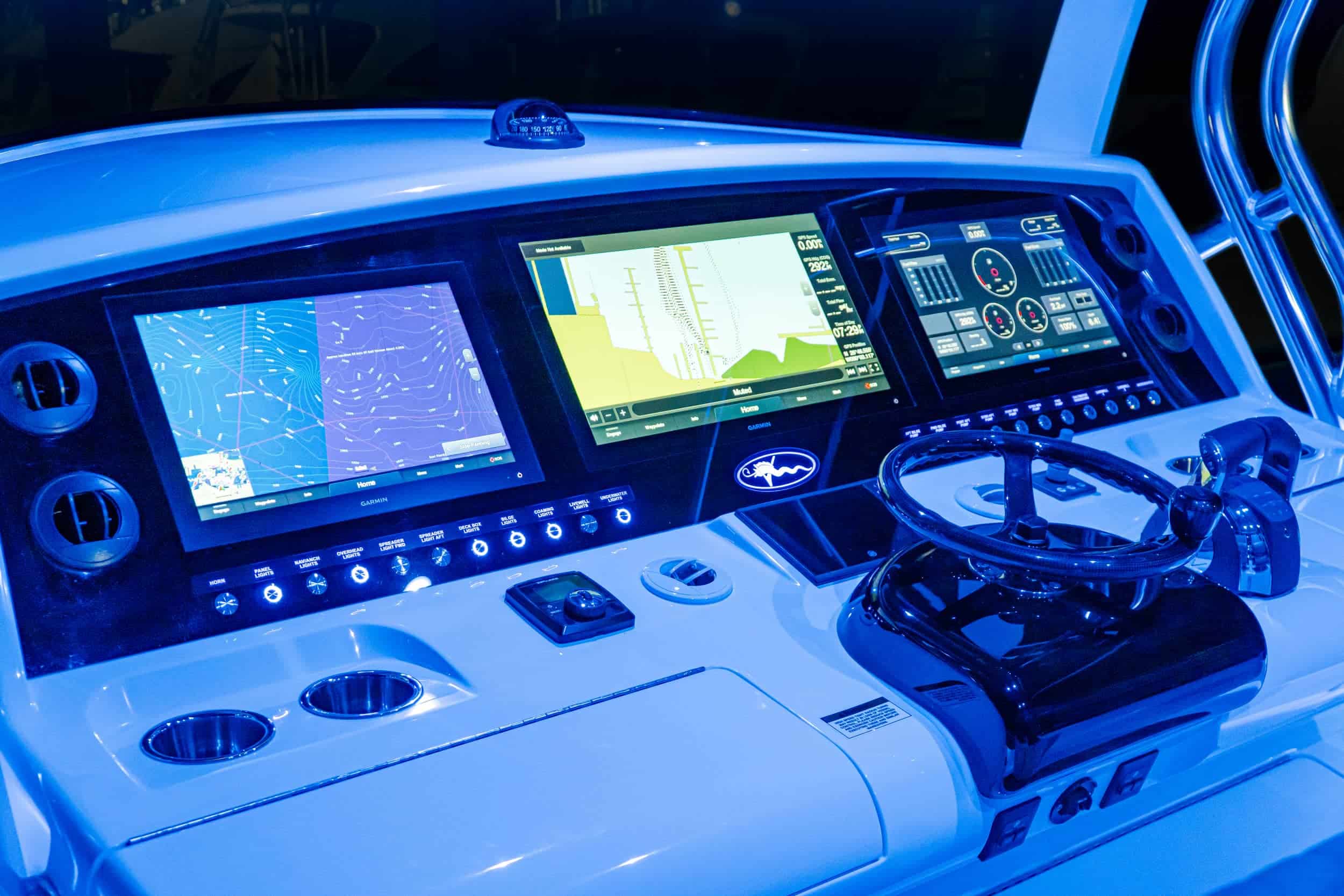

• Black acrylic helm panel for flush mount electronics installation

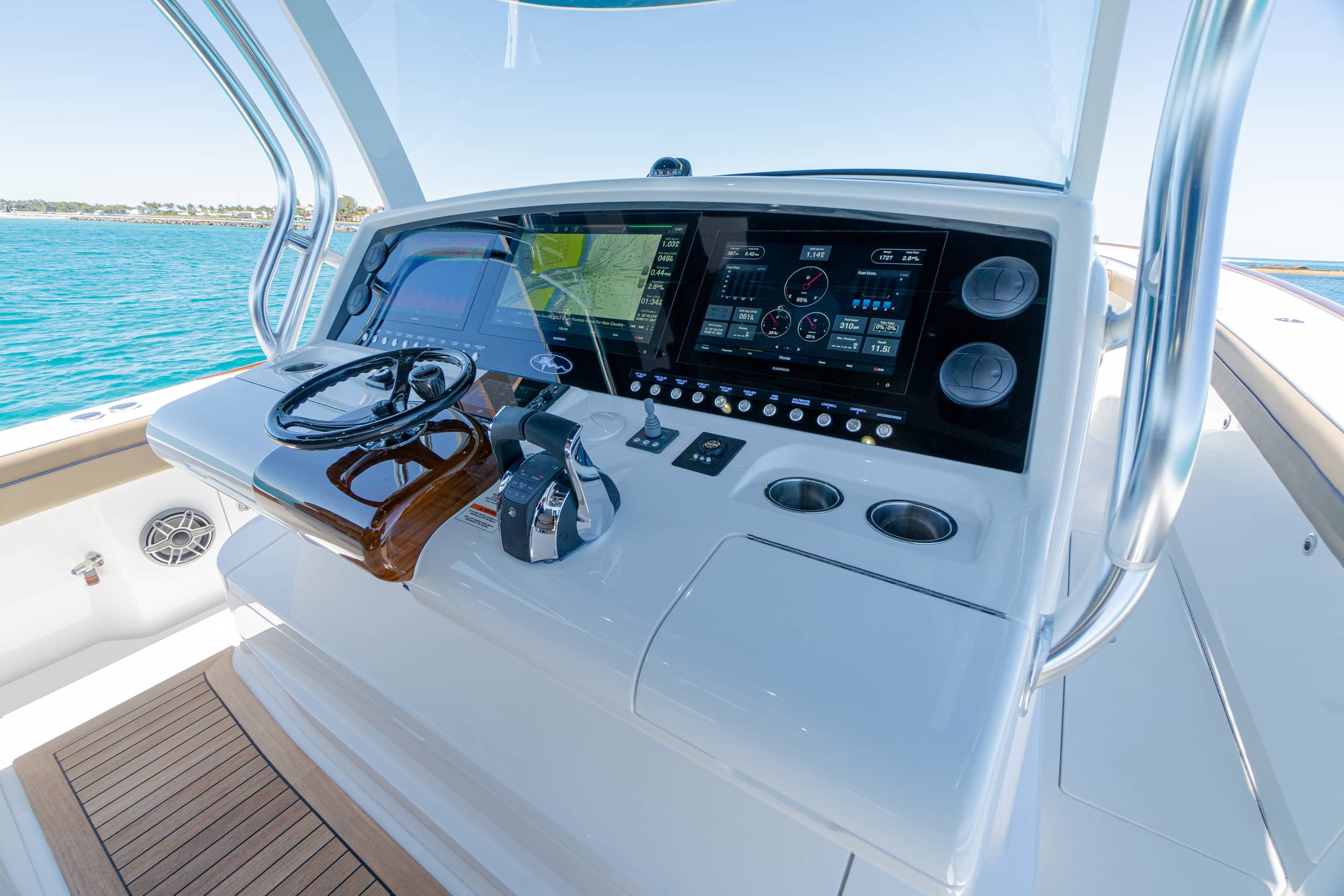

CONSOLE / SEATING MODULE

• Black acrylic helm panel for flush mount electronics installation
• Compass, flush mounted at helm, lighted
• Fibreglass entry door to console interior with notched overhead for easy entry. Heavy duty stainless locking door hardware
• Fibreglass helm pod

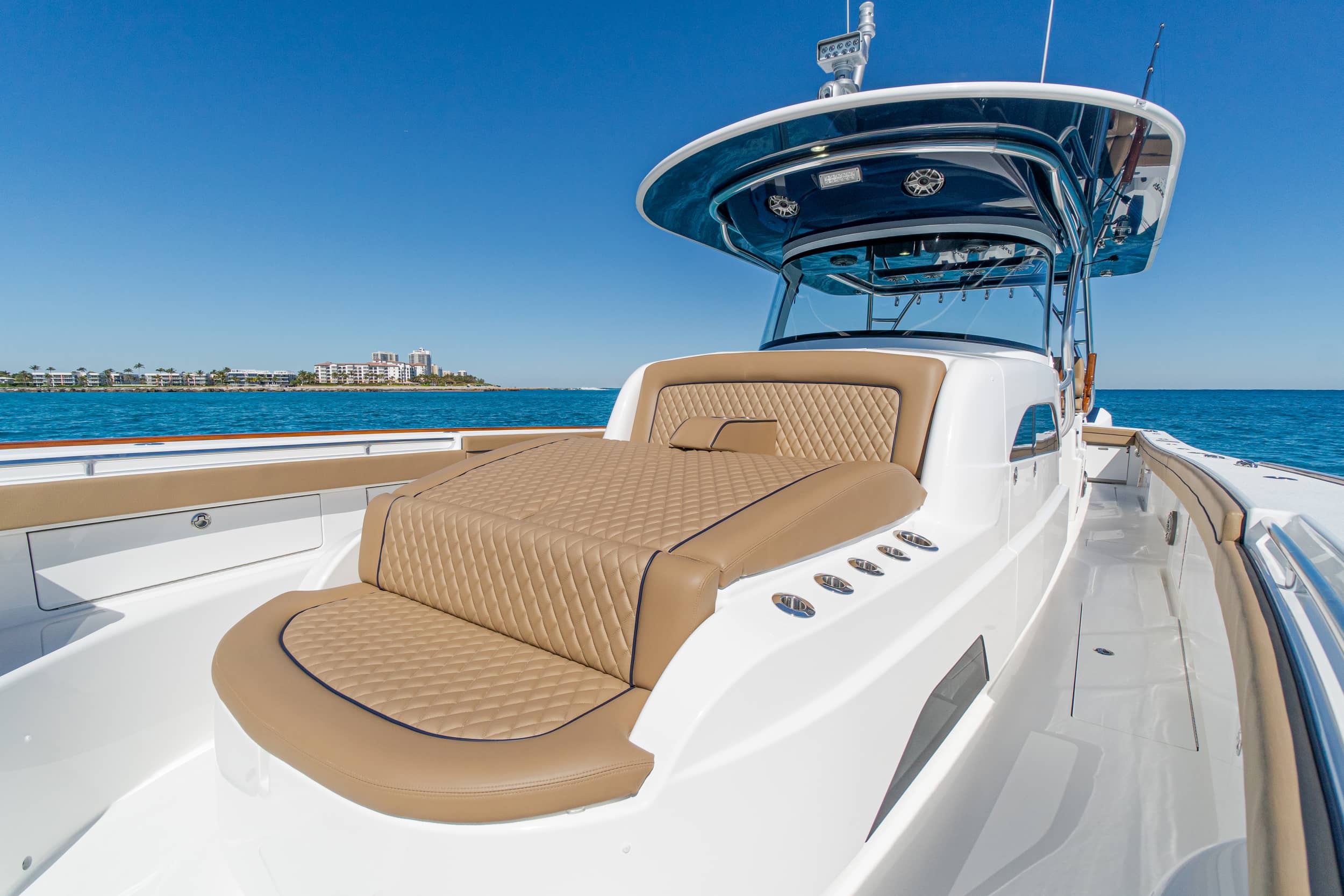

• Forward lounge seating integrated into console with (2) Gemlux cup/rod holders
• Flush mounted cup holders on helm (4
• Glove box to port and starboard with USB charging outlets and 12V plug
• Edson stainless steering wheel with power knob
• Recessed fibreglass footrest with storage

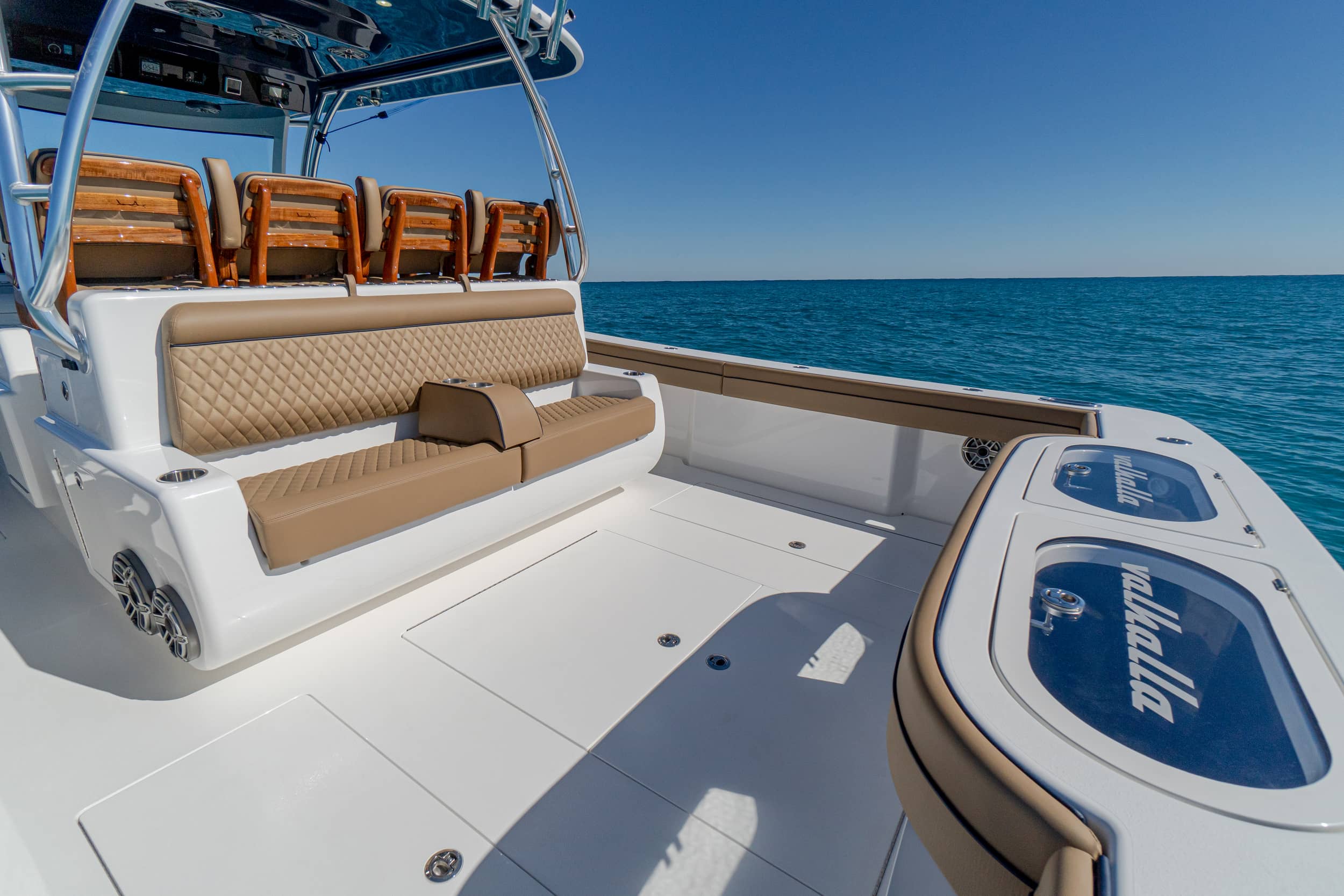

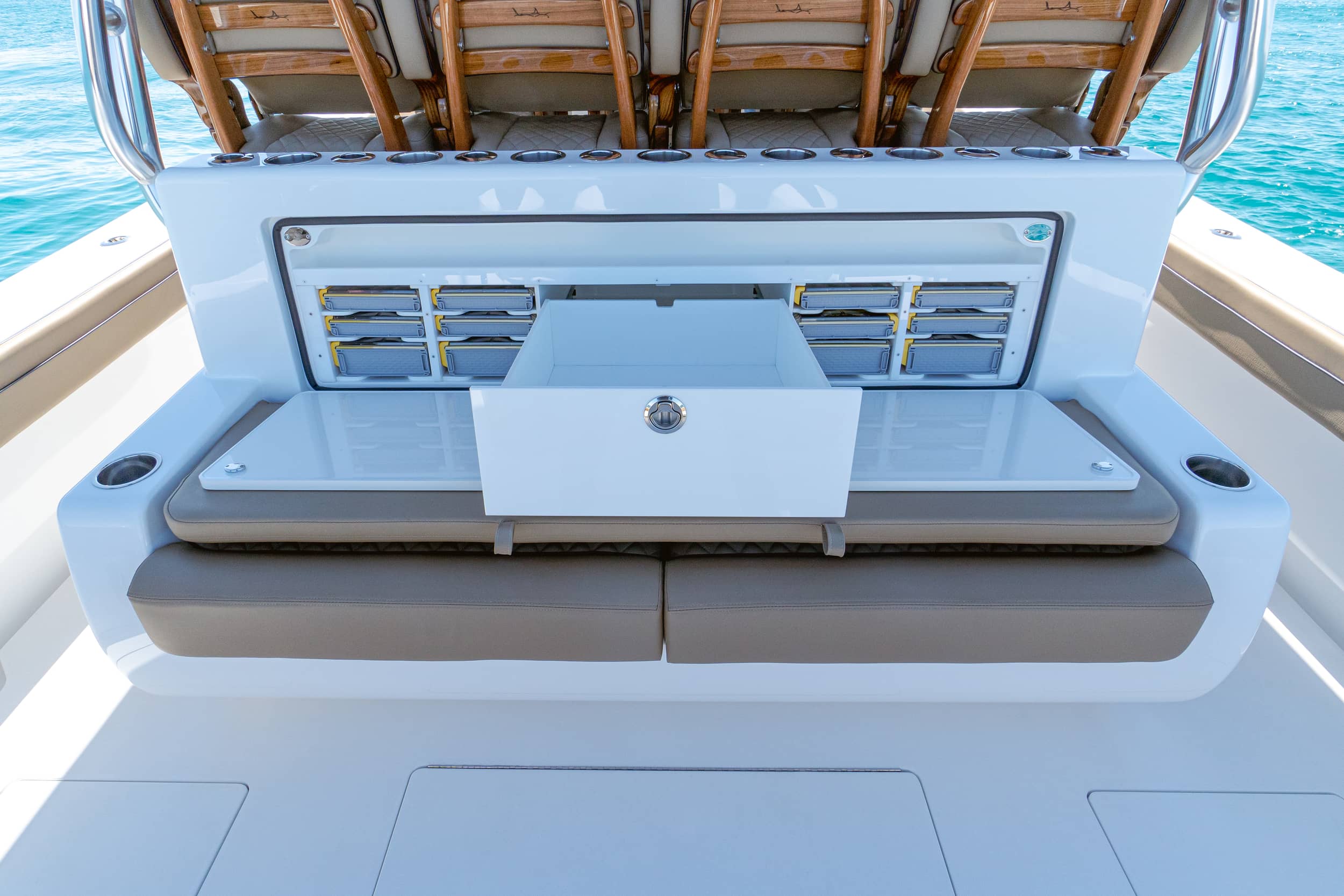

• Upholstered bench seat with tackle storage and (8) Gemlux rod holders with (7) cup holders installed on bench seat backrest

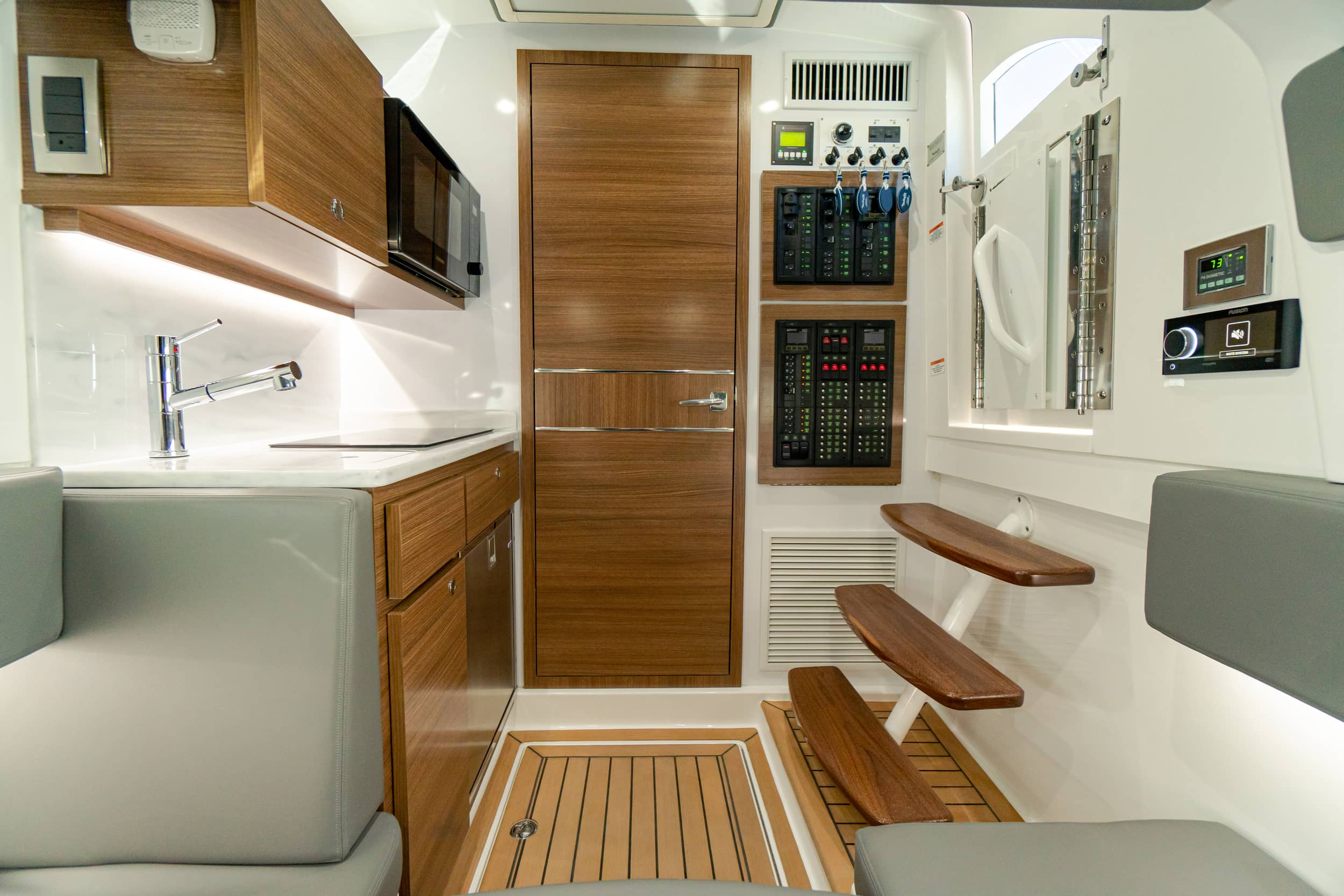

CONSOLE/INTERIOR

• 110/12V USB outlets
• Air conditioning, direct expansion, single zone
• Dimmers, LED interior lighting

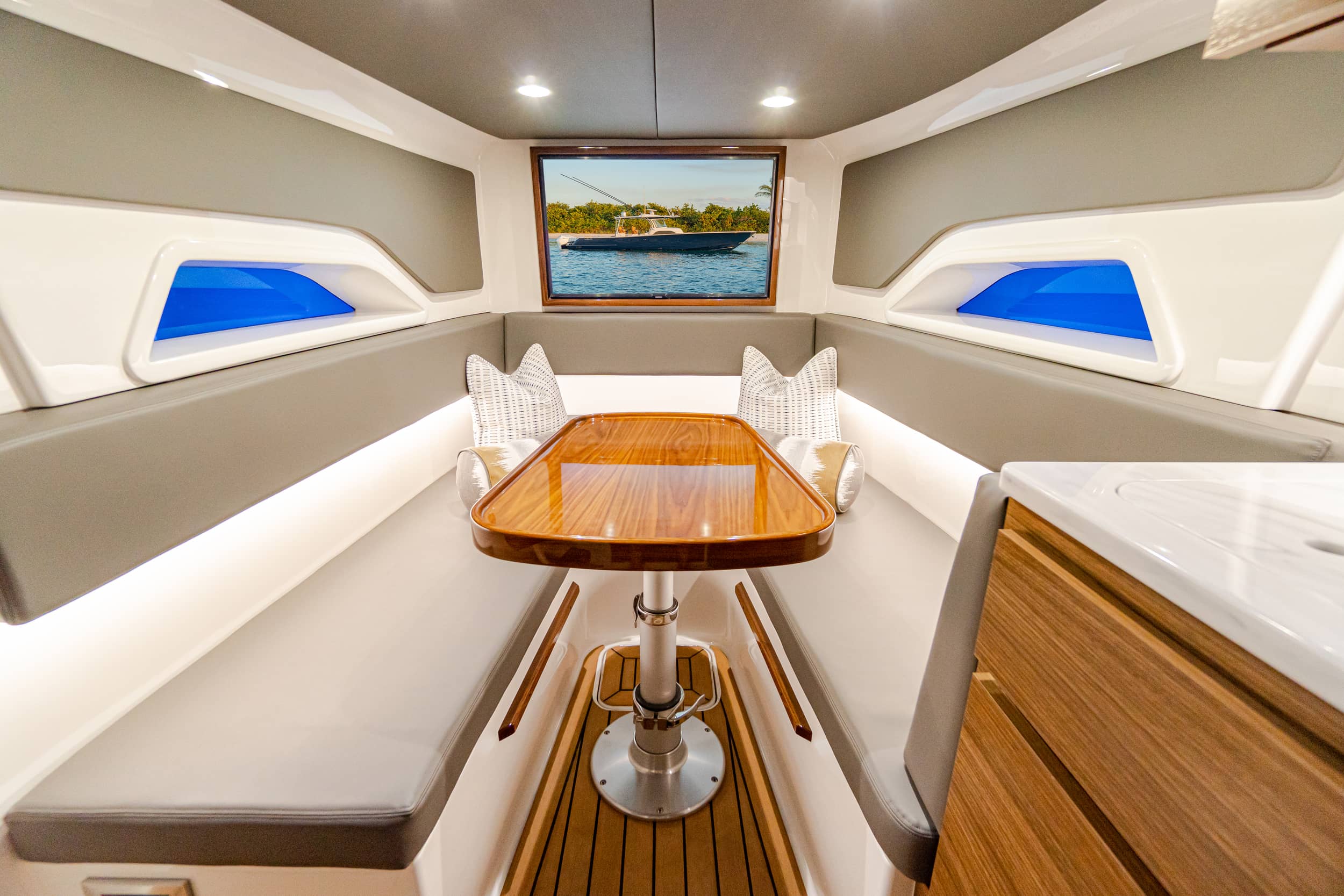

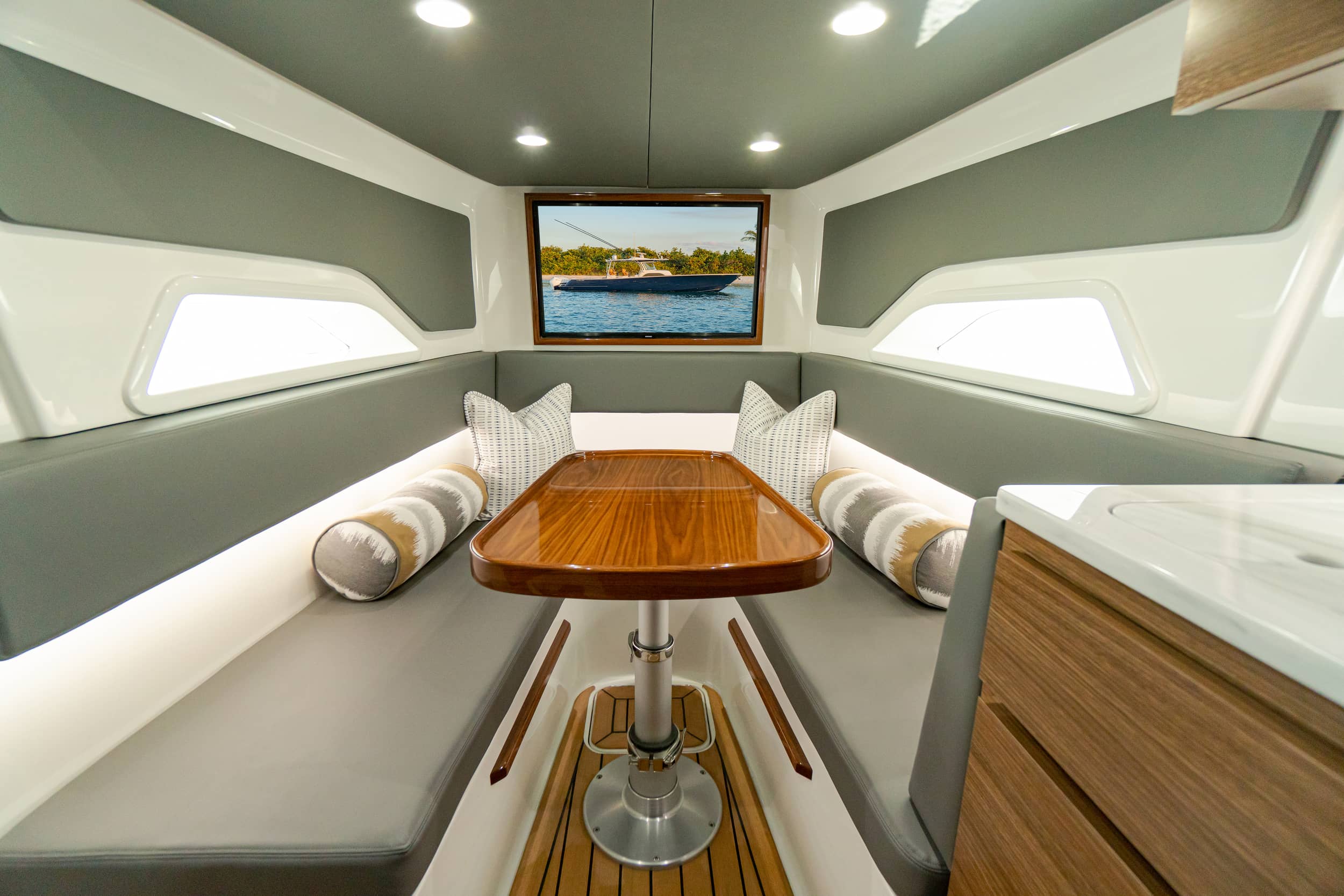

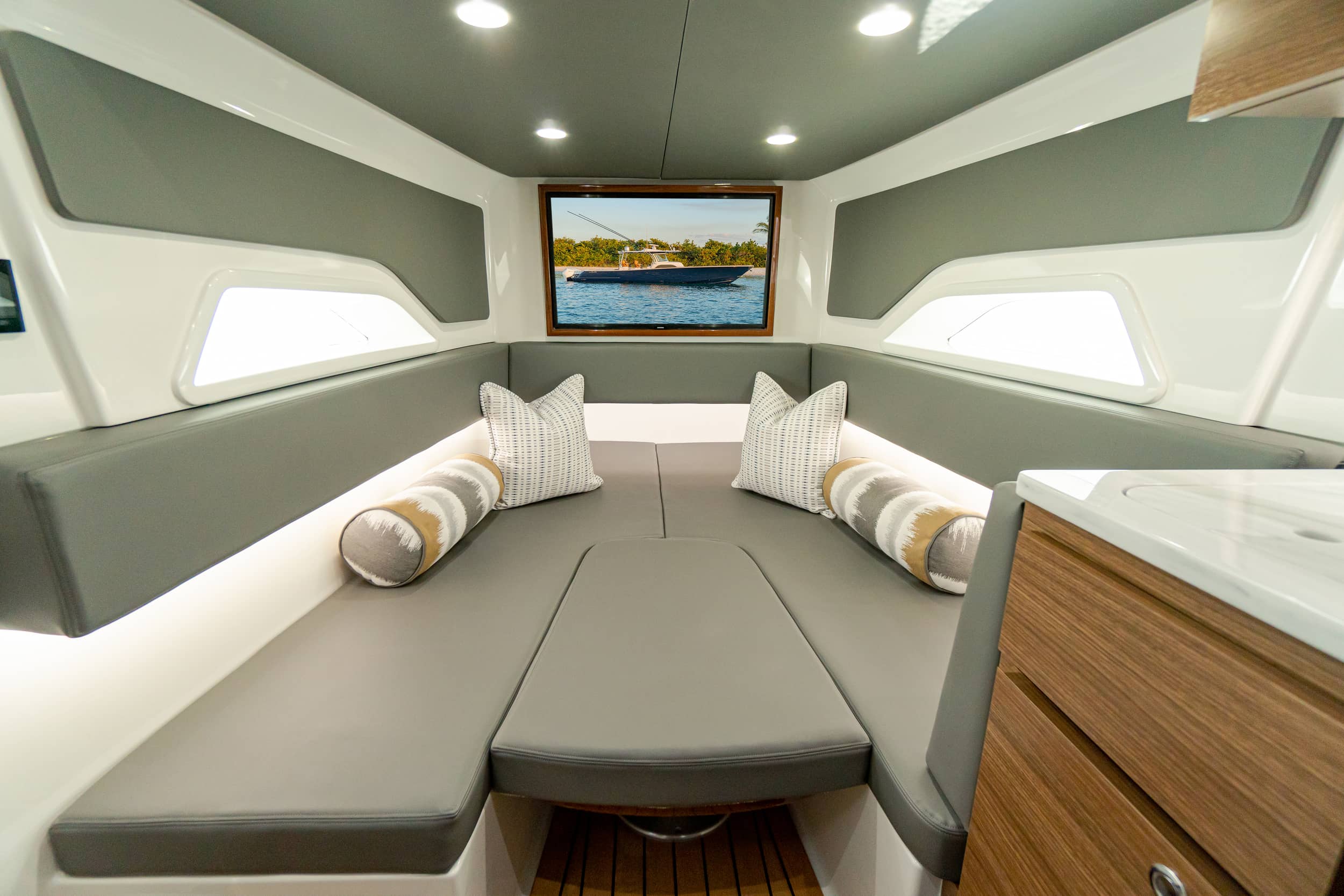

• Dinette seating with drop-down pedestal to convert into queen size bed
• Electric 2 burner recessed stove
• Entrance door thru head to mechanical room location for access to water heater, generator 9 kW, batteries and to backside of helm and electronics equipment
• Flooring, synthetic teak

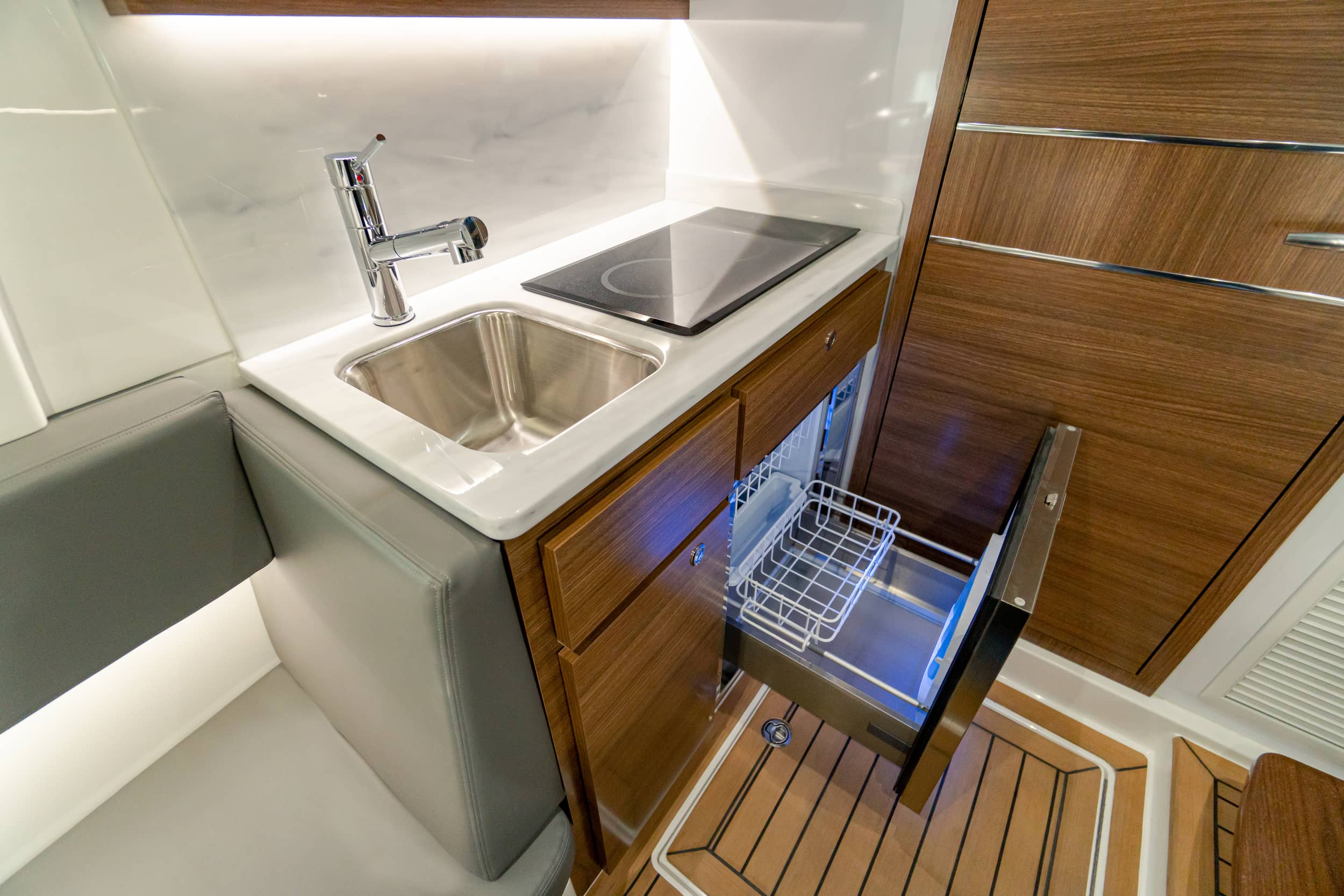

• Galley countertop, polished Corian, Wilsonart Whisper White stainless steel sink with brushed nickel and chrome faucet
• Gelcoat, snow white

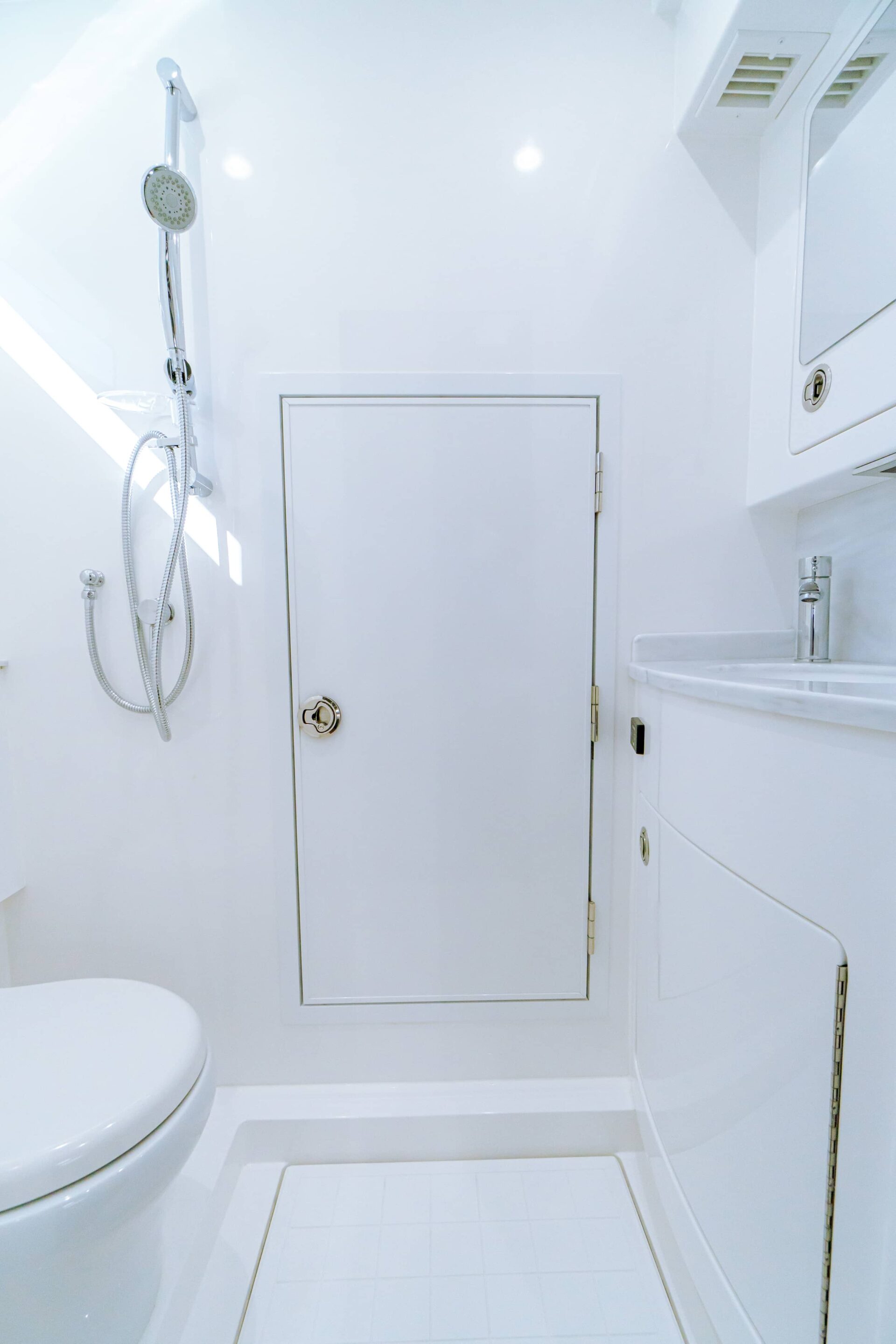

• Head compartment enclosed with moukded-in vanity with freshwater sink and faucet, toilet, exhaust fan, and shower head fixture

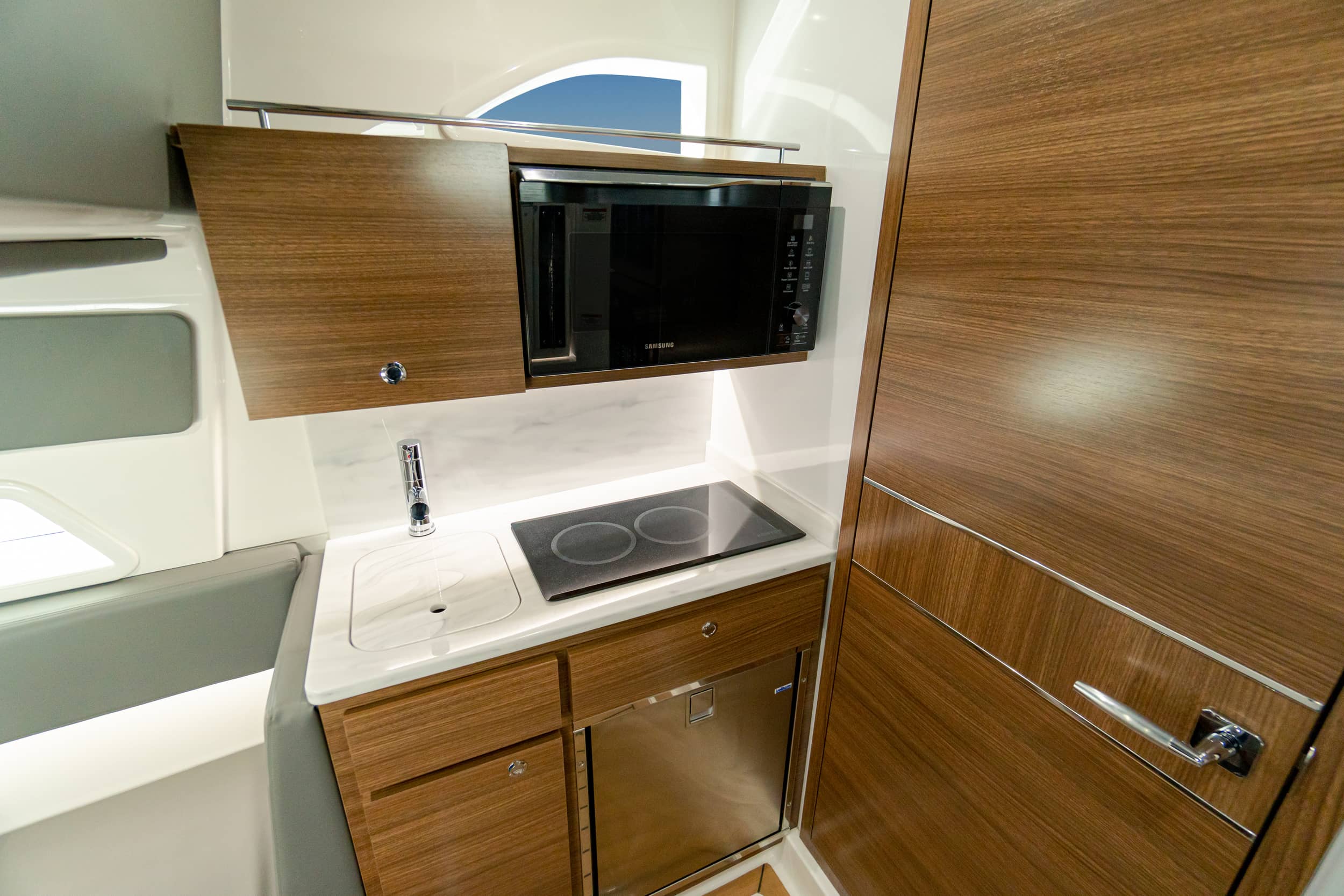

• Microwave located in upper galley cabinet
• Overhead Bomar escape hatch, opening 24” with sky screen
• Port lights, port and starboard sides of consoles, upper/lower, non- opening
• Powder-coated pedestal with teak ladder treads for easy access
• Refrigerator/freezer
• TV, 32” flat screen
• Walnut, natural wood, high-gloss

COCKPIT

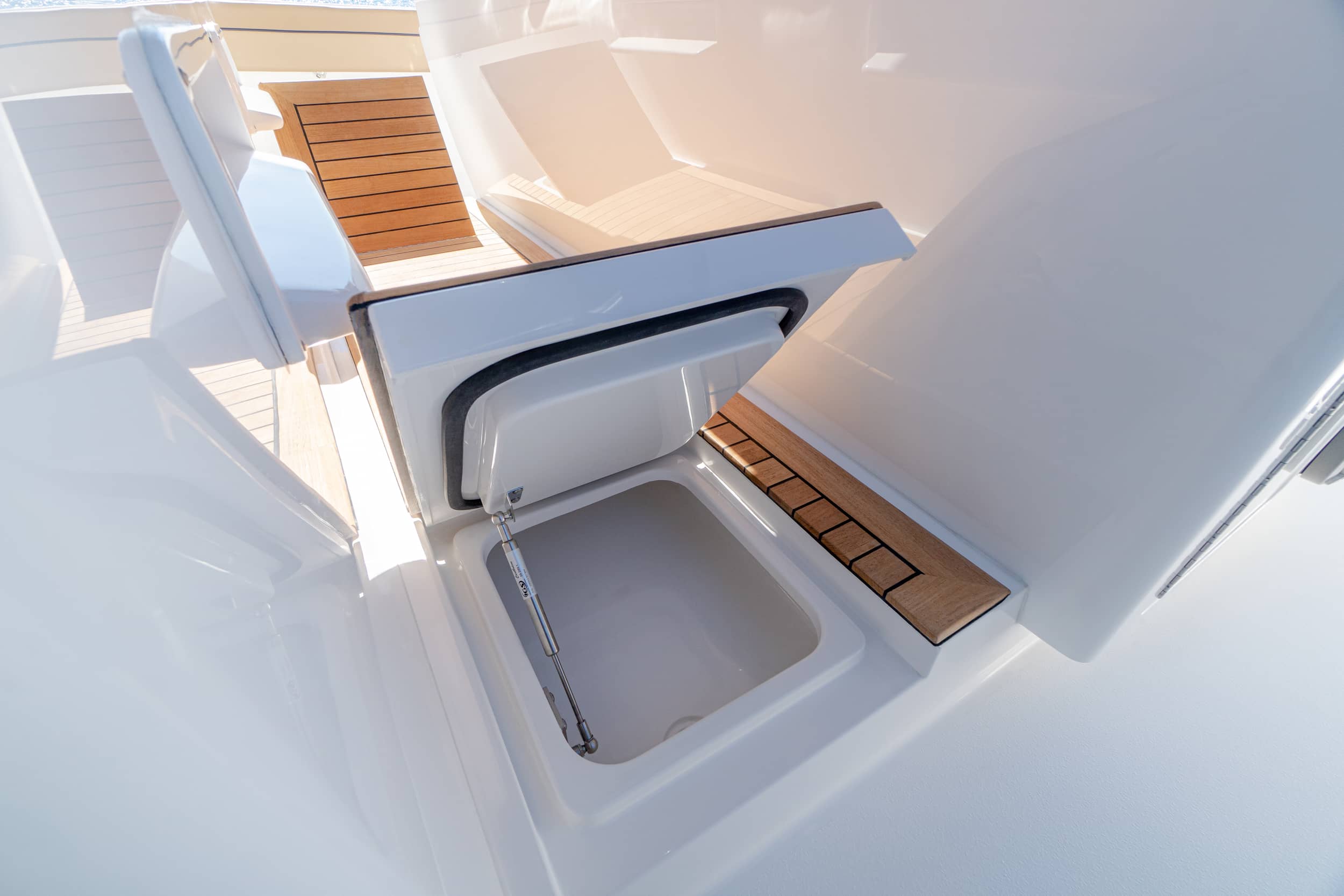

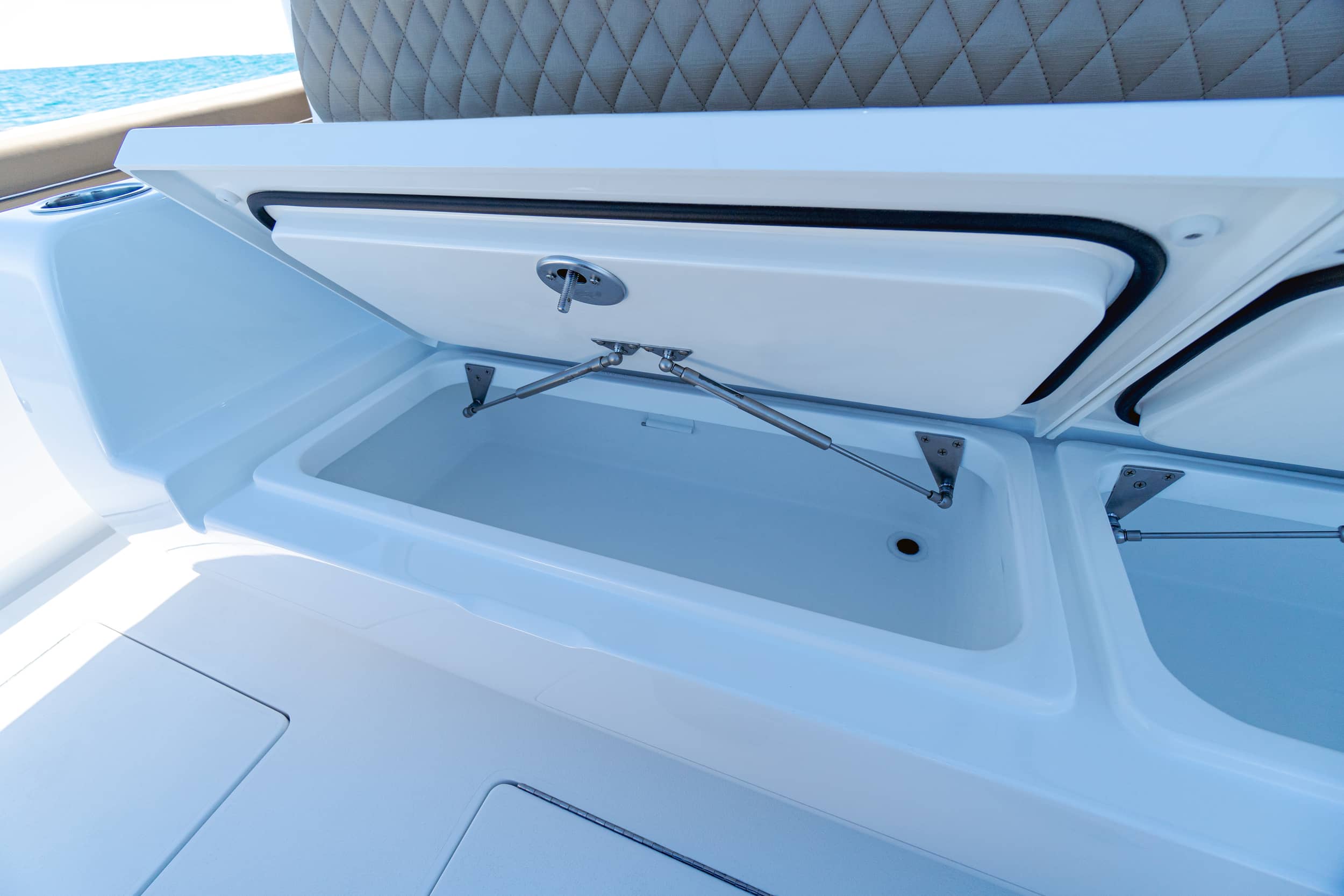

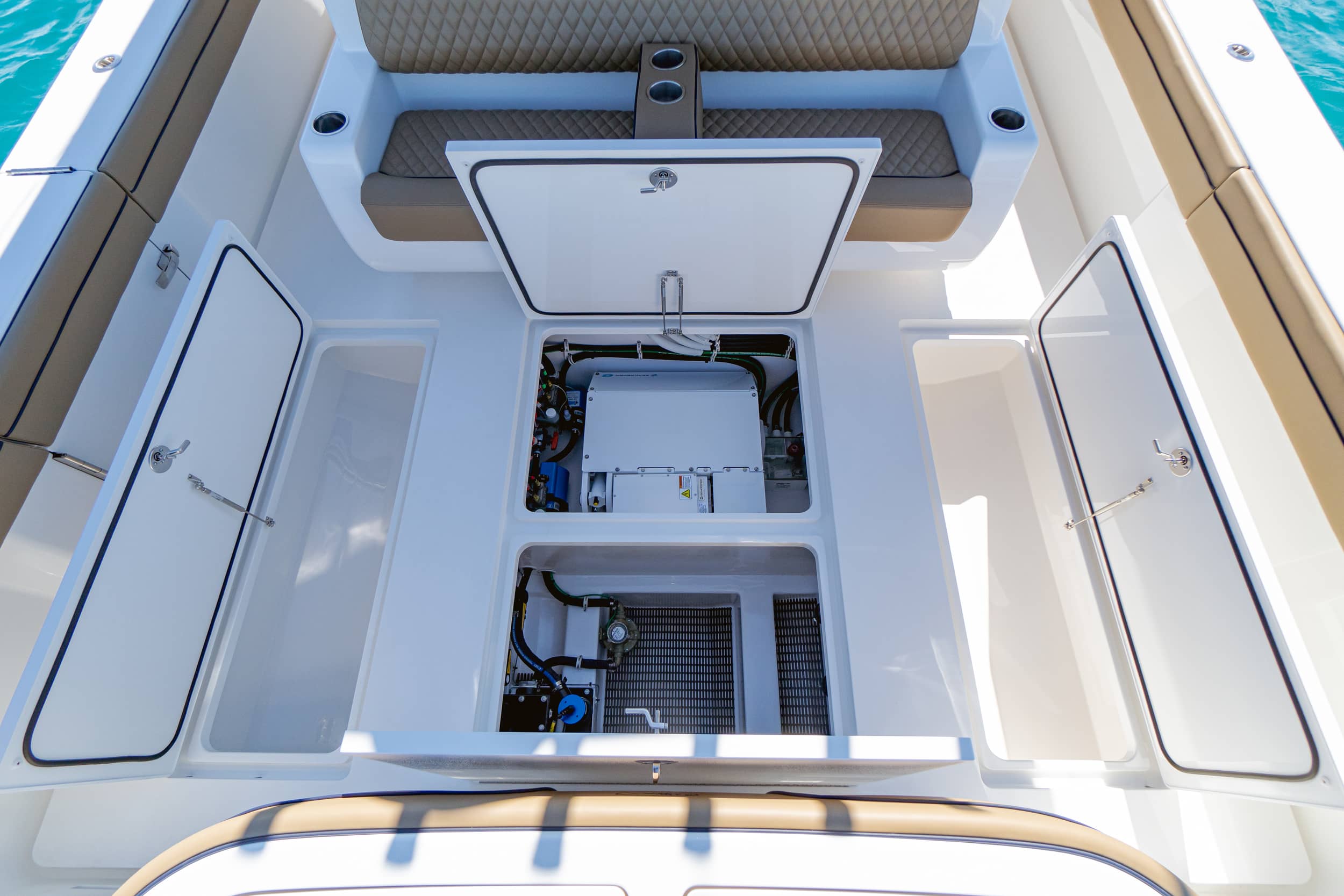

• Aft fishboxes port, starboard plumbed to Whale Gulper pumps. Forward fishbox and port/starboard deck boxes plumbed to Whale Gulper pumps
• Bow rail, polished aluminium, recessed and low profile
• Durable white outdoor upholstery for console lounge, bench seating, coaming bolsters and cockpit cooler seating

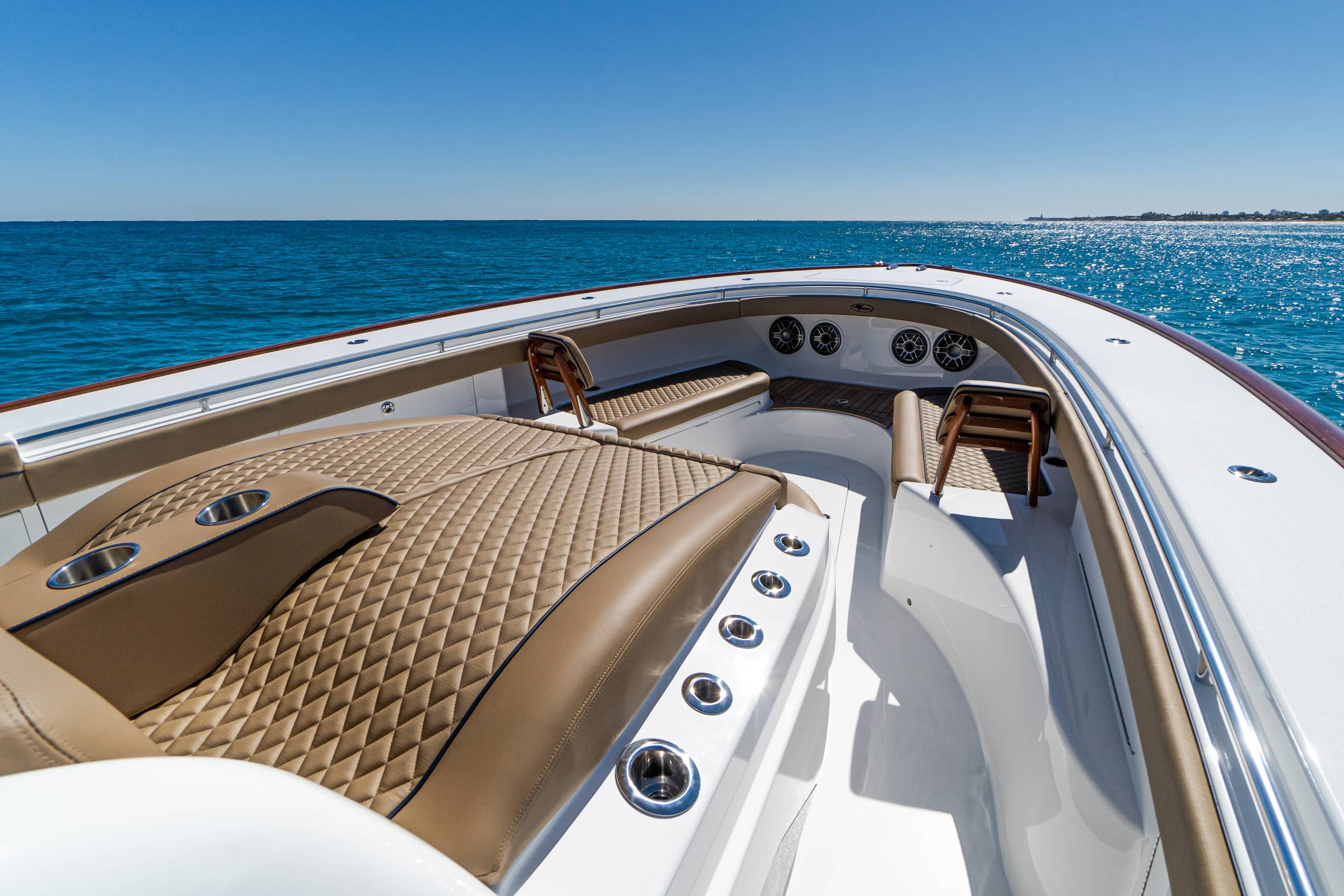

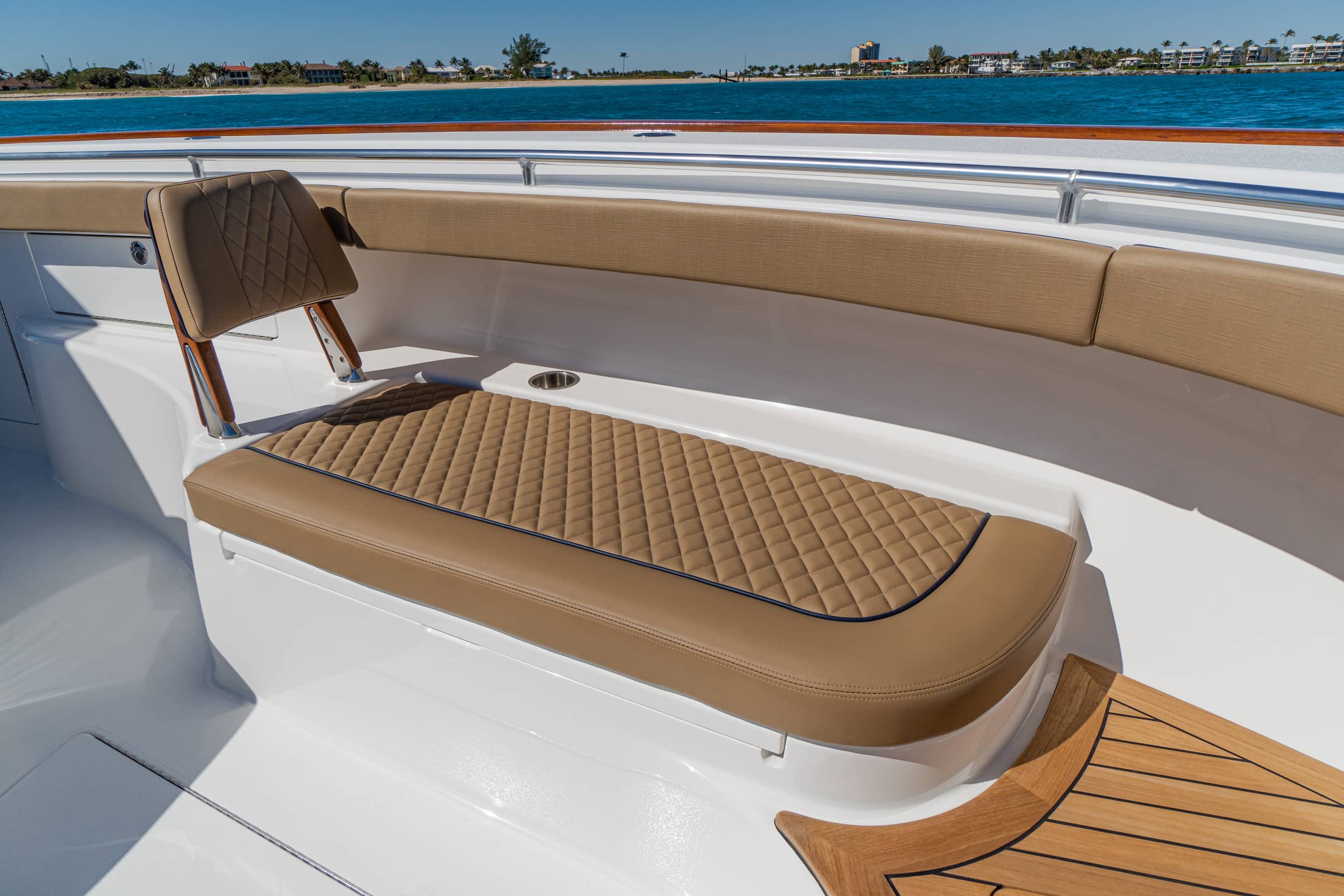

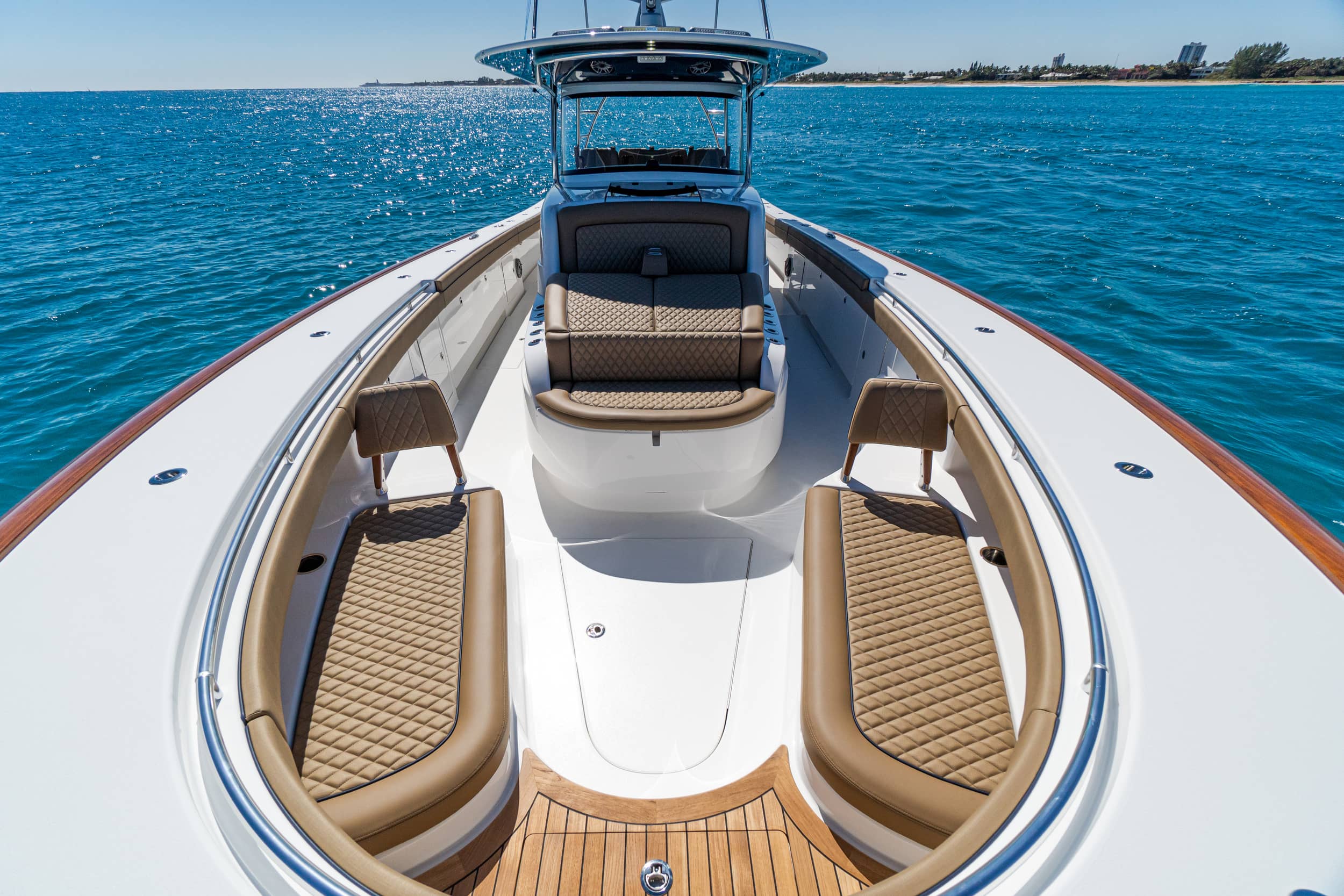

• Forward bench seating, molded-in with (2) backrests
• Fibreglass under gunwale forward side lockers
• Freshwater wash down with hose bib located under gunwale and anchor locker
• Heavy duty gasketing for all hatches with installation detail moulded in for tight seal

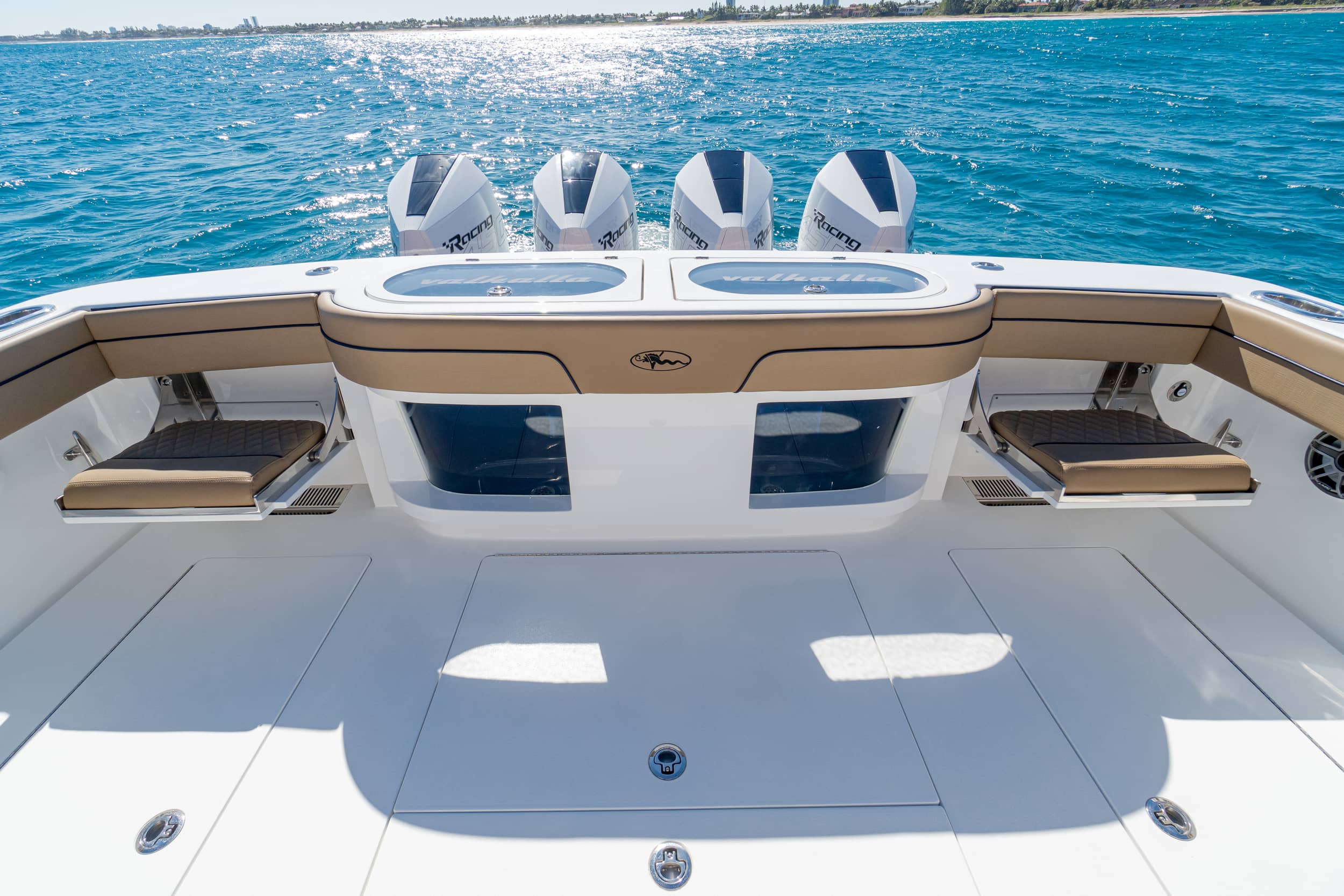

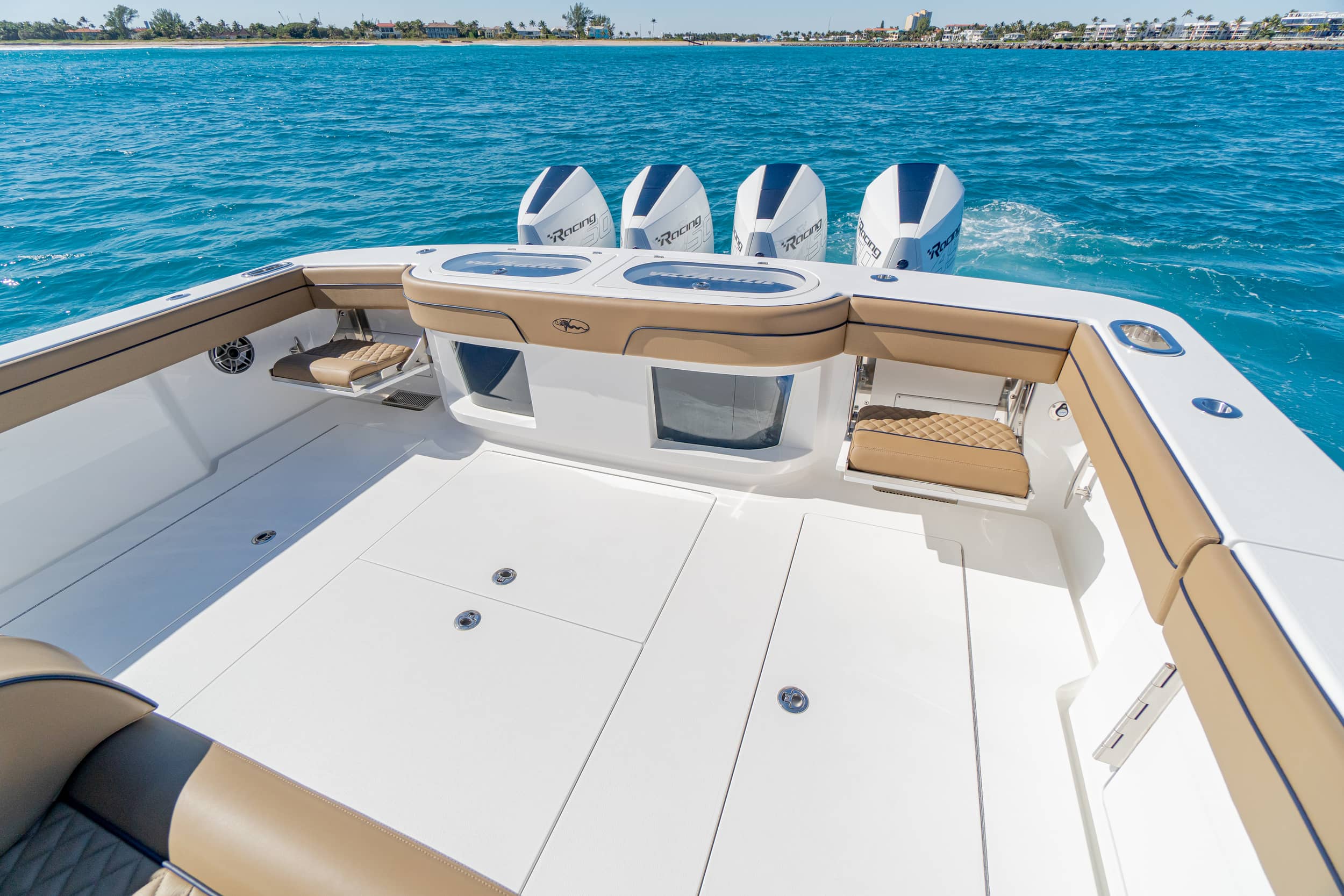

• Pressurised transom live well with fiberglass lid
• Port side dive door
• Powder-coated aluminium coiled hose holder mounted under gunnel
• Rod holders, cockpit coaming, (6) stainless Gemlux
• Salt water washdown
• Self-bailing cockpit with large cockpit scuppers
• Stainless 10” pop-up spring and forward cleats. Stainless hawse pipe and fixed cleat aft in cockpit.
• Stainless steel gas pistons on deck hatches
• Side storage lockers port and starboard
• Single live well (120 gal)

DELIVERY

• Transom mounted Gerilick retractable

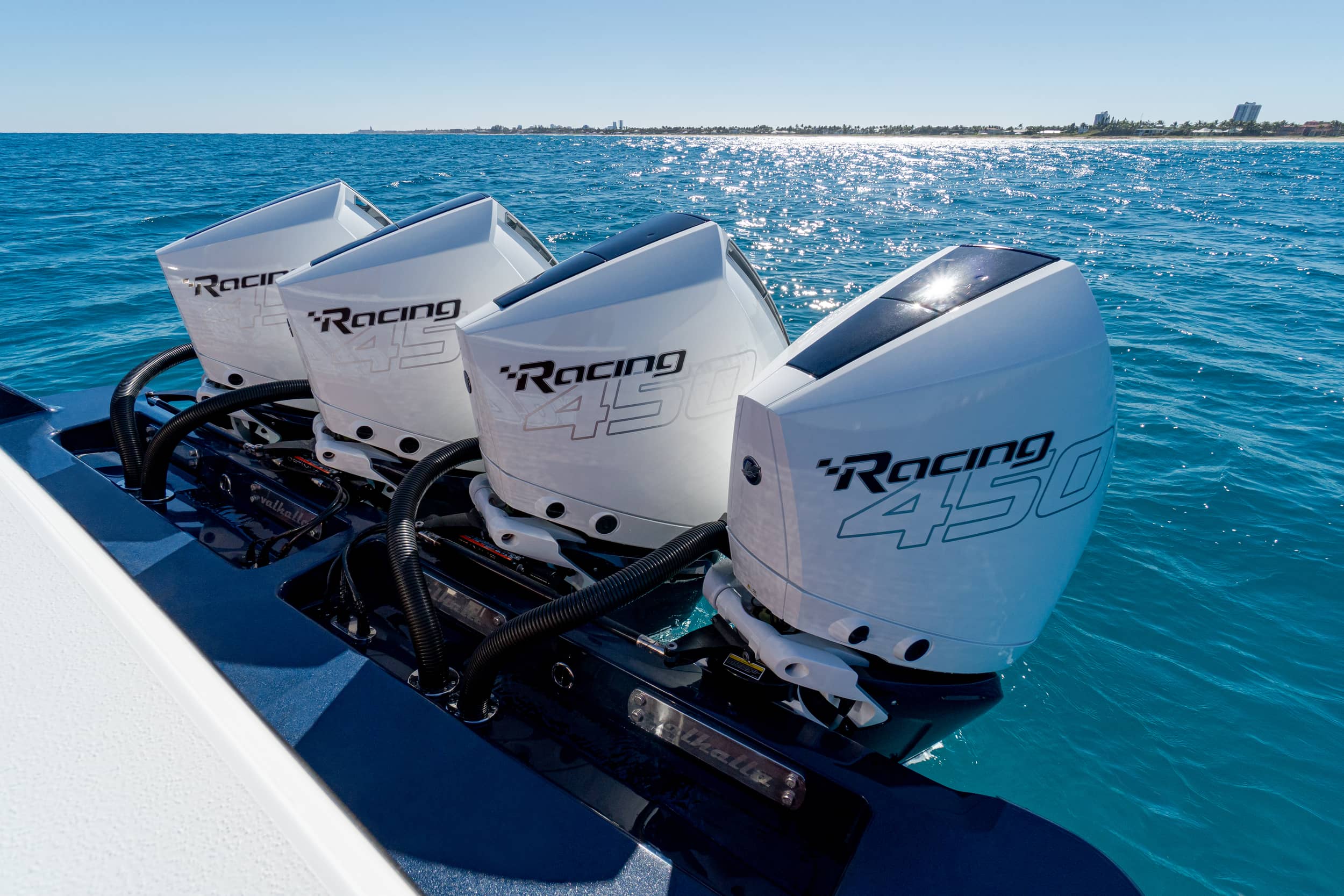

ENGINE OPTIONS

• Triple Mercury V12 600 cold fusion white w/Mercury Joystick

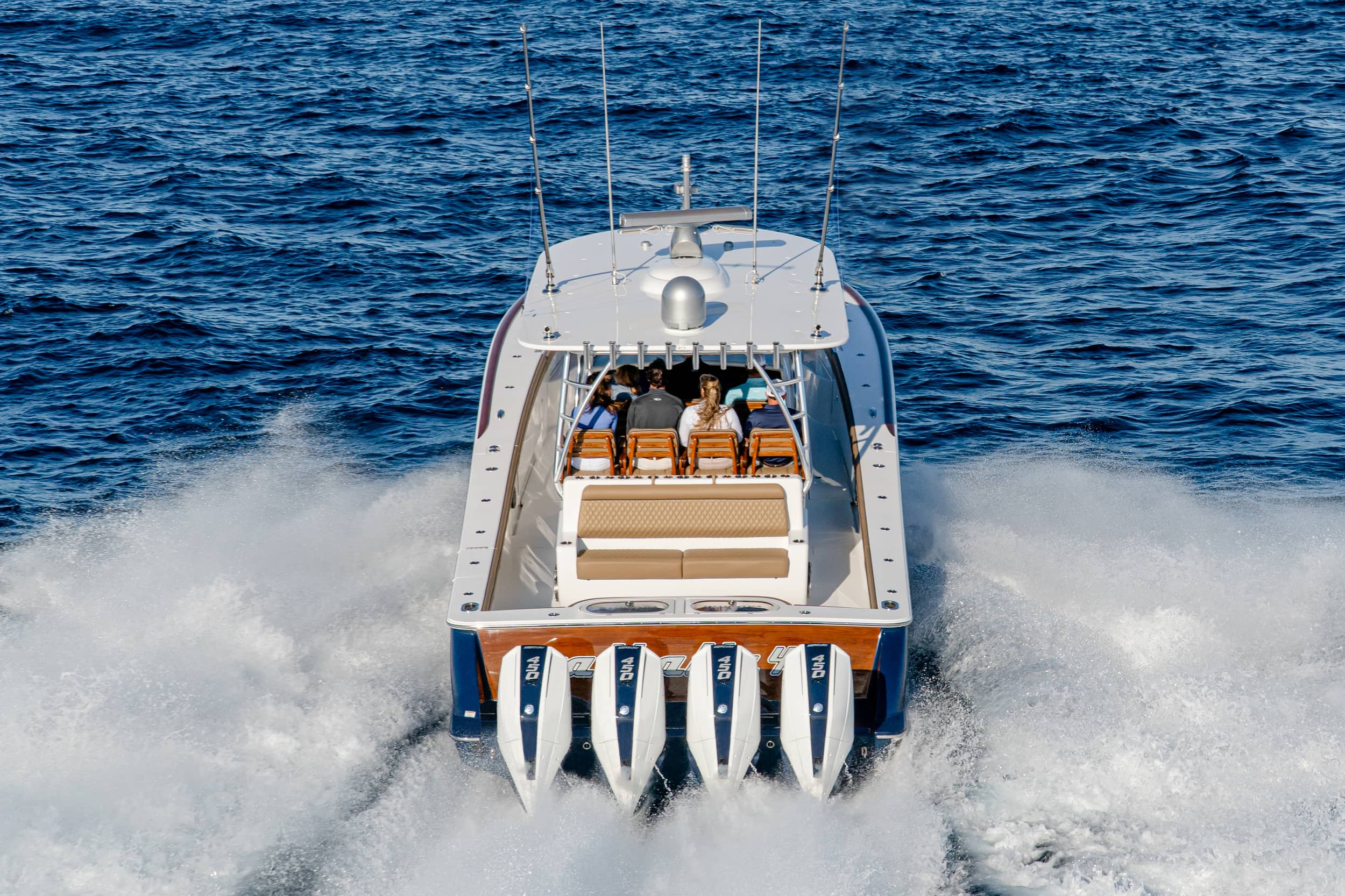

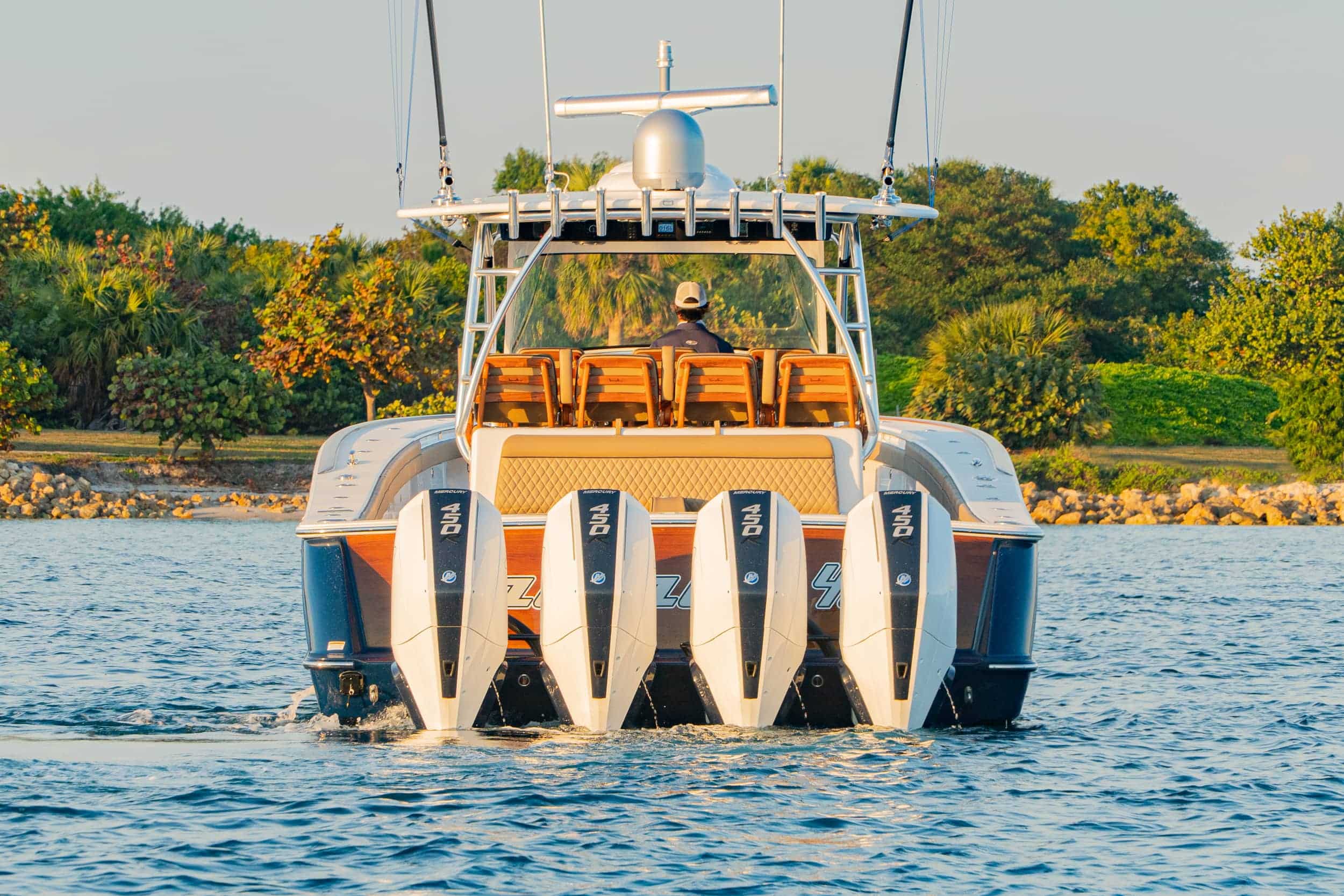

• Quad Mercury V12 600 cold fusion white w/Mercury Joystick

CUSTOM TOP OPTIONS

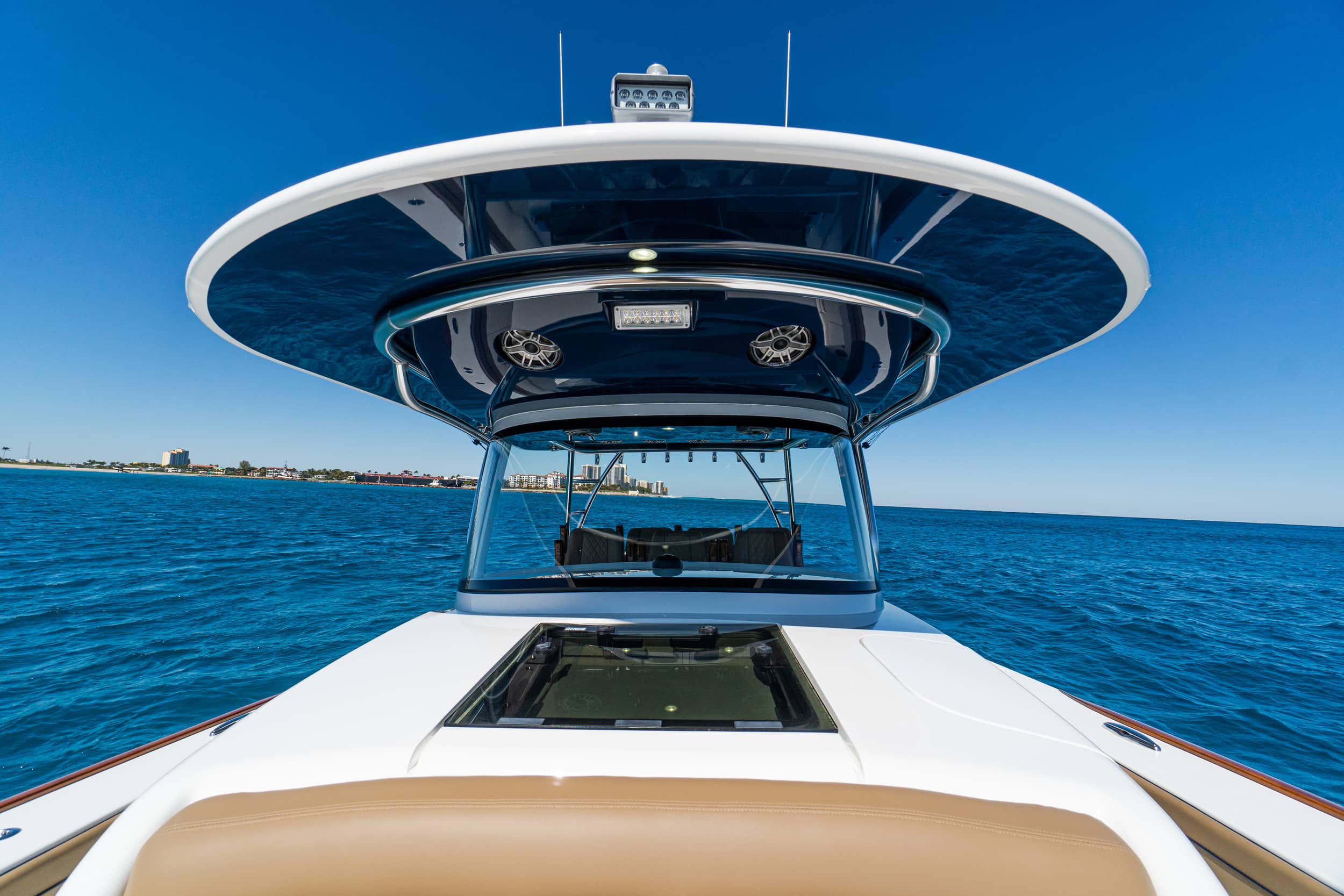

• Fibreglass hardtop w/polished aluminum supports aft/fwd facing molded-in Lumitec mirage spreader lights, (6) rod rocket launcher, molded-in overhead electronics pod, molded-in radar pod & overhead lights (6) (white/black)
• Custom fabricated fold-down marlin tower w/removable sunshade (PBT to install)
• Palm Beach Towers fabricated gap tower
• Outrigger bases, Gemlux
• Outrigger poles, Gemlux, carbon fiber, 22’ (telescoping)
• Outrigger poles, Gemlux, internally rigged, 22’ (fixed)
• Underside hardtop to match hull colour
• Powder coating package (white/black/grey)

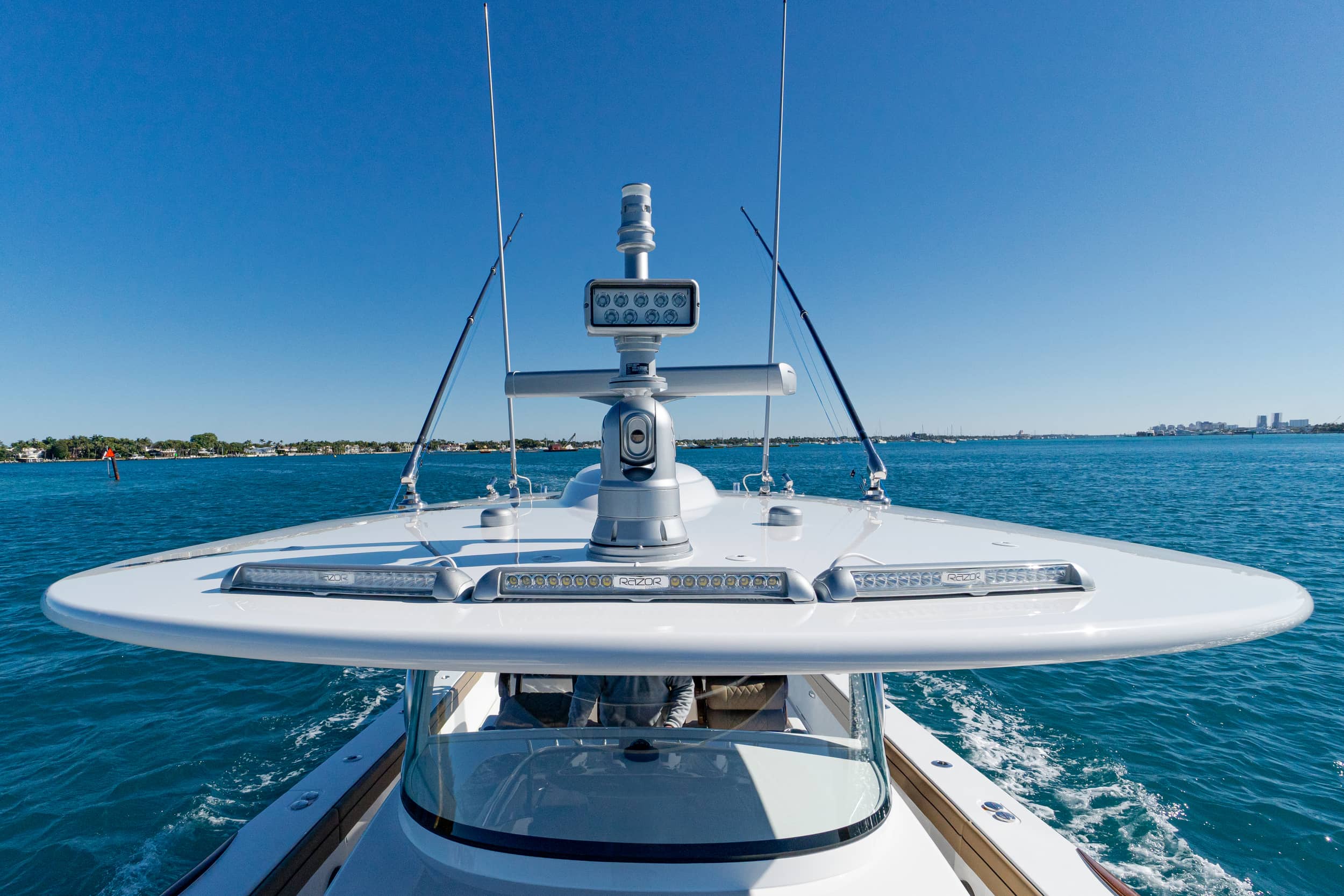

• Lumitec Razor light bars (3) mounted fwd hardtop
• Electric teaser reel box with mounting bracket, recessed opening and removable door in hardtop
• Miya Epoch US-6, 12V electric teaser reels
• Pancake style teaser reels, w/moulded-in recess into hardtop

FISHING ACCESSORIES

• Additional live well pump, Hooker electric 4500 w/ variable speed controller at helm (each)
• Additional in-deck live well (N/A with Seakeeper)

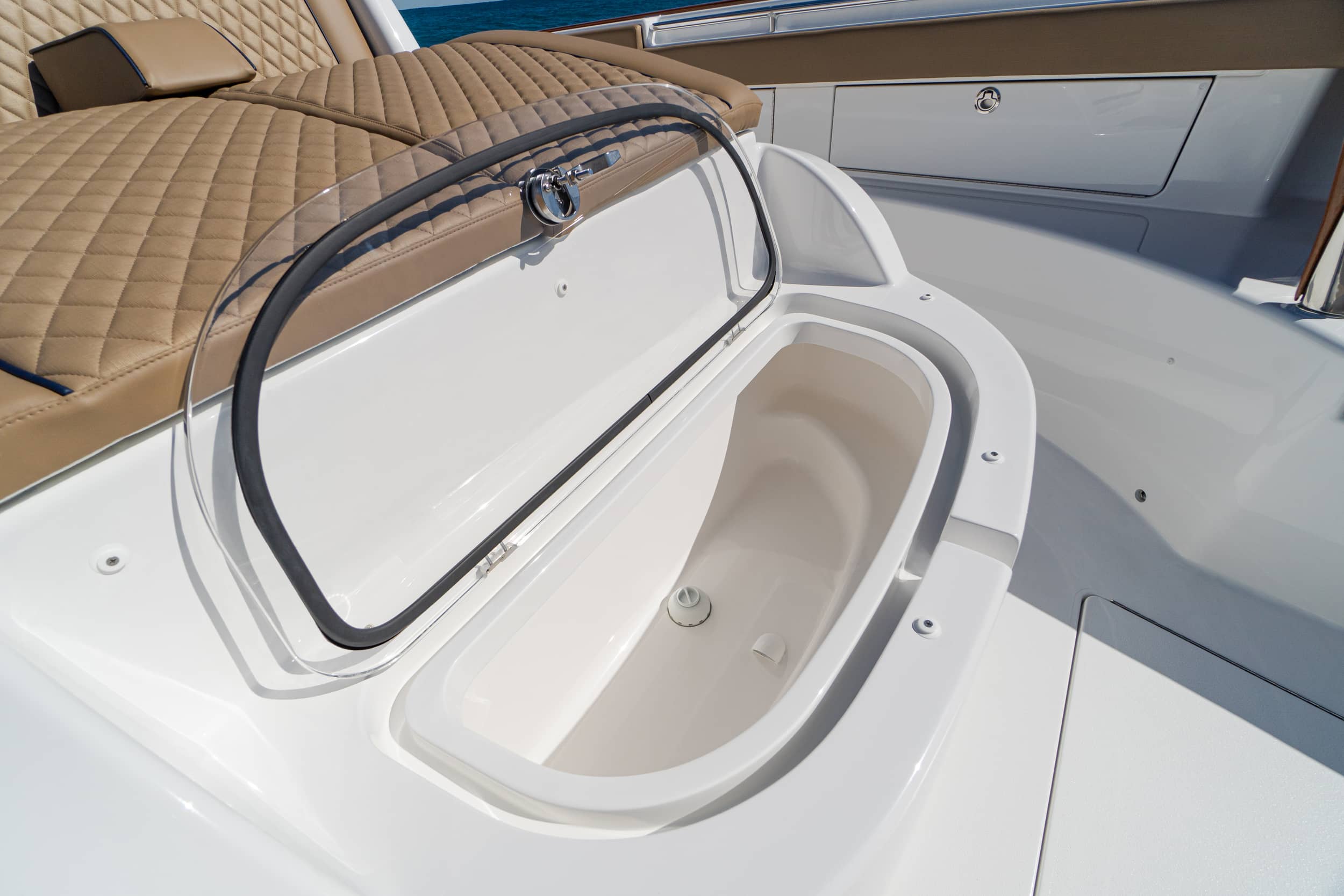

• Above deck pressurised live well forward inside fwd section of lounge seating w/clear lid
• On deck live well inlet and discharge fittings (each)
• Electric reel outlet, 12V (each)
• Rod holders, swivel Gemlux (each)
• Rod holders, additional Gemlux (each) (specify console, lounge, coaming)

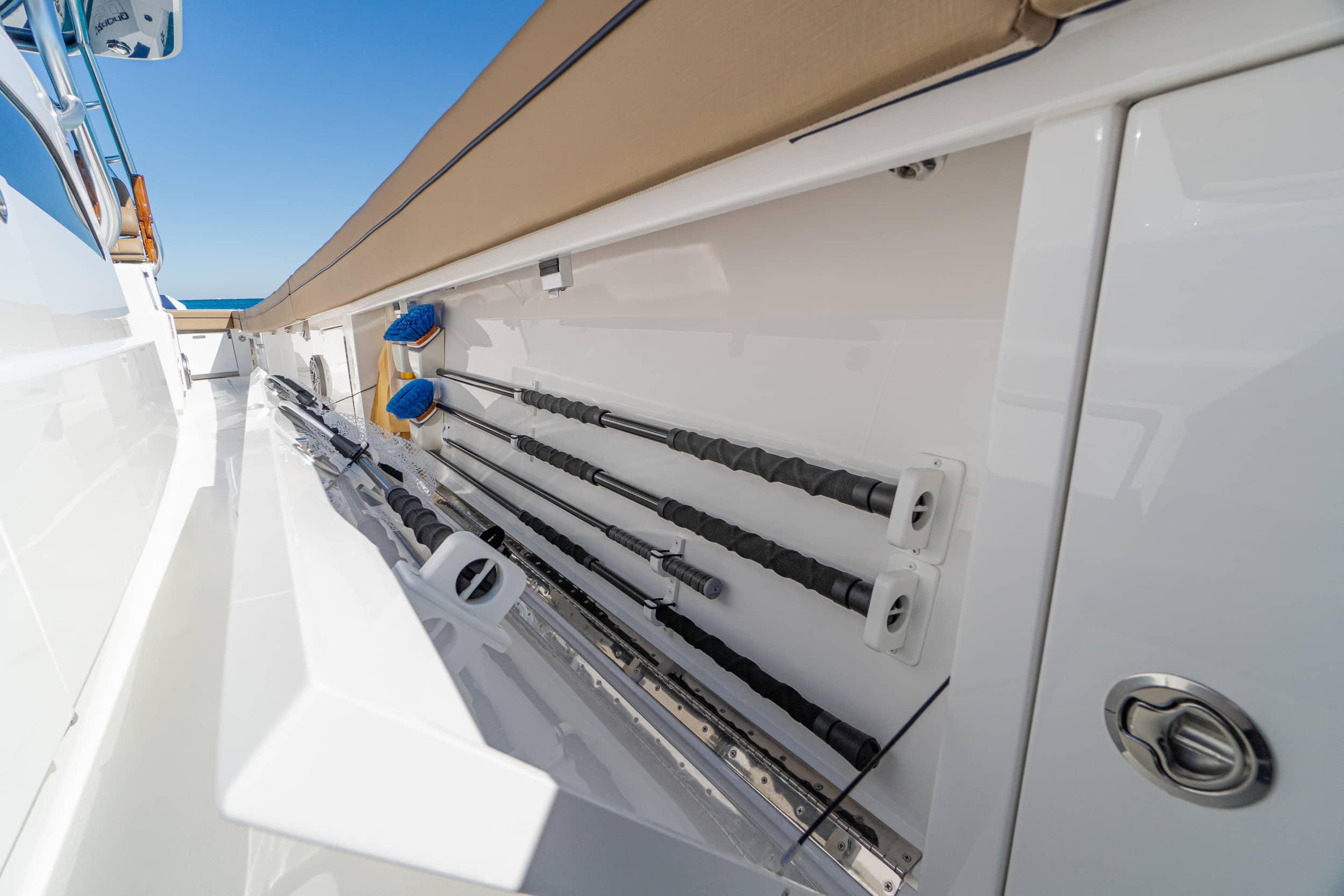

• Rod holders, mounted under gunwale
• Cup/rod holders (each)
• Clear transom live well lids (2)

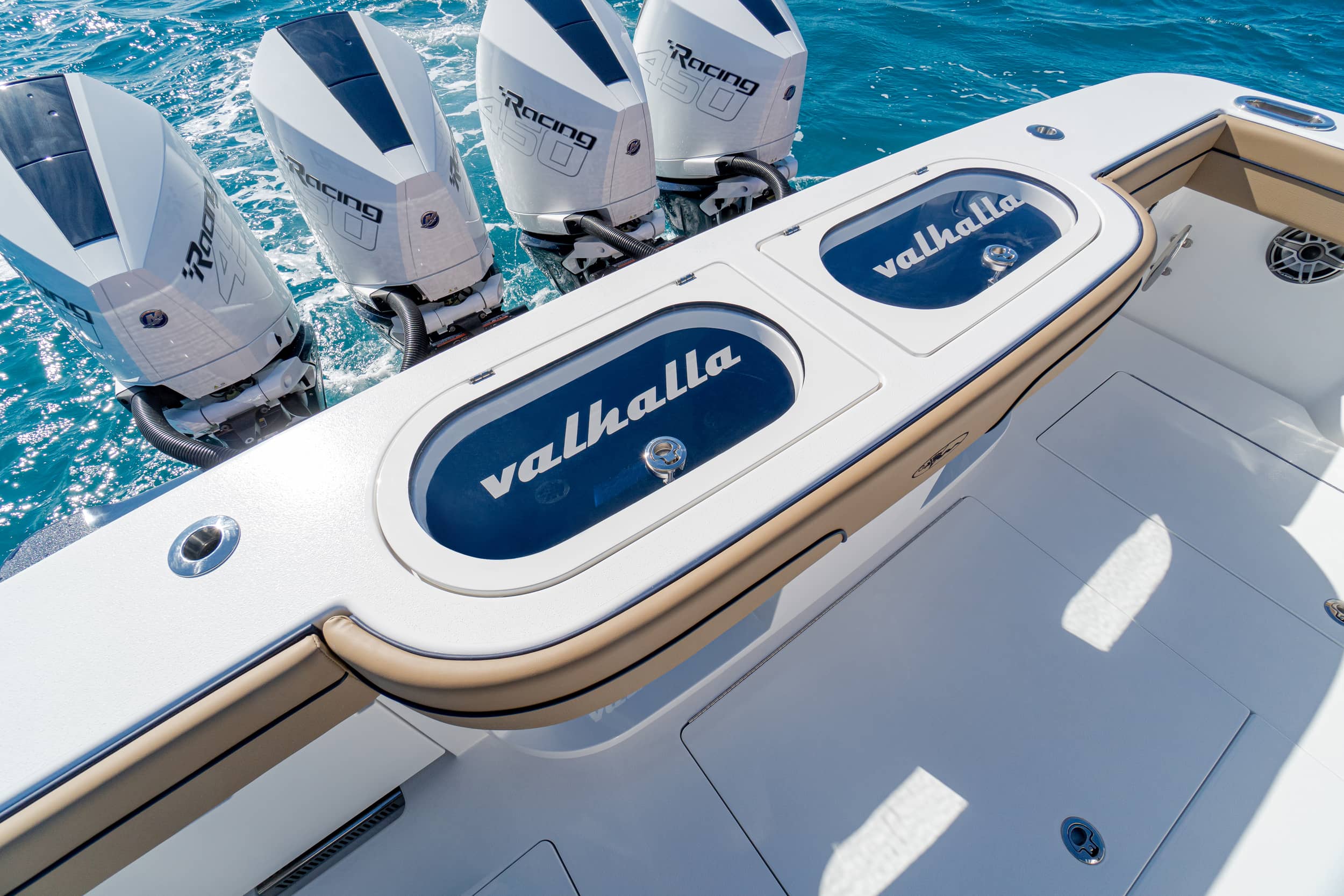

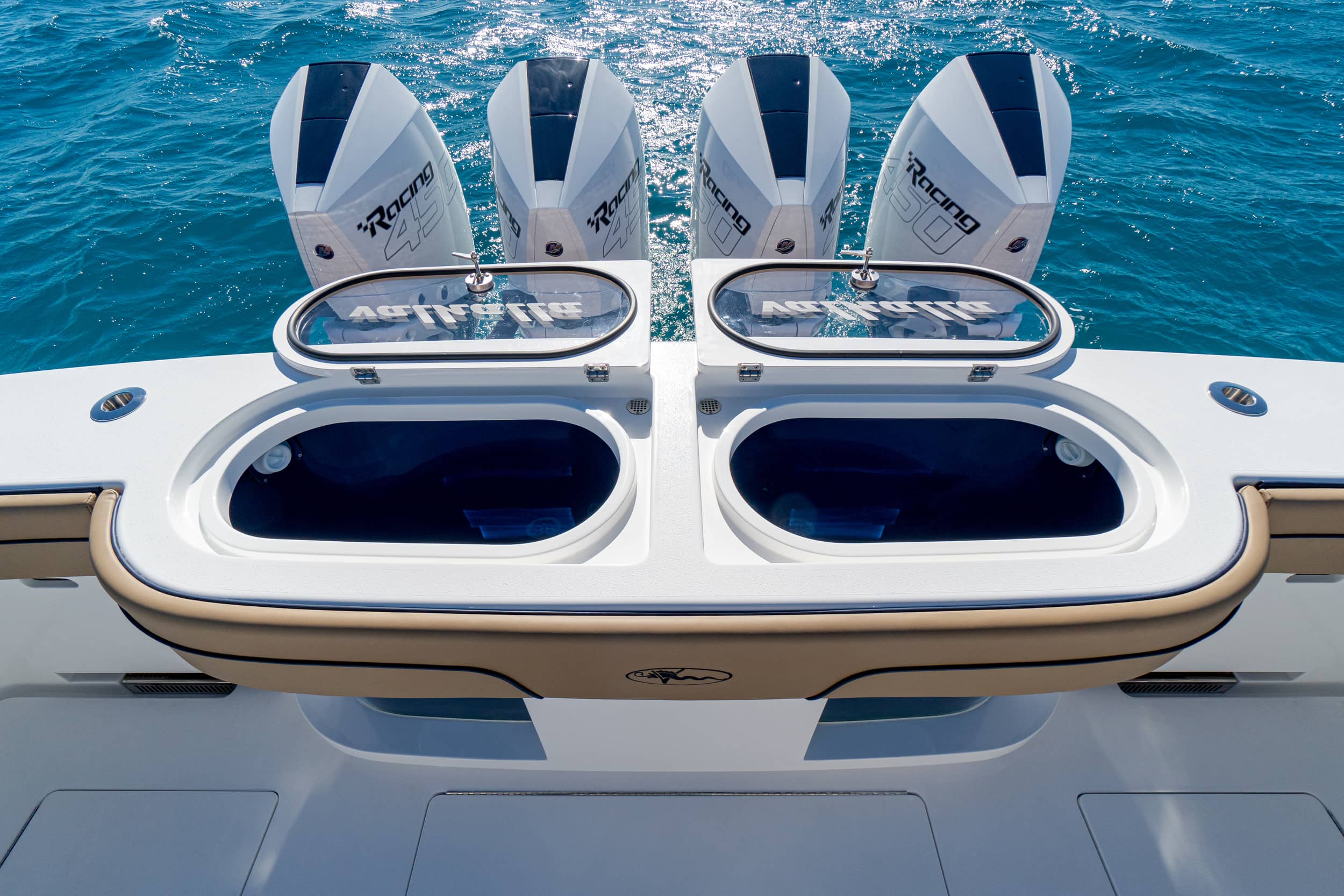

• Dual transom live well
• Light only, for lounge live well
• Light only, for transom live well(s)
• Window and light for dual transom live wells
• Window and light for single transom live well
• Valhalla filet table
• Release Marine Rocket Launcher

GELCOAT AND PAINT

• Boot stripe, paint
• Bottom paint
• Hull colour, gelcoat, light colour (KG, SB, BB)
• Hull colour, gelcoat, two-tone at Chine, light colour
• Hull color, gelcoat, dark color (HG, NG, FB, SS, SG)
• Hull colour, gelcoat, two-tone at Chine, dark colour
• Hull color, paint
• Live well colour Aristo Blue
• Transom live well colour Aristo Blue
• Topside gelcoat, all topsides including exterior console, deck liner and deck boxes (specify colour)
• Custom outboard paint package

CONSOLE

• Costa Clear single panel for helm
• ProCurve solid curved glass enclosure for helm
• Edson steering wheel with power knob, carbon fibre
• Edson steering wheel with power knob, black finish
• Edson steering wheel, teak

REFRIGERATION

• Selections available WITH Eskimo Ice Chipper – (systems are water-cooled only). Select up to 3:

  • Eskimo Ice Maker
  • Refrigerate mezzanine bench seat
  • Refrigerate aft fishbox (port only)
  • Refrigerate in-deck drink boxes (port and starboard)

  Selections available WITHOUT Eskimo Ice Chipper – (systems are air and water-cooled, requires helm ventilation): Select up to 2:

  • Refrigerate mezzanine bench seat
  • Refrigerate aft fishboxes (port and starboard)
  • Refrigerate in-deck drink boxes (port and starboard)

ENHANCEMENTS AND CONVENIENCE

• Air conditioning, helm and seating
• Anchor chute w/SS plow anchor plus windlass
• Additional pop-up cleats in lieu of standard fixed cleats and hawse pipes
• Additional cup holders (each)
• Arid dry bilge system (3 zones)
• Bow table, hi-low
• Faux bow table
• Bow thruster
• Bow towing eye
• Engine flush system, Reverso automatic
• Ice Chipper (requires 12kW generator upgrade)
• Seakeeper, SK 6
• Release Marine teak helm pod
• Faux teak helm pod
• Faux teak toe rail
• Faux teak transom
• Deck box LED lighting to include all deck and coaming boxes
• Macerator pump, holding tank overboard discharge
• Removable stainless dive ladder
• Underwater lights (4)
• Teak deck, for raised helm platform area, mezzanine
• Trailer, aluminium
• Transom name done by outside vendor
• Upgrade generator to 12 kW
• Water delivery kit w/out anchor
• Water delivery kit *USCG Compliance items including fire extinguishers, flare kit, life jackets with stowage bag, and ring buoy. Fortress anchor with a custom rode, stainless steel chain, 200’ rope, and (1) 25’ coiled washdown hose. Also includes Shurhold boat maintenance kit, first aid kit, 5 gallon bucket, fenders with lines, and 6 dock lines
• Watermaker, 170 GPD (requires 12 kW generator upgrade)

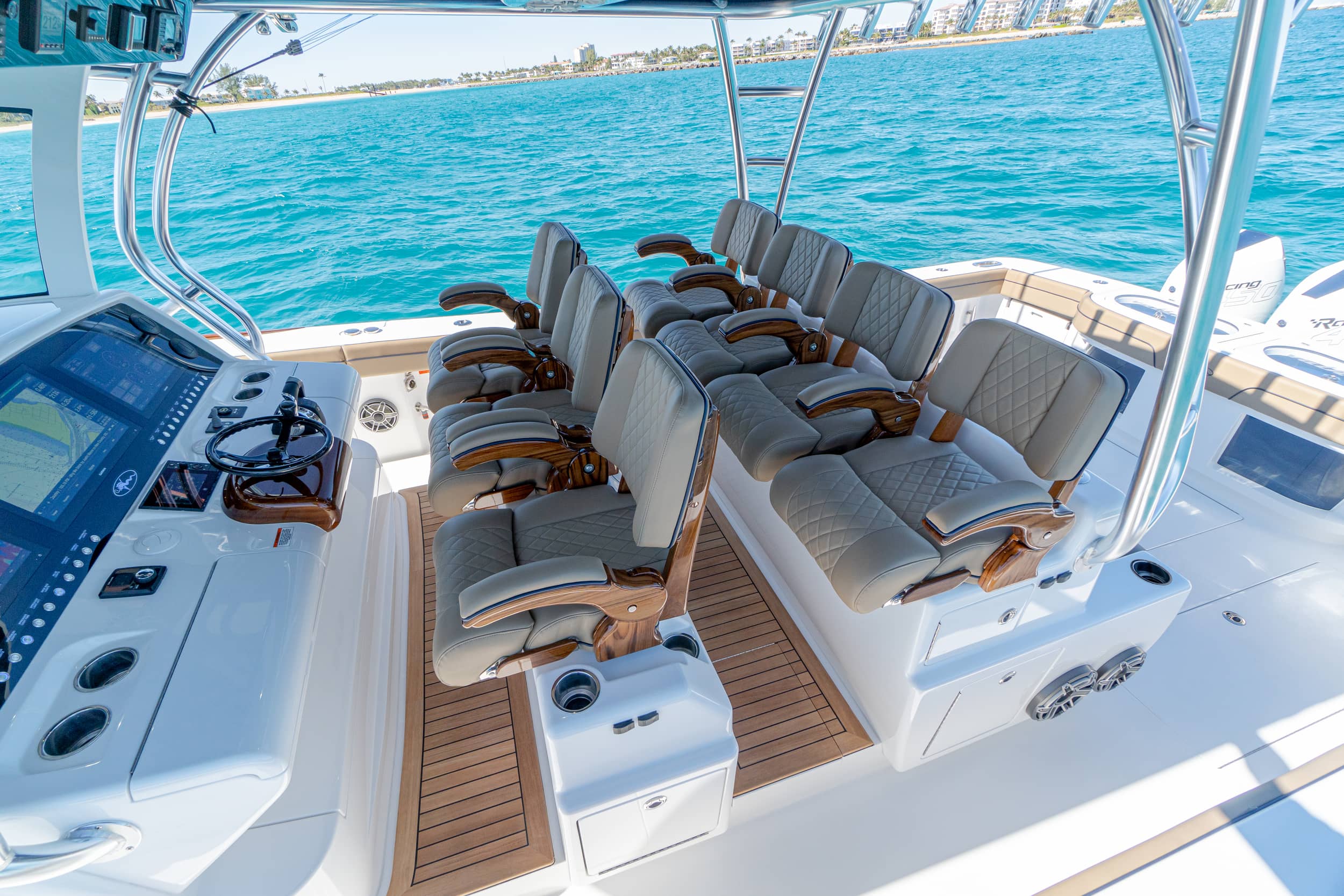

SEATING

• Helm-second row, forward-facing seat w/aft mezzanine
• Helm-second row, forward-facing seat w/tackle cabinet
• Integrated GG Schmitt transom seats
• Release Marine armrests for standard bench seat

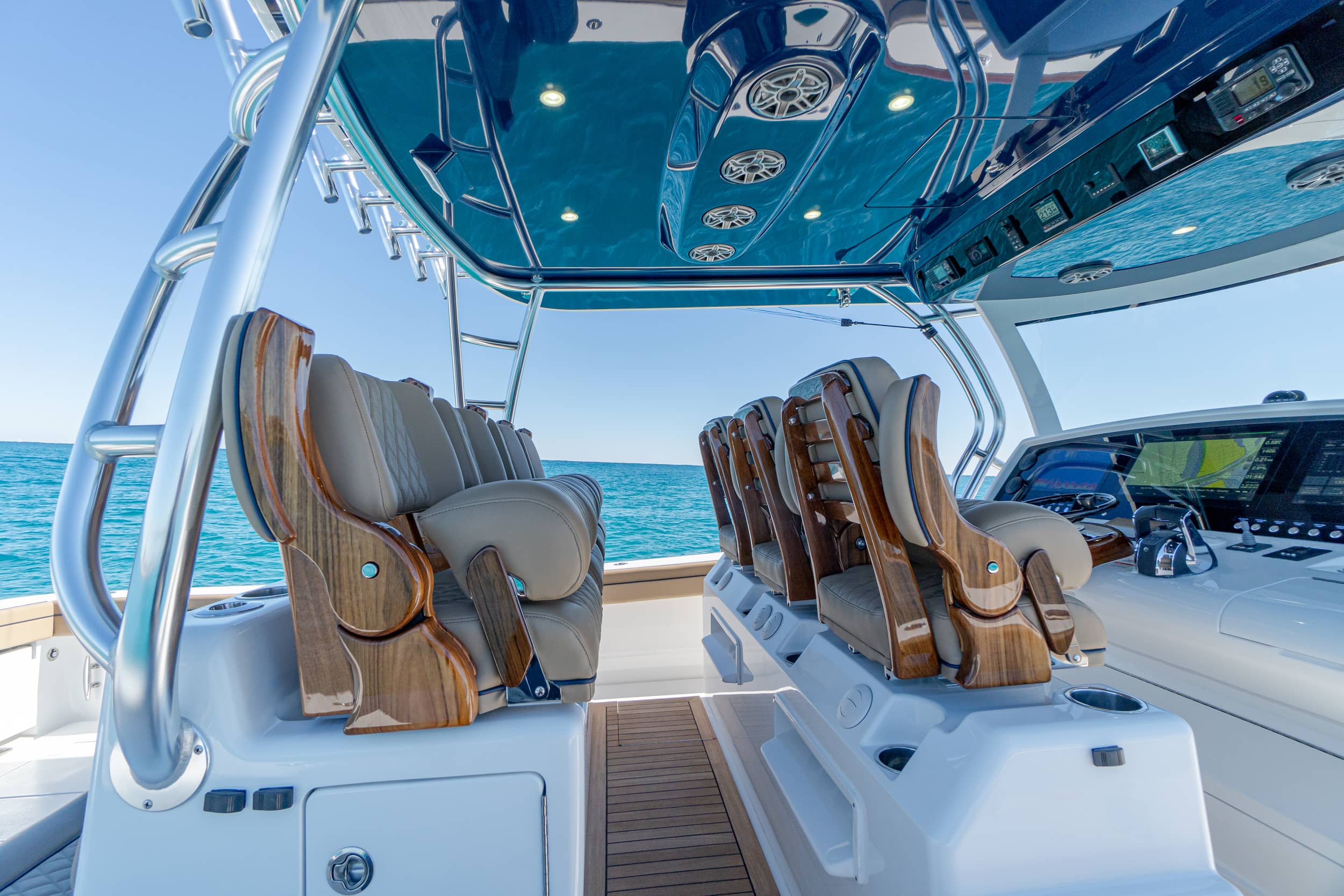

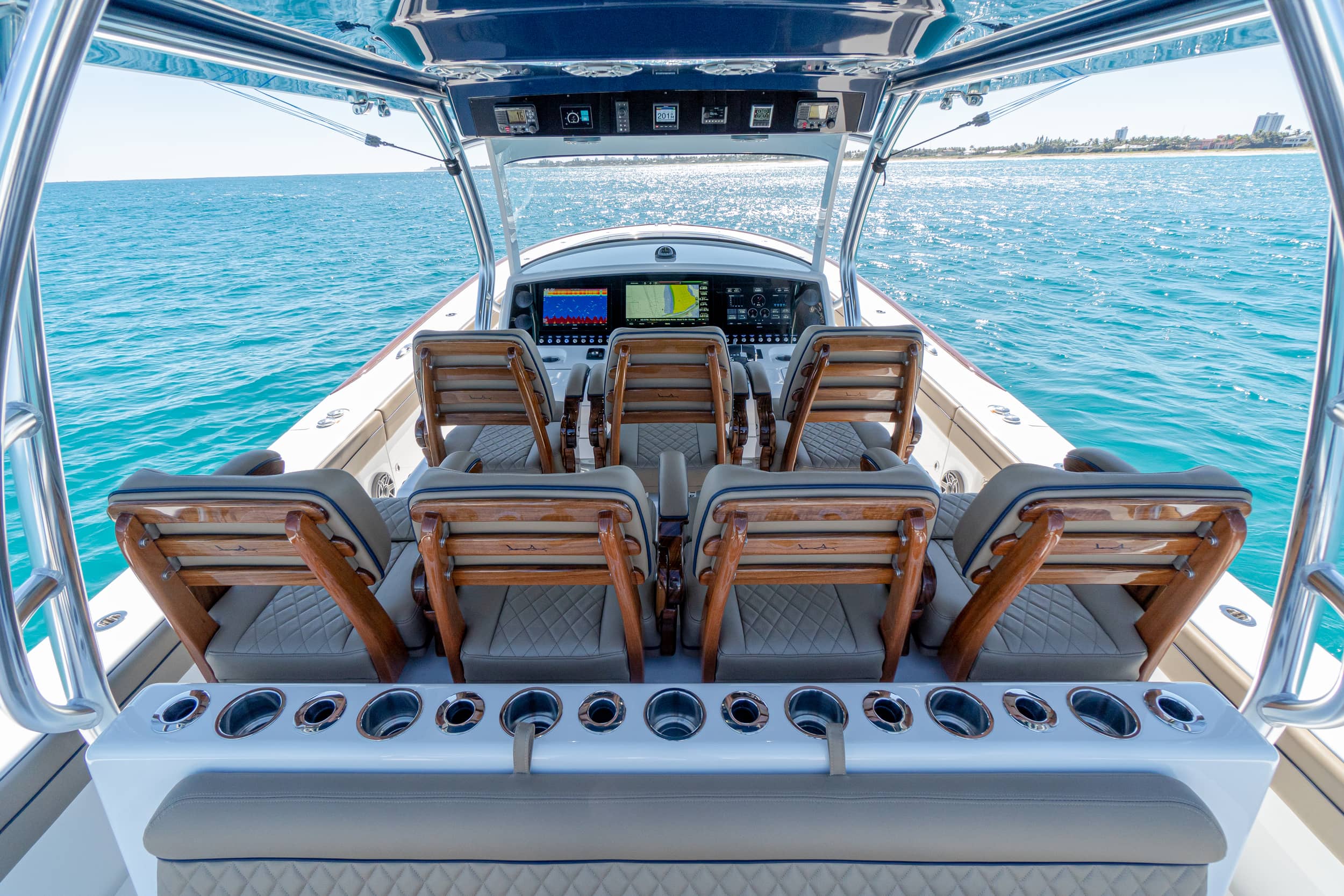

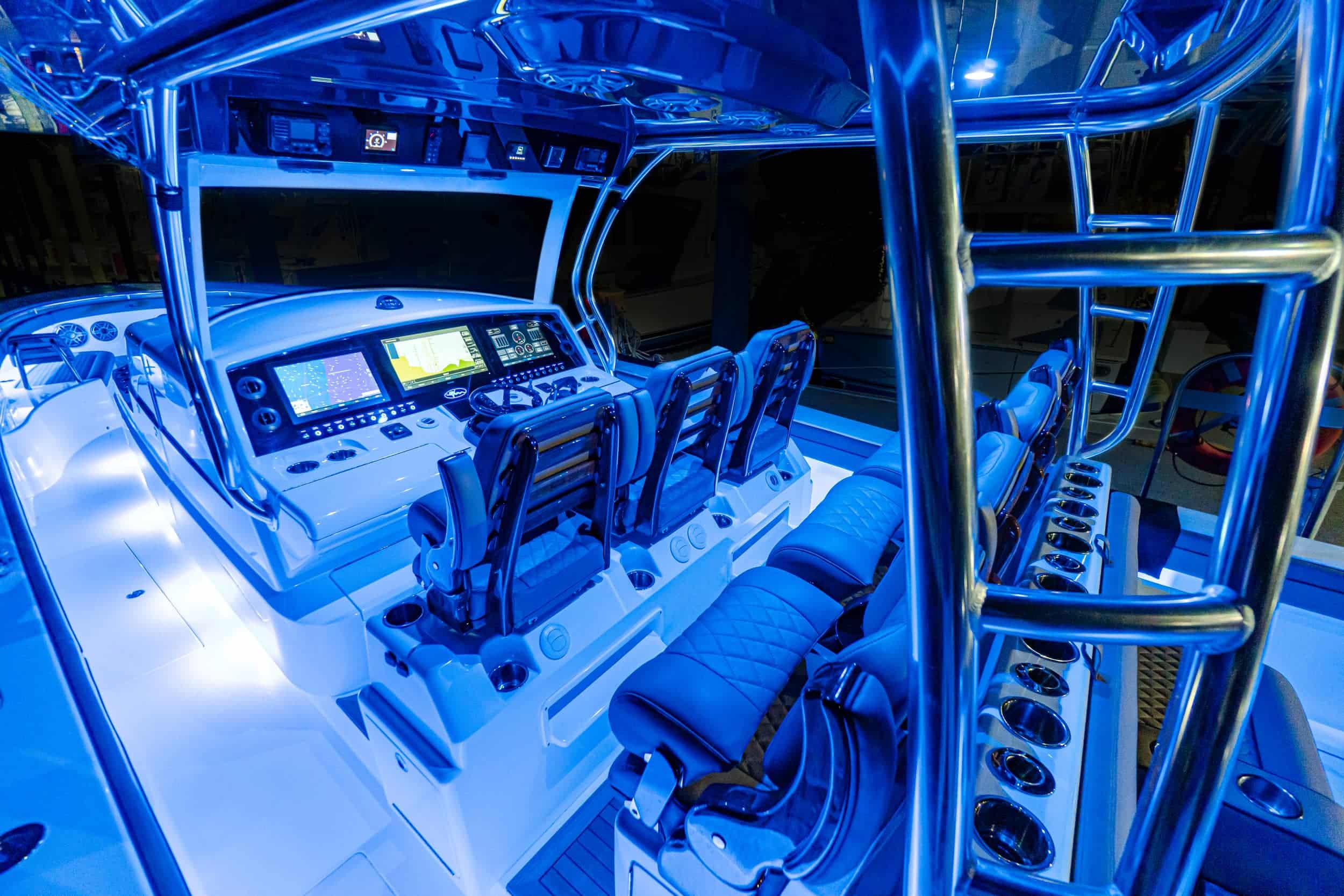

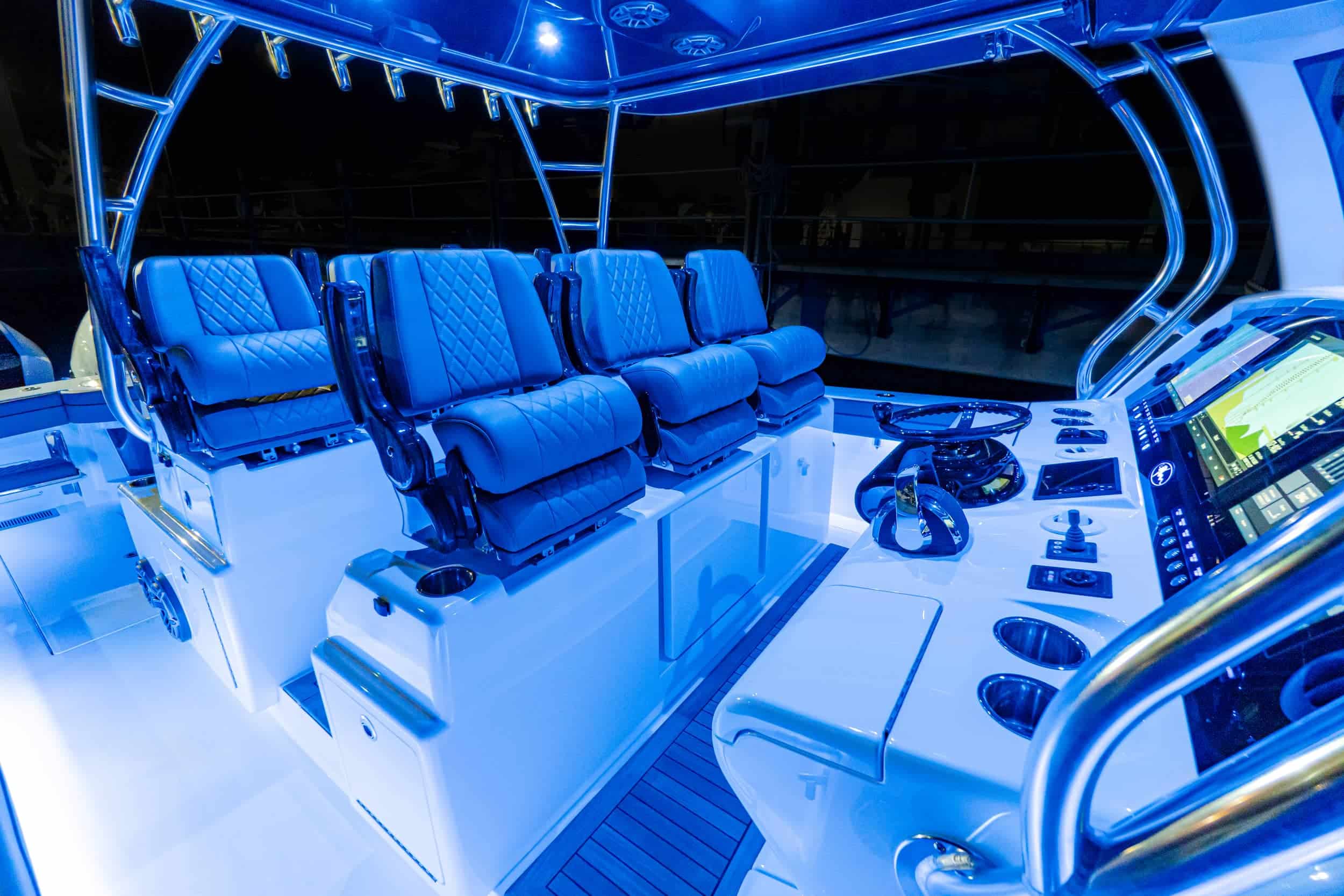

• Release Marine teak helm chairs, (3), 19” w/6 armrests, electric slides and flip-up bolsters (3)
• Release Marine, second row seating (4), 19”, w/5 armrests and flip up bolsters
• Upgraded Release Marine jump seat backrests (2)
• Plano box storage in backrest

UPHOLSTERY

• Costa Marine cover package to include console, fwd benchseats, lounge, helm seating
• Costa Marine, full boat cover (white/grey/toast/black)
• Costa Marine, engine covers (white/grey/toast/black)
• Costa Marine sunshade, Aft w/carbon fiber poles)
• Costa Marine sunshade, AFT w/stainless poles
• Costa Marine sunshade, Fwd w/carbon fiber poles
• Costa Marine sunshade, Fwd w/stainless poles
• Costa Marine, wing panels, Half
• Costa Marine, wing panels, Full
• Diamond/Bentley stitching
• Diamond/Bentley stitching, double
• Upgraded upholstery for seating and coaming with optional colours

ELECTRONIC PACKAGES

• Garmin package, factory installed
• Simrad package, factory installed
• Upgraded 2 kW transducer for factory installed – Garmin/Simrad package
• Upgraded 3kW transducer for factory installed – Garmin/Simrad package
• Entertainment package
• Entertainment package, custom
• Navigation package, custom (see AME order for details)
