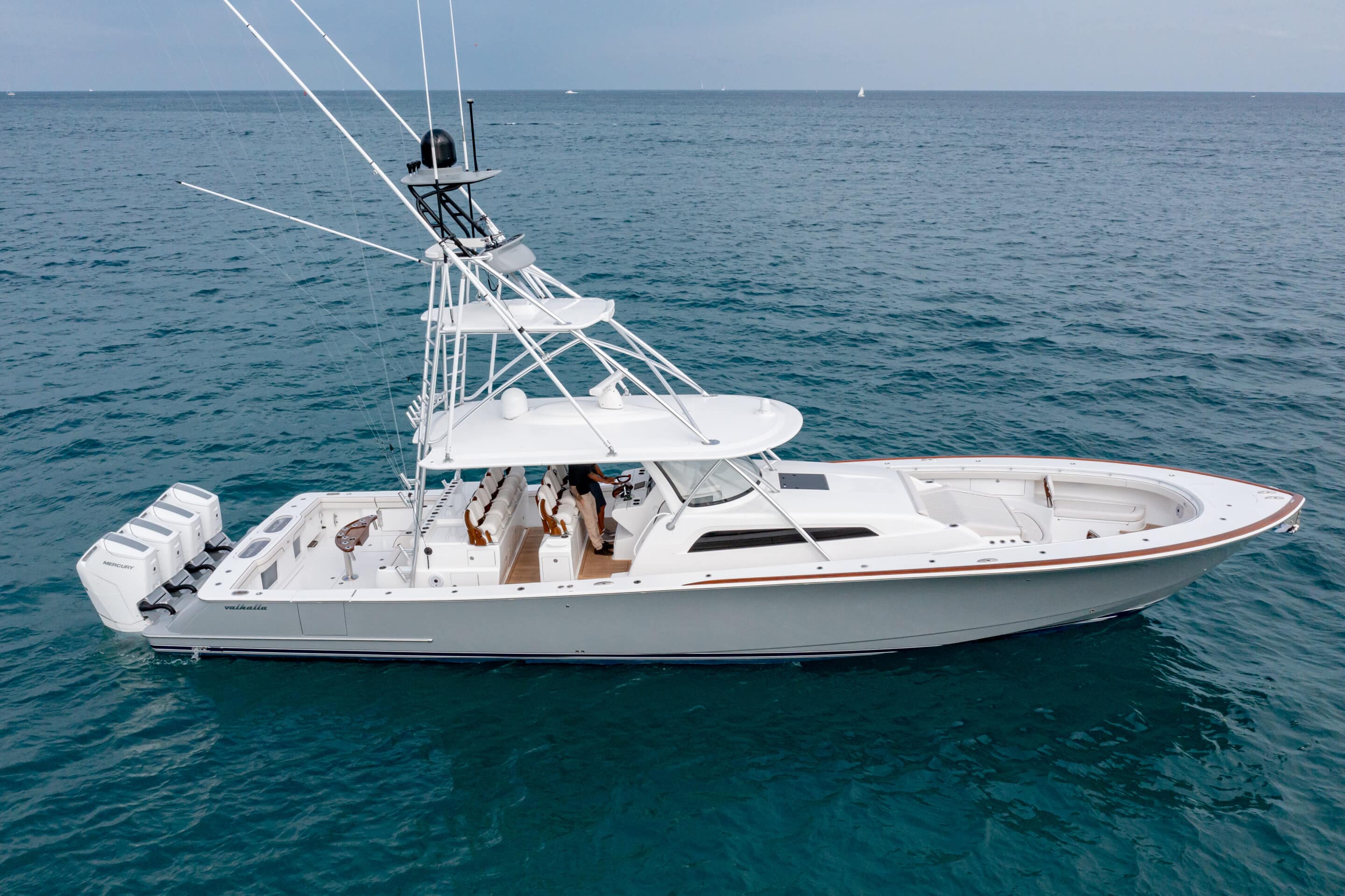

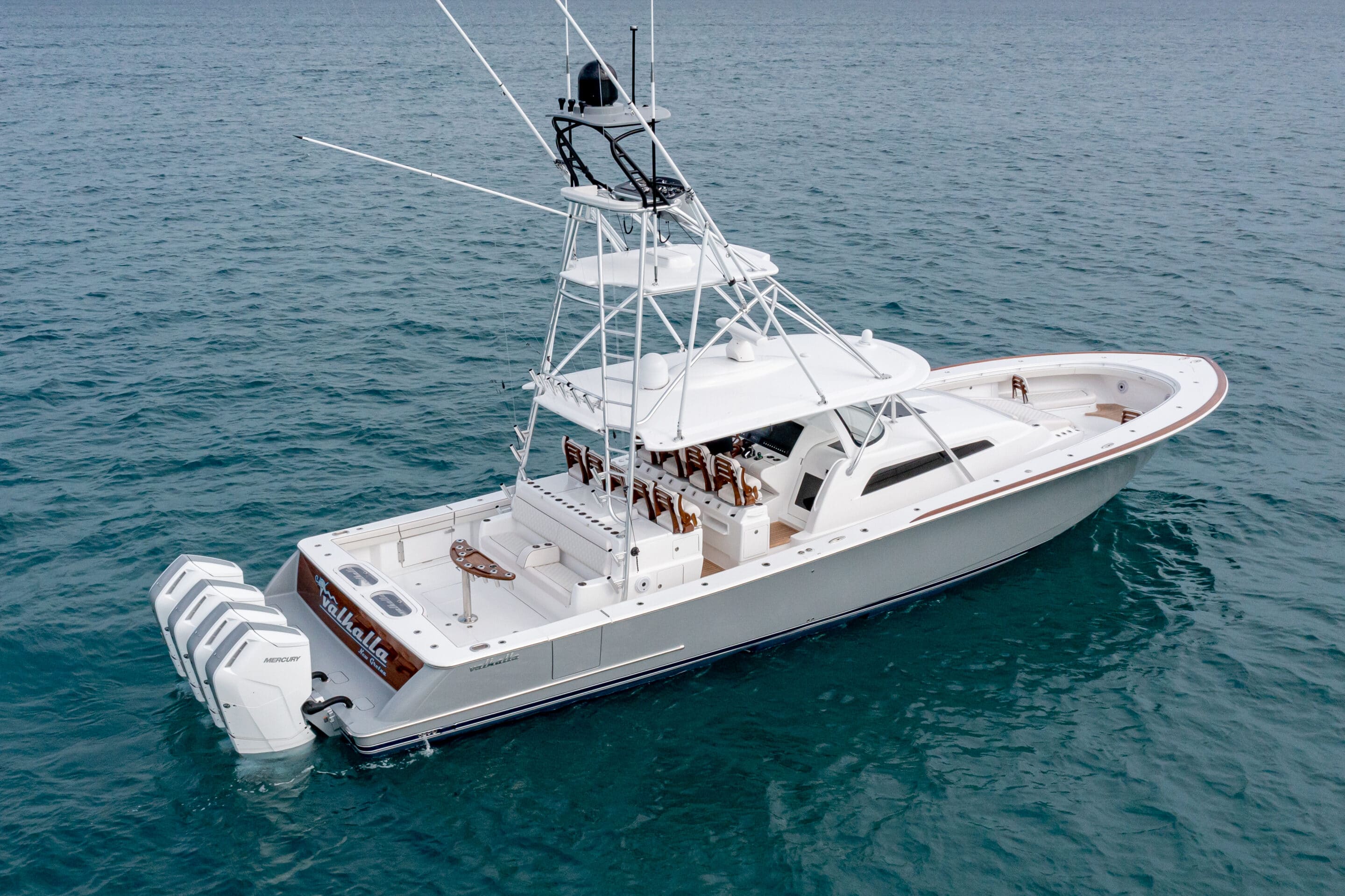

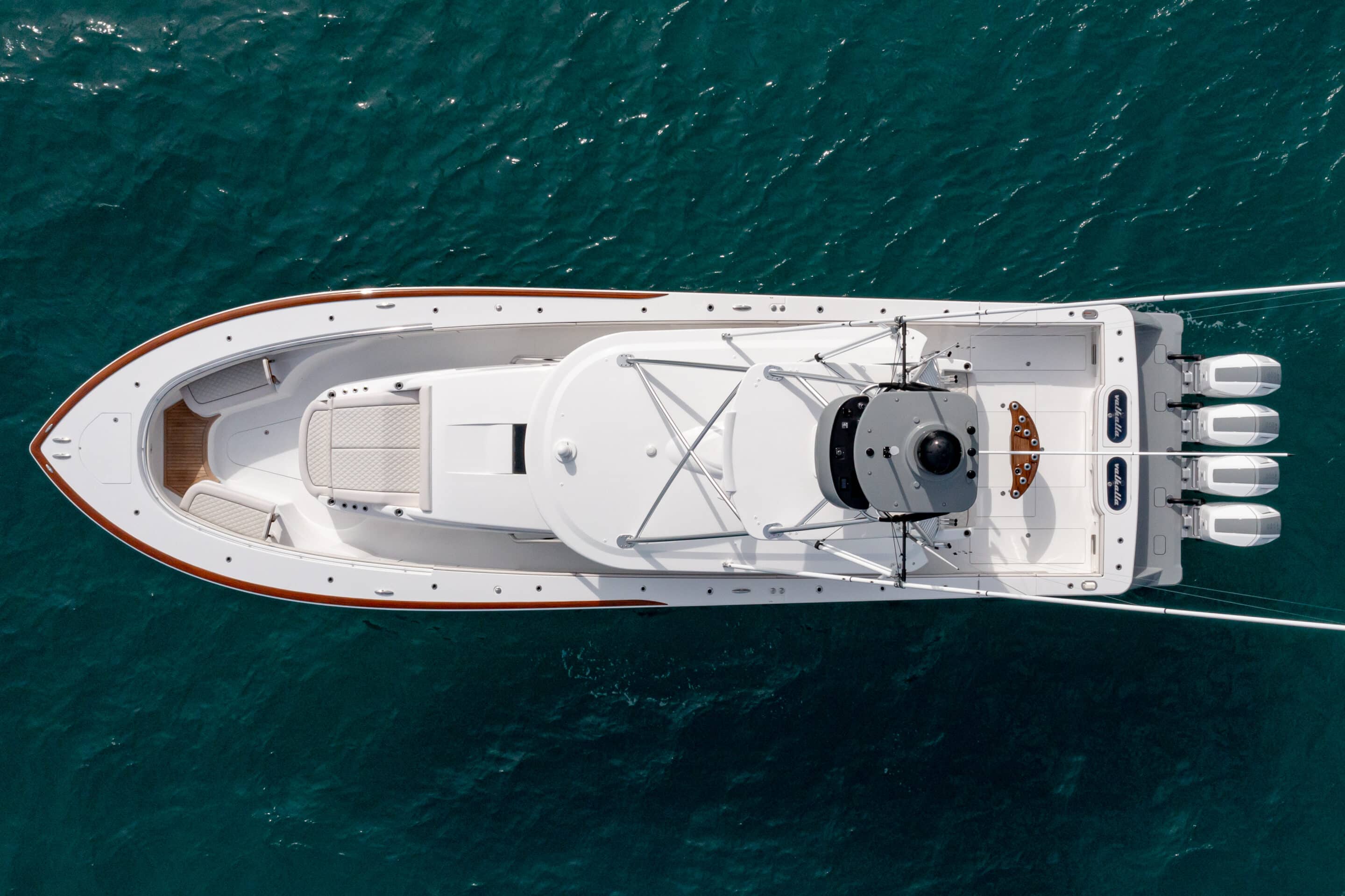

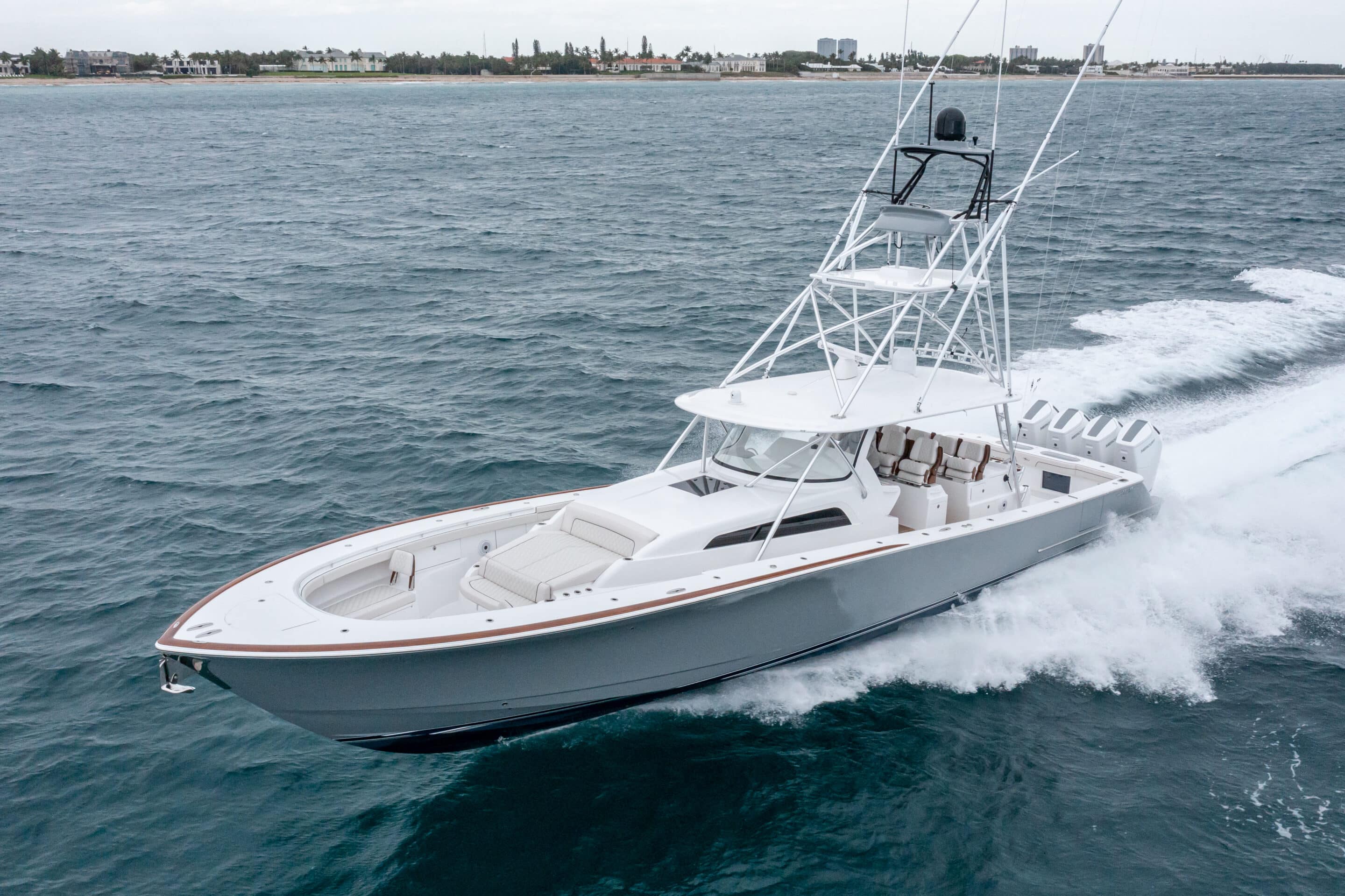

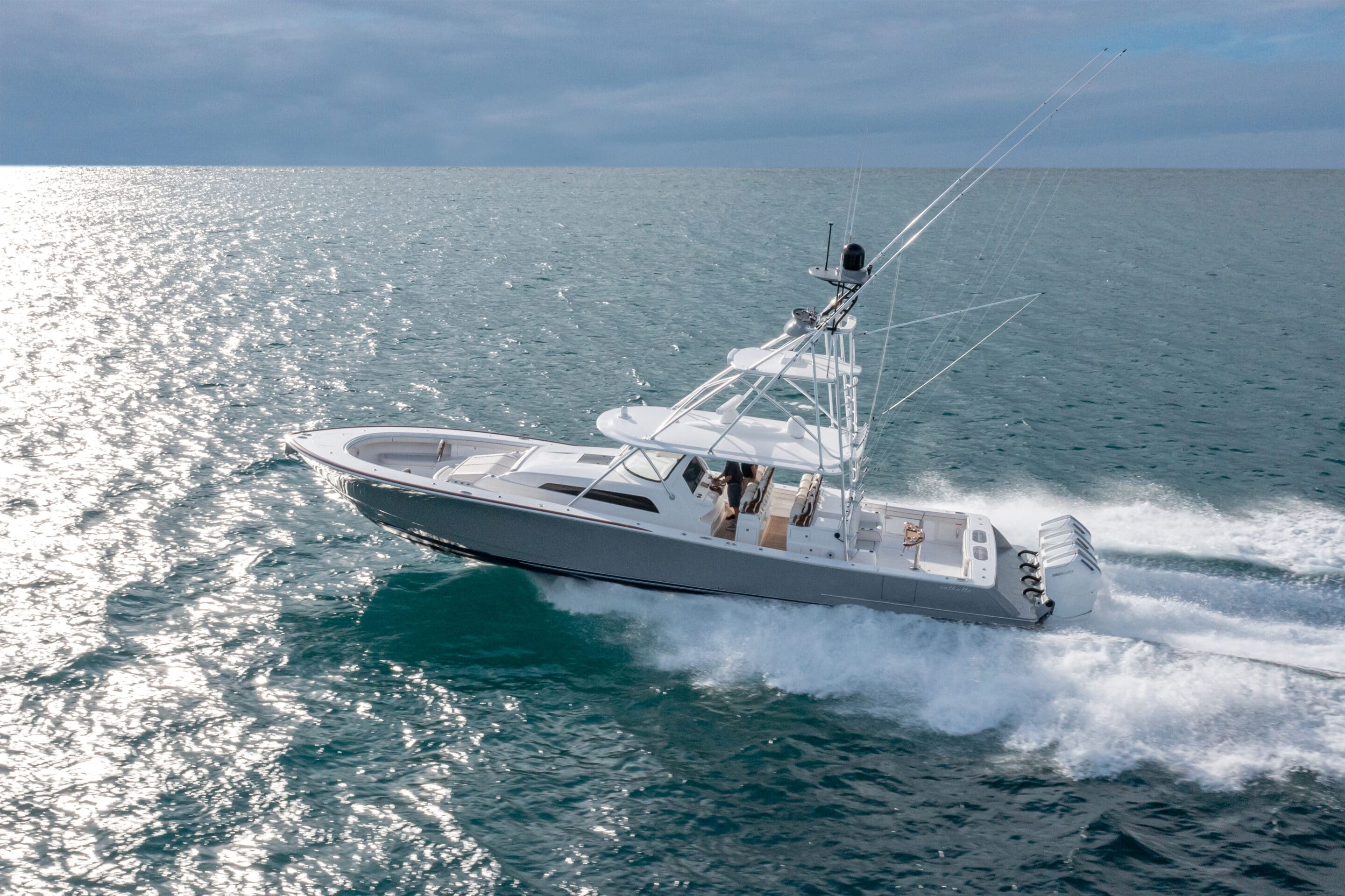

VALHALLA V-55

CONSTRUCTION

• Awlgrip underside of deck coaming for improved finish
• Blister resistant modified vinylester resin in entire boat
• Forward anchor locker with built in anchor tube and shelf, painted Awlgrip finish
• Fresh water tank, polyethylene
• Fuel tanks (5), for main engines, 3/16” 5052 H32 aluminium coal tar epoxy finish
• Fuel tank (1), for diesel generator, 3/16” 5052 H32 aluminium snow white finish
• High performance isophthalic gelcoat NPG superior gloss flexibility and outstanding weathering characteristics
• Holding tank, polyethylene
• Hull infused Hybrid E-Glass/carbon fibre fabrics with closed cell PVC foam core to optimise strength, stiffness and minimise weight
• Hull gelcoat Snow White
• Lower guard rail to match hull colour, painted with stainless steel insert
• Moulded fiberglass cockpit deck with integrated gutter system
• Nonskid for traction and durability
• Patented Michael Peters Stepped V Ventilated Tunnel running surface designed to reduce drag while increasing speed, stability and efficiency
• Port inward-opening dive door
• Rub rail, painted white with stainless steel insert
• Stainless steel side through hulls
• Stringers, infused fiberglass with integrated wire chases
• 316 stainless steel hardware throughout

MECHANICAL

• Aft bilge pumps (2), connected to float switches for automatic operation and manual operation through on-dash Bocatech switches
• Air conditioning, helm and seating
• Auto sump box located in console mechanical space
• D/C pressurised freshwater system with freshwater fill on console
• Deck pump-out fitting for holding tank
• Diesel Generator 15kW
• Dockside freshwater connection
• Dual Hooker Sea Chest with high and low speed pickups to supply live wells and other seawater pumps
• Electrically operated fuel management system controlled from helm
• Electric horns, Schmitt/Ongaro bulkhead style, mounted forward under coaming
• Electric power assist steering
• Electric toilet with overboard and holding tank discharge
• High water alarm
• Horns, bulkhead style, mounted forward
• Macerator pump for holding tank overhead discharge
• Mid-bilge pump with float switches for automatic operation and manual operation through on-dash Bocatech switches
• PEX, freshwater system plumbing
• Single Hooker 4500 variable speed pump with control at helm
• Water heater quick recovery, electric (11 gal)
• Zip-Wake trim control system

ELECTRICAL

• Anchor light/navigation lights
• Battery chargers, (2) 60 amp
• Batteries, Odyssey Group 31. One (1) per engine and (2) additional house batteries
• Battery distribution panel with activated battery switches and voltage sensitive parallels
• Battery voltage monitor
• Bocatech 12V switching with backlit switch labelling
• Glendinning cable reel (CRM-50), (1) with 3 wire grounded cord, (1) additional 50 amp 220V inlet with 50’ cord
• Colour-coded, labelled and numbered wiring system
• LED interior console lighting and spectrum under gunwale and overhead lights with POCO lighting control
• 2kW transducer pocket

CONSOLE

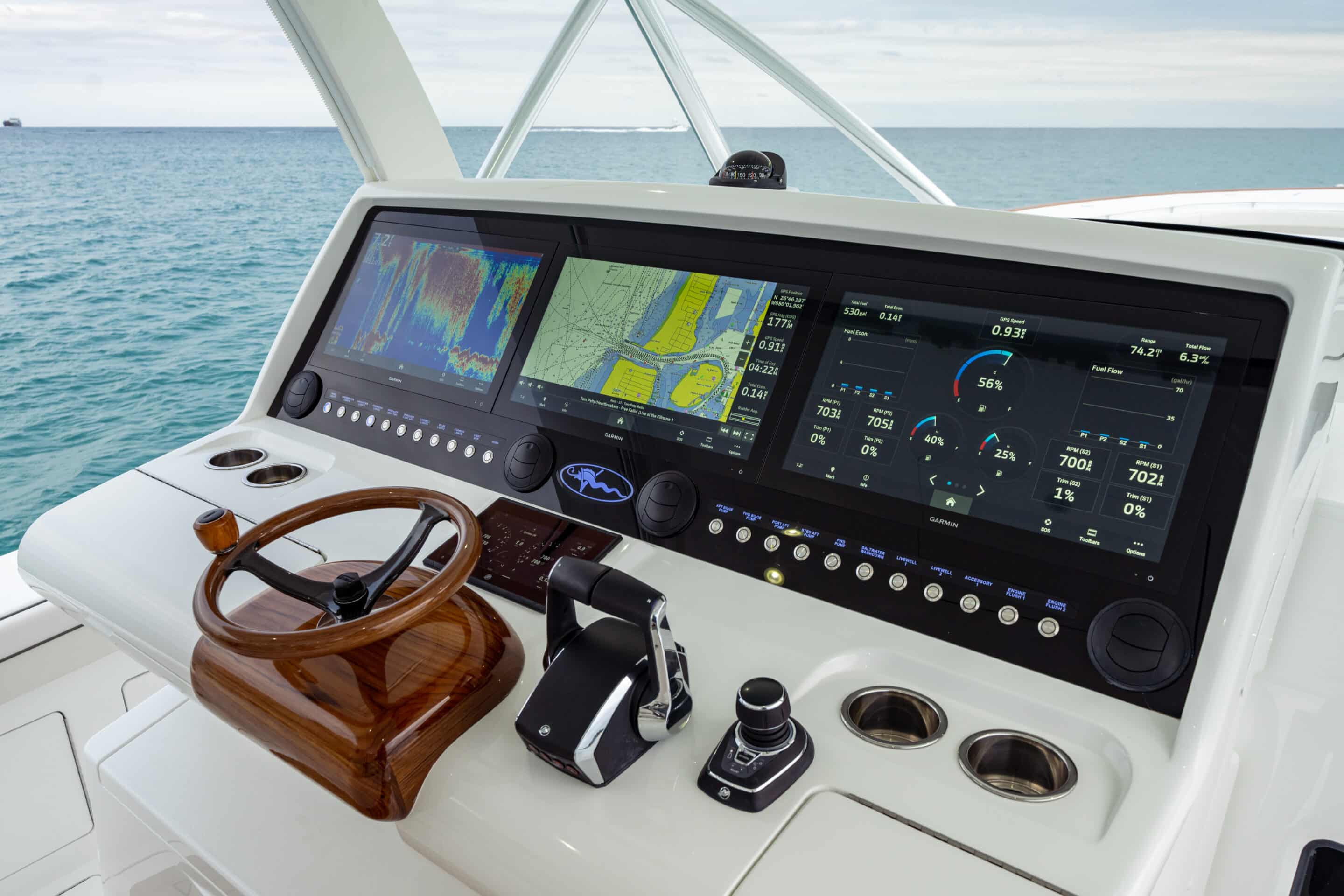

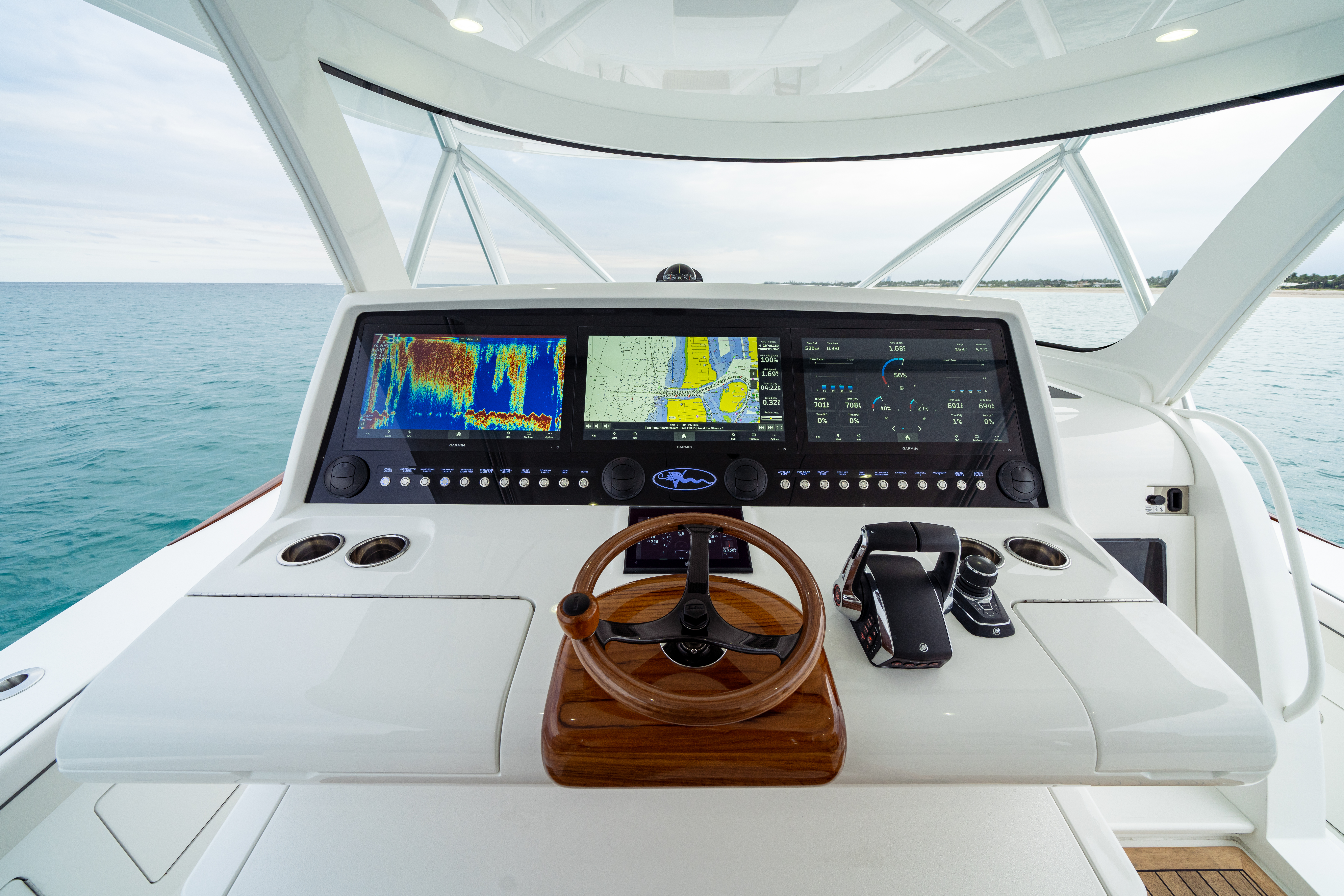

• Black acrylic helm panel for flush mount electronics installation
• Compass, flush mounted at helm, lighted
• Fiberglass helm pod
• Forward lounge seating integrated into console with (2) Gemlux cup/rod holders
• Flush mounted cup holders on helm (4)
• USB charging outlets and 12V plug inside cabin and at helm
• Locking entry door to lower accommodations located at helm
• Edson stainless steering wheel with power knob
• Recessed fiberglass footrest with storage
• Upholstered bench seat with tackle storage and (8) Gemlux rod holders with (7) cup holders installed on bench seat backrest

 CONSOLE/INTERIOR

• 110/12V USB outlets
• Air conditioning, direct expansion, single zone
• Dimmers, LED interior lighting
• Dinette seating with drop-down pedestal to convert into queen size bed
• Electric 2 burner recessed stove
• Entrance door thru head to mechanical room location for access to water heater, generator 9 kW, batteries and to backside of helm and electronics equipment
• Flooring, synthetic teak
• Galley countertop, polished Corian, Wilsonart Whisper White stainless steel sink with brushed nickel and chrome faucet
• Gelcoat, snow white
• Head compartment enclosed with molded-in vanity with freshwater sink and faucet, toilet, exhaust fan, and shower head fixture
• Mattress, handcraft, (Aft bunk), 5” Ultra Poly Foam; MSR (fwd bunk), Slumber 6 1/2” Low coil with Velcro
• Molded access stairs with teak treads for helm area
• Microwave located in upper galley cabinet
• Overhead Bomar escape hatch, opening 24” with sky screen
• Port lights, port and starboard sides of consoles, upper/lower, non- opening
• ProCurve solid curved glass enclosure for helm
• Powder-coated pedestal with teak ladder treads for easy access
• Refrigerator/freezer
• Shades
• Trash bin
• TV, 32” flat screen
• Walnut, natural wood, high-gloss

SEATING MODULE / DUAL ROW

• Access doors/hatches to storage areas
• Access to drink box, sink and storage behind second row, forward facing upholstered bench seat

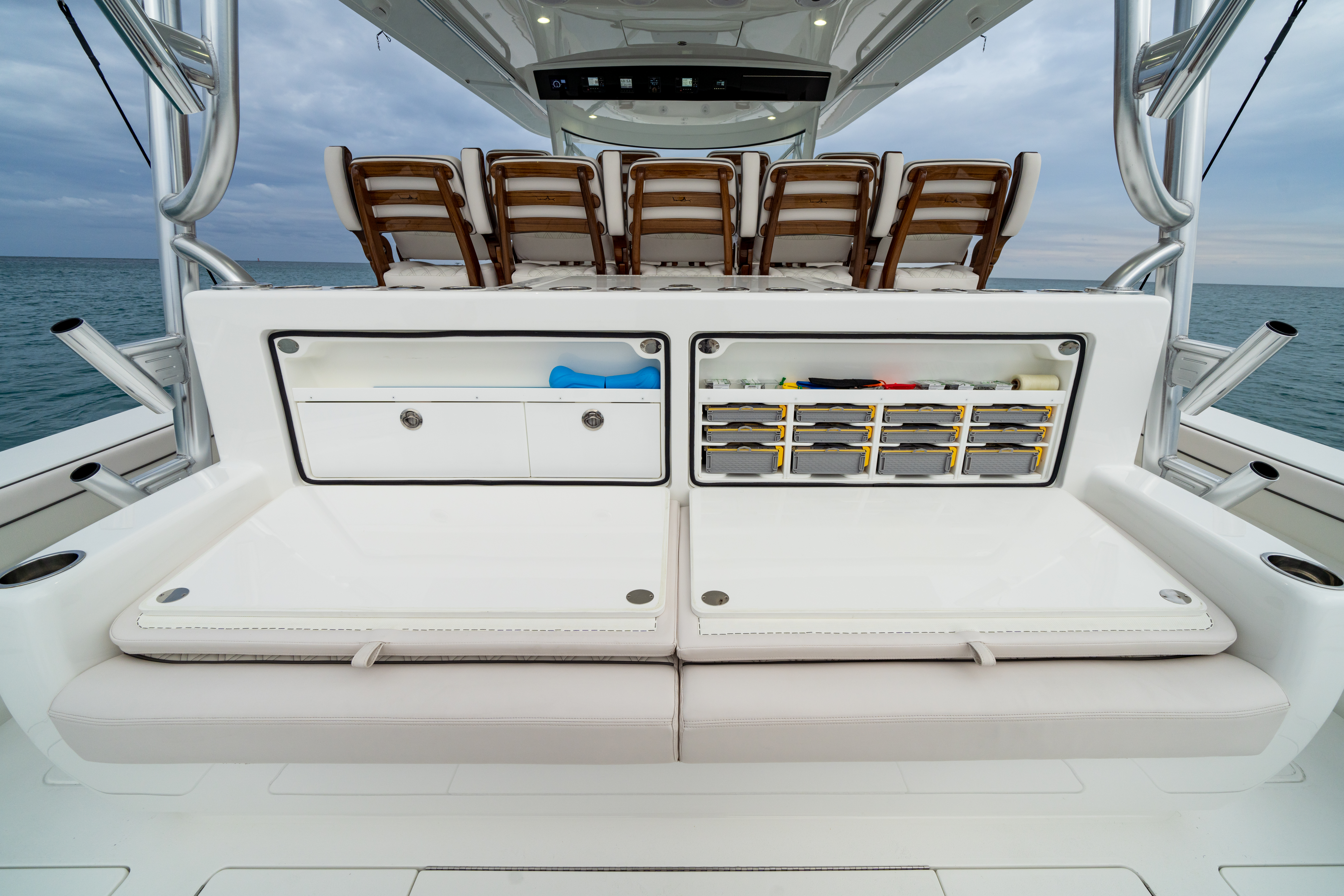

• Aft-facing mezzanine seating with cushions and molded-in armrests
• Tackle storage with Plano boxes

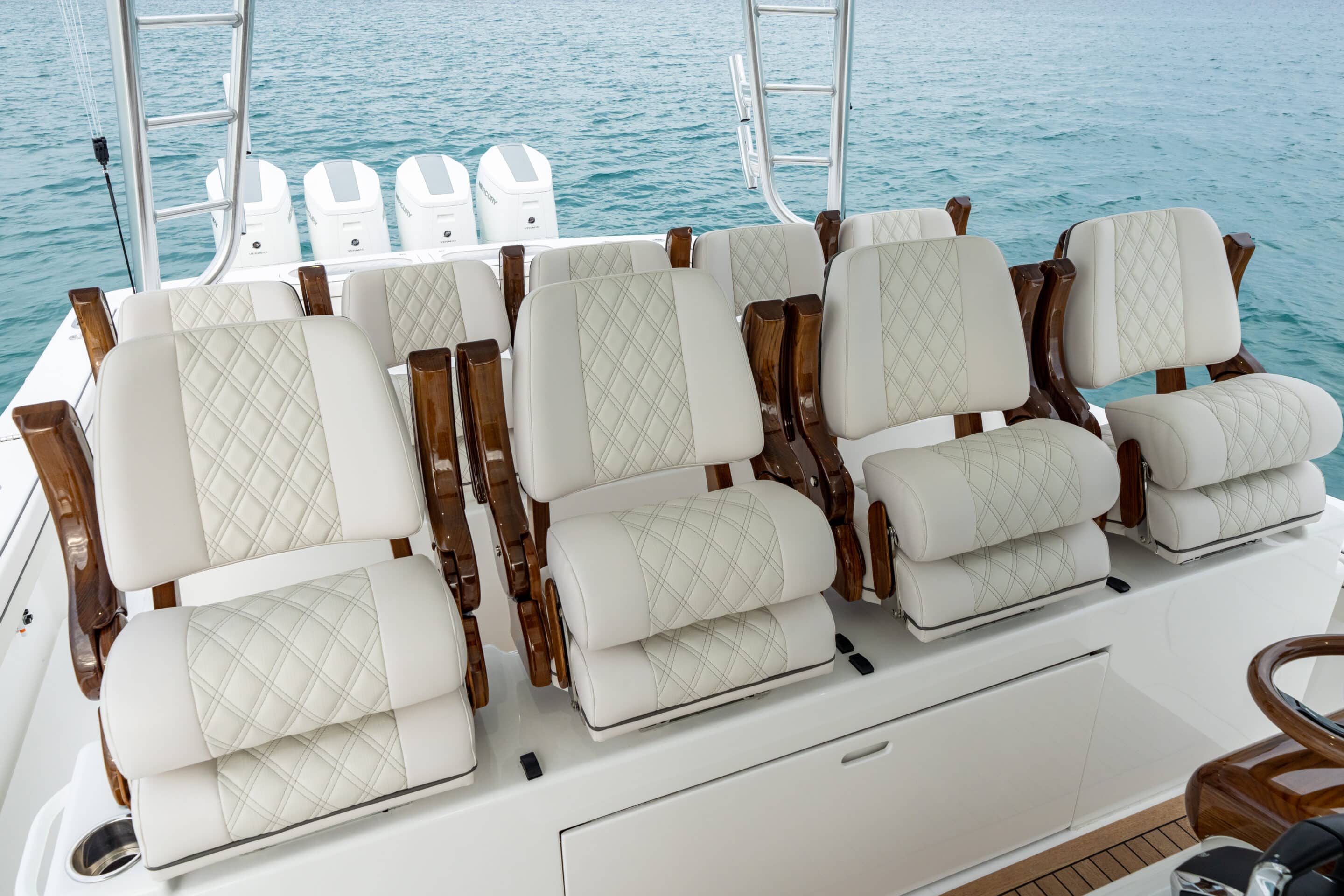

• Release Marine teak helm chairs 19”, (4) w/8 armrests, electric slides and flip-up bolsters
• Second row U-shaped seating module with table

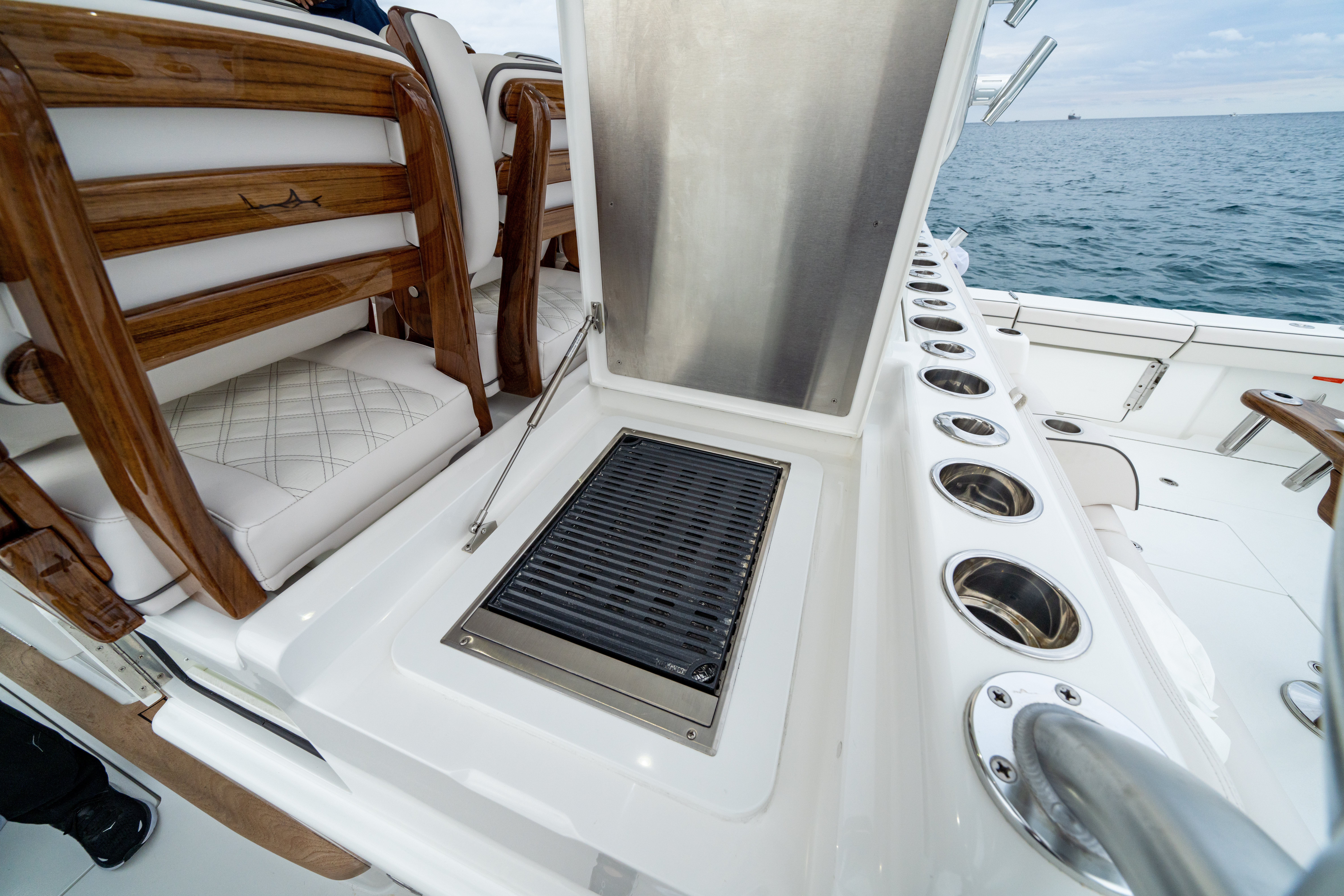

• Electric Grill included with standard and optional second row seating

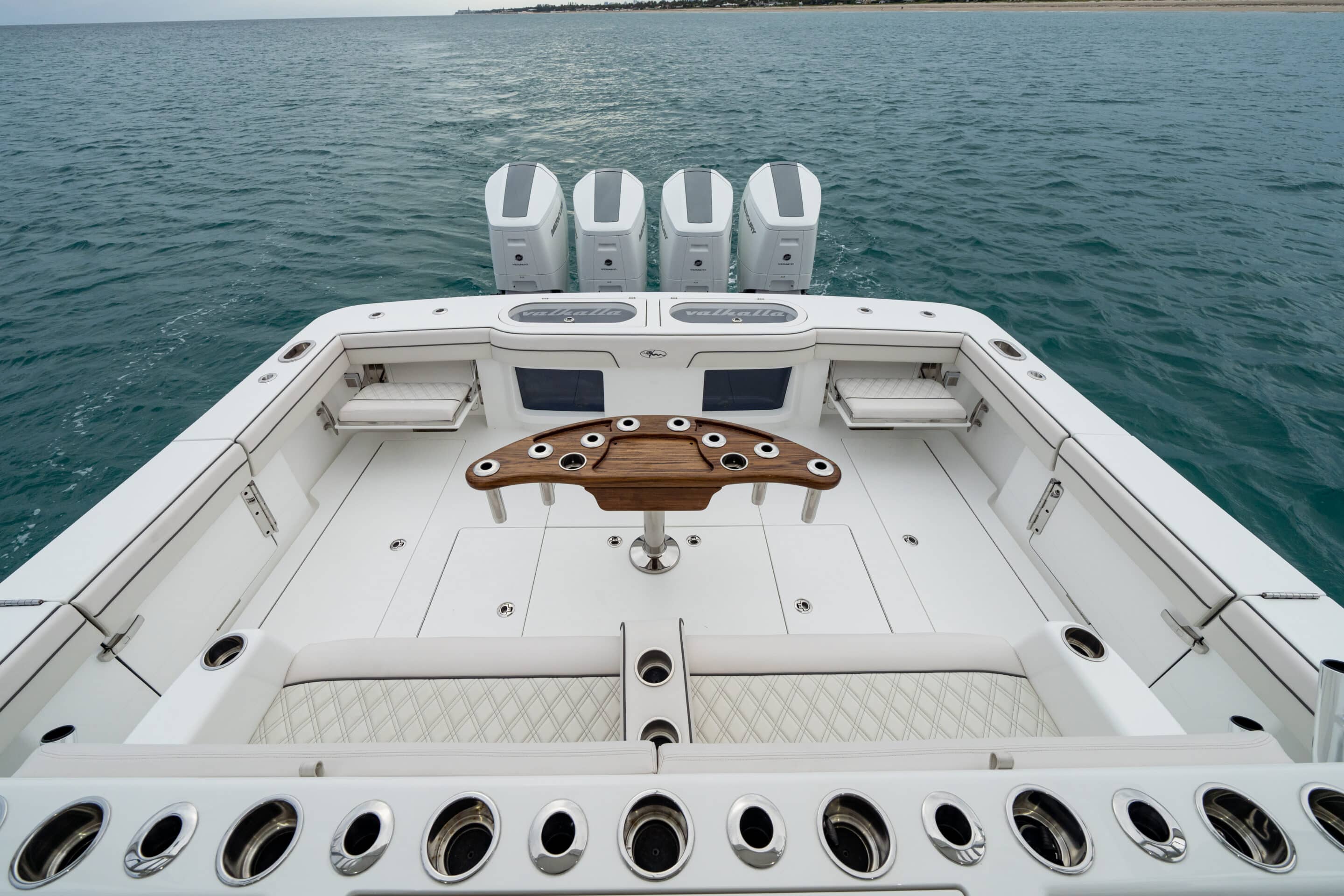

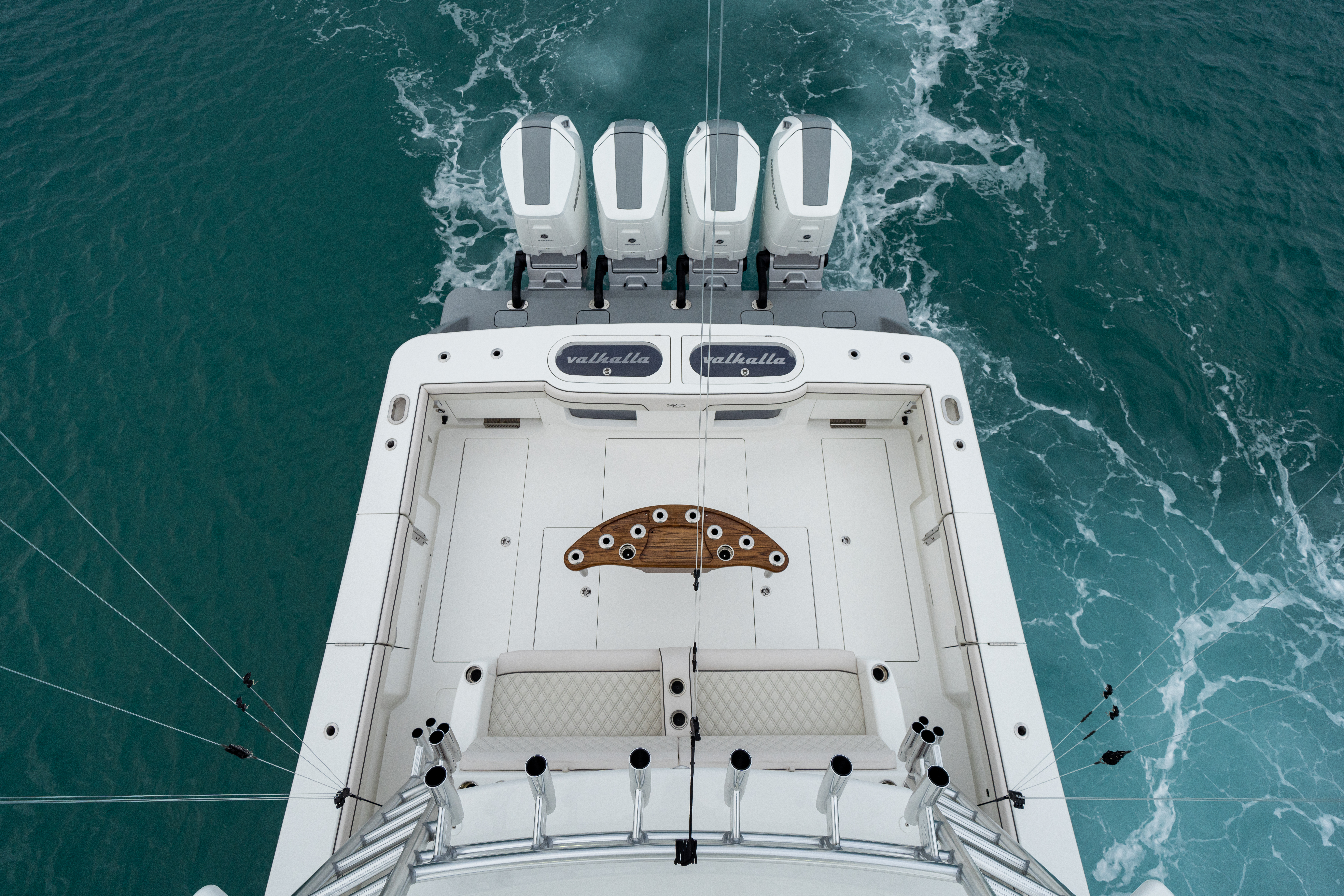

COCKPIT

• Aft fishboxes port, starboard plumbed to Whale Gulper pumps. Forward fishbox and port/starboard deck boxes plumbed to Whale Gulper pumps
• Bow rail, polished aluminum, recessed and low profile
• Durable white outdoor upholstery for console lounge, bench seating, coaming bolsters and cockpit cooler seating

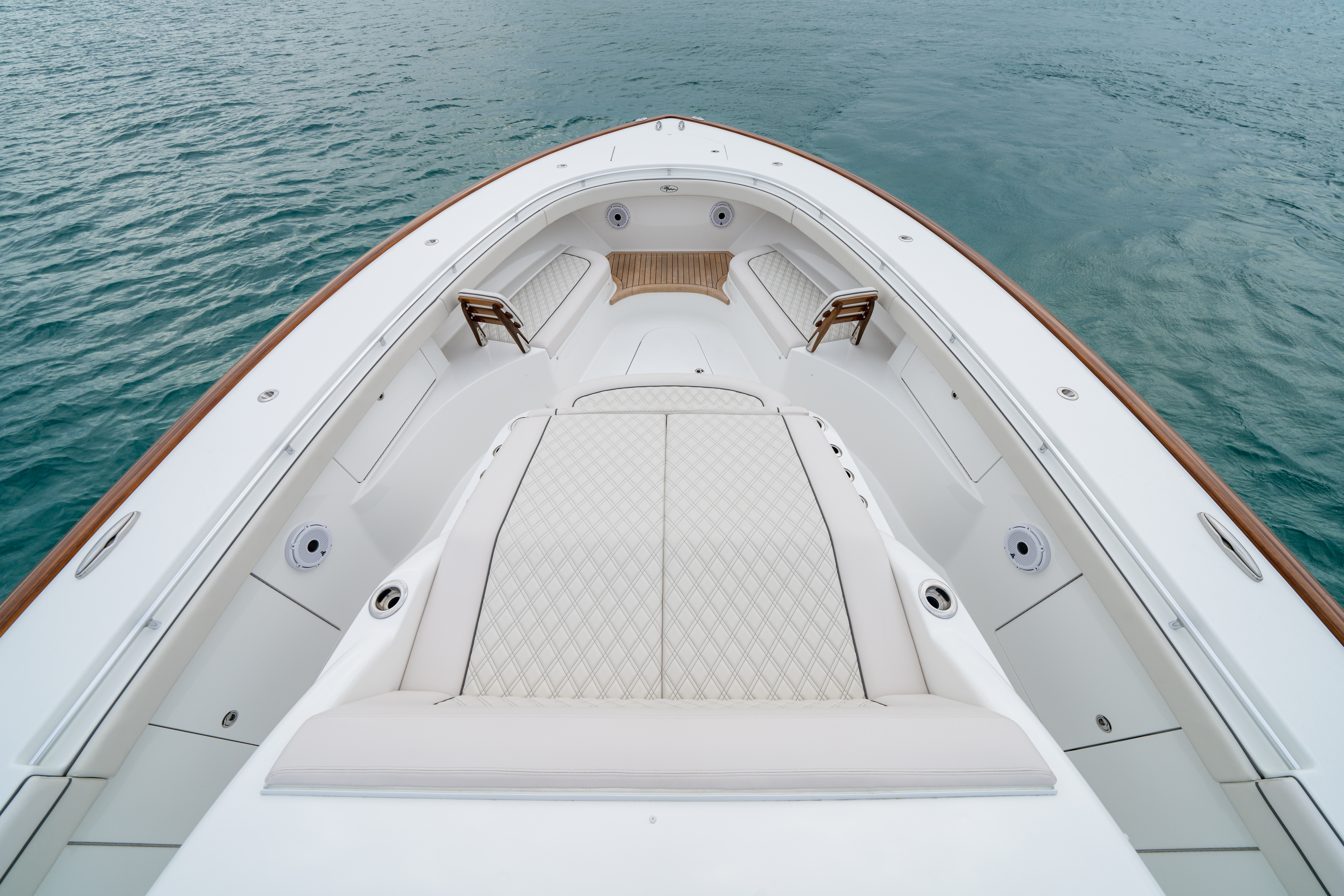

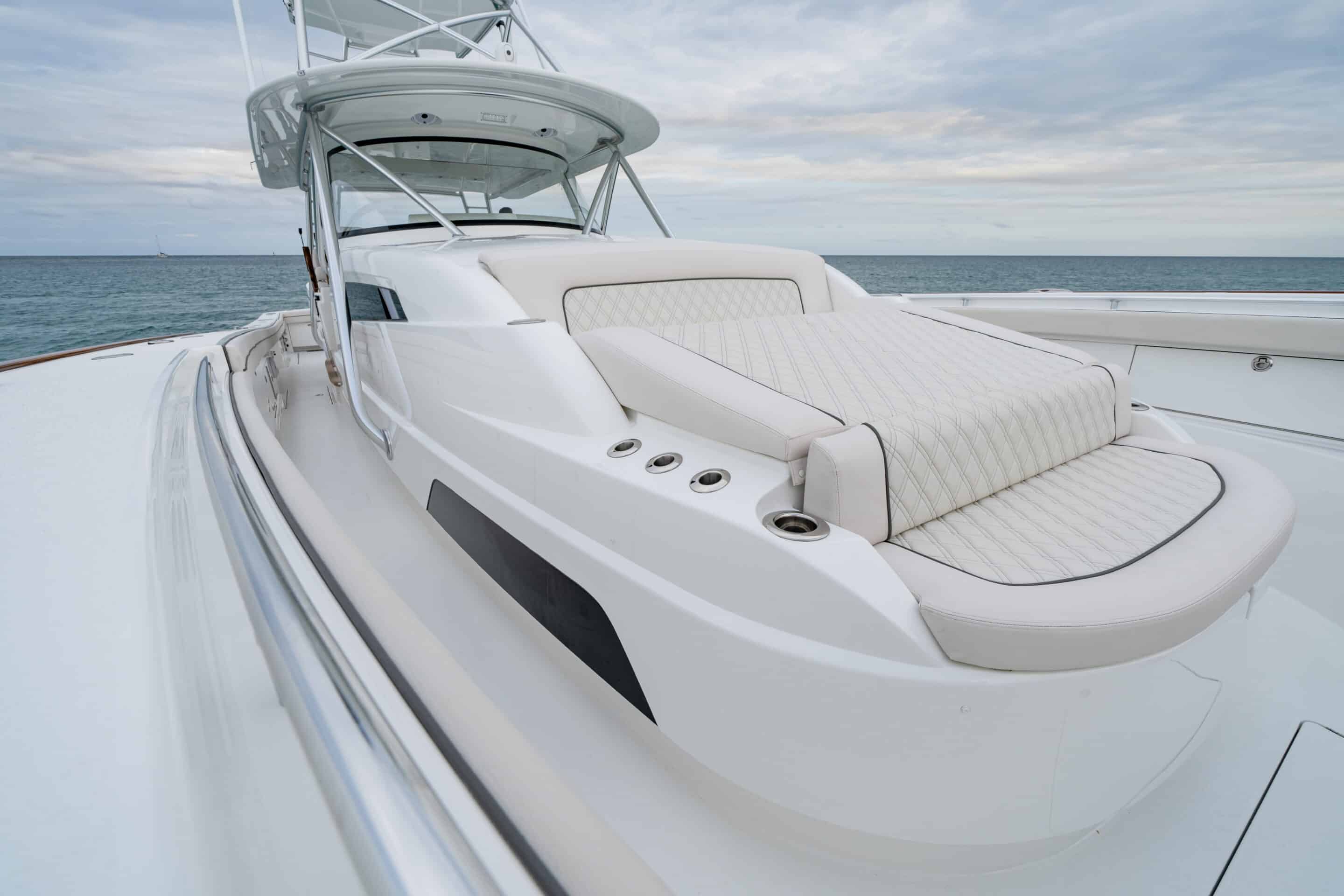

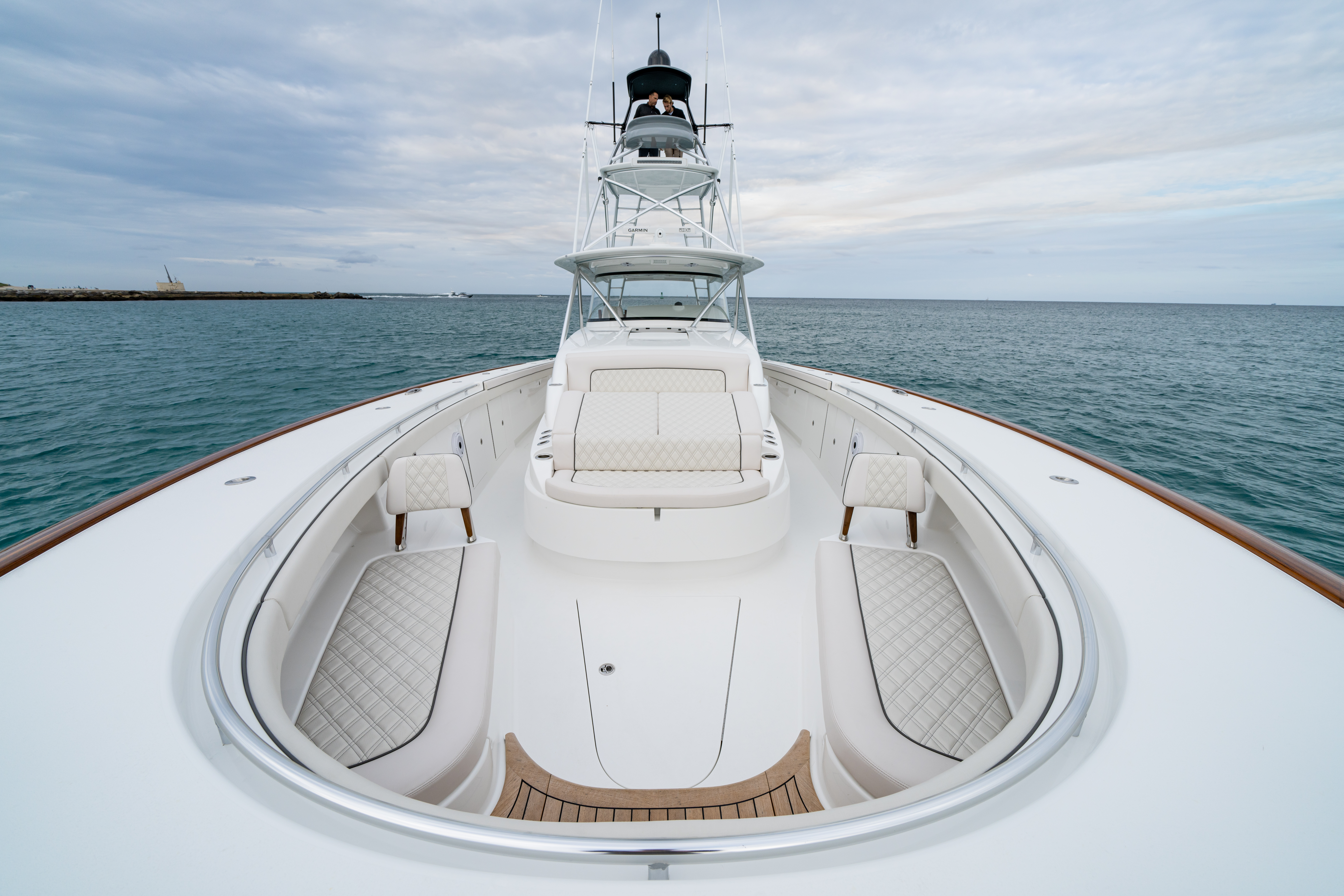

• Forward bench seating, molded-in with (2) backrests
• Fiberglass under gunwale forward side lockers
• Freshwater wash down with hose bib located under gunwale and anchor locker
• Heavy duty gasketing for all hatches with installation detail molded in for tight seal
• Port and starboard bench seating, molded-in with (2) backrests
• Port and starboard side dive door with recessed bracket for dive ladder
• Powder-coated aluminum coiled hose holder mounted under gunnel
• Refrigerate mezzanine bench seat box
• Rod holders, cockpit coaming, (6) stainless Gemlux
• Self-bailing cockpit with large cockpit scuppers
• Stainless 10” pop-up spring and forward cleats. Stainless hawse pipe and fixed cleat aft in cockpit.
• Stainless steel gas pistons on deck hatches
• Side storage lockers port and starboard

DELIVERY

• Stainless steel dive ladder
• Transom mounted Garelick retractable

ENGINE OPTIONS

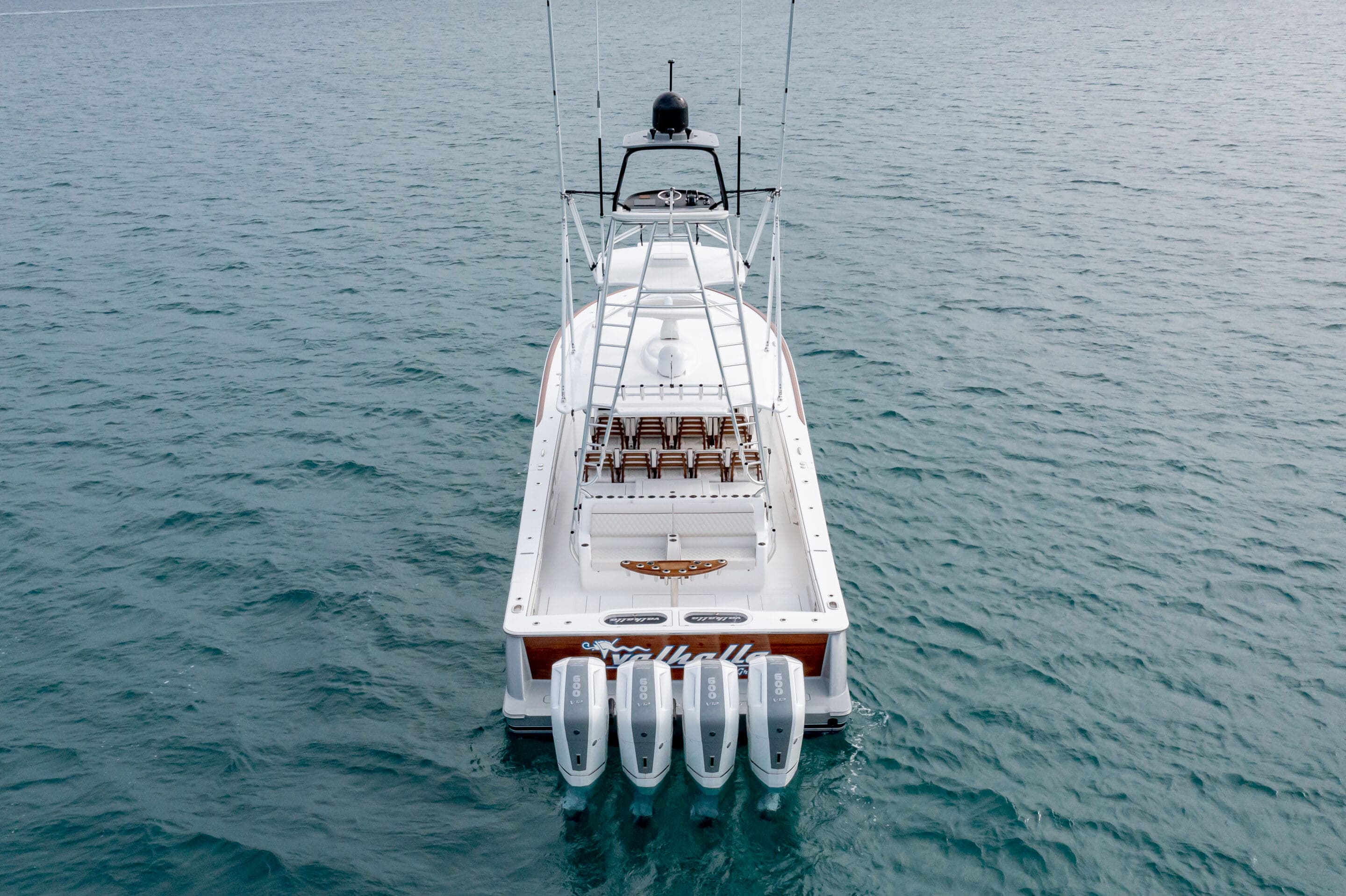

• Quad Mercury V12 600 cold fusion white w/Mercury Joystick
• Quint Mercury V12 600 cold fusion white w/Mercury Joystick

CUSTOM TOP OPTIONS

• Fiberglass hardtop w/polished aluminium supports aft/fwd facing moulded-in Lumitec mirage spreader lights, (4) Lumitec Razor light bars, (6) rod rocket launcher, moulded-in overhead electronics pod, moulded-in radar pod & overhead lights (6) (white/black)
• Palm Beach Towers fabricated gap tower
• Outrigger bases, Gemlux
• Outrigger poles, Gemlux, carbon fibre, 22’ (telescoping)
• Outrigger poles, Gemlux, carbon fibre, 27’ (telescoping)
• Outrigger poles, Gemlux, internally rigged, carbon fibre 22’ (fixed)
• Outrigger poles, Gemlux, internally rigged, carbon fibre, 27’ (fixed)
• Underside hardtop to match hull colour
• Powder coating package (white/black/grey)
• Electric teaser reel box with mounting bracket, recessed opening and removable door in hardtop
• Miya Epoch US-6, 12V electric teaser reels
• Pancake style teaser reels, w/moulded-in recess into hardtop

FISHING ACCESSORIES

• Additional live well pump, Hooker electric 4500 w/ variable speed controller at helm (each)
• Additional in-deck live well (N/A with Seakeeper)
• Above deck pressurised live well forward inside fwd section of lounge seating w/clear lid
• On deck live well inlet and discharge fittings (each)
• Electric reel outlet, 12V (each)
• Rod holders, swivel Gemlux (each)
• Rod holders, additional Gemlux (each) (specify console, lounge, coaming)
• Rod holders, mounted under gunwale
• Cup/rod holders (each)
• Clear transom live well lids (2)
• Single transom live well (120 gal) with dual fiberglass lids
• Window and light for dual transom live wells
• Window and light for single transom live well
• Light only, for transom live well(s)
• Light only, for lounge live well

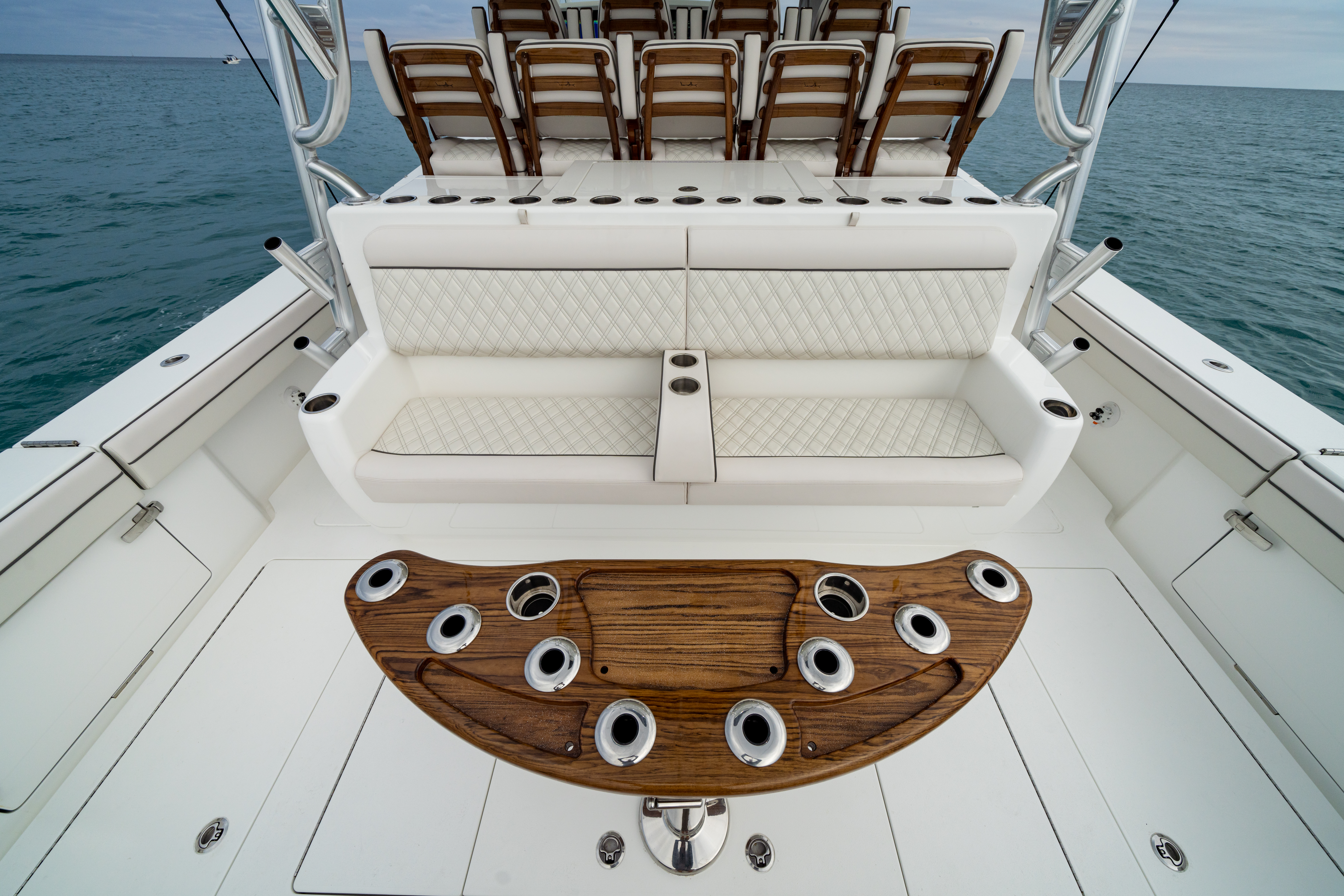

• Valhalla fillet table

GELCOAT AND PAINT

• Boot stripe, paint
• Bottom paint
• Hull colour, gelcoat, light colour (KG, SB, BB)
• Hull colour, gelcoat, two-tone at Chine, light colour
• Hull colour, gelcoat, dark colour (HG, NG, FB, SS, SG)
• Hull colour, gelcoat, two-tone at Chine, dark colour
• Hull colour, paint
• Lounge Live well colour Aristo Blue
• Topside gelcoat, all topsides including console, liner and deck boxes (specify colour)
• Custom outboard paint package

CONSOLE

• Edson steering wheel with power knob, carbon fibre
• Edson steering wheel with power knob, black finish
• Edson steering wheel, teak

REFRIGERATION

Standard second row U-shaped lounge seating module

• Port forward drink box in lounge
• Mezzanine bench seat
• Port aft fishbox
• Standard aft fishbox (not available with Ice Chipper
• Ice Chipper (located in starboard aft fishbox)

Optional second row Release Marine seating module

• Port upper drink box (not available with Grill)
• Port mezzanine bench seat
• Starboard mezzanine bench seat (included when Grill is selected)
• Port aft fishbox
• Standard aft fishbox (not available with Ice Chipper)
• Ice Chipper (located in starboard aft fishbox)

SEATING

• Integrated GG Schmitt transom seats
• Release Marine armrests for standard bench seat
• Release Marine second row seating 19”, (4) w/8 armrests, and flip up bolsters
• Release Marine second row seating 19”, (5) w/6 armrests and flip-up bolsters
• Upgraded Release Marine jump seat backrests (2)

UPHOLSTERY

• Costa Marine cover package to include console, fwd bench seats, lounge, helm seating
• Costa Marine, engine covers
• Costa Marine sunshade, Aft w/carbon fiber poles
• Costa Marine sunshade, Aft w/stainless poles
• Costa Marine sunshade, Fwd w/carbon fiber poles
• Costa Marine sunshade, Fwd w/stainless poles
• Costa Marine, wing panels, full
• Costa Marine, wing panels, half
• Diamond/Bentley stitching
• Diamond/Bentley stitching, double
• Upgraded upholstery for seating and coaming with optional colour

ENHANCEMENTS AND CONVENIENCE

• Anchor chute w/SS plow anchor plus windlass
• Additional pop-up cleats in lieu of standard fixed cleats and hawse pipes
• Additional cup holders (each)
• Arid dry bilge system (3 zones
• Bow table, hi-low
• Faux bow table
• Bow thruster
• Bow towing eye
• Electrosea CLEARLINE
• Engine flush system, Reverso automatic
• Seakeeper, SK 9
• Release Marine teak helm pod
• Faux teak helm pod
• Faux teak toe rail
• Faux teak transom
• Deck box LED lighting to include all deck and coaming boxes
• Dive ladder, additional
• Underwater lights (4)
• Teak deck, for raised helm platform area
• Teak deck, for raised helm platform area and raised fwd step
• Water delivery kit w/out anchor
• Water delivery kit
• *USCG Compliance items including fire extinguishers, flare kit, life jackets with stowage bag, and ring buoy. Fortress anchor with a custom rode, stainless steel chain, 200’ rope, and (1) 25’ coiled washdown hose. Also includes Shurhold boat maintenance kit, first aid kit, 5 gallon bucket, fenders with lines, and 6 dock lines
• Watermaker, 170 GPD

ELECTRONIC PACKAGES

• Garmin package, factory installed
• Simrad package, factory installed
• Upgraded 3kW transducer for factory installed Garmin/Simrad package
• Entertainment package
• Entertainment package, custom
• AME to install Nautic Alert V Tracker Satellite tracking system (req. for all Florida boats)
• Install dam and provide glasswork

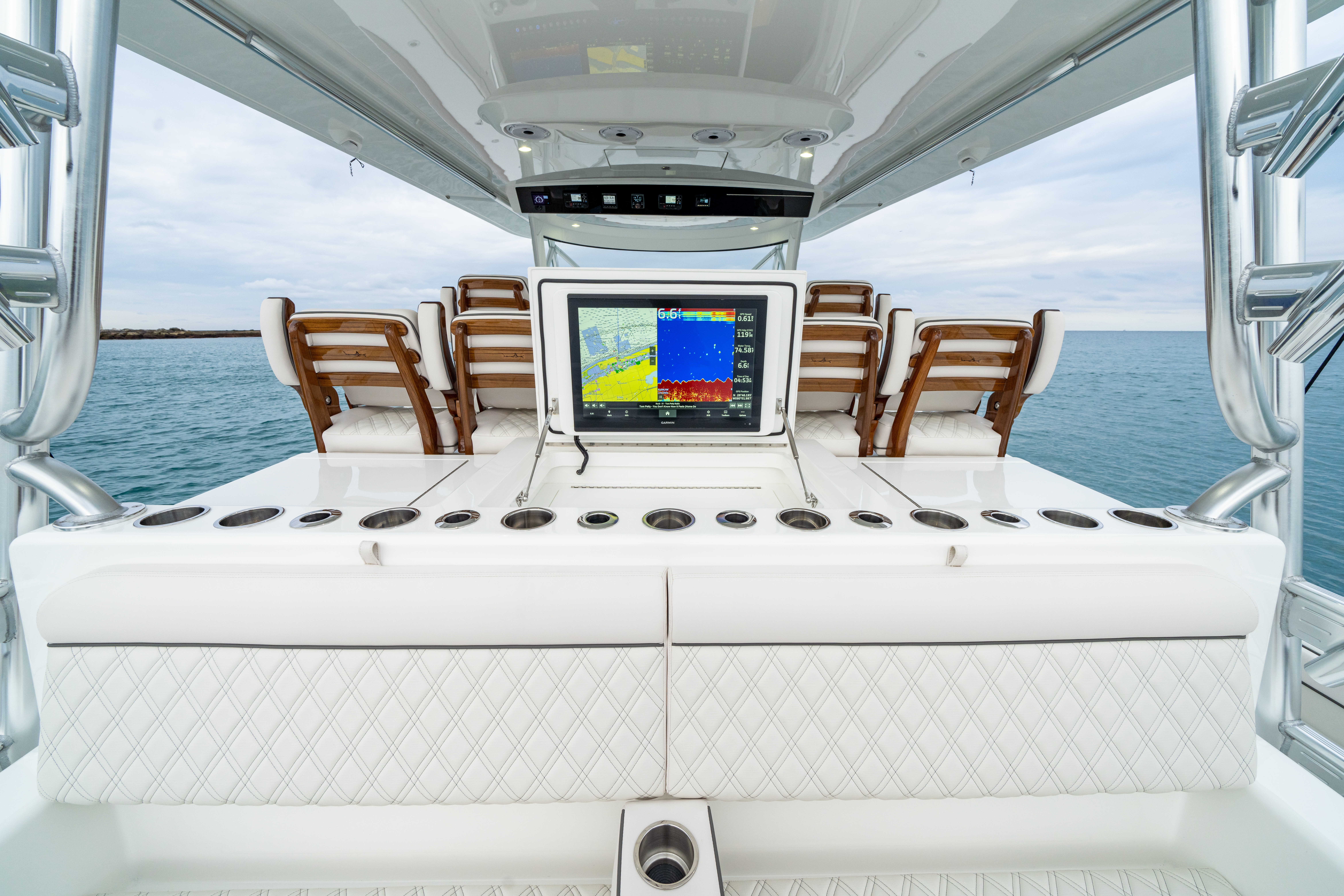

• Cockpit facing, 24” MFD (multi-function display) (N/A w/U-shaped seating)\
• Navigation package, custom (see AME order for details)

DECOR

• Interior décor, Grey/Toast/Navy (must select color scheme)
• Interior, custom décor (req. meeting w/WBC)
